Greenworks 21-Inch 13 Amp Kaoti Kati Marae

1. Nga Korero Haumaru Nui

Read all instructions carefully before operating this appliance. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. Save these instructions for future reference.

• Haumaru Hiko: Always use a grounded outlet. Do not expose the mower to rain or wet conditions. Avoid accidental starting. Ensure the switch is in the off-position before plugging in.
• Haumaru Whaiaro: Always wear eye protection and sturdy footwear. Do not operate the mower when barefoot or wearing open sandals. Keep hands and feet away from the cutting area.
• Haumaru Wāhi Mahi: Kia ma te waahi mahi me te whakamarama pai. Kaua e whakamahia nga taputapu hiko i roto i nga hau pupuhi, penei i te waahi o te wai ka mura, te hau, te puehu ranei. Tiakina nga tamariki me nga tangata e tu ana i te wa e whakahaere ana i te taputapu hiko.
• Tiaki: Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Maintain tools with care. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the tool’s operation.

2. Hua Neke Atuview

The Greenworks 21-Inch 13 Amp Corded Lawn Mower (MO13B00) is designed for efficient lawn maintenance. It features a powerful 13 Amp motor and a durable 21-inch steel deck, offering versatile cutting options.

This image shows the Greenworks 21-Inch 13 Amp Corded Lawn Mower from the front-right angle, featuring its bright green body, black grass catcher, and white wheels. The handle is extended, and the power cord is visible.

This diagram highlights key features of the Greenworks 21-Inch 13 Amp Corded Lawn Mower, including the easy push button start, folding handles, 3-in-1 cutting system, single lever height adjustment, powerful 13-amp motor, and 21-inch steel deck.

Āhuatanga matua:

• 13 Amp Motini: Provides high-efficiency power for consistent cutting performance.
• Papa Rino 21-Inihi: Durable cutting deck for handling large areas.
• 7 Teitei o te Tapahi: Adjustable cutting height options for various lawn conditions.
• Pūnaha Tapahi 3-i roto-i-te-1: Offers mulching, bagging, and side discharge capabilities.
• Folding Handles: Designed for compact storage, reducing space requirements.
• Tīmata Pātene Māmā: Simplifies operation, eliminating the need for gas or oil.

3. Tatūnga

Before first use, ensure the lawn mower is properly assembled and all safety components are in place.

3.1 Huinga Kakau

1. Unfold the lower handle section and secure it into position using the provided knobs or levers.
2. Attach the upper handle section to the lower handle, ensuring all cables are routed correctly and not pinched. Tighten any securing bolts or knobs.
3. Ensure the handle is firmly locked in the operating position.

This image illustrates the folding handles feature, showing a person collapsing the handles of the lawn mower for compact storage. This mechanism is also used during initial setup to extend the handles.

3.2 Grass Catcher / Discharge Chute Installation

• For bagging, lift the rear discharge door and hook the grass catcher onto the mower frame. Ensure it is securely seated.
• Mo te tukunga taha, whakapirihia te kohu tukunga taha ki te kohao kua tohua ki te taha o te papa kaikoti.
• For mulching, ensure the mulching plug is inserted into the rear discharge opening and the side discharge chute is removed.

3.3 Hononga Hiko

• Connect a suitable outdoor extension cord (recommended: 25' 14AWG or 50' 12 AWG) to the mower's power inlet.
• Use the cord retainer to secure the extension cord, preventing accidental disconnection during operation.
• Plug the extension cord into a grounded 120V AC outlet.

4. Nga Tohutohu Whakahaere

Follow these steps for safe and effective operation of your Greenworks lawn mower.

4.1 Te Tīmata i te Mīhini Tapatapahi

1. Ensure the mower is on a level surface and clear of debris.
2. Press and hold the safety button (if applicable).
3. Pull the bail switch lever towards the handle. The motor will start.
4. Tukuna te paatene haumaru ina rere ana te motuka.

This close-up image shows the easy push button start mechanism located on the handle of the Greenworks lawn mower, emphasizing its simple operation without gas or oil.

4.2 Te Whakatikatika i te Teitei o te Tapahi

The mower features a 7-position single lever height adjustment.

1. Ensure the mower is turned off and unplugged before adjusting the cutting height.
2. Locate the single lever on the side of the mower deck.
3. Pull the lever outwards and move it forward or backward to select one of the seven desired cutting height positions.
4. Release the lever to lock it into place.

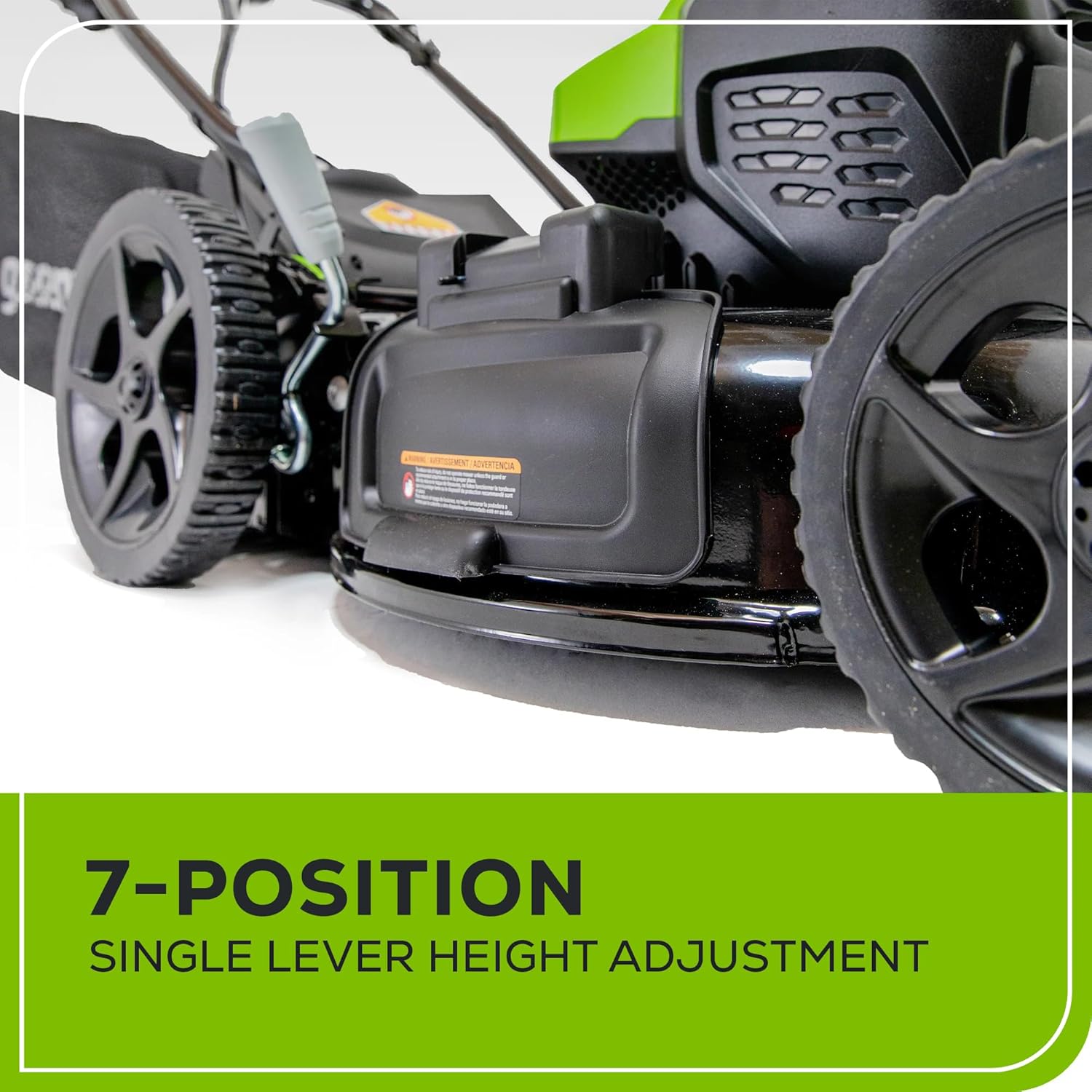

Ka whakaratohia e tenei whakaahua he tata view of the 7-position single lever height adjustment mechanism on the Greenworks lawn mower, demonstrating how users can easily change the cutting height.

4.3 3-in-1 Cutting System (Mulching, Bagging, Side Discharge)

Your mower offers three ways to manage grass clippings:

• He ngoue: For finely cut grass that returns nutrients to the lawn. Ensure the mulching plug is installed and the side discharge chute is removed.
• Puke: For collecting clippings in the grass catcher. Install the grass catcher and remove the mulching plug and side discharge chute.
• Tuku Taha: For discharging clippings out the side of the mower. Install the side discharge chute and remove the mulching plug and grass catcher.

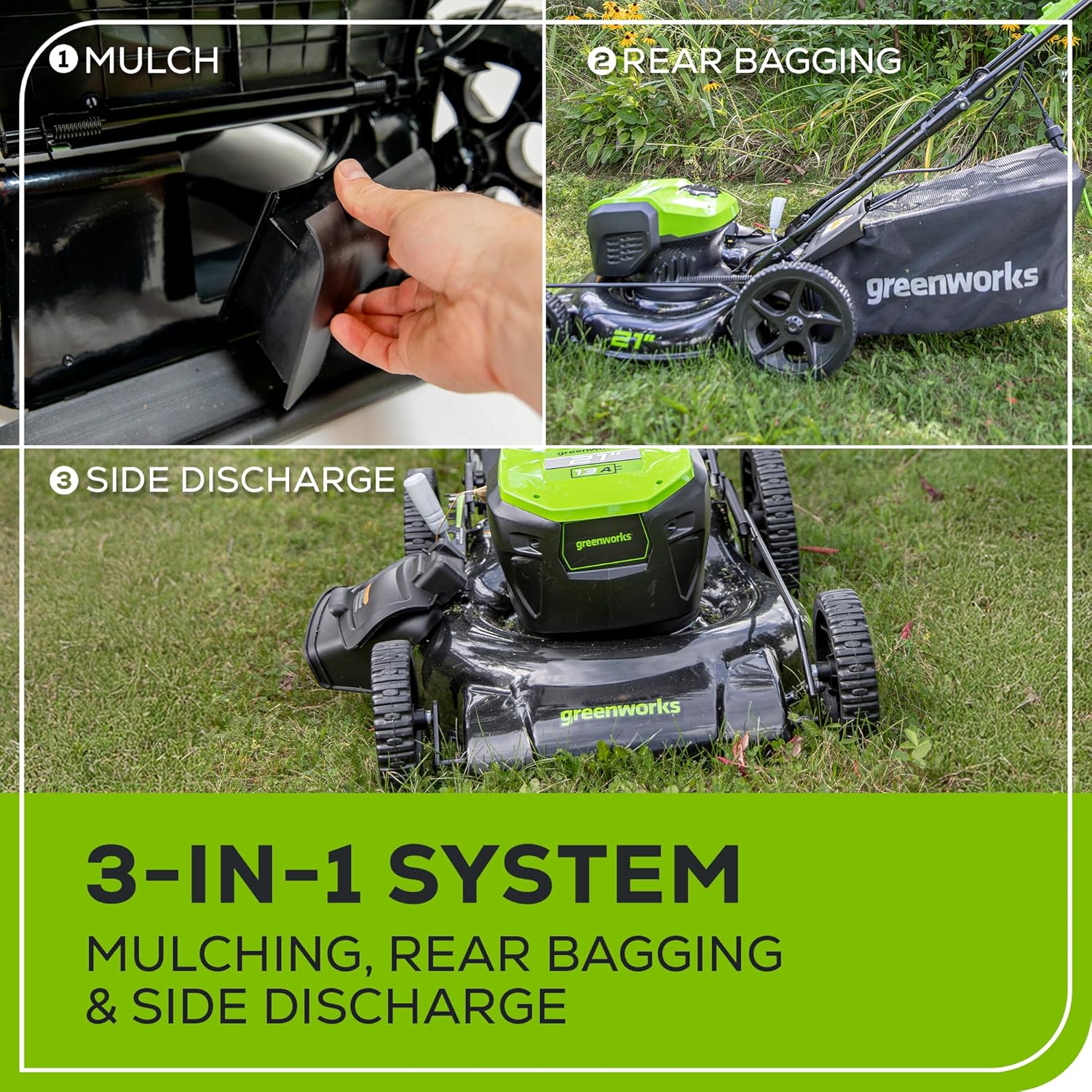

This composite image demonstrates the 3-in-1 cutting system: (1) Mulching, showing the internal mulching plug; (2) Rear Bagging, with the grass catcher attached and collecting clippings; and (3) Side Discharge, with the side chute in place.

5. Tiaki

Regular maintenance ensures optimal performance and extends the life of your lawn mower. Always disconnect the power cord before performing any maintenance.

5.1 Te horoi

• I muri i ia whakamahinga, horoi i te taha o raro o te rahoraho kaikoti kia kore ai e tipu te tarutaru, ka pa ki te mahi tapahi.
• Horoia te taha o waho me te panuiamp kakahu. Kaua e whakamahia ngā pupuhi wai, ngā horoi pehanga rānei ki runga tika i te motuka, i ngā wāhanga hiko rānei.
• Empty and clean the grass catcher regularly.

5.2 Tiaki Mata

• Inspect the blade regularly for sharpness and damage. A dull blade tears grass, leading to an unhealthy lawn.
• If the blade is dull, it can be sharpened by a qualified service technician or replaced with a genuine Greenworks replacement blade.
• Ensure the blade is balanced after sharpening to prevent vibration.

5.3 Rokiroki

• Horoia rawatia te kaoti i mua i te rokiroki.
• Fold the handles for compact storage.
• Penapenahia te mīhini tapahi tarutaru ki te wāhi maroke, haumaru hoki, kia kore e taea e ngā tamariki te toro atu.

6. Te Raru

Ko tenei waahanga e whakarato ana i nga otinga mo nga take noa ka pa ki a koe.

7. Whakatakotoranga

Technical details for the Greenworks 21-Inch 13 Amp Corded Lawn Mower, Model MO13B00.

• Tauira: MO13B00
• Puna Hiko: Hiko Hiko
• Motini: 13 Amp
• Rahi Rahera: 21 inches (Steel)
• Tapahi Teitei: 7 nga tuunga
• Pūnaha tapahi: 3-i roto-i-te-1 (Te Whakatakoto i te Makuku, Te Tākai, Te Tukunga Taha)
• Rahi wira: 10-inch rear, 7-inch front
• Rahi Hua: 142.88 x 53.59 x 110.24 cm (56.25 x 21.10 x 43.40 inihi)
• Taumaha Hua: 23.31 kg (51.39 lbs)
• Kaihanga: GreenWorks
• Whenua Taketake: Vietnam

8. Pūtāhui me te Tautoko

Greenworks stands behind its products with a comprehensive warranty and dedicated customer support.

8.1 Nga Korero Whakaputanga

The Greenworks 13 Amp 21" Corded Push Lawn Mower (MO13B00) features a 3 Tau Rarangi Taputapu Taputapu. This warranty covers defects in materials and workmanship from the date of purchase. Please refer to the official Greenworks warranty policy for full terms and conditions, including exclusions and limitations.

8.2 Tautoko Kiritaki

For technical assistance, warranty claims, or to order replacement parts, please contact Greenworks customer support. Have your model number (MO13B00) and date of purchase ready when contacting support.

Tirohia te Greenworks mana webpae mo nga korero whakapā hou me nga rauemi tautoko.
