1. Kupu Whakataki
This manual provides detailed instructions for the installation, operation, and maintenance of your BAFANG BBS02B 48V 500W Mid Drive Electric Bike Motor Kit. This kit is designed to convert standard bicycles with a 68-73mm bottom bracket into electric-assisted bicycles, offering both electric and pedal-assisted riding modes. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Nga korero haumaru
- Always wear a helmet and appropriate safety gear when riding an electric bicycle.
- Ensure all connections are secure and waterproof before riding.
- Regularly inspect your bicycle and motor kit for any signs of wear or damage.
- Do not modify the motor or battery system. Unauthorized modifications can lead to malfunction and void the warranty.
- Be aware of local laws and regulations regarding electric bicycles and motor power limits.
- Avoid long exposure to direct sunlight, especially for the battery and display components.
- Avoid riding in heavy rainstorms to prevent water damage to electrical components.
Avoid prolonged exposure to direct sunlight to protect electronic components.
Do not ride in heavy rain to prevent water damage.
3. Ihirangi mokete

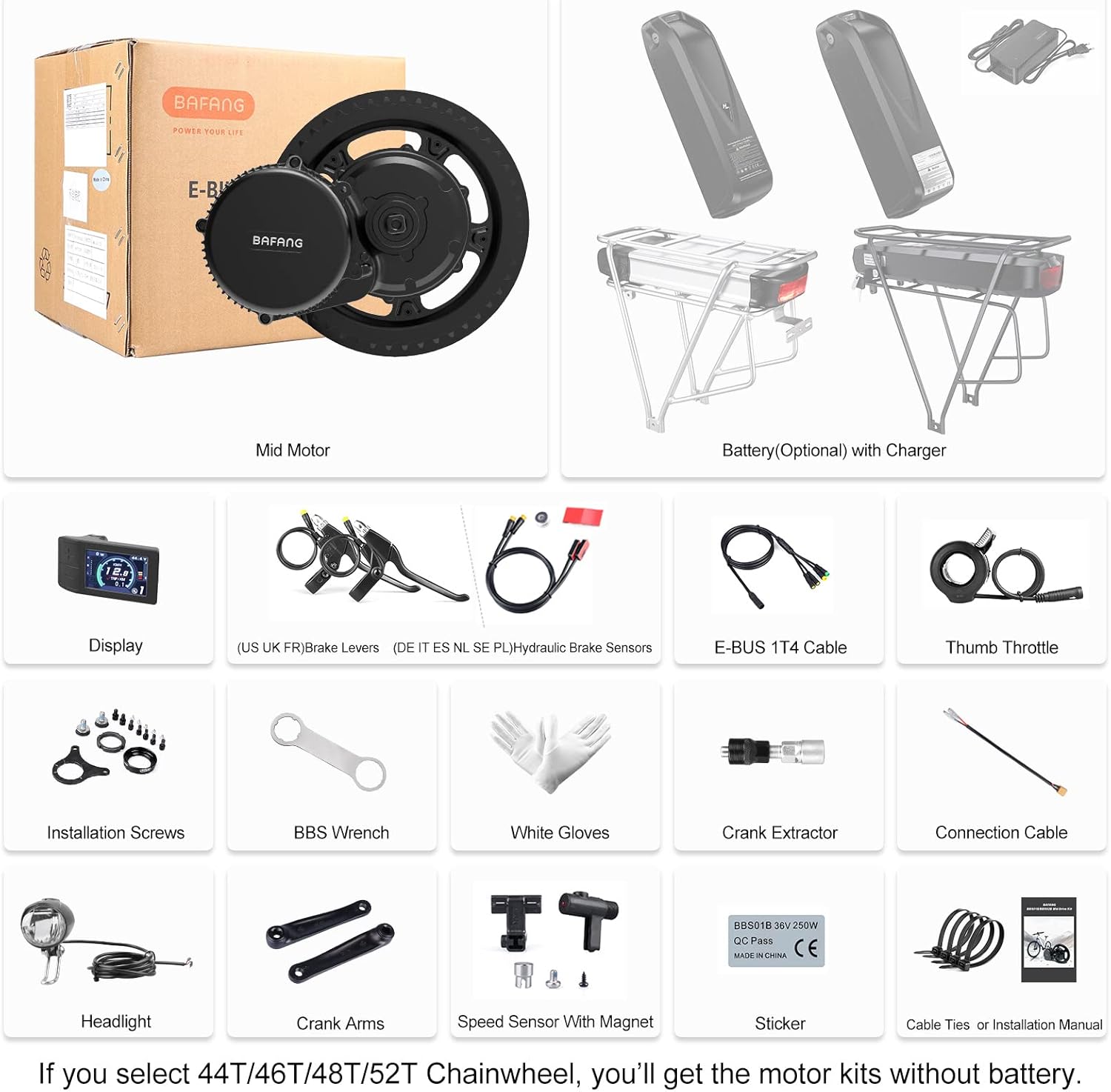

The BAFANG BBS02B 48V 500W Mid Drive Motor Kit includes the following components:
- BAFANG Mid Drive Motor (BBS02B 48V 500W)
- Chainwheel (Optional: 36T, 44T, 46T, 48T, 52T)
- Nga Puka Tangata
- Display (Optional, various models available)
- Te koromatua koromatua
- Brake Levers or Brake Sensors (for hydraulic/mechanical brakes)
- Speed Sensor with Magnet
- E-BUS 1T4 Cable
- Installation Screws and Nuts
- BBS Wrench
- Tangohanga Crank
- Tauira Hononga
- Rama (Kōwhiringa)
- Battery (Optional, various types available)
- Charger (if battery is included)
- Nga karapu ma
- Whakapiri
- Nga here taura
- Pukapuka Tohutohu
Ka mutuview of the BAFANG Mid Drive Motor Kit components. Note that battery and display are optional and may vary.
4. Tatūnga me te Tāuta
4.1. Tirohanga Hototahi
The BAFANG BBS02B motor is designed to fit bicycles with a standard JIS bottom bracket shell measuring 68mm to 73mm in width. It is not recommended for fat tire bikes or bikes with carbon fiber frames, as installation may cause damage to the frame.
Measure your bike's bottom bracket to ensure compatibility (68-73mm width, inner diameter ≥ 34.5mm).
4.2. Motor Mounting
Installation requires basic bicycle tools, including a crankset removal tool and a bottom bracket tool. The motor mounts directly into the bottom bracket shell. Ensure the motor is securely fastened using the provided installation screws and BBS wrench.
Mounting parameters for different bottom bracket widths. Carefully measure your chainstay dimensions.
4.3. Hononga Hiko
Connect the various components (display, throttle, brake sensors, speed sensor, headlight, and battery) to the main motor unit using the E-BUS 1T4 cable and other provided wiring. Ensure all connections are firm and correctly oriented to prevent electrical issues.
Wiring diagram for the BAFANG mid-drive motor kit. Ensure all components are connected correctly.
4.4. Chainwheel Installation
Select the appropriate chainwheel (36T, 44T, 46T, 48T, or 52T) based on your riding preference and bike's chainline. Install the chainwheel onto the motor spindle, ensuring proper offset for optimal chain alignment.
Chainwheel offset considerations for different chainring sizes.
5. Nga Tohutohu Whakahaere
5.1. Tikanga Whakaeke
The BAFANG BBS02B motor supports two primary riding modes:
- Electric Bike Mode: Provides power assistance via the throttle, allowing for motor-only propulsion.
- Aratau Āwhina Pahikara (PAS): The motor provides assistance based on your pedaling input, with adjustable assistance levels (typically 0-9 levels depending on the display).
5.2. Whakaatu Whakamahinga
The optional display unit provides essential information such as speed, battery level, assistance level, and trip distance. Refer to your specific display model's manual for detailed operation instructions. Many displays feature a USB port for charging mobile devices.
Example of a BAFANG display showing 5 assist levels and a USB charging port.
Various optional BAFANG display models and their key features.
6. Tiaki
Regular maintenance ensures the longevity and optimal performance of your BAFANG motor kit.
- Te horoi: Keep the motor and electrical connections clean and free from dirt and debris. Use a damp cloth for cleaning; avoid high-pressure washing directly on electrical components.
- Whakahinuhinu: Periodically lubricate the bicycle chain and other moving parts as per standard bicycle maintenance.
- Tiaki Pūhiko: Follow the battery manufacturer's instructions for charging, storage, and temperature guidelines. Avoid fully discharging the battery.
- Tirotiro: Regularly check all bolts and fasteners for tightness. Inspect cables for any signs of fraying or damage.
Perform daily maintenance to keep your kit in good condition.
7. Te Raru
This section addresses common issues you might encounter with your BAFANG mid-drive motor kit.
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Motor not providing power | Loose electrical connection, low battery, display error code | Check all cable connections, charge battery, consult display manual for error codes. |
| Āwhina pētera koretake | Speed sensor misalignment, incorrect PAS level setting | Ensure speed sensor and magnet are correctly aligned and close enough. Adjust PAS level on display. |
| Ngā haruru rerekē mai i te motuka | Loose chainring, internal motor issue, debris | Check chainring bolts. If noise persists, contact technical support. |
| Whakaatu kaore e ka ana | Battery off, loose display cable, faulty display | Ensure battery is turned on. Check display cable connection. If still off, contact support. |
8. Whakatakotoranga
| Āhuahira | Whakatakotoranga |
|---|---|
| Waitohu | Bafang |
| Tauira | BBS02B |
| Voltage | 48 Volts |
| Mana | 500 Watts |
| Hototahitanga o te Paepae o raro | JIS 68-73mm |
| Max Torque | 100 Nm |
| Whakatauranga parewai | IPX5 |
| Taumaha Motuhake | 4.3 KG |
| Rauemi (Tapare) | Carbon Fiber (Note: Not recommended for carbon fiber bike frames) |
Key specifications of the BAFANG BBS02B Mid Drive Motor.
8.1. Optional Battery Specifications
Various battery options are available, including downtube, triangle, and rear rack batteries, with different capacities and cell types.
Specifications for optional BAFANG batteries.
9. Pūtāhui me te Tautoko
BAFANG provides a one-year warranty for the BBS02B Mid Drive Electric Bike Motor Kit. Technical support and after-sales service are available in the US. For warranty claims or technical assistance, please contact BAFANG customer service through their official channels or your point of purchase.
Brake levers can be changed to hydraulic and mechanical brake sensors. Search ASIN B07B8KNTYN for compatible brake sensors if needed.
