IDEALHOUSE Queen Platform Bed Frame with Storage and 4 Drawers - Instruction Manual

1. Kupu Whakataki

Thank you for choosing the IDEALHOUSE Queen Platform Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This bed frame features a button-tufted upholstered headboard, four integrated storage drawers, and a sturdy wood slat support system, eliminating the need for a box spring.

2. Nga korero haumaru

• Tepe Taumaha: The bed frame has a maximum weight limit of 700 pounds. Do not exceed this limit.
• Huihuinga: Two people are recommended for assembly to ensure safety and ease. Keep all small parts and packaging materials away from children during assembly.
• Utauta: Use only the tools provided or appropriate hand tools. Power tools are not recommended as they may overtighten screws and damage the frame.
• Pūmautanga: Ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten all connections.
• Turanga: Whakanohoia te anga moenga ki runga i te mata taumata.

3. Rarangi Waahanga me nga Waahanga

Before assembly, verify that all parts and hardware are accounted for by comparing them with the included parts list in your package. Keep all packaging until assembly is complete.

Pikitia 3.1: Ngā Ahu me ngā Wāhanga o te Hua Neke atu i teview.

Wae matua:

• Upholstered Headboard
• Rerewe Taha (Mauī me Matau)
• Waatakirua
• Wood Slats with Quick-Lock Mechanism
• 4 Storage Drawers (with wheels and fabric fronts)
• Center Support Beam and Legs
• Hardware Pack (bolts, washers, Allen wrench, small wrench)

4. Nga Tohutohu Huihuinga

Follow these steps carefully for proper assembly. Refer to the numbered parts in your package and the provided diagrams.

4.1. Huinga Anga

1. Unpack all components and lay them out on a clean, soft surface to prevent scratches. Verify all parts against the parts list.
2. Attach the side rails to the headboard and footboard using the provided bolts and Allen wrench. Ensure all connections are snug but do not fully tighten until the entire frame is assembled.
3. Install the center support beam and its legs to the main frame.
4. Place the wood slats onto the frame. The slats are designed with a bolt-free quick-lock mechanism for easy installation. Ensure they are securely in place.

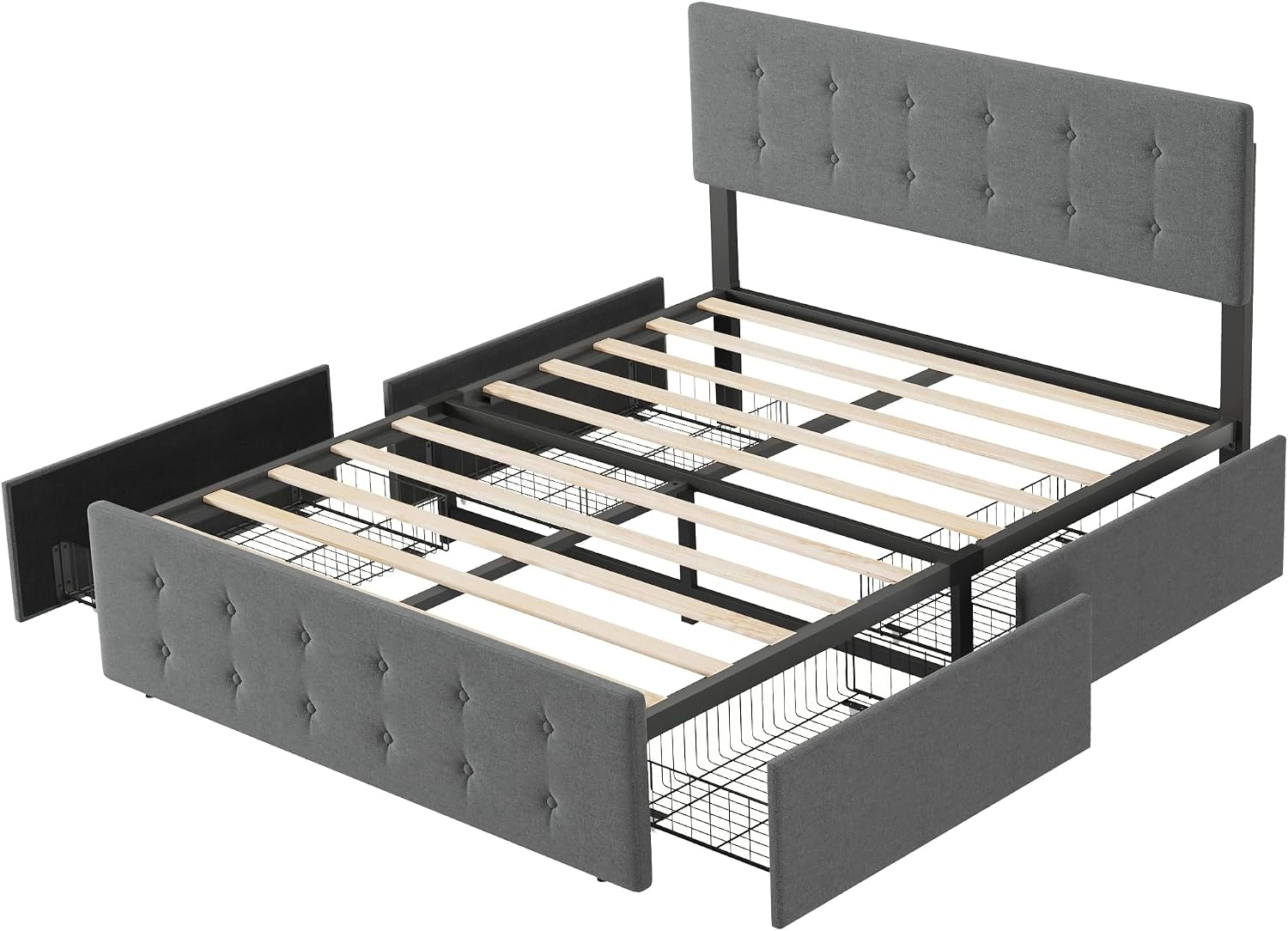

Figure 4.1: Bed Frame Structure with Wood Slats.

4.2. Huinga Pouaka

Each of the four storage drawers requires assembly of its wire basket and attachment to the fabric front panel.

1. Assemble the wire basket components. The sides typically hook into the base.
2. Attach the wheels to the bottom of the wire basket using the provided screws. Ensure they are firmly attached for smooth operation.
3. Secure the assembled wire basket to the fabric front panel using the designated screws. Lay the fabric panel flat for easier attachment.
4. Repeat for all four drawers.

Figure 4.2: Drawer Wheel Attachment.

4.3. Finalizing Assembly

1. Once all components are in place, go back and fully tighten all bolts and screws on the bed frame.
2. Slide the assembled drawers into their designated spaces under the bed frame.

Figure 4.3: Fully Assembled Bed Frame with Storage Drawers.

4.4. Aratohu Ataata Huihuinga

Mō tētahi aratohu tirohanga mō te tukanga huihuinga, tirohia te ataata whaimana i raro nei:

5. Nga Tohutohu Whakahaere

5.1. Using the Storage Drawers

The bed frame includes four steel-framed drawers designed for convenient under-bed storage. These drawers are equipped with smooth-rolling wheels for easy access. Each drawer also has two fixed holes to prevent accidental sliding once closed.

• To open: Gently pull the fabric front panel of the drawer outwards.
• To close: Push the drawer inwards until it aligns with the bed frame. The fixed holes will help secure it in place.

Figure 5.1: Under-bed Storage Drawers in Use.

5.2. Adjusting the Headboard Height

The upholstered headboard is adjustable to accommodate different mattress heights or personal preference.

• The headboard can be adjusted to two height settings: 39.4 inches or 45.7 inches.
• To adjust: Loosen the bolts connecting the headboard to the frame. Carefully slide the headboard to the desired height setting, ensuring the holes align. Re-tighten the bolts securely.

Figure 5.2: Adjustable Headboard Mechanism.

6. Tiaki

• Tiaki Upholstery: The linen fabric upholstery should be dry cleaned only. Do not use liquid cleaners or harsh chemicals, as this may damage the fabric.
• Tiaki Tāpare: Horoia te anga whakarewa ki te ngohengohe, damp kakahu. A ape i nga kai horoi abrasive.
• Takitaki auau: Periodically inspect all bolts and connections to ensure they remain tight. Re-tighten as necessary to maintain stability and prevent noise.
• Tiaki Kaituku: Puritia kia kore he paru i roto i ngā wira o te pouaka kia maeneene ai te mahi.

7. Te Raru

Mena ka pa ki a koe etahi take mo to anga moenga, tirohia nga rongoa e whai ake nei:

• Te wiri, te koretake ranei: Ensure all bolts and screws are fully tightened. Check that the center support legs are properly aligned and making contact with the floor.
• Noisy Frame: Loose connections are a common cause of noise. Re-tighten all hardware. Ensure slats are correctly seated in their quick-lock positions.
• Karekau nga Kaiutuutu e retireti maeneene: Check for any obstructions under the bed or in the drawer tracks. Ensure the drawer wheels are clean and properly attached.
• Nga waahanga kua ngaro, kua pakaru ranei: If you received a product with missing or damaged parts, please contact IDEALHOUSE customer support for assistance.

8. Whakatakotoranga

9. Pūtāhui me te Tautoko

For any questions, concerns, or assistance with your IDEALHOUSE Queen Platform Bed Frame, please contact IDEALHOUSE customer support. Refer to your purchase documentation for specific warranty details and contact information.
