BAFANG 48V500W Front Hub Motor Electric Bike Conversion Kit User Manual

1. Kupu Whakataki

This manual provides detailed instructions for the installation, operation, and maintenance of your BAFANG 48V500W Front Hub Motor Electric Bike Conversion Kit. Please read this manual thoroughly before installation and use to ensure proper function and safety. This kit is designed to convert a standard bicycle into an electric bicycle, offering enhanced propulsion and riding experience.

2. Hototahi Hua

The BAFANG 48V 500W Front Wheel Hub Motor is designed for universal compatibility with various bicycle types. Ensure your bicycle meets the following specifications:

• Front Dropout: 100mm
• Front Fork Aperture: 10mm
• Compatible Brake Types: V Brake and Disc Brake
• Whānui o te Tāia Hototahi: 1.5-2.4 inihi

The kit supports multiple wheel sizes:

Refer to the images below for visual guidance on compatibility and installation width.

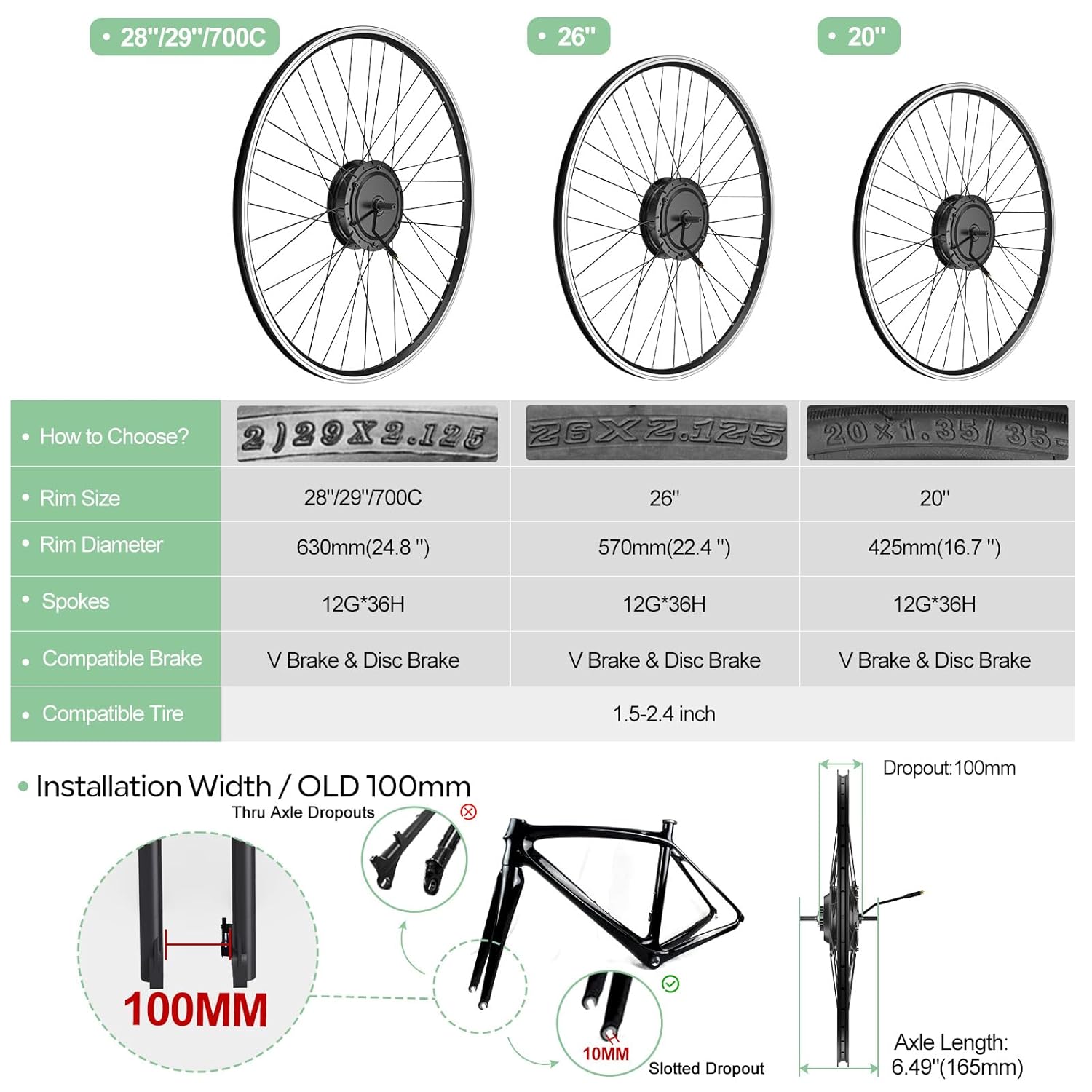

Image: Wheel size compatibility and front fork installation dimensions.

Image: Brake type compatibility and motor installation details.

3. Nga Waahanga Nekeview (Packing List)

The BAFANG Front Hub Motor Kit includes the following components. Please verify all items are present upon unboxing.

• Front Hub Motor with Wheel (20"/26"/700C, optional)
• Kaiwhakahaere Motini
• Te koromatua koromatua
• 1T4 Cable (main wiring harness)
• Ebike Display (optional, various models available)
• Brake Levers or Brake Sensors
• PAS Sensor (Pedal Assist System)
• Maramarama
• Pouaka Kaiwhakahaere
• Ngā Whitiki Kirihou
• 36V/250W Stickers
• Ebike Battery (optional, needs extra purchase if not included)

Image: Detailed packing list of the conversion kit components.

4. Tāutanga

Follow these steps to install your BAFANG Front Hub Motor Conversion Kit:

1. Whakaritea te Pahikara: Remove the existing front wheel from your bicycle. Ensure the front fork dropouts are clean and free of obstructions.
2. Install the Motor Wheel: Carefully insert the BAFANG front hub motor wheel into the front fork dropouts. Ensure the axle is fully seated and secure it with the provided nuts. The motor cable should exit towards the bottom or rear of the fork.
3. Maunga te Kaiwhakahaere: Attach the controller box to a suitable location on your bicycle frame, typically near the battery or motor, using the provided plastic straps or mounting hardware. Ensure it is protected from water and impact.
4. Install Display and Throttle: Mount the display and thumb throttle on the handlebars. Position them for comfortable and safe access during riding.
5. Install Brake Levers/Sensors: Replace your existing brake levers with the provided e-bike specific brake levers, or install the brake sensors onto your existing brake levers. These are crucial for motor cut-off during braking.
6. Tāutahia te Pūoko PAS: Attach the Pedal Assist System (PAS) sensor to the bottom bracket area of your bicycle. Ensure the magnet disc is correctly aligned with the sensor for accurate pedal detection.
7. Tūhono Waea: Use the 1T4 cable to connect all components to the controller. Refer to the connection diagram below for proper wiring. Each connector is typically color-coded and uniquely shaped to prevent incorrect connections.
8. Tāutahia te Maama: Mount the headlight to the front of your bicycle and connect it to the designated port on the controller or 1T4 cable.
9. Whakauruhia te Pataha: Securely mount the battery to your bicycle frame (if purchased separately). Connect the battery to the controller using the appropriate power cable. Ensure the XT60 connector on the motor cable is compatible with your battery connector.
10. Whakaha Uepu: Neatly route and secure all cables using plastic straps to prevent them from interfering with moving parts or getting damaged.

Image: Kit connection diagram for electrical components.

Image: Brake lever and sensor installation options.

5. Kōwhiringa Whakaatu

The kit supports various display models, each offering different features and interfaces. Choose the display that best suits your needs. Common display models include 500C, DPC18, P860ML, DZ40, EKD01, 800S, SW2-M58, and DM03.

Image: Detailed comparison of available display options.

6. Hototahi Pūhiko

The BAFANG Front Hub Motor is compatible with 48V and 52V electric bike batteries. If you selected the 'without battery' option, ensure you prepare a compatible battery in advance. The motor is equipped with a male XT60 connector, so your battery connector must be compatible.

Compatible battery capacities include 48V 13Ah, 17.5Ah, 19.2Ah, 20Ah, and 52V 20Ah. Refer to the tables below for detailed battery parameters.

Image: Parameters for various 48V ebike batteries.

Image: Parameters for various 52V ebike batteries.

7. Mahi

Once installed, operate your e-bike as follows:

1. Whakahiko: Turn on the battery and then press the power button on your display unit.
2. Select Assist Level: Use the buttons on your display to select the desired pedal assist level (PAS). Higher levels provide more motor assistance.
3. Awhina Pedal: Begin pedaling, and the motor will engage to provide assistance based on your selected PAS level.
4. Throttle Use: If equipped, the thumb throttle can be used to provide power without pedaling. Use it cautiously, especially when starting.
5. Piripiri: The brake levers/sensors will cut off motor power when engaged, ensuring safe stopping.
6. Weto Whakakore: When finished riding, turn off the display and then the battery.

8. Tiaki

Regular maintenance ensures the longevity and optimal performance of your e-bike kit:

• Te ma: Keep the motor, controller, and battery clean and free from dirt and debris. Use a damp cloth; avoid high-pressure washing directly on electrical components.
• Hononga: Periodically check all electrical connections for tightness and corrosion. Ensure cables are not pinched or damaged.
• Tiaki Pūhiko: Whakakīia te pākahiko i ia wā, ahakoa kāore e whakamahia ana, kia mau tonu ai tōna hauora. Penapenahia te pākahiko ki te wāhi hauhautanga, maroke hoki. Kaua e tukua kia pau katoa te pākahiko.
• Parai: Regularly inspect brake pads and cables (or hydraulic fluid) to ensure effective braking. Adjust or replace as needed.
• Pēhanga Tire: Maintain correct tire pressure for optimal efficiency and safety.
• Te Tiaki Pahikara Whānui: Continue with regular bicycle maintenance, including chain lubrication, gear adjustments, and checking for loose bolts.

9. Te Raru

Mena ka tūtaki koe ki ngā raruraru, tirohia ēnei tohutohu rapurongoā noa:

• Kāore te Mōta e Whakauru:
  • Check if the battery is charged and powered on.
  • Me whakarite kia mau nga hononga hiko katoa.
  • Verify the PAS sensor is correctly installed and aligned.
  • Check if brake levers are fully released; engaged brake sensors will cut motor power.
• Kāore te Whakaaturanga e Tahuri Ana:
  • Confirm the battery is powered on and connected.
  • Check the display cable connection to the 1T4 cable/controller.
• Reduced Power/Range:
  • Kia mohio kua oti te puhiko.
  • Tirohia te pehanga tupare.
  • Verify the selected PAS level is appropriate.
  • Environmental factors (temperature, terrain) can affect performance.
• Haruru rerekee:
  • Inspect the motor for any loose components or obstructions.
  • Check spokes for tightness.

Mena kei te haere tonu nga raru, whakapa atu ki te tautoko a nga kaihoko mo etahi atu awhina.

10. Whakatakotoranga

Key technical specifications for the BAFANG 48V500W Front Hub Motor Kit:

• Momo Motuka: Motiera Hub o mua
• Whakatauhia Voltage: 48V
• Te Mana Whakatau: 500W
• Toru Morahi: 65N.m
• Max Load Speed (28"): 40KM/H
• Kore-utaina o nāianei: <1.8A
• Whakatauhia o nāianei: <13.8A
• Wheel Diameter Compatibility: 20"/26"/700C
• Tere Whakatau: 340±15 RPM
• Taumata Haruru: <55 dB
• Te Waahi Mahi: -20°C ~ 45°C
• Whakatauranga parewai: IPX5
• Compatible Frame Spacing: 97-103mm
• Controller Max Current: 18A
• Controller Rated Current: 9A
• Pūmana Whakatauranga Rōrahitage: 48V
• Controller Low Voltage Parenga: 39 ± 1V
• Ahu Kaiwhakahaere: L 93.8mm x W 49mm x H 29mm

Image: Motor and controller specifications.

11. Pūtāhui me te Tautoko

Your BAFANG Front Hub Motor Electric Bike Conversion Kit comes with a warranty:

• Kaupapa Whakahoki: 30 days return.
• Whakatika, Whakakapi ranei: 365 days repair or replace.

For technical support, warranty claims, or any questions regarding your product, please refer to the contact information provided with your purchase or visit the official BAFANG webpae.
