1. Hua Neke Atuview
The Fanvil V60P is a professional IP phone designed for business communication. It features a color display, programmable keys, and Power over Ethernet (PoE) support for simplified installation and operation. This manual provides essential information for setting up, operating, and maintaining your device.

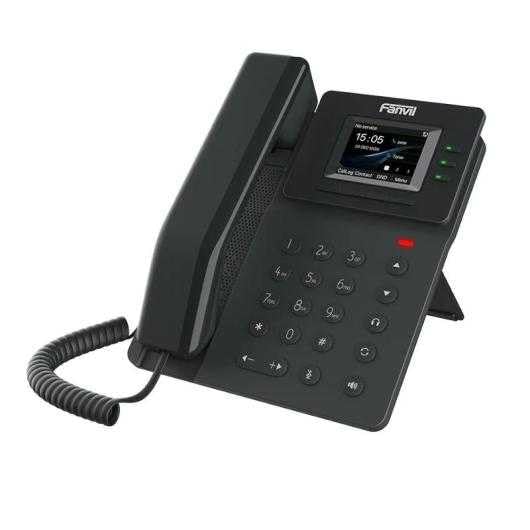

Figure 1: Fanvil V60P Professional IP Phone. This image shows the black IP phone with its handset, color display, and numeric keypad. The display shows "15:05" and menu options.
2. Tatūnga me te Tāuta
2.1 Ihirangi mokete
Before installation, verify that all items are present in the package:
- Fanvil V60P IP Phone unit
- Waea pūkoro me te taura takai
- taura Itarangi
- Tu
- Aratohu Tāutanga Tere (mēnā kei roto)
2.2 Hononga Tinana
- Whakapirihia te Tu: Securely attach the desk stand to the back of the phone unit.
- Honoa te Pukoro: Monohia tetahi pito o te taura kopiko ki te waea pūkoro, me tetahi pito ki te tauranga waea pūkoro kei te turanga waea.
- Connect to Network and Power (PoE):
- Honoa tetahi pito o te taura Ethernet ki te LAN port on the phone.
- Connect the other end of the Ethernet cable to a Power over Ethernet (PoE) enabled switch or injector. The phone will power on automatically.
- Hono atu ki te PC (Whiringa): If you need to connect a computer through the phone, connect an Ethernet cable from your PC to the PC port on the phone.
Note: If PoE is not available, a separate power adapter (not included) may be required. Refer to the product specifications for compatible power adapter details.
3. Nga Tohutohu Whakahaere
3.1 Ngā Mahi Waea Taketake
- Te Waea:
- Tangohia ake te waea pūkoro, pēhi rānei i te pātene Pūoro.
- Waeahia te tau e hiahiatia ana ma te papapātuhi.
- Pehia te Waea soft key or wait for the automatic dialing timeout.
- Whakautu i te Karanga:
- Tangohia te ringaringa.
- Alternatively, press the Speakerphone button or the Whakautu kī ngohengohe.
- Whakamutua te Waea: Whakawetohia te waea pūkoro, pēhi rānei i te pātene Pūorooro.
3.2 Using Programmable DSS Keys
The Fanvil V60P features 6 programmable DSS (Direct Station Select) keys. These keys can be configured for various functions such as speed dial, line keys, busy lamp field (BLF), or other custom features as defined by your system administrator.
- To use a programmed DSS key, simply press the corresponding button.
- Configuration of DSS keys is typically done via the phone's web interface or your IP PBX system.
3.3 Local Phonebook
The phone supports a local phonebook with up to 1000 entries.
- Access the phonebook via the Whaiaronga or Hoapā soft key on the display.
- Use the navigation keys to browse entries.
- Tīpakohia tētahi tāurunga, ka pēhi i te Waea te pātene ngohengohe hei tīmata waea.
3.4 Audio Conferencing
The V60P supports local 6-party audio conferencing.
- Establish a call with the first participant.
- Pehia te Conf soft key. The first participant will be put on hold.
- Dial the number of the second participant and establish the call.
- Pehia te Conf soft key again to merge all participants into a conference.
- Repeat steps 2-4 to add more participants, up to a total of 6.
4. Tiaki
4.1 Te horoi i te taputapu
To maintain the appearance and functionality of your Fanvil V60P IP Phone (made of plastic material), follow these cleaning guidelines:
- Disconnect the phone from its power source (PoE) before cleaning.
- Whakamahia he ngohengohe, paku damp, lint-free cloth to wipe the surfaces.
- Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the plastic and display.
- Kaua e rehuhia ngā mea horoi tika ki runga i te waea.
4.2 Whakahoutanga Firmware
Firmware updates may be released periodically to improve performance, add features, or fix bugs. Consult your IT administrator or Fanvil's official website for information on available updates and instructions for installation.
5. Te Raru
This section addresses common issues you might encounter with your Fanvil V60P IP Phone.
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Karekau te waea i te hiko. | No PoE connection or faulty Ethernet cable. | Ensure the Ethernet cable is securely connected to the LAN port and a PoE-enabled switch/injector. Verify the PoE source is active. |
| Kaore he reo waea. | SIP registration failure or network issue. | Check network connectivity. Verify SIP account settings with your IT administrator. Restart the phone. |
| Kāore e taea te waea/whiwhi waea. | Network issues, incorrect SIP configuration, or firewall blocking. | Confirm network connection. Check SIP registration status on the phone's display. Contact your IT administrator for network and SIP configuration verification. |
| He kino te kounga ororongo. | Network congestion or faulty handset/speaker. | Check network bandwidth and latency. Try using a different handset or speaker mode. If the issue persists, contact support. |
6. Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Tauira | V60P |
| Pūnaha | Linux |
| Whakaatu | 2.4-inch, 320 x 240 Color Screen |
| DSS Kī | 6 Kī Papatono |
| SIP Lines | 4 |
| Local Phonebook | 1000 Tuhinga |
| Pukoro | Pukoro Waea |
| Huihuinga Ororongo | 6-party Local Conference |
| Wideband Codecs | G.722, Opus |
| Narrowband Codecs | G.711, G.723.1, G.726, G.729, G.729A, G.729B, G.729AB, iLBC |
| PoE | Ae |
| Tauranga Whatunga | 2 x 10/100 Mbps Ngā Tauranga Ipurangi |
| Tautoko EHS | Ae |
| Tautoko IPv6 | Ae |
| Rauemi | Kirihou |
| Ahu (LxWxH) | 15 x 200 x 15 cm |
| Taumaha | 600 Karamu |
| ID Kaiwaea | Ae |
| Multi-line Operation | Ae |
| Conference Call Functionality | Support Multiple Conferences |
| Standby Duration (if applicable) | 10 haora |
7. Pūtāhui me te Tautoko
7.1 Hua Whakatau
The Fanvil V60P IP Phone comes with a pūtāhui toru tau mō ngā hapa hangahanga. Ka kapi tenei raihana i nga hapa o nga rawa me nga mahi i raro i te whakamahinga noa. Tena koa pupurihia to tohu mo te hoko mo nga kereme whakamana.
7.2 Tautoko Hangarau
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your reseller or Fanvil's official customer support channels. You may need to provide your product model (V60P) and serial number.
