Finder 80.01.0.240.0000 Multifunction Time Delay Relay User Manual

Tauira: 80.01.0.240.0000

1. Kupu Whakataki

This manual provides essential information for the safe and efficient use of the Finder 80.01.0.240.0000 Multifunction Time Delay Relay. This device is designed for precise timing control in various applications, offering multiple functions and a wide time range. Please read this manual thoroughly before installation and operation.

2. Tatūnga me te Tāuta

Proper installation is crucial for the reliable operation of the time delay relay. Ensure all power is disconnected before proceeding with installation.

2.1 Hua Neke atuview

Mua view of Finder 80.01.0.240.0000 Time Delay Relay

Whakaahua 1: Mua view of the Finder 80.01.0.240.0000 Time Delay Relay, showing the time setting dial, function selector, and terminal markings.

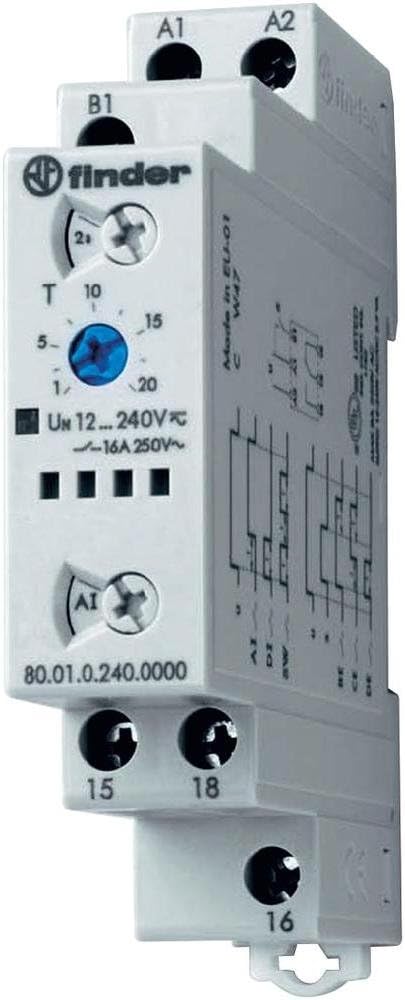

Koki view of Finder 80.01.0.240.0000 Time Delay Relay

Whakaahua 2: Koki view of the Finder 80.01.0.240.0000 Time Delay Relay, illustrating its compact design and DIN rail compatibility.

2.2 Whakapiki

The Finder 80.01.0.240.0000 relay is designed for DIN rail mounting. Securely attach the relay to a standard 35mm DIN rail in an appropriate enclosure, ensuring adequate ventilation.

2.3 Waea Whakahoahoa

Refer to the wiring diagrams below for correct electrical connections. Ensure all connections are tight and conform to local electrical codes.

Wiring diagrams for Finder 80.01.0.240.0000 Time Delay Relay

Figure 3: Wiring diagrams for the Finder 80.01.0.240.0000 Time Delay Relay. The left diagram shows basic connection for terminals A1, A2, 15, 16, 18. The right diagram includes an external control input 'S' at terminal B1.

  • Pūnaha Hiko (A1, A2): Honoa te mana voltage (12-240V AC/DC) to terminals A1 and A2.
  • Control Input (B1): For functions requiring an external control signal, connect the signal to terminal B1.
  • Output Contacts (15, 16, 18): These are changeover contacts. Terminal 15 is the common, 16 is normally closed (NC), and 18 is normally open (NO). Connect your load circuit to these terminals.

2.4 Whirihoranga Tuatahi

Before applying power, set the desired time range and function using the rotary selectors on the front of the unit. The time range can be set up to 24 hours. Consult the product datasheet for specific function definitions.

3. Nga Tohutohu Whakahaere

Once installed and configured, the relay operates automatically based on the selected function and time settings.

3.1 Kōwhiringa Mahi

Rotate the function selector switch to choose the desired timing mode (e.g., ON-delay, OFF-delay, flasher). Refer to the product's technical specifications for a complete list of available functions and their descriptions.

3.2 Tautuhinga Wā

Use the time setting dial to adjust the delay period within the selected time range. The dial typically has markings for common time values. Fine-tuning may be required for precise applications.

3.3 Tohu Whakaaturanga

The relay features an LED indicator. This LED typically blinks during the timing phase and illuminates steadily when the output relay is energized, providing visual feedback on the operational status.

4. Tiaki

The Finder 80.01.0.240.0000 time delay relay is designed for long-term, maintenance-free operation. However, periodic checks can ensure optimal performance.

  • Te horoi: Keep the relay free from dust and debris. Use a dry, soft cloth for cleaning. Do not use solvents or abrasive cleaners.
  • Taki Hononga: Tirohia ngā hononga waea i ia wā, i ia wā, kia mau ai, kia kore ai hoki e waikura.
  • Nga Tikanga Taiao: Me whakarite kia noho te taiao mahi i roto i ngā awhe pāmahana me te haumākū kua tohua hei ārai i te pakaru wawe.

5. Te Raru

If the relay does not operate as expected, perform the following basic checks:

  • Kore Mana: Verify that the control voltage is correctly applied to terminals A1 and A2 and is within the specified range (12-240V AC/DC). Check fuses or circuit breakers.
  • Wā hē: Confirm that the time range and time setting dials are correctly configured for the desired delay.
  • Output Not Switching: Check the load connections to terminals 15, 16, and 18. Ensure the load is within the relay's contact rating (16A 250V~). Verify the selected function is appropriate for the application.
  • Control Signal Issue: If using an external control signal (B1), ensure it is correctly applied and within specifications.
  • Tohu LED: Observe the LED behavior. A continuously off LED may indicate no power, while an unexpected blinking pattern might suggest a fault or incorrect function selection.

If issues persist after these checks, consult a qualified electrician or contact Finder technical support.

6. Whakatakotoranga Hangarau

The following table details the key technical specifications for the Finder 80.01.0.240.0000 Multifunction Time Delay Relay.

ĀhuahiraWhakatakotoranga
Tau tauira80.01.0.240.0000
WaitohuKai kimi
Tukuna Voltage12-240V AC/DC
Whakatauranga Whakapā Huaputa16A 250V~
Awhe WāTae atu ki te 24 haora (mōrahi)
Tau o Tautuhinga6 (Functions)
RauemiPolycarbonate
Tae
Rahi Hua (D x W x H)3.5" x 0.69" x 2.39" (88.8mm x 17.5mm x 60.8mm)
Taumaha Tūemi4.54 g

6.1 Ahu

Dimensional drawing of Finder 80.01.0.240.0000 Time Delay Relay

Figure 4: Dimensional drawing of the Finder 80.01.0.240.0000 Time Delay Relay, showing measurements in millimeters for installation planning.

7. Raihana me te Tautoko

7.1 Nga Korero Whakaputanga

Finder products are manufactured to high standards and are typically covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and duration, please refer to the documentation provided with your purchase or contact Finder directly.

7.2 Tautoko Hangarau

For technical assistance, product inquiries, or support, please visit the official Finder webpaetukutuku, whakapā atu rānei ki tā rātou tari ratonga kiritaki. Kia mōhio kei a koe te nama tauira hua (80.01.0.240.0000) ina rapu tautoko ana koe.
