Kupu Whakataki
This manual provides detailed instructions for the installation, operation, and maintenance of your Blanco Piona 517667 Chrome Dishwashing Liquid Dispenser. Designed for convenience and durability, this dispenser is an ideal addition to your kitchen. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
Ka mutu te huaview
The Blanco Piona 517667 is a chrome-finished dishwashing liquid dispenser designed for seamless integration with kitchen sinks. It features a convenient top-up mechanism for easy refilling.
Āhuatanga matua:
- Convenient top-up of fluid without needing to remove the bottle from underneath the sink.
- Requires a standard 35 mm diameter hole for installation.
- Total height of the dispenser: 320 mm.
- Height to the end of the spout: 76 mm.
- Spout range: 105 mm.
- Liquid capacity: 500 ml.

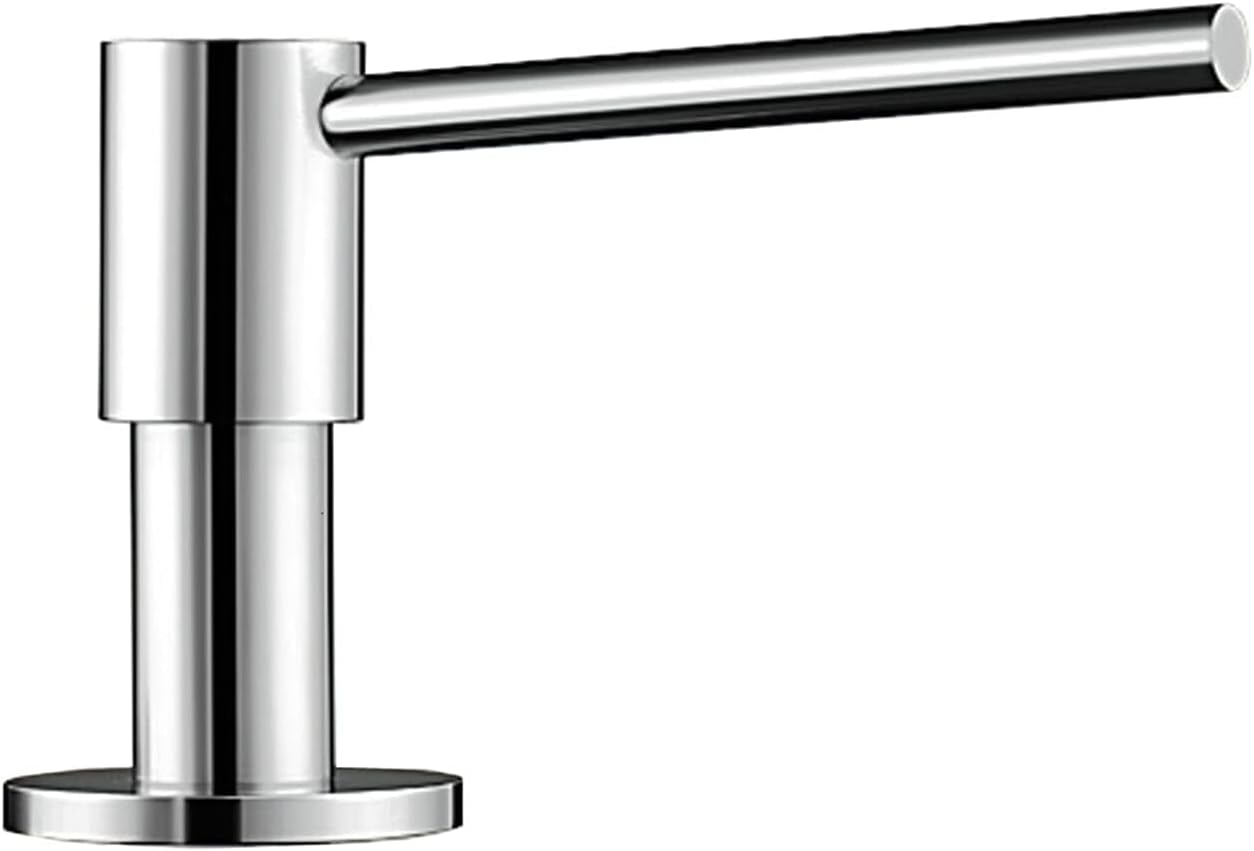

Whakaahua 1: Mua view of the Blanco Piona 517667 Chrome Dishwashing Liquid Dispenser. This image shows the sleek chrome finish and the design of the spout and pump mechanism.
Tatūnga me te Tāuta
Before beginning installation, ensure you have all components from the mounting set and the necessary tools. A 35 mm diameter hole is required in your sink or countertop.
Hipanga Tāuta:
- Whakaritea te Pōka Whakamau: Ensure a 35 mm diameter hole is available in your sink or countertop. If not, carefully drill one according to manufacturer guidelines for your sink material.
- Insert Dispenser Body: From above the sink, insert the main body of the dispenser through the prepared hole.
- Haumaru mai i raro: From underneath the sink, attach the provided mounting hardware (washer, nut) to the threaded shaft of the dispenser. Tighten securely to prevent movement, but do not overtighten.
- Attach Liquid Bottle: Screw the liquid bottle onto the threaded shaft from underneath the sink. Ensure it is firmly attached to prevent leaks.
- Whakakī Tuatahi: Before first use, fill the dispenser with dishwashing liquid as described in the "Operating Instructions" section.
Whakaahua 2: Technical diagram illustrating the dimensions and components of the Blanco Piona 517667 dispenser. This diagram provides measurements for installation planning, including the required hole diameter (Ø 35 mm) and overall height (320 mm).
Nga Tohutohu Whakahaere
Whakakī i te Dispenser:
- To refill, simply pull the dispenser pump head upwards and out of the base from above the sink.
- Pour dishwashing liquid directly into the opening until the 500 ml capacity is reached. Avoid overfilling.
- Reinsert the pump head firmly back into the base.
Dispensing Liquid:
- Press down on the pump head to dispense dishwashing liquid.
- The spout can be rotated 360 degrees for convenient access.
Te tiaki
Regular cleaning and proper care will ensure the longevity and optimal performance of your dispenser.
Te horoi:
- Horoia te āhua kōroma o waho ki te wai ngohengohe,amp kakahu me te hopi ngawari.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
- For stubborn spots, use a chrome-safe cleaner and rinse thoroughly.
Whakakī anō:
- Refer to the "Operating Instructions" section for detailed refilling steps.
- Ensure the liquid bottle is securely attached after refilling to prevent leaks.
Raparongoā
If you encounter issues with your dispenser, refer to the following common problems and solutions:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Dispenser not pumping liquid. |
|
|
| Liquid leaking from the base. |
|
|
| Dispenser feels loose. |
|
|
Whakatakotoranga
- Tau tauira: 517667
- Waitohu: Blanco
- Rauemi: Chrome
- Tae: Chrome
- Rahi Hua: 24.4 x 13 x 8.4 cm (overall packaging/product size)
- Taumaha Tūemi: 370 g
- Raukaha Wai: 500 ml
- Dianenga Puka e hiahiatia ana: 35 mm
- Total Height of Dispenser: 320 mm
- Height to Spout End: 76 mm
- Spout Range: 105 mm
- Nga Waahanga Kei roto: 1 x Dishwashing liquid dispenser, mounting set, user manual
Pūtāhui me te Tautoko
For warranty information or technical support, please refer to the official Blanco webpaetukutuku, whakapā atu ranei ki ta raatau tari ratonga kaihoko. Puritia to riiki hoko hei tohu mo te hoko.
Blanco Official Webpae: www.blanco.com
