1. Nga korero haumaru
Always disconnect power at the main circuit breaker panel or main fuse box before starting any installation or maintenance. Failure to do so may result in serious injury or property damage.
It is recommended to use a non-contact voltage tester to ensure the wiring is safely disconnected from the power source before proceeding with any electrical connections.
Mena kaore koe i te tino mohio mo tetahi waahanga o te mahi whakaurunga, korero ki tetahi tohunga hiko.
Me whakarite kia u nga hononga hiko katoa ki nga tikanga me nga tikanga o te rohe.
2. Ihirangi mokete
Verify that all parts are present before beginning installation. The package should include:
- Fixture body with shade and diffuser
- Maunga tuahua
- Karekau
- Chain/Rods for adjustable height (for pendant configuration)
- Wire nuts and other mounting hardware
- Pukapuka Tohutohu
Tuhipoka: Light bulbs are not included and must be purchased separately. Refer to the specifications for recommended bulb types.
3. Tatūnga me te Tāuta
This Kichler fixture can be installed as either a pendant or a semi-flush mount. Follow the steps below for general installation. Refer to the detailed diagram in the included printed instructions for specific wiring and assembly details.
3.1. Whakaritenga
- Whakawetohia te hiko i te wehenga ara iahiko matua.
- Clear the work area and gather all necessary tools (ladder, wire strippers, screwdriver, voltage tester, etc.).
- Wewetehia te taputapu me te tirotiro mo nga pakaru.
3.2. Whakanuia te Whakanoho
The installation process involves attaching the mounting bracket to the junction box, connecting electrical wires, and securing the canopy.
Figure 1: Close-up of the fixture's canopy and mounting hardware, showing the connection point to the ceiling.
Step-by-step installation guidance:
- Attach the mounting bracket to the junction box on your ceiling using the provided screws.
- Determine the desired hanging height for your fixture. For pendant style, adjust the chain/rods accordingly. For semi-flush mount, use the shortest rod or direct mount as per instructions.
- Thread the fixture wires through the mounting box.
- Connect the ground wire (usually bare copper or green) from the fixture to the ground wire from the ceiling using a wire nut.
- Honoa te waea mā (korekore) mai i te taura ki te waea mā (korekore) mai i te tuanui mā te whakamahi i te nati waea.
- Connect the black (hot) wire from the fixture to the black (hot) wire from the ceiling using a wire nut.
- Carefully tuck all excess wires into the junction box, ensuring they are not pinched.
- Raise the canopy to the ceiling and secure it with the included mounting hardware.
Video 1: Official Kichler Pendant Installation Guide. This video demonstrates the general steps for installing a Kichler pendant fixture, including mounting, wiring, and securing the canopy.
3.3. Attaching Shade and Bulbs
Once the fixture is securely mounted, attach the shade and install the light bulbs.
Whakaahua 2: Raro view of the Kichler pendant fixture, showing the three E26 light sockets ready for bulb installation.
- Carefully place the white microfiber shade onto the fixture.
- Install three (3) A19 style bulbs (max 150W each) into the E26 sockets.
- Secure the satin etched tempered glass diffuser to the bottom of the shade.

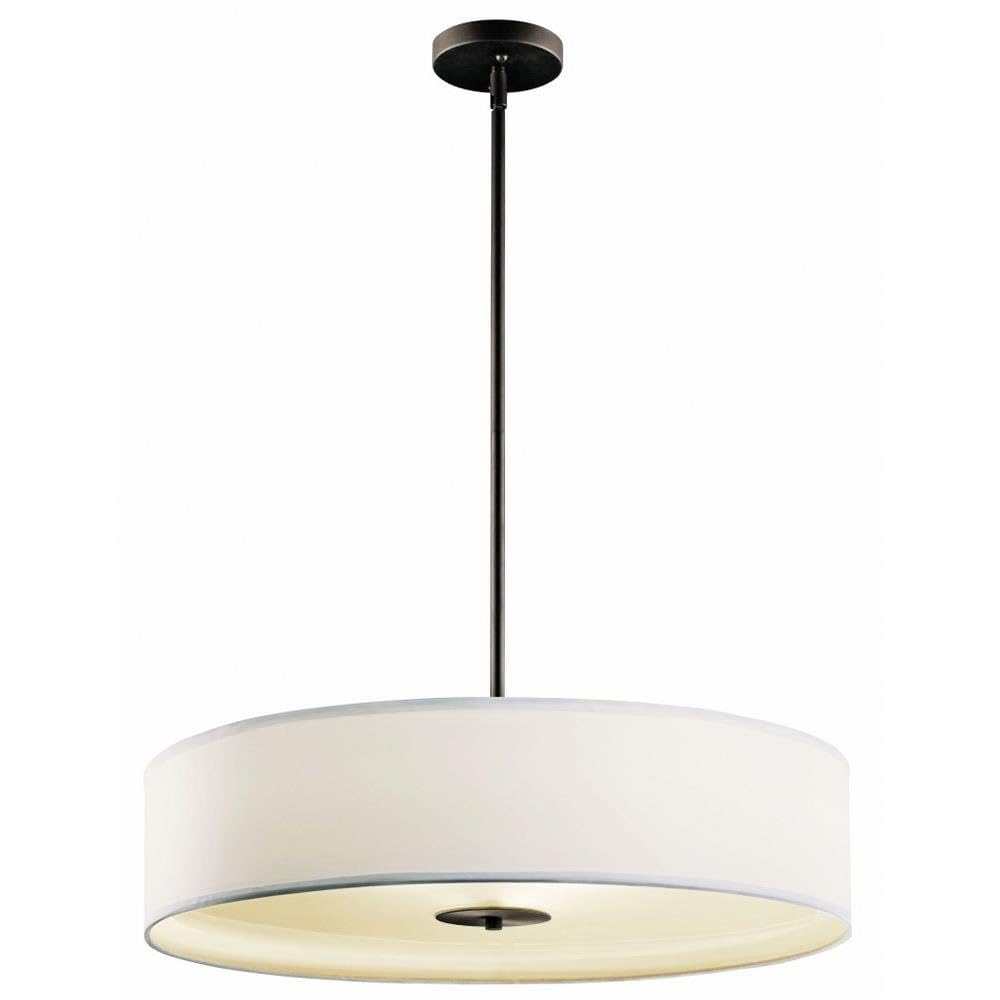

Figure 3: The Kichler 42122OZ fixture installed as a pendant, showcasing its Olde Bronze finish and white microfiber shade.
Figure 4: The Kichler 42122OZ fixture installed as a semi-flush mount, demonstrating its versatility.
3.4. Nga Mahi Whakamutunga
- Whakahokia te hiko i te kaaiti iahiko matua.
- Turn on the light switch to test your new fixture.
4. Nga Tohutohu Whakahaere
The Kichler 42122OZ fixture is designed for simple operation via a standard wall switch. It is compatible with dimmable bulbs and dimmer switches, allowing you to adjust the light intensity to suit your needs.
- Kā/Weto: Whakamahia te whakakā pakitara e hono ana ki te taputapu hei whakakā, hei whakaweto rānei i te rama.
- Te auri: If using dimmable bulbs and a compatible dimmer switch, rotate or slide the dimmer control to adjust the brightness.
5. Tiaki
Regular maintenance will help preserve the appearance and functionality of your Kichler fixture.
- Te horoi: To clean, wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish.
- Whakakapi Purama: Ensure power is off before replacing bulbs. Allow bulbs to cool completely before handling. Replace with the same type and wattage kua tohua i roto i te waahanga korero.
- Tiaki Taumarumaru: The white microfiber shade can be gently dusted or spot cleaned with a damp cloth if necessary. Avoid excessive moisture.
6. Te Raru
Mena kāore tō taputapu e mahi tika ana, tirohia ngā take me ngā otinga e whai ake nei:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Kare te rama e ka ana | 1. Ka mutu te hiko 2. Hononga waea korekore 3. Pupuku hapa | 1. Check circuit breaker/fuse. 2. Verify all wire connections are secure (ensure power is off first). 3. Whakakapia te rama ki te mea hou. |
| Ka whiti marama | 1. Pupura wetekina 2. Incorrect dimmer switch/bulb combination 3. Waea waea wetekina | 1. Tighten bulb. 2. Ensure dimmable bulbs are used with a compatible dimmer. 3. Check wiring connections (ensure power is off first). |
| Glass diffuser is not level | Improper installation of diffuser retaining screws | Adjust the retaining screws or gently bend the support spokes to level the diffuser. |
If the issue persists after trying these solutions, contact Kichler Customer Care.
7. Whakatakotoranga
Detailed product specifications for the Kichler 42122OZ fixture:
- Tau tauira: 42122OZ
- Waitohu: Kichler
- Tae: Old Bronze
- Rauemi: Alloy Steel, Fabric, Glass
- Kāhua: Hou
- Puka Maama: Ceiling (Pendant/Semi Flush Mount)
- Momo Rūma: Bedroom, Dining Room, Kitchen, Living Room, Hallway
- Rahi Hua: 24"L x 24"W x 6"H
- Maximum Hanging Height (Pendant): 44.25 inihi
- Height (Semi-Flush): 14.5 inihi
- Whakamahinga o roto/waho: Roo-roto
- Puna Hiko: AC
- Momo Puna Maama: Incandescent (compatible with CFL, Halogen, LED)
- Momo Mutu: Kua paraitia
- Rauemi whakamarumaru: Fabric, Glass
- Te maha o nga puna marama: 3
- Voltage: 120 Volts
- Turanga Pupura: E26
- Wattage: 150W Max per bulb (450 Total Watts)
- Ka taea te atarua: Yes (with dimmable bulbs and dimmer switch)
- Taumaha Tūemi: 9 Pauna
- Huihuinga e hiahiatia ana: Ae
- Tiwhikete: Whetu Pungao
8. Pūtāhui me te Tautoko
Kichler stands behind the quality of its products.
- Pūtāhui: This product is covered by a 1-year limited manufacturer's warranty. For specific details regarding coverage and claims, please refer to the warranty information included in your package or contact Kichler Customer Care.
- Tiaki Kiritaki: For any questions, assistance, or support regarding your Kichler fixture, please contact Kichler Customer Care.
Kichler Customer Care:
- Waea: 866-558-5706
- Ngā hāora: Monday - Friday, 9 AM - 5 PM EST
You can also visit the official Kichler website for additional tips, guidance, and product information.
