Kupu Whakataki
This manual provides comprehensive instructions for the safe and efficient operation, installation, and maintenance of your Oase Aquamax Eco Premium 16000 pond pump. Please read this manual thoroughly before using the product and keep it for future reference.
The Oase AquaMax Eco Premium pond pump range offers superior quality performance with lower operating costs and greater efficiency. It features reliable flow even at very low settings and seasonal flow control for energy saving during winter. Its streamlined design enhances efficiency. All models can be electronically adjusted with an FM Master 3 remote control and include a second mechanically adjustable auxiliary input for satellite strainers and surface skimmers. The pump is protected against dry running and blockages by Oase's environmental function control and includes a patented frost protection system.
Nga Tohutohu Haumaru
Me whai tonu i ngā mahi ārai haumaru e whai ake nei hei ārai i ngā whara whaiaro, i ngā kino rānei o te hua:
- Ensure the power supply matches the pump's specifications.
- Do not operate the pump if the power cable or housing is damaged.
- Me momotu te papu i te pūnaha hiko i mua i te mahi i tētahi mahi tiaki, horoi rānei.
- Kaua e hapai, e amo rānei i te papu mā te taura hiko.
- Puritia ngā tamariki me ngā mōkai kia matara atu i te papu e whakahaere ana.
- The pump is designed for use in ponds and water features. Do not use it for other liquids.
Ka mutu te huaview
The Oase Aquamax Eco Premium 16000 is a high-performance pond pump designed for efficient water circulation and debris handling.
Figure 1: Oase Aquamax Eco Premium 16000 pond pump with included hose connections and clamps. This image shows the pump's main body, two hose connection points with blue locking rings, and various hose clamps mo te whakaurunga haumaru.
Whakaahua 2: Tetahi atu view of the Oase Aquamax Eco Premium 16000 pond pump, highlighting its compact design and the two hose inlets/outlets. The pump's grey casing with ventilation grilles is visible.
Whakaahua 3: He mua tika view of the Oase Aquamax Eco Premium 16000, showing the symmetrical placement of the hose connections and the robust construction of the pump body.
Whakaahua 4: Whakatata view of the Oase Aquamax Eco Premium branding on the top of the pump, featuring the "Oase Living Water" logo and product name.
Whakaatu 5: Taipitopito view of one of the hose connections on the Oase Aquamax Eco Premium pump, showing the blue locking ring and the ribbed hose barb for secure attachment.

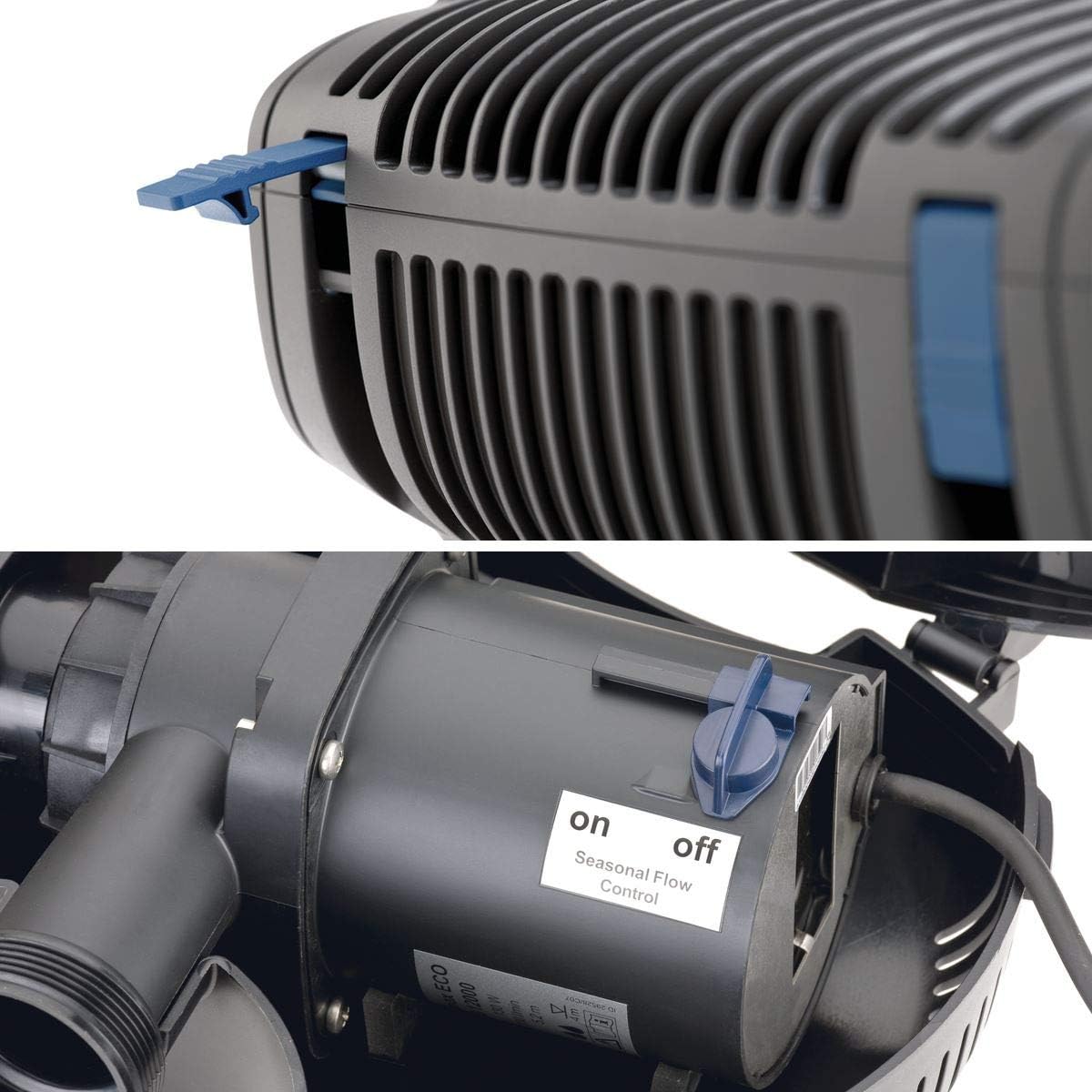

Whakaahua 6: He roto view of the Oase Aquamax Eco Premium pump, revealing the motor housing and a blue switch labeled "Seasonal Flow Control" with "on" and "off" positions, indicating its energy-saving feature.
Figure 7: The Oase Aquamax Eco Premium pump installed in a natural pond setting, demonstrating how the hose connects and the pump sits discreetly near the water's edge, ready for operation.
Tatūnga me te Tāuta
The Oase Aquamax Eco Premium 16000 can be installed either submerged in water or dry (outside the pond).
Tāutanga Ruku:
- Connect the appropriate hose to the pump's outlet. Ensure all connections are secure using the provided hose clamps.
- If using the second auxiliary input for a satellite strainer or surface skimmer, connect it now.
- Place the pump horizontally on a stable, level surface at the deepest part of the pond, ensuring it is fully submerged.
- Route the power cable safely to a weatherproof outdoor power outlet, ensuring a drip loop is formed to prevent water from running along the cable to the outlet.
- Honoa te papu ki te hiko.
Dry Installation:
- Position the pump on a stable, level surface outside the pond, ensuring it is protected from direct sunlight and extreme weather. The pump must be installed below the water level of the pond to ensure proper priming.
- Connect the inlet hose from the pond to the pump's inlet and the outlet hose to your filter system or water feature. Ensure all connections are watertight and secure.
- If using the second auxiliary input, connect it as required.
- Route the power cable safely to a weatherproof outdoor power outlet.
- Honoa te papu ki te hiko.
Nga Tohutohu Whakahaere
Once installed, operating the Oase Aquamax Eco Premium 16000 is straightforward.
Whakaoho Tuatahi:
- Ensure all connections are secure and the pump is correctly positioned.
- Plug the pump into a suitable power outlet. The pump will begin to operate.
- Observe the water flow to ensure proper function.
Seasonal Flow Control:
The 16000 model features seasonal flow control to optimize energy consumption during colder months. This can reduce operating costs by up to 30%.
- Locate the seasonal flow control switch (refer to Figure 6).
- To activate reduced flow for winter, switch it to the "off" or reduced setting.
- To resume full flow, switch it to the "on" or full setting.
Electronic Adjustment (with FM Master 3):
For advanced control, the pump can be electronically adjusted when used with an Oase FM Master 3 remote control (sold separately). Refer to the FM Master 3 manual for detailed instructions on pairing and operation.
Te tiaki
Regular maintenance ensures optimal performance and extends the lifespan of your Oase Aquamax Eco Premium 16000 pump.
Te horoi i te Pump:
- Always disconnect the pump from the power supply before cleaning.
- Remove the pump from the pond or its dry installation location.
- Open the pump housing (refer to product diagrams or specific instructions in the full manual if available).
- Clean the impeller and pump chamber thoroughly to remove any debris, algae, or mineral deposits. A soft brush and clean water can be used.
- Inspect the filter housing and clean any accumulated coarse debris. The pump is designed to handle coarse debris up to 11mm.
- Reassemble the pump, ensuring all seals are correctly seated.
Te takurua:
The pump features a patented frost protection system. However, for prolonged periods of freezing temperatures or if the pond is to be drained, it is recommended to:
- Momotuhia te papu mai i te hiko.
- Tangohia te papu mai i te puna.
- Horoia rawatia te papu.
- Store the pump in a frost-free location, submerged in water if possible, or ensure it is completely dry to prevent internal freezing damage.
Raparongoā
If you encounter issues with your Oase Aquamax Eco Premium 16000, refer to the following common problems and solutions:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Karekau te papu e rere | No power supply; Blocked impeller; Dry running protection activated. | Check power connection and circuit breaker; Disconnect power, clean impeller; Ensure pump is submerged or has water supply for dry installation. |
| He iti te rere o te wai | Clogged intake/filter; Kinked hose; Impeller partially blocked; Seasonal flow control activated. | Clean intake and filter; Straighten hose; Disconnect power, clean impeller; Check seasonal flow control switch. |
| Puma ka haruru rereke | Debris in impeller; Pump not stable; Air in pump (dry installation). | Disconnect power, clean impeller; Ensure pump is on a stable surface; Check inlet hose for air leaks, ensure pump is primed. |
| Pump stops frequently | Overheating; Dry running protection. | Ensure adequate water circulation around pump; Check for blockages; Ensure continuous water supply. |
If the problem persists after attempting these solutions, please contact Oase customer support.
Whakatakotoranga
Key technical specifications for the Oase Aquamax Eco Premium 16000:
- Tauira: 50746
- Ahu (L x W x H): 34 x 28 x 16.5 cm (13.4 x 11 x 6.5 inihi)
- Taumaha: 5.4 kg (11.9 lbs)
- Max. Tae Whakatau: 16,000 rita mo ia haora (L/h)
- Whakamahi Hiko: 15-180 W (variable)
- Roa taura: 10 m (32.8 ft)
- Voltage: 240 Volts
- Max. Coarse Debris Displacement: 11 mm
- Tāutatanga: Submersible or Dry
- Rauemi: High-quality Plastic or Stainless Steel
- Tae: Pango, Kahurangi
Pūtāhui me te Tautoko
Mōhiohio Pūtāhui:
The Oase Aquamax Eco Premium 16000 comes with a standard 3-year warranty. This warranty can be extended by an additional 2 years upon product registration, totaling a 5-year warranty period. Please retain your proof of purchase for warranty claims.
Tautoko Kiritaki:
For technical assistance, spare parts, or warranty claims, please contact Oase customer support. Visit the official Oase website for contact details and further resources:
