Bernina Bernette Serger Model 203 Lower Looper Instruction Manual

Kupu Whakataki

The lower looper is a critical component of your Bernina Bernette Serger Model 203, working in conjunction with the upper looper and needles to form secure and professional overlock stitches. This manual provides guidance for the proper handling, installation, and care of your replacement lower looper to ensure optimal performance of your serger.

Tatūnga me te Tāuta

Installing a new lower looper requires careful attention. Always refer to your main Bernina Bernette Serger Model 203 instruction manual for detailed, machine-specific installation procedures. The following steps are general guidelines:

1. Weto Whakakore: Ensure your serger is turned off and unplugged from the power source before beginning any installation or maintenance.
2. Access Looper Area: Open the front and/or side covers of your serger to access the looper mechanism.
3. Remove Old Looper (if applicable): Carefully loosen any screws or release mechanisms holding the old lower looper in place. Remove it gently to avoid damaging other parts.
4. Insert New Looper: Position the new Bernina Bernette Serger Model 203 Lower Looper (part number 50014203) into its designated slot. Ensure it aligns correctly with the looper drive shaft and other components.
5. Secure Looper: Tighten any screws or engage release mechanisms to firmly secure the new looper. Do not overtighten.
6. Manatokona te Nekehanga: Manually turn the handwheel to ensure the looper moves freely and correctly without obstruction.
7. Katia nga uhi: Close all serger covers securely.
8. Whakamātautau: Plug in and power on your serger. Perform a test stitch on scrap fabric to confirm proper function and stitch formation. Adjust tension as needed.

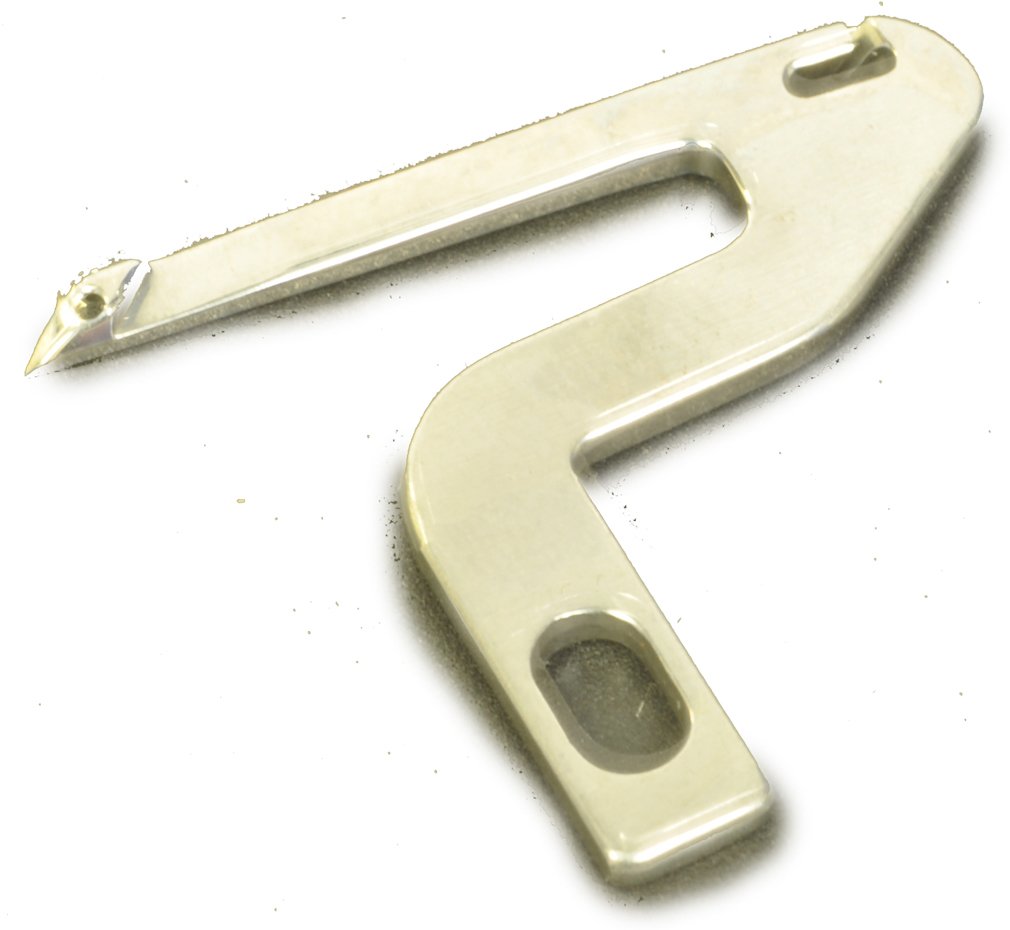

Image: Bernina Bernette Serger Model 203 Lower Looper. This image displays the replacement lower looper component, which is essential for forming stitches on your serger machine.

Nga Tikanga Whakahaere

Once correctly installed, the lower looper plays a vital role in the serging process. As the needles penetrate the fabric, the lower looper moves into position to catch the needle thread. It then works in conjunction with the upper looper to interlock the threads, forming the characteristic overlock stitch along the fabric edge. Proper timing and smooth movement of the lower looper are crucial for consistent and high-quality stitch formation.

Te tiaki

Regular maintenance of your lower looper and the surrounding area will extend its lifespan and ensure smooth operation:

• Te horoi: Use a small brush or lint remover to regularly clear away lint and thread fibers that accumulate around the looper mechanism. Accumulation can impede movement and affect stitch quality.
• Whakahinuhinu: Refer to your serger's main instruction manual for specific lubrication points and recommended oil types. Apply oil sparingly to moving parts as directed.
• Tirotiro: Periodically inspect the lower looper for any signs of wear, bending, or damage. A damaged looper can cause skipped stitches or thread breakage. Replace if necessary.

Raparongoā

If you experience issues related to stitch formation after installing or using the lower looper, consider the following:

• Tuinga kua pekehia: Ensure the lower looper is correctly installed and secured. Check that the needle is inserted correctly and is not bent or dull. Verify thread path and tension settings.
• Whati Miro: Inspect the lower looper for burrs or rough spots that could snag the thread. Ensure the thread is not catching on any other part of the machine. Check thread quality and tension.
• Poor Stitch Formation: Re-thread the entire machine, paying close attention to the lower looper's thread path. Adjust tension dials for both looper and needle threads. Confirm that the correct type and size of needle are being used for your fabric.
• Haruru rerekee: Turn off the machine immediately. Inspect the looper area for any obstructions or misaligned parts. Do not force the machine if it is making unusual noises.

For persistent issues, consult your full Bernina Bernette Serger Model 203 instruction manual or contact a qualified service technician.

Whakatakotoranga

Pūtāhui me te Tautoko

This Bernina Bernette Serger Model 203 Lower Looper is a replacement part. For warranty information regarding your Bernette Serger Model 203 machine, please refer to the original serger instruction manual or contact Bernina customer support directly. For specific return or replacement policies concerning this individual part, please consult the retailer from whom it was purchased.
