1. Kupu Whakataki
This manual provides detailed instructions for the installation, operation, and maintenance of your Antec P50 Window R Mid-Tower PC Case. The Antec P50 Window R is designed for silent computing with optimized airflow and support for Micro ATX and Mini-ITX motherboards. It features a dual-chamber structure, liquid cooling support, and multiple drive bays for a versatile build.
Pānuihia tēnei pukapuka ā-ringa i mua i te tīmatanga o te tāutanga hei whakarite i te tatūnga tika, hei whakanui hoki i te mahi me te roa o te ora o tō pūnaha.
2. Tatūnga me te Tāuta
2.1 Te Wetewete me te Tirotiro
Carefully remove the PC case from its packaging. Inspect the case for any signs of damage that may have occurred during shipping. Retain the packaging for future transport or warranty claims.
2.2 Removing Side Panels
Locate and unscrew the thumbscrews on the rear of the case. Slide the side panels backward and lift them off to access the interior.
Whakaahua: Koki view of the Antec P50 Window R PC Case, showing its compact mid-tower design and front panel.
2.3 Whakaaturanga Papa Pouaka
- Tāutahia te whakangungu I/O ki roto i te pūaha o muri o te pouaka.
- Ensure the motherboard standoffs are correctly aligned for your Micro ATX or Mini-ITX motherboard.
- Āta whakanohoia te papahoahoa ki runga i ngā tūāpapa, me te whakarite i ngā kōhao tīwiri.
- Whakaorangia te papahoahoa me nga wiri kua whakaratohia.
Whakaahua: Roto view of the Antec P50 Window R PC Case, highlighting the motherboard tray and cable routing options.
2.4 Tāutanga Pūnaha Hiko
The P50 Window R supports bottom-mount power supplies. Install your power supply into the designated compartment at the bottom rear of the case and secure it with screws.
2.5 Tāuta Puku
The case features 6 drive bays:
- One 5.25" external drive bay (for optical drives).
- Three 3.5" HDD drive bays.
- Two 2.5" SSD drive bays.
Follow the case's internal guides for tool-less or screw-based installation of your storage devices.
Whakaahua: Roto view of the Antec P50 Window R PC Case, showing the rear of the motherboard tray with cable management space and drive bay locations.
2.6 Tāutanga Kāri Whakawhanui
The case provides 4 expansion slots. Remove the slot covers as needed and install your graphics card or other expansion cards, securing them with screws.
2.7 Te Tāutanga o te Pā me te Pāreti
The P50 Window R comes with pre-installed fans: two 120mm fans and one 80mm fan at the front, and one 80mm fan at the rear. It supports additional 80mm/120mm fan mounts and a 240mm radiator in the front or top for liquid cooling.
- For liquid cooling, install the 240mm radiator in the designated front or top mounting points.
- Ensure fans are oriented correctly for optimal airflow (intake at front, exhaust at rear/top).
2.8 Whakahaere taura
Whakamahia nga tapahi ararere taura me nga tohu here ki muri i te paepae papahoa hei whakahaere i nga taura. Ma tenei ka pai ake te rere o te hau me te rerehua.
2.9 Te Hononga Paepae Mua I/O
Honoa ngā taura o mua o te papaaho (USB 3.0, USB 2.0, HD Audio, Power Switch, Reset Switch, Power LED, HDD LED) ki ngā pane e rite ana i runga i tō papahoahoa. Tirohia te pukapuka tohutohu mō tō papahoahoa mō ngā taunga pane.

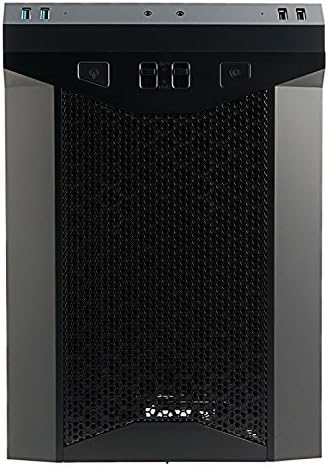

Whakaahua: Mua view of the Antec P50 Window R PC Case, showing the mesh intake and front panel controls.
3. Mahi
3.1 Ngā Mana Whakahaere me ngā Tauranga o te Paewhiri o Mua
Mā te papa o mua ka taea te uru atu ki:
- Pātene Hiko: Hei whakakā, hei whakaweto rānei i te pūnaha.
- Patene Tautuhi Anō: Hei whakaara ano i te punaha.
- Tauranga USB 3.0 (x2): Mo te whakawhiti raraunga tere tere.
- Tauranga USB 2.0 (x2): Mō ngā taputapu USB paerewa.
- Jacks Ororongo: Mō ngā pane whakarongo me te hopuoro.
- Mana Kiri: Two fan control switches are available to adjust fan speeds for optimal balance between cooling and noise.
3.2 Te Rere o te Hau me te Whakamatao
The P50 Window R features a dual-chamber structure designed for direct airflow, separating heat-generating components. The pre-installed fans and additional mounting options ensure efficient cooling for your system.
4. Tiaki
4.1 Te Horoi i ngā Tātari Puehu
Regularly clean the dust filters to maintain optimal airflow and prevent dust buildup inside the case. Dust filters are typically located at the front, top, and bottom (for the power supply intake). Gently remove them and clean with compressed air or rinse with water (ensure they are completely dry before reinstallation).
4.2 Whakapai Whanui
Whakamahia he ngohengohe, damp cloth to clean the exterior surfaces of the case. Avoid abrasive cleaners. For interior cleaning, use compressed air to remove dust from components and internal surfaces.
5. Te Raru
5.1 Kaore te Pūnaha i te hiko
- Ensure all power cables (24-pin ATX, 8-pin CPU, GPU power) are securely connected to the motherboard and components.
- Me manatoko kei te tūranga 'ON' te pana hiko.
- Tirohia kei te tika te hono o te taura whakawhiti hiko o mua ki te pane papahoa.
5.2 Haruru nui
- Check if any cables are obstructing fan blades.
- Ensure all fans are securely mounted.
- Utilize the front panel fan controls to adjust fan speeds.
5.3 Poor Cooling Performance
- Clean all dust filters to ensure unrestricted airflow.
- Verify that fans are oriented correctly (intake/exhaust).
- Ensure proper cable management to avoid blocking airflow.
5.4 Front Panel USB/Audio Ports Not Working
- Confirm that the front panel USB and audio cables are correctly connected to the corresponding headers on your motherboard.
6. Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Ingoa Tauira | P50 WINDOW R |
| Momo Take | Huarahi Maaka |
| Papamatua Hototahi | Micro ATX, Mini-ITX |
| Nga Ahinga (D x W x H) | 355mm x 260mm x 355mm (13.98"D x 355"H) |
| Rauemi | Polycarbonate (PC) |
| Peia Bays | 1 x 5.25" (external), 3 x 3.5" HDD, 2 x 2.5" SSD |
| Roha Slots | 4 |
| Tuhinga o mua | 2 x USB 3.0, 2 x USB 2.0, Audio In/Out, 2 x Fan Controls |
| Paanui kua whakauruhia i mua | Front: 2 x 120mm, 1 x 80mm; Rear: 1 x 80mm |
| Te Tautoko Hauora Tiaki | 240mm radiator (front/top) |
| Max Video Card Size | 300mm |
| Max CPU Cooler Teitei | 130mm |
| Te Whakanuia Hiko | Maunga Raro |
| Taumaha Tūemi | 11.7 Pauna |
7. Nga Korero Whakaputanga
The Antec P50 Window R PC Case comes with a Limited Warranty period (parts): 1 year. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Antec webpae, whakapā atu ranei ki te tautoko a te kaihoko.
8. Tautoko
For further assistance, technical support, or to inquire about replacement parts, please visit the official Antec website or contact their customer service department. You can often find FAQs, driver downloads, and additional resources on the manufacturer's support pages.
Antec Official Webpae: www.antec.com
