1. Kupu Whakataki
The Fomito Arca-Type Quick Release Plate is a versatile accessory designed to enhance your camera setup. It allows for seamless integration with Arca-Type compatible tripod heads, monopods, cranes, dollies, and stabilizers, while also providing a dedicated attachment point for a camera wrist strap. This plate is engineered from durable aluminum using forging technology, ensuring high density and longevity. Its design includes a rubber mat for a secure, seamless connection to your camera and an anti-rotating stop for vertical shooting stability.
Ko nga ahuatanga matua ko:
- Constructed with aluminum forging technology for enhanced durability.
- Integrated rubber mat ensures a secure and seamless connection to the camera body.
- Designed to accommodate various quick-release camera straps without interfering with tripod use.
- Features a universal 1/4"-20 screw for broad compatibility with cameras.
- Compatible with G, K, C, and E series ball heads and any Arca-Type quick release head.
Whakaahua 1.1: Ka mutuview of the Fomito Arca-Type Quick Release Plate and its applications, showing its use with a camera on a tripod and with a wrist strap.
2. Tatūnga
Follow these steps to properly attach the Fomito Arca-Type Quick Release Plate to your camera and integrate it with your accessories.
2.1 Attaching the Plate to Your Camera
- Locate the 1/4"-20 screw on the quick release plate.
- Align the screw with the tripod mount thread on the bottom of your camera.
- Insert the screw into the camera's thread and turn the screw clockwise using a coin or a flat-head tool until it is securely fastened. Ensure the plate is flush against the camera body and does not wobble. The integrated rubber mat will help create a secure, non-slip connection.
Image 2.1: The quick release plate securely attached to the bottom of a camera, ready for use with a strap or tripod.
2.2 Attaching a Camera Wrist Strap
The plate features a dedicated hole for attaching a camera wrist strap or shoulder strap. This allows you to use a strap without needing to remove the quick release plate.
- Identify the strap attachment hole on the quick release plate, typically located at one end.
- Thread your camera strap's connector (e.g., a carabiner or loop) through this hole.
- Secure the strap connector as per your strap's instructions.

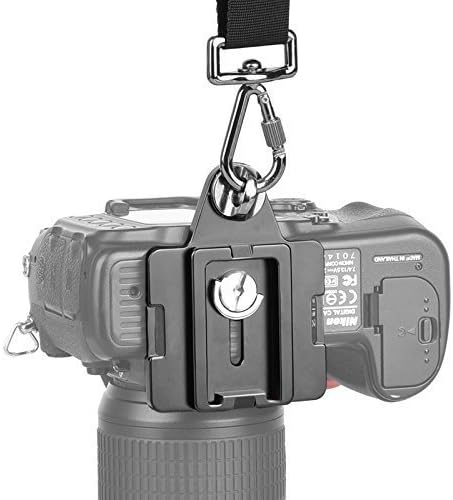

Image 2.2: A camera with the Fomito quick release plate attached, demonstrating how a wrist strap can be connected to the plate's dedicated loop.
3. Nga Tohutohu Whakahaere
This section details how to use your Fomito Arca-Type Quick Release Plate with various camera support systems.
3.1 Using with Arca-Type Tripod Heads
The Fomito Quick Release Plate is designed for compatibility with all Arca-Type quick release clamps found on tripods, monopods, and other camera support systems.
- Ensure your camera is securely attached to the quick release plate (refer to Section 2.1).
- Whakatuwheratia te clamp on your Arca-Type compatible tripod head.
- Slide the quick release plate, with the camera attached, into the open clamp.
- Close and tighten the clamp securely until the plate is firmly held in place and the camera does not move.
- To remove, loosen the clamp and slide the plate out.

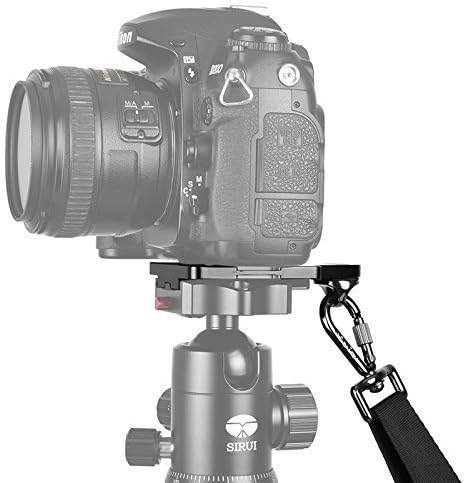

Image 3.1: A camera securely mounted on an Arca-Type compatible tripod head using the Fomito quick release plate, with a strap also attached to the plate.
3.2 Vertical Shooting Stability
The plate incorporates an anti-rotating stop, which helps maintain stability when shooting in a vertical orientation, especially when using a wrist strap.
- When attaching the plate, ensure the anti-rotating stop aligns with any corresponding grooves or flat surfaces on your camera or tripod head to maximize stability.
- This feature is particularly useful when the camera is hanging from a strap, preventing unwanted rotation of the camera body relative to the plate.
4. Tiaki
Proper care will ensure the longevity and reliable performance of your Fomito Quick Release Plate.
- Te horoi: Wipe the plate with a soft, dry cloth to remove dust and debris. For stubborn dirt, a slightly damp ka taea te whakamahi kakahu, ka whakamaroke tonu. A ape i te kai horoi, te whakarewa ranei.
- Tirotiro Tīwiri: Periodically check the 1/4"-20 screw for any signs of wear or damage. Ensure it remains securely attached to the plate.
- Rubber Mat: Inspect the rubber mat for any signs of degradation or detachment. A clean, intact rubber mat ensures a secure grip on your camera.
- Rokiroki: Store the plate in a dry, clean environment when not in use, away from extreme temperatures or corrosive materials.
5. Te Raru
This section addresses common issues you might encounter with the Fomito Quick Release Plate.
- Plate wobbles on camera:
- Ensure the 1/4"-20 screw is fully tightened.
- Check if the camera's tripod mount thread is clean and free of obstructions.
- Verify that the rubber mat on the plate is intact and providing sufficient friction.
- Plate does not fit into Arca-Type clamp:
- Confirm that your tripod head or clamp is indeed Arca-Type compatible. While this plate is designed for universal Arca-Type fit, some manufacturers may have slight variations.
- Me whakarite te clamp on your tripod head is fully open before attempting to insert the plate.
- Check for any debris or obstructions in the clamp tikanga.
- Strap attachment feels insecure:
- Ensure your strap's connector is properly threaded through the plate's attachment hole and securely fastened according to your strap's instructions.
- Regularly inspect your strap and its connectors for wear and tear.
6. Whakatakotoranga
Detailed specifications for the Fomito Arca-Type Quick Release Plate.
| Huanga | Taipitopito |
|---|---|
| Waitohu | Fomito |
| Tau tauira | FMT-KZB*EN |
| Rauemi | Konumohe |
| Tae | Pango |
| Rahi Hua (L x W x H) | 25 x 102 x 381 mm (tata ki te 2.54 x 10.16 x 38.1 cm) |
| Taumaha | 18.14 g |
| Momo Tiu | Standard 1/4"-20 |
| Hototahi | Arca-Type quick release heads (G, K, C, E series ball heads), Cameras with 1/4"-20 tripod mount |
| UPC | 638142765534 |
| Te Ra Wātea Tuatahi | Hanuere 15, 2020 |
Image 6.1: Visual representation of the Fomito Quick Release Plate's key dimensions (6.8cm, 3.8cm, 3.2cm).
7. Pūtāhui me te Tautoko
Specific warranty information for the Fomito Arca-Type Quick Release Plate is not provided in this manual. For details regarding warranty coverage, returns, or technical support, please contact Fomito directly or refer to the retailer's policy where the product was purchased.
For further assistance, please visit the official Fomito webpaetukutuku, whakapā atu ranei ki ta raatau tari ratonga kaihoko.
