dB Technologies ES 1203 User Manual

Kupu Whakataki

The dB Technologies ES 1203 is a high-performance, 3-amp stereo sound system designed for professional audio applications. It comprises two passive wooden satellite tops and an active wooden subwoofer, delivering a powerful and coherent sound experience. This manual provides essential information for the safe and efficient operation of your ES 1203 system, covering setup, operation, maintenance, and troubleshooting.

Please read this manual thoroughly before operating the system and retain it for future reference.

Nga korero haumaru

Kia mau tonu ki nga whakaritenga haumaru e whai ake nei hei aukati i te ru hiko, te ahi, te whara ranei:

• Tuku Hiko: Connect the unit only to a power supply of the type specified in this manual and on the unit itself. Ensure the power cord is not damaged or pinched.
• Whakapapa: Me tika te whakapūmau i te whenua o te waeine kia kore ai e pāngia e te ru hiko.
• makuku: Kaua e tukuna te waeine ki te ua, ki te makuku ranei. Kaua e waiho nga mea kua whakakiia ki te wai, penei i nga ipu, ki runga i te waahanga.
• Whakahau: Me whakarite kia pai te hau. Kaua e araia nga whakatuwheratanga hau.
• wera: Kaua e tuu te waeine ki te tata ki nga puna wera penei i nga radiators, rehita wera, umu, me etahi atu taputapu (tae atu ki ampkaiwhakaora) e whakaputa ana i te wera.
• Ratonga: Kaua e tarai ki te mahi i tenei hua maau ake. Tirohia nga ratonga katoa ki nga kaimahi tohu tohu.
• Turanga: Place the system on a stable, level surface. Ensure the pole and stand are securely assembled and stable to prevent tipping.
• Kata: Route all cables carefully to avoid tripping hazards.

Ihirangi mokete

The ES 1203 package includes the following components:

• 1 x ES 1203 Active Subwoofer
• 2 x Passive Satellite Tops
• 1 x Subwoofer Cover
• 1 x Bag for Satellite Tops
• 1 x 35mm Telescopic Pole
• 2 x 7m Tauera Tukuoro
• 1 x Waea Mana
• Pukapuka Kaiwhakamahi (tenei tuhinga)

Note: Speaker stands are not included in the package.

Tatūnga

Follow these steps for the initial setup of your ES 1203 system:

1. Wewete ana: Carefully remove all components from their packaging. Inspect for any signs of damage during transit.
2. Whakauranga reoroto: Place the active subwoofer on a stable, level surface. Ensure there is adequate space around it for ventilation.

   Figure 1: ES 1203 Subwoofer Interior. This image shows the robust internal structure of the subwoofer, highlighting the two 12-inch woofers responsible for powerful bass reproduction.
3. Satellite Assembly:
   • Insert the 35mm telescopic pole into the pole mount on top of the subwoofer. Secure it firmly.
   • Attach one passive satellite top to the top of the telescopic pole.

     Figure 2: Assembled ES 1203 System. This image illustrates the compact and vertical assembly of the ES 1203, with the satellite tops neatly stacked on the subwoofer using the provided pole.

   • For the second satellite top, you can either stack it on top of the first satellite (for a single column configuration) or use an external speaker stand (not included) for a stereo setup.
4. Connecting Satellites: Use the provided 7m speaker cables to connect the satellite tops to the subwoofer. The subwoofer has dedicated outputs for the satellites.

   Figure 3: Satellite Connection Detail. This close-up shows how the satellite top connects to the telescopic pole, ensuring a secure and stable setup for the column array.



   Figure 4: Satellite Column Array. This image provides a clear view of the four 4-inch mid-woofers within each satellite, arranged in a logarithmic curved column array for optimized sound dispersion.



   Figure 5: Satellite Side Profile. Tenei view emphasizes the sleek and compact design of the satellite top, showcasing its robust wooden construction.

5. Hononga Hiko: Connect the power cable to the subwoofer and then to a suitable power outlet.
6. Pūtake Tāuru: Connect your audio sources (mixer, instrument, microphone, Bluetooth device) to the input channels on the subwoofer's control panel.
7. Hiko Tuatahi: Power on the system. The OLED display on the subwoofer will guide you through the initial setup and configuration.

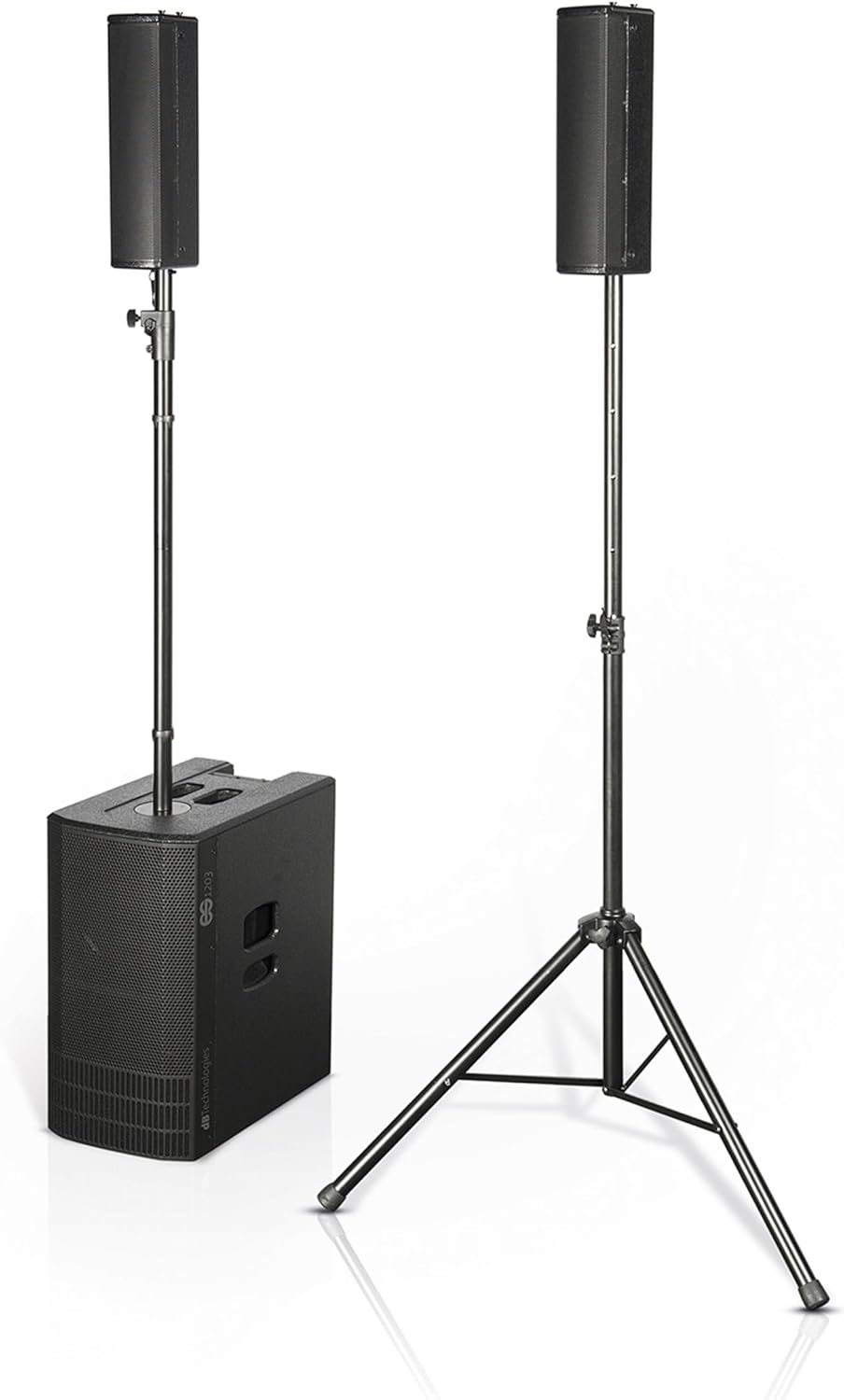

Figure 6: Full ES 1203 System Setup. This image displays the complete ES 1203 system, showing both the compact stacked configuration and the option for a wider stereo setup with an additional speaker stand.

Nga Tohutohu Whakahaere

The ES 1203 features an intuitive user interface and powerful DSP for versatile operation.

Paewhiri Mana Neke Atuview

Figure 7: Subwoofer Control Panel. This detailed view of the control panel on the subwoofer highlights the OLED display, input channels, and the rotary encoder for system adjustments.

The control panel, located on the top of the subwoofer, features an OLED display and a rotary encoder for navigation and adjustments. It provides access to the integrated 5-channel digital mixer and system settings.

DSP Functions and Configuration Modes

The powerful DSP allows users to optimize the system for various environments and applications:

• Aratau Whirihoranga:
  • Mono: For single-point sound reinforcement.
  • Taria: For wider soundstage, typically using two satellite tops spread apart.
  • Dual Column: For extended vertical coverage, stacking both satellites on one pole.
• Directivity Modes:
  • Maoro: Optimized for longer throw distances.
  • Tata: Optimized for closer audience proximity.
• Digital Mixer: Adjust levels, EQ, and create pre/post gain mixes for different purposes.
• Tatūkē: Recall saved configuration presets for quick setup.

Navigate through the menus using the rotary encoder and confirm selections by pressing it.

Hononga Nihokikorangi

The integrated Bluetooth module allows wireless audio streaming:

1. Whakahohehia te Nihokikorangi i runga i to taputapu pūkoro.
2. Select "ES 1203" from the list of available devices.
3. Once paired, audio from your device will stream to the system on a dedicated stereo channel.

AUX/MIX Output

The balanced AUX/MIX output provides flexibility:

• Hononga Tika: Use as a direct output for connecting to another sound system.
• Putanga Aux: Connect to a stage monitor or another speaker.
• Dual Column Mode: When in Dual Column mode, this output acts as a source for another ES 1203 system, providing either the left or right signal for a larger setup.

Te tiaki

Proper maintenance ensures the longevity and optimal performance of your ES 1203 system:

• Te horoi:
  • Momotuhia te hiko i mua i te horoi.
  • Whakamahia he kakahu ngohengohe, maroke hei muru i nga mata o waho.
  • Kaua e whakamahia nga kai horoi, te wax, te whakarewa ranei.
• Rokiroki:
  • Whakaorangia te punaha ki te waahi makariri, maroke, mawehe atu i te ra tika me te wera nui.
  • Use the provided subwoofer cover and satellite bag for protection during transport and storage.
• Tirotiro: Periodically check cables for wear or damage. Ensure all connections are secure.
• Ratonga Ngaio: If the system requires repair, always contact qualified service personnel. Do not attempt to open or repair the unit yourself.

Raparongoā

If you encounter issues with your ES 1203 system, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact dB Technologies customer support or an authorized service center.

Whakatakotoranga

Pūtāhui me te Tautoko

For warranty information and technical support, please refer to the official dB Technologies webpaetukutuku, whakapā atu ranei ki to kaihoko whai mana.

Keep your proof of purchase for warranty claims. Do not attempt to repair the unit yourself, as this may void your warranty.

For the most up-to-date information, product registration, and additional resources, visit: www.dbtechnologies.com
