Powerhorse Single-Direction Plate Compactor

Ka mutu te huaview

The Powerhorse Single-Direction Plate Compactor is engineered for efficient compaction of granular soils and crushed aggregate. This robust machine is powered by a 212cc OHV engine, delivering significant compaction force and travel speed for various landscaping and construction tasks.

Figure 1: Powerhorse Single-Direction Plate Compactor

Āhuatanga matua:

• Compaction Force: Delivers 3,950 lbs. of compaction force.
• Wiri mo ia meneti (VPM): Achieves 5,500 VPM for effective material consolidation.
• Tere Haere: Operates at a travel speed of 65 feet per minute.
• Mihini: Equipped with a 7 HP, 212cc OHV engine.
• Carburetor: Features a float-type carburetor for uninterrupted operation.
• Kawana: Centrifugal flyweight-type governor ensures consistent speed.
• Whakaweto Hinu Iti: Automatically protects the engine from damage due to low oil levels.
• Air Ports: Side air ports limit the entry of debris into critical components.
• Rahi Pereti: Heavy-duty steel compacting plate measures 21 1/2 inches by 17 7/10 inches.

1. Tatūnga me te Runanga

Before operating the compactor, ensure all components are properly assembled and checked. Refer to the detailed assembly instructions provided in the separate assembly guide for specific steps.

Takitaki Tuatahi:

1. Wewete ana: Carefully remove the compactor and all accessories from the packaging. Inspect for any shipping damage.
2. Huihui Kakau: Attach the handle securely to the main unit using the provided hardware. Ensure all bolts are tightened to specification.
3. Taumata Wai:
   • Hinu Mihini: Fill the engine crankcase with the recommended type and amount of engine oil. Do not overfill.
   • wahie: Fill the fuel tank with fresh, clean gasoline. Ensure the fuel cap is securely fastened.
4. Tātari hau: Verify the air filter is clean and properly seated.
5. Puru korakora: Check that the spark plug wire is securely connected.

Figure 2: Compactor with handle and engine detail

2. Nga Tohutohu Whakahaere

Follow these steps for safe and effective operation of your Powerhorse Plate Compactor.

Ka timata te Mihini:

1. Ensure the compactor is on a level surface.
2. Whakatuwheratia te piha wahie.
3. Nekehia te rīwhi kōkō ki te tūranga 'CHOKE' (mēnā he makariri te mīhini).
4. Nekehia te rīpene whakatere ki te tūranga 'FAST'.
5. Toia te kakau whakaoho whakamuri kia timata ra ano te miihini.
6. Kia tīmata te mīhini, nekehia mārire te rīwhi ārai ki te tūranga 'OMA'.

Compaction Procedure:

• Always wear appropriate personal protective equipment (PPE), including hearing protection, safety glasses, and sturdy footwear.
• Guide the compactor over the area to be compacted. The single-direction design means it moves forward.
• Overlap each pass by approximately 2-4 inches to ensure uniform compaction.
• For optimal results, make multiple passes over the same area. The compactor delivers 5,500 VPM and travels at 65 feet per minute, allowing for efficient coverage of up to 6,700 square feet per hour.
• The heavy-duty steel compacting plate (21.5" x 17.7") is designed to deliver 3,950 lbs. of compaction force.

Figure 3: Illustrates the significant compaction force of 3,950 lbs.

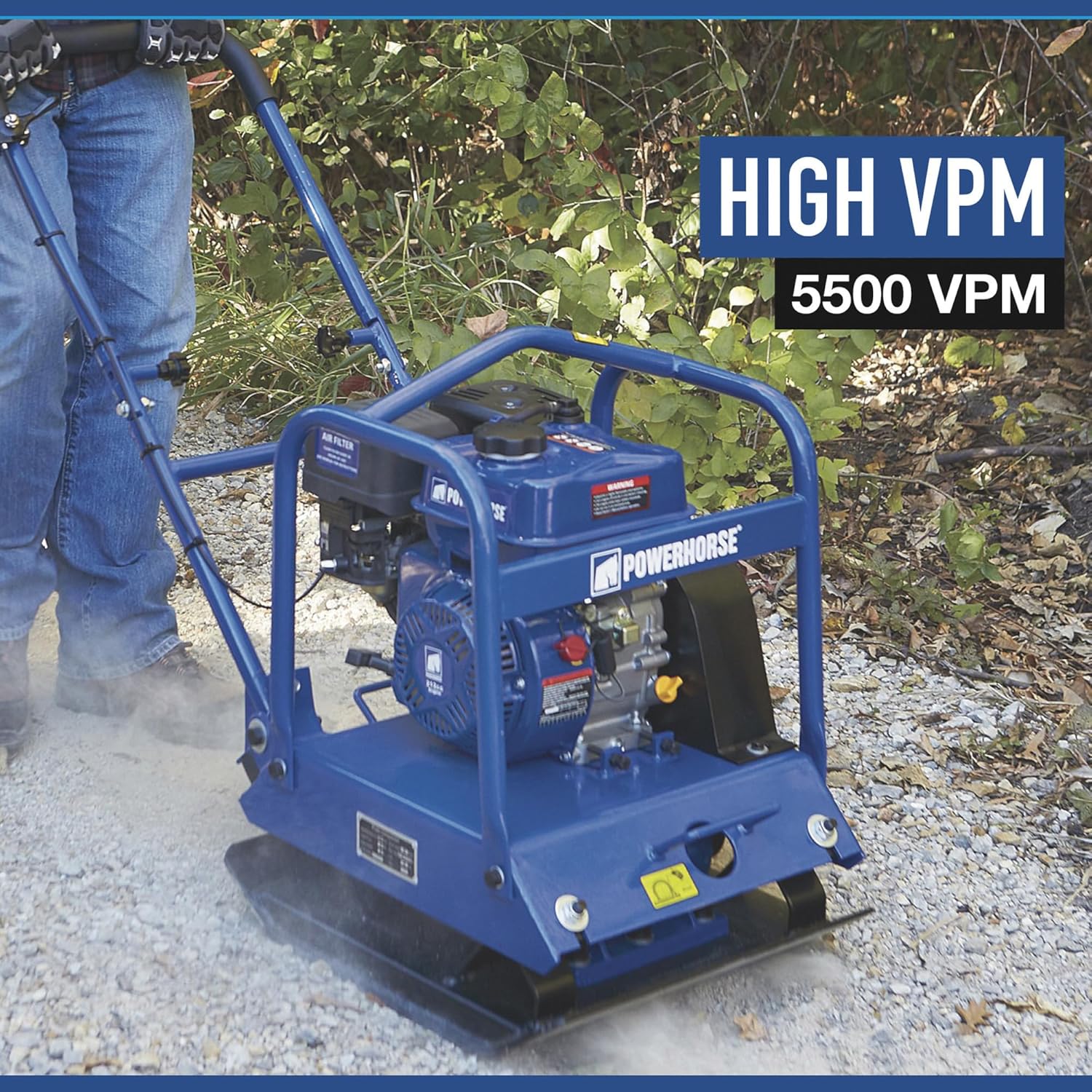

Figure 4: Highlights the high vibration rate of 5,500 VPM for effective compaction.

Figure 5: Demonstrates the efficient travel speed of 65 feet per minute.

Whakamutua te Miihini:

1. Move the throttle lever to the 'STOP' or 'OFF' position.
2. Katia te piha wahie.
3. Allow the engine to cool down before storage or further maintenance.

3. Tiaki

Regular maintenance is crucial for the longevity and optimal performance of your Powerhorse Plate Compactor.

Te Whakahaere Miihini:

• Huringa Hinu: Refer to the engine manual for recommended oil change intervals. Regularly check oil levels before each use. The low oil shutdown feature protects the engine from damage if oil levels drop too low.
• Horoi Tātari Hau: Clean or replace the air filter regularly, especially when operating in dusty conditions. The side air ports are designed to limit debris entry, but regular cleaning is still necessary.
• Puru korakora: Tirotirohia me te horoi i te paraka i ia wa. Whakakapihia mehemea kua mau, kua piro ranei.

Figure 6: The Low Oil Shutdown feature provides critical engine protection.

Compacting Plate and Belt Maintenance:

• Te horoi: After each use, clean any accumulated dirt or debris from the compacting plate and the underside of the unit.
• Tirohanga whitiki: Periodically inspect the drive belt for wear, cracks, or damage. Replace if necessary. The sealed belt cover protects the clutch and belt.
• Ngā toromoka: Check all nuts, bolts, and fasteners regularly and tighten as needed to ensure structural integrity.

4. Te Raru

Kei roto i tēnei wāhanga ngā otinga mō ngā take whakahaere noa. Mō ngā raruraru kāore i te rārangihia i konei, whakapā atu ki te tautoko kiritaki.

5. Whakatakotoranga

Detailed technical specifications for the Powerhorse Single-Direction Plate Compactor.

6. Pūtāhui me te Tautoko

For warranty information, please refer to the documentation included with your purchase or visit the official Powerhorse website. Powerhorse products are built for durability and dependability.

Tautoko Kiritaki:

If you require assistance, have questions, or need to order replacement parts, please contact Powerhorse customer support. You can also visit the Powerhorse Store on Amazon mo etahi atu korero hua me nga rauemi.

Additional protection plans may be available for purchase to extend coverage beyond the standard warranty. Please check the product listing or contact your retailer for details on 2-Year, 3-Year, or Complete Protect plans.
