1. Hua Neke Atuview
The Ceptics 300W Travel Voltage Converter is designed to provide safe and reliable power for your electronic devices while traveling internationally. It converts foreign 220V electricity to 110V, suitable for most US-based appliances and gadgets. This unit is equipped with multiple outlets and USB ports to charge several devices simultaneously, ensuring you stay connected wherever you go.

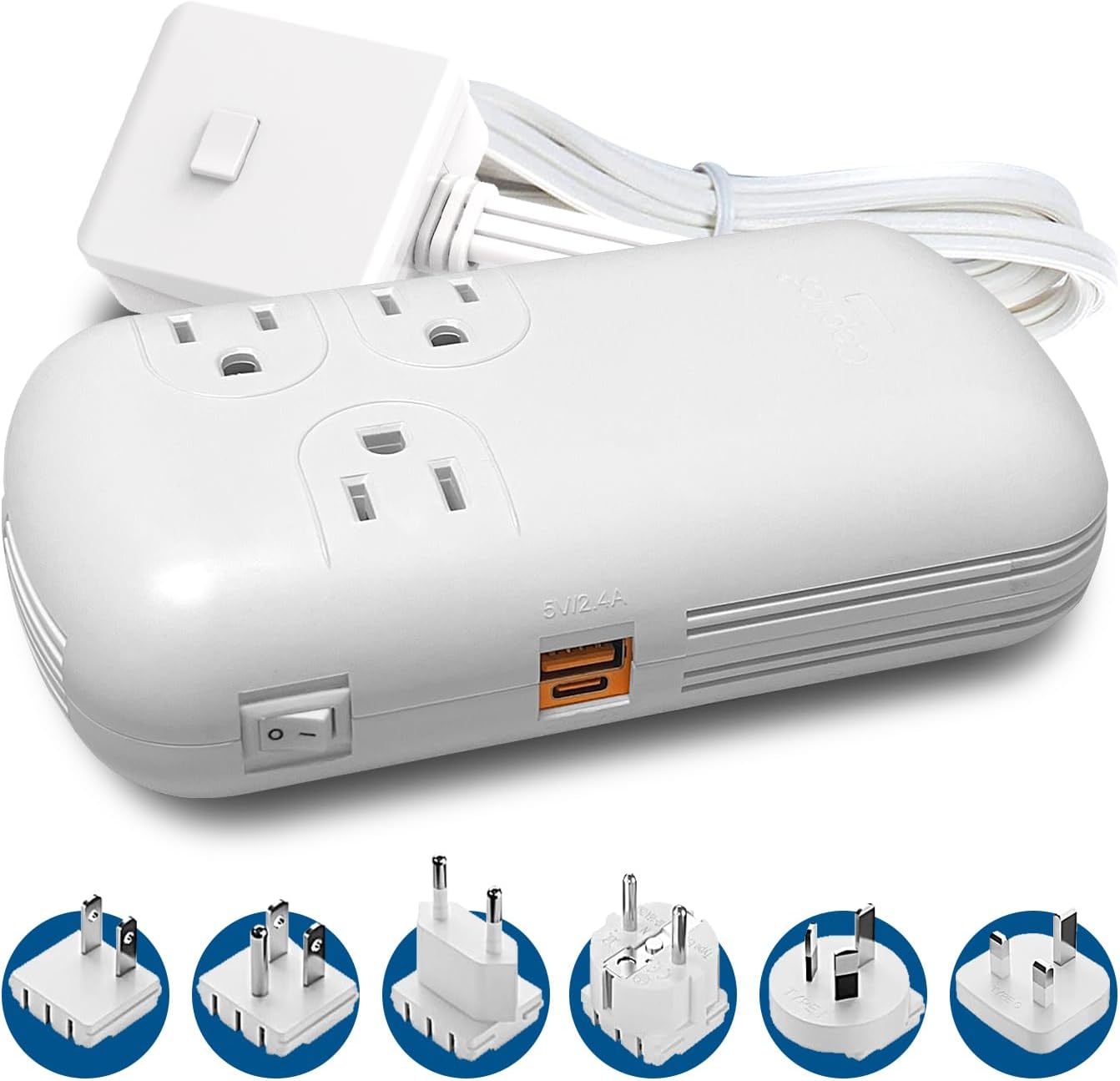

Figure 1: Ceptics 300W Travel Voltage Converter with included international plug adapters.
2. Ihirangi mokete
- PU-200 Voltage kaitahuri
- urutau UK
- urutau EU
- AUS Adapter
- US taura
- Pukoro Kawe
Figure 2: The converter unit with its interchangeable SWadAPt™ plug attachments.
3. Tohutohu Tatūnga
- Kōwhiria te Mono Tika: Identify the appropriate SWadAPt™ plug attachment for the country you are in. The converter supports Type A, B, C, E/F, G, and I outputs.
- Attach the Plug: Connect the selected plug attachment to the main power cord. Ensure it clicks securely into place.
- Plug into Converter: Plug the main power cord into the designated input port on the Ceptics converter unit.
- Mono ki te Putanga Taiepa: Insert the attached plug into the wall outlet of your location.
- Whakahiko: Press the power button on the converter unit to turn it on. A green indicator light will confirm it is active.

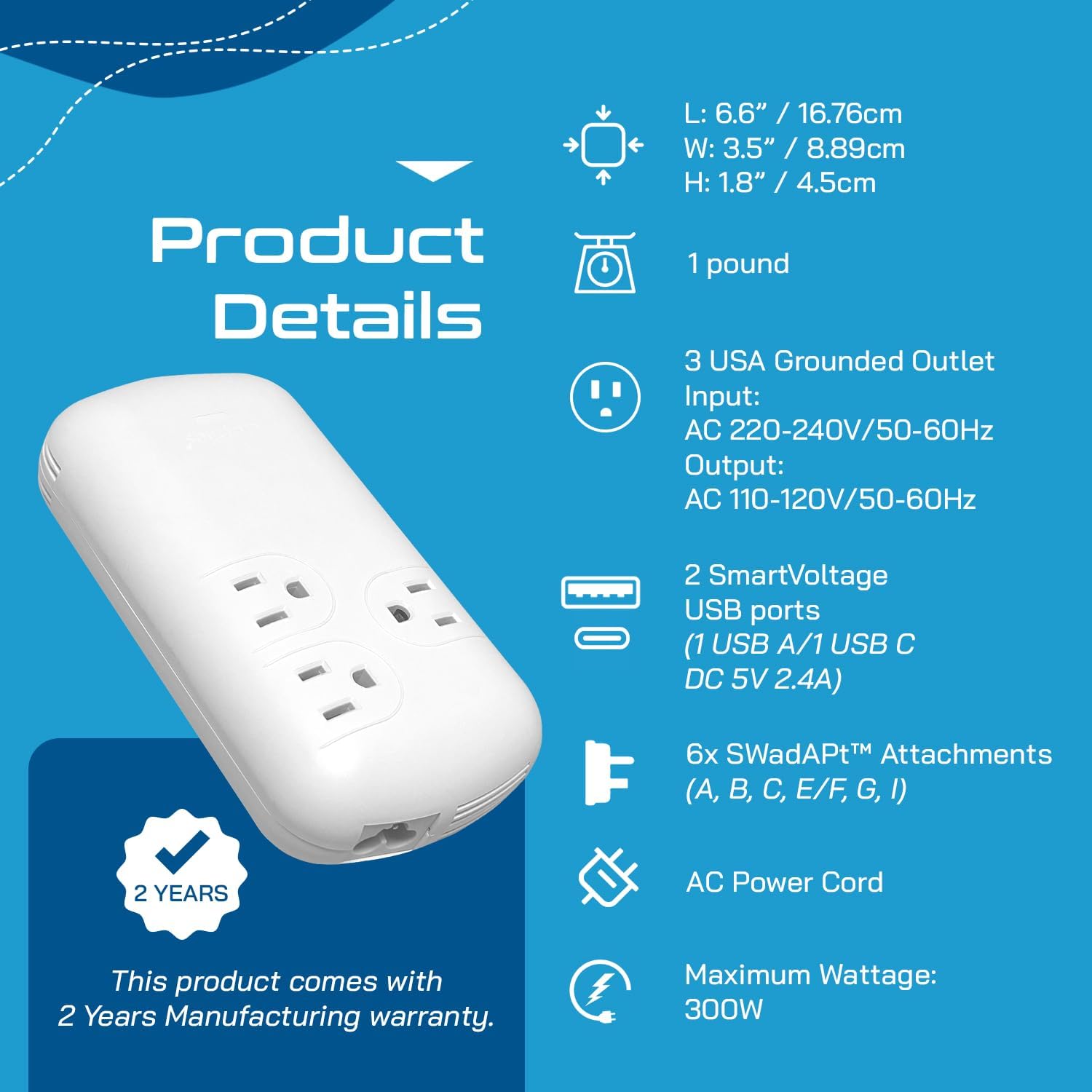

Whakaatu 3: Taipitopito view of the converter's connections and specifications.
4. Nga Tohutohu Whakahaere
The Ceptics 300W converter is designed for ease of use and versatility.
- Putanga AC: The unit provides 3 USA grounded outlets (AC 110-120V/50-60Hz output) for your appliances.
- Whakatau USB: Utilize the 2 USB-A ports and 1 USB-C PD 18W fast charging port for your mobile devices. The unit outputs up to 6.4A, automatically adjusting for optimal charging.
- Wat teiteitage Appliances: This converter is specifically designed to handle high-wattage personal care appliances up to 300W, such as curling irons and straighteners.
- Pātene Hiko: Use the integrated power button to turn the converter on or off as needed, conserving energy.

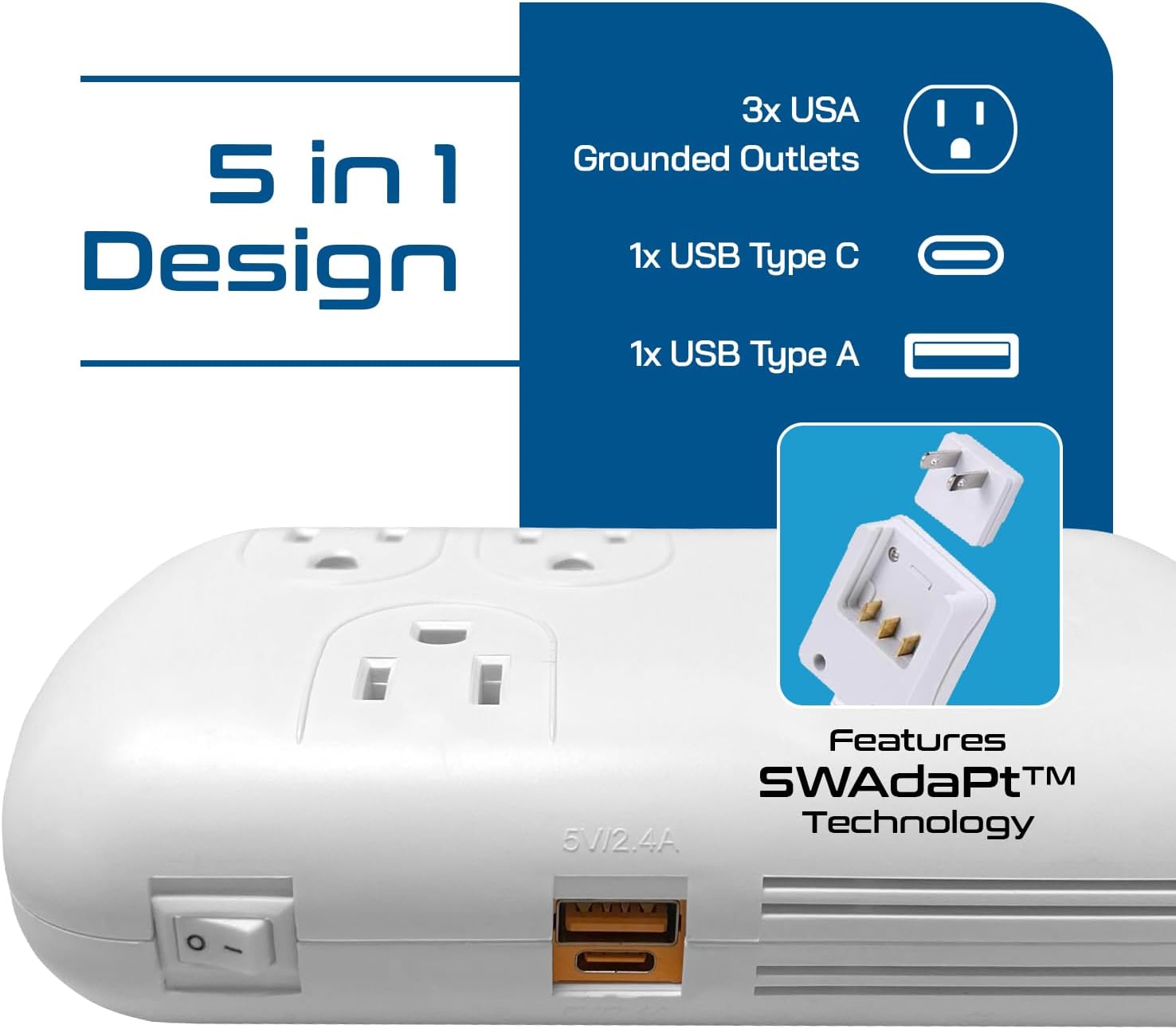

Figure 4: The 5-in-1 design highlighting the various charging ports.
5. Compatibility and Safety
The Ceptics converter features patented SmartVoltage™ Technology for safe and efficient power conversion.
- Whakamahia puta noa i te Ao: Compatible in over 150 countries, converting 220V/50Hz to 110V/60Hz.
- Tiwhikete Haumaru: Equipped with a silent fan to prevent overheating, auto shutdown surge protection, overcurrent, overtemperature, and short circuit protection.
- Ngaru Wai Parakore: Ensures stable and smooth current to your electronics for optimum performance.
Figure 5: Explanation of Sine Wave Voltage & Frequency Conversion.
Figure 6: Visual representation of frequency conversion.
Note: This converter is not designed for use with hair dryers, power tools, heaters, and other high power products that exceed 300W. The maximum power drawn by the device shouldn't exceed the maximum capacity of the converter. Not compatible with Dyson hair dryers.
6. Tiaki
To ensure the longevity and optimal performance of your Ceptics converter, follow these simple maintenance guidelines:
- Te horoi: Horoia te waho o te waeine ki te kakahu ngohengohe, maroke. Kaua e whakamahi i nga kai horoi wai, i nga taonga abrasive ranei.
- Rokiroki: When not in use, store the converter and its accessories in the provided carrying pouch in a cool, dry place away from direct sunlight and moisture.
- Tirotiro: Periodically check the power cord and plug attachments for any signs of damage, fraying, or loose connections. Discontinue use if any damage is found.
7. Te Raru
If you encounter issues with your Ceptics converter, refer to the following common troubleshooting tips:
- Kore Mana: Ensure the converter is securely plugged into the wall outlet and the power button on the unit is pressed to the 'ON' position (green light visible). Check the wall outlet with another device to confirm it is functional.
- Device Not Charging/Working: Verify that your device is properly connected to the converter's AC outlet or USB port. Confirm that your device's wattage does not exceed the converter's 300W maximum capacity. Some high-power devices like certain hair dryers (e.g., Dyson) are not compatible.
- Overheating/Auto Shutdown: The converter has built-in overtemperature protection. If it overheats, it will automatically shut down. Disconnect all devices, allow the unit to cool down, and ensure proper ventilation before resuming use. Avoid covering the unit's vents.
- Te Mana Waahi: Check all connections for looseness. Ensure the plug attachment is firmly seated in the main power cord.
8. Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Hunga Hua | 6.5 x 3.5 x 1.75 inihi |
| Taumaha Tūemi | 1 pauna |
| Tau tauira | PU-300D-EU |
| Whakauru Voltage | 220 Volts |
| Putanga Voltage | 110-120V |
| Max Wattage | 300W |
| USB-He Putanga | 2 ports, 5V/2.4A Max |
| Putanga USB-C | 1 port, PD 18W Fast Charging |
| Included Plugs | Type A, B, C, E/F, G, I |
| Whenua Taketake | Haina |
9. Pūtāhui me te Tautoko
The Ceptics 300W Travel Voltage Converter comes with a 12-month full Ceptics warranty. For any product inquiries, technical support, or warranty claims, please refer to the contact information provided in your product packaging or visit the official Ceptics website. Ceptics is a small business brand based in the USA with over 10 years of expertise and local customer support.
Figure 7: Ceptics brand commitment to quality and support.
