SHARP FPK50UW Plasmacluster Air Purifier

1. Kupu Whakataki

This manual provides essential information for the safe and effective operation of your SHARP FPK50UW Plasmacluster Air Purifier. This air purifier is designed to improve indoor air quality through a triple filtration system and Plasmacluster Ion Technology, covering areas up to 1,253 sq. ft. (based on 1 air change per hour).

Please read this manual thoroughly before using the appliance and retain it for future reference.

2. Nga Tohutohu Haumaru Nui

• Always unplug the air purifier before cleaning, performing maintenance, or when not in use.
• Do not operate the unit with a damaged cord or plug. If the cord or plug is damaged, contact customer support for assistance.
• Kaua e araia nga urunga hau, nga putanga ranei. Me whakarite kia tika te mokowhiti huri noa i te waeine kia pai ai te rere o te hau.
• Keep the unit away from water or other liquids. Do not use in wet environments such as bathrooms.
• Ko tenei taputapu ehara i te mea mo te whakamahi ma nga tangata (tae atu ki nga tamariki) he iti te kaha o te tinana, te tairongo, te hinengaro ranei, te kore mohio me te mohiotanga, mena ka tukuna atu ki a raatau te tirotiro, te tohutohu ranei mo te whakamahi i te taputapu e te tangata e whai mana ana mo to raatau haumaru. .
• Use only genuine SHARP replacement filters.

3. Waenga Hua

Familiarize yourself with the main parts of your SHARP FPK50UW Air Purifier.

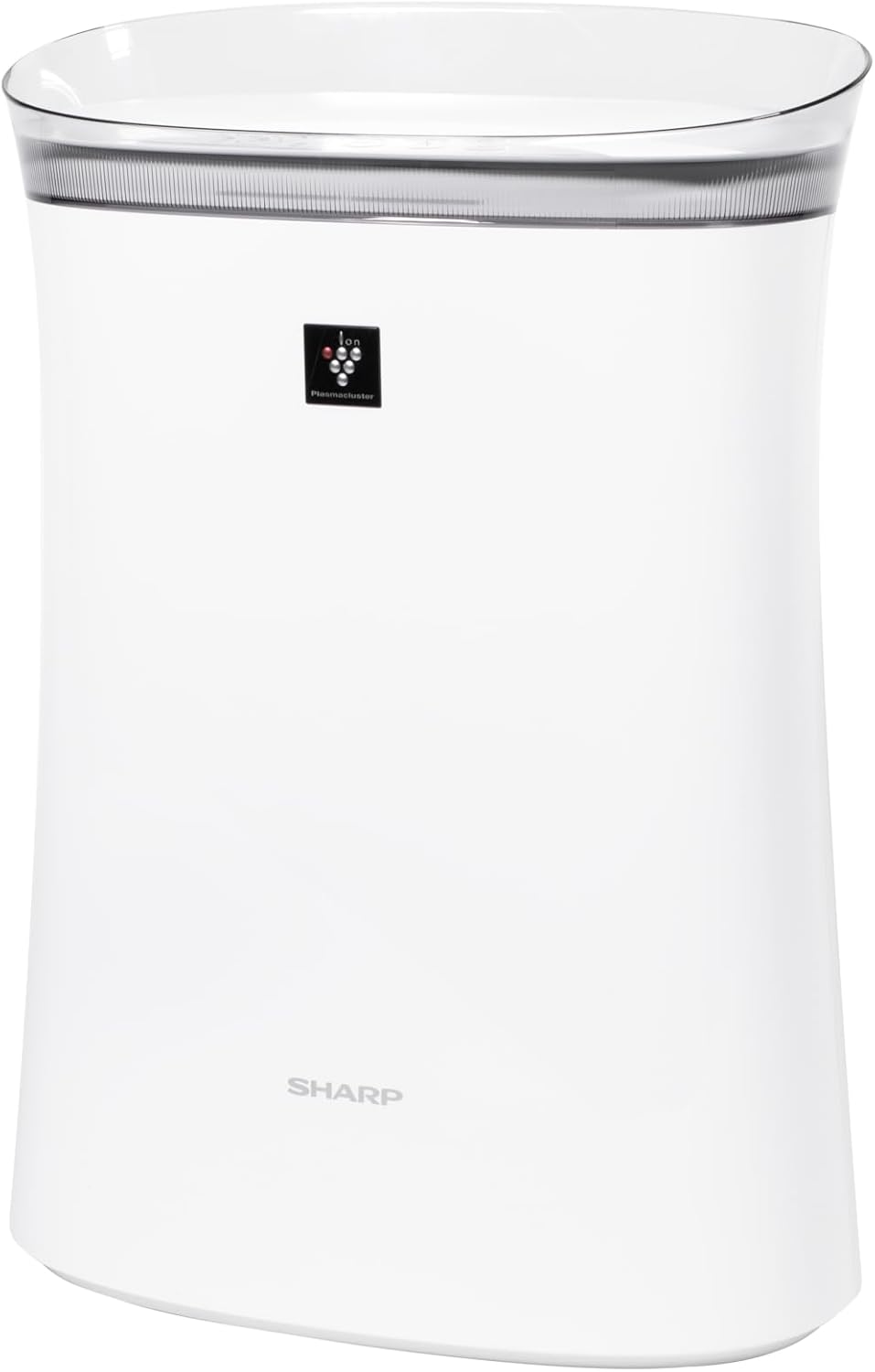

Whakaahua 3.1: Mua view of the SHARP FPK50UW Air Purifier. This image displays the sleek, white design of the unit with the SHARP logo and Plasmacluster indicator on the front panel.

Whakaahua 3.2: Whakamuri view of the SHARP FPK50UW Air Purifier. The rear panel features the air intake grille and the power cord.

Whakaahua 3.3: Control Panel. This image shows the touch-sensitive buttons for power, fan speed, Plasmacluster, Express Clean, and timer functions.

Rarangi o nga Waahanga:

• Wahanga matua
• Washable Microscreen Pre-filter (installed)
• Activated Carbon Deodorizing Filter (installed)
• True HEPA Filter (installed)
• Waea Hiko (kua piri)

4. Setup and Filter Installation

Before operating your air purifier, ensure all filters are properly installed and packaging removed.

Hipanga Tatūnga Tuatahi:

1. Wewetehia te Waehe: Me ata tango te para rangi mai i tana putunga.
2. Remove Back Panel: Gently pull the back panel of the unit to detach it.


Whakaahua 4.1: Whakamuri view with the back panel removed, revealing the pre-filter and main filters inside the unit.

3. Tango Tātari: Take out the pre-filter, activated carbon filter, and True HEPA filter.


Whakaahua 4.2: The True HEPA filter and Activated Carbon filter are shown removed from the air purifier, with the internal fan visible.

4. Remove Plastic Packaging: Remove all plastic bags and protective wrapping from the activated carbon filter and True HEPA filter. The pre-filter does not have plastic wrapping.
5. Tāuta Anō Tātari: Insert the True HEPA filter first, followed by the activated carbon filter, and then the pre-filter. Ensure they are oriented correctly as indicated on the filters or unit.
6. Reattach Back Panel: Securely reattach the back panel.
7. Turanga: Place the air purifier on a firm, level surface, ensuring at least 8 inches of clearance from walls or furniture for optimal airflow.
8. Mono Mai: Connect the power cord to a standard electrical outlet.

5. Mahi

The control panel allows you to manage the air purifier's functions.

Nga Mahi Paewhiri Mana:

• ON/OFF Button (Power): Pēhia kia whakakā, whakaweto rānei te kōwae.
• Pātene Tere Kiri: Cycles through fan speeds: Max, Med, and Sleep.
• Plasmacluster ON/OFF Button: Activates or deactivates the Plasmacluster Ion Technology.
• Express Clean Button: Initiates a 60-minute high-speed cleaning cycle before returning to the previous setting.
• Pātene Matawā: Sets the operating timer for 2, 4, or 8 hours. The unit will automatically turn off after the selected time.
• Light ON/OFF (Press 3 sec.): Press and hold the Timer button for 3 seconds to turn the display lights on or off.
• Filter Reset (Press 3 sec.): After replacing filters, press and hold the Plasmacluster button for 3 seconds to reset the filter indicator.

6. Tiaki

Ko te tiaki i nga wa katoa ka tino pai te mahi me te whakaroa i te ora o to para rangi.

Tiaki Tātari:

• Tātari-mua: The washable microscreen pre-filter should be cleaned regularly (e.g., monthly) by vacuuming or rinsing with water. Ensure it is completely dry before reinstalling.
• Activated Carbon Deodorizing Filter & True HEPA Filter: These filters are designed for long life, lasting up to 2 years depending on the environment and usage. Replace them when the filter indicator light illuminates or when you notice a decrease in performance or increased odors. These filters are not washable.

Whakapai Waehe:

• Waho: Wipe the exterior of the unit with a soft, dry cloth. For stubborn stains, use a damp kakahu ki te horoi ngawari, ka horoia kia maroke.
• Air Outlets/Inlets: Periodically vacuum or wipe the air outlets and inlets to remove dust accumulation.

7. Te Raru

If you encounter issues with your air purifier, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact SHARP customer support.

8. Whakatakotoranga

9. Pūtāhui me te Tautoko Kiritaki

Your SHARP FPK50UW Air Purifier comes with a 1-year limited parts and labor warranty.

For warranty claims, technical assistance, or to purchase replacement filters, please contact SHARP customer support:

• Webpae: Visit the official SHARP webpae mo nga rauemi tautoko me nga korero whakapā.
• Waea: Refer to your product registration card or the SHARP website for the appropriate customer service number.

Please have your model number (FPK50UW) and proof of purchase ready when contacting support.
