Powerhorse OHV Horizontal Engine User Manual
Tauira: 3250128
1. Kupu Whakataki
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Powerhorse OHV Horizontal Engine. Please read this manual thoroughly before operating the engine to ensure proper use and to prevent injury or damage.
The Powerhorse 212cc OHV Horizontal Engine is designed to provide reliable power for various equipment, featuring a robust 212cc, 6 HP design with 9 ft.-lbs. Gross Torque. Key features include a cast iron cylinder sleeve for durability, dual ball bearings, a forged-steel crankshaft, and a CDI ignition system with recoil start.
Whakaahua 1: Mua view of the Powerhorse 212cc OHV Horizontal Engine.
2. Nga korero haumaru
Always prioritize safety when operating or maintaining the engine. Failure to follow safety instructions can result in serious injury or death.
- Pānuihia te pukapuka: Kia mohio ki nga tohutohu me nga whakatupato katoa i mua i te whakamahi.
- Whakahau: Operate the engine in a well-ventilated area to avoid carbon monoxide poisoning.
- Te whakahaere wahie: Handle fuel with extreme care. Fuel is highly flammable. Store in approved containers.
- Mata wera: The engine and exhaust system become very hot during operation and remain hot for a period after shutdown. Avoid contact.
- Whakaweto Hinu Iti: The engine is equipped with a low oil shutdown system to prevent damage. Do not bypass this safety feature.
- Taputapu Tiaki Whaiaro (PPE): Wear appropriate PPE, such as safety glasses and gloves, when operating or servicing the engine.
3. Tatūnga me te Tāuta
Before starting the engine, ensure it is properly installed and all necessary fluids are at the correct levels.
- Whakapiki: Securely mount the engine to a stable, level surface using appropriate hardware. Ensure proper alignment with the driven equipment.
- Tāpiri Hinu Miihini: Fill the crankcase with the recommended type and amount of engine oil. The engine features a low oil shutdown system, so proper oil level is critical for operation and engine protection. Refer to the oil fill cap for recommended oil type.
- Tāpiri wahie: Fill the fuel tank with fresh, clean gasoline. Do not overfill. Ensure the fuel cap is securely tightened.
- Air Filter Check: Verify the air filter is clean and properly installed. The air filter is crucial for engine longevity.
Figure 2: Engine showing the air filter housing and label indicating cleaning frequency.
4. Nga Tohutohu Whakahaere
Follow these steps to start and operate your Powerhorse engine.
- Takiwa wahie: Open the fuel valve (if equipped).
- Koowaowao: Move the choke lever to the 'CHOKE' position if starting a cold engine. For a warm engine, the choke may not be necessary.
- Whakawhiti Miihini: Move the engine ON/OFF switch to the 'ON' position.
- Tīmata: Pull the recoil starter handle firmly and smoothly until the engine starts. The recoil start features a compression release for easier starting.
- Te Whakatikatika i te Ārai: Kia tīmata te mīhini, nekehia mārire te rīwhi ārai ki te tūranga 'OMA' i te mea e mahana haere ana te mīhini.
- Puta: Whakaritea te kaitapa ki te tere miihini e hiahiatia ana.
To stop the engine, move the engine ON/OFF switch to the 'OFF' position and close the fuel valve.

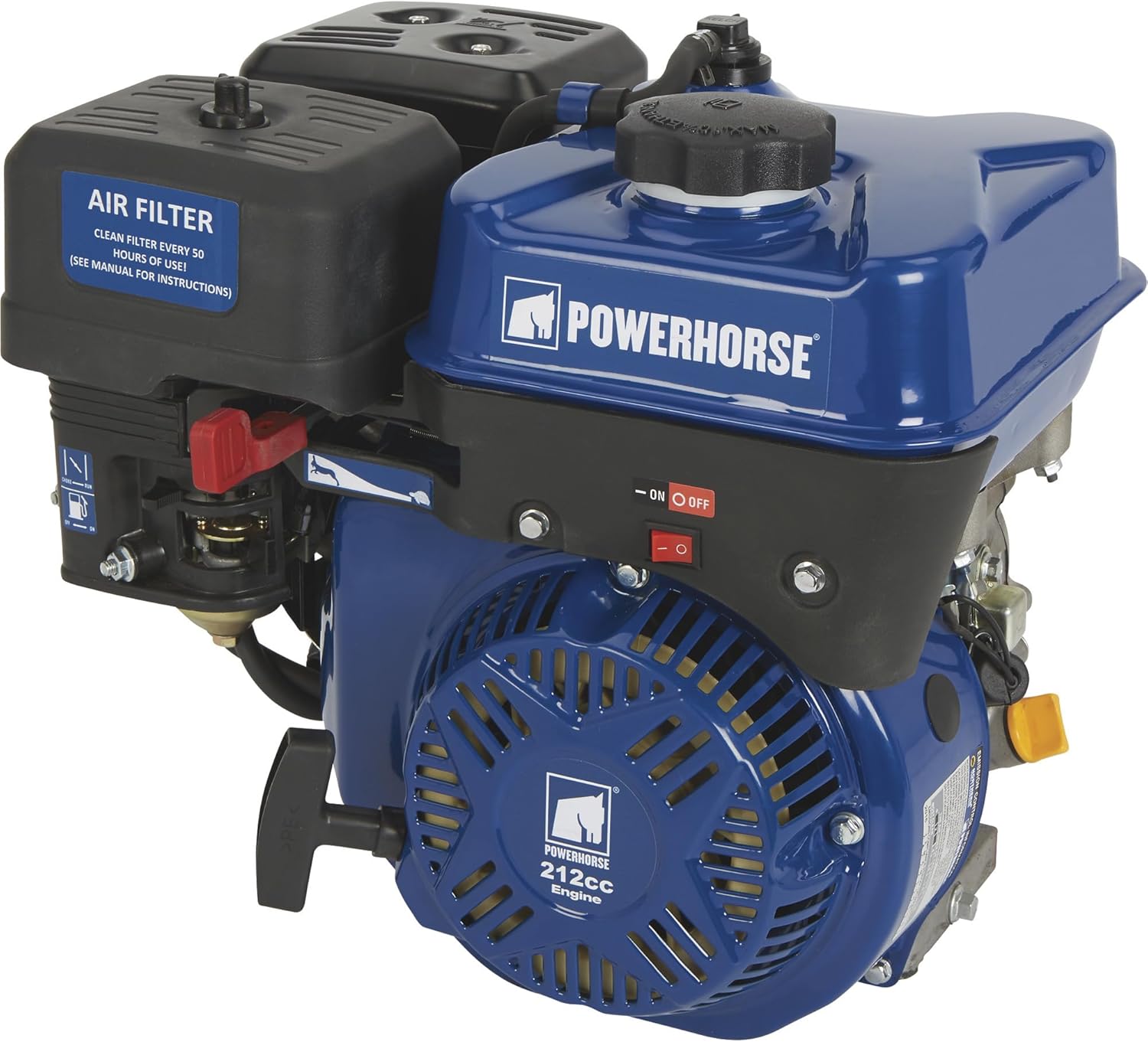

Figure 3: Engine highlighting the low oil shutdown and recoil start features.
5. Tiaki
Regular maintenance is essential for the longevity and optimal performance of your engine.
- Hinu Mihini: Check oil level before each use. Change engine oil after the first 5 hours of operation, then every 50 hours or annually, whichever comes first.
- Tātari hau: Clean the air filter every 50 hours of use, or more frequently in dusty conditions. Replace if damaged.
- Puru korakora: Tirohia te mono mura i ia tau, i ia 100 hāora rānei. Horoia, whakakapia rānei mēnā e tika ana.
- Pūnaha hinu: Drain the fuel tank and carburetor if storing the engine for an extended period (over 30 days) to prevent fuel degradation.
- Whakapai Whānui: Keep the engine clean, especially cooling fins, to prevent overheating.
6. Te Raru
Kei roto i tēnei wāhanga ngā otinga mō ngā take whakahaere noa.
| Raruraru | Take pea | Rongoā |
|---|---|---|
| E kore e timata te miihini | No fuel; Low oil level; Engine switch OFF; Choke incorrect; Fouled spark plug | Add fuel; Add oil; Turn switch ON; Adjust choke; Clean/replace spark plug |
| He kino te rere o te miihini | Dirty air filter; Stale fuel; Incorrect throttle setting | Clean/replace air filter; Drain and refill with fresh fuel; Adjust throttle |
| Ka wera te miihini | Blocked cooling fins; Low oil level; Overloaded | Clean cooling fins; Check/add oil; Reduce load |
7. Whakatakotoranga
| Whakatakotoranga | Uara |
|---|---|
| Tau tauira | 3250128 |
| Momo Mihini | OHV Horizontal Engine |
| Whakahekenga | 212cc |
| Horsepower (HP) | 6 HP |
| Gross Torque | 9 ft.-lbs. |
| Rahi moopuku | 3/4in. x 2 7/16in. |
| Taumaha | 38.6 pauna |
| Kaihanga | Te hoiho kaha |
Whakaahua 4: Whakamuri view of the engine, showing the output shaft.
8. Pūtāhui me te Tautoko
Powerhorse engines are built for reliability and durability. For specific warranty details, please refer to the warranty card included with your product or contact Powerhorse customer support directly.
For technical assistance, parts, or service inquiries, please contact our dedicated customer and technical support team. Contact information can typically be found on the Powerhorse webpae, i runga ranei i to putunga hua.
