AMZCHEF Domino Dual Induction Cooktop

1. Kupu Whakataki

Thank you for choosing the AMZCHEF Domino Dual Induction Cooktop. This appliance is designed for efficient and precise cooking, featuring two high-power induction zones, touch-sensor controls, and multiple safety features. Please read this manual thoroughly before installation and operation to ensure safe and optimal use of your new cooktop.

Image: The AMZCHEF Domino Dual Induction Cooktop, showcasing its sleek black glass-ceramic surface and two cooking zones.

2. Nga korero haumaru

Always prioritize safety when operating electrical appliances. This cooktop requires a 220-240V hardwired electrical connection. Ensure installation is performed by a qualified electrician in accordance with local codes.

• Do not touch the hot surface after cooking. Residual heat indicators will illuminate.
• Use only compatible magnetic cookware. Incompatible cookware will not heat and may trigger a pot detection error.
• Keep children away from the appliance during operation and when it is cooling down. Utilize the child safety lock feature.
• Kaua e whakatakoto i ngā mea whakarewa pēnei i te maripi, te marau, te pūnu, te taupoki rānei ki runga i te mata o te oumu kei wera pea.
• Ensure proper ventilation around the cooktop, especially if built-in.

3. Ihirangi mokete

Manatokona kei te noho nga mea katoa i te wa e wetewete ana:

• AMZCHEF Domino Dual Induction Cooktop (Model FS-IRC119)
• Pukapuka Kaiwhakamahi

4. Tāutanga

The AMZCHEF Domino Dual Induction Cooktop can be used as a built-in unit or as a standalone appliance. For built-in installation, ensure your countertop cutout dimensions match the product specifications. The cooktop is equipped with small feet for standalone use.

Hononga hiko

This cooktop requires a 220-240V electrical supply and must be hardwired. It does not come with a plug. Professional installation by a certified electrician is highly recommended to ensure compliance with all electrical safety standards.

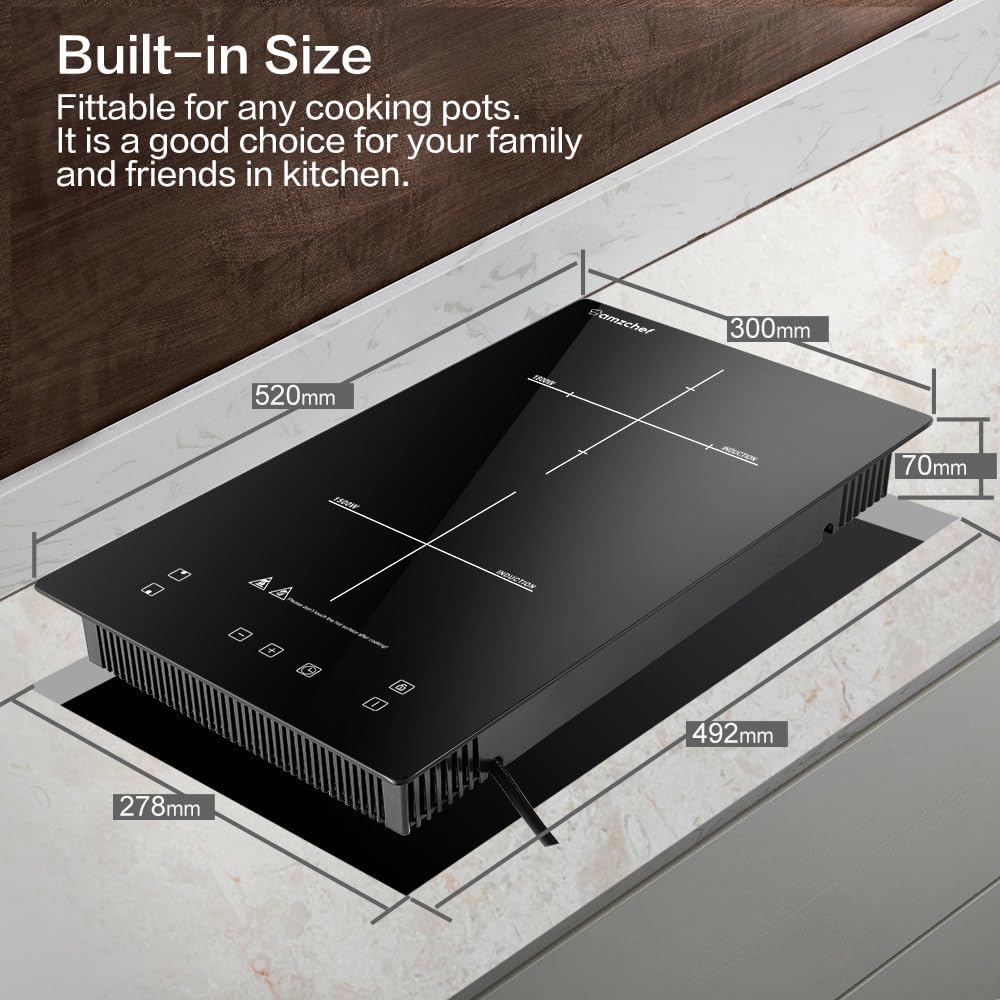

Image: Diagram showing the built-in dimensions of the cooktop (520mm x 300mm x 70mm) and the required cutout size (492mm x 278mm).

5. Nga Tohutohu Whakahaere

The cooktop features a digital touch control panel for easy operation.

Image: Close-up of the cooktop's touch control panel, highlighting heating zone selection, power/timer controls, keylock, and ON/OFF button.

Te Hiko / Whakaweto

• Pehia te ON/OFF button to turn the cooktop on. The indicator lights will illuminate.
• Pehia te ON/OFF button again to turn the cooktop off.

Heating Zone Selection and Power Adjustment

• After turning on the cooktop, select the desired heating zone by pressing its corresponding selection control.
• Whakamahia te + a - buttons to adjust the power level. There are 10 power levels available, with zones rated at 1500W and 1800W.
• The cooktop also features a booster function for rapid heating.

Image: Graphic illustrating the 10 power levels and the 0-99 minute timer function on the cooktop.

Tautuhinga Matama

• Pehia te Matawā pātene hei whakahohe i te mahi taima.
• Whakamahia te + a - buttons to set the desired cooking time, from 1 to 99 minutes.
• The cooktop will automatically turn off the selected cooking zone once the timer expires.

Maukati Haumaru Tamariki

• To activate the child safety lock, touch the raka symbol on the control panel. This will prevent accidental changes to settings.
• To deactivate, touch and hold the raka symbol again until it unlocks.

6. Ngā Utauta Tunu Hototahi

Induction cooktops require cookware with a magnetic base. The cooktop features a pot detection system that will automatically switch off if no cookware or incompatible cookware is detected after 1 minute.

Compatible Cookware Types:

• Te tunu kai rino
• Iron pans
• Iron plates
• Cookware with a magnetic base
• Stainless steel cookware with a magnetic base

Incompatible Cookware Types:

• Ngā oko tunu parahi
• Te tunu kai uku
• Te tunu kai konumohe
• Te tunu kai karaihe
• Cookware with uneven bottoms

Image: Visual guide showing various types of cookware, indicating which are compatible (e.g., cast iron, magnetic pot, stainless steel with magnetic base) and incompatible (e.g., copper, ceramic, aluminum, glass, uneven bottom) with the induction cooktop.

7. Te horoi me te tiaki

The cooktop features a black polished crystal glass surface, making it easy to clean and scratch-resistant.

• Always ensure the cooktop is turned off and cool before cleaning.
• Horoia te mata ki te ngohengohe, damp kakahu me te horoi ngawari.
• For stubborn stains, use a non-abrasive cleaner specifically designed for glass-ceramic surfaces.
• Avoid using abrasive sponges, scouring pads, or harsh chemicals that could damage the surface.

Image: A hand wiping the black polished crystal glass surface of the cooktop, demonstrating its easy maintenance and scratch prevention.

Pūnaha whakamatao

The cooktop is equipped with an upgraded cooling system and two powerful fans to ensure fast heat dissipation and long service life. Keep the ventilation openings clear of obstructions.

Whakaahua: Raro view of the cooktop, showing the upgraded cooling system with two powerful fans and a safety mat for stable operation.

8. Te Raru

Mena ka pā mai he raruraru ki tō oumu tunu kai, tirohia ngā mahi rapurongoā noa e whai ake nei:

• Kāore te oumu tunu kai e tahuri: Tirohia te hononga hiko, me te whakarite kei te ora te pūtake hiko.
• Cookware is not heating: Verify that you are using compatible magnetic cookware. The pot detection system will prevent heating with incompatible pots.
• Ngā waehere hapa e whakaaturia ana: Consult the detailed troubleshooting section in the full user manual for specific error code meanings and solutions.
• Nga haruru rereke: A slight humming sound during operation is normal for induction cooktops due to the magnetic field. The cooling fans will also produce a sound.

For persistent issues, please contact AMZCHEF customer service.

9. Whakatakotoranga

10. Pūtāhui me te Tautoko

The AMZCHEF Domino Dual Induction Cooktop comes with a one-year warranty. If you experience any issues or require assistance, please contact the AMZCHEF customer service team for support or a replacement during the warranty period.

For further assistance, please visit the AMZCHEF store or contact their customer support directly.
