Waykar 296 Pints Commercial Dehumidifier Instruction Manual

Kupu Whakataki

Thank you for choosing the Waykar 296 Pints Commercial Dehumidifier. This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your dehumidifier. Please read it thoroughly before use and retain it for future reference.

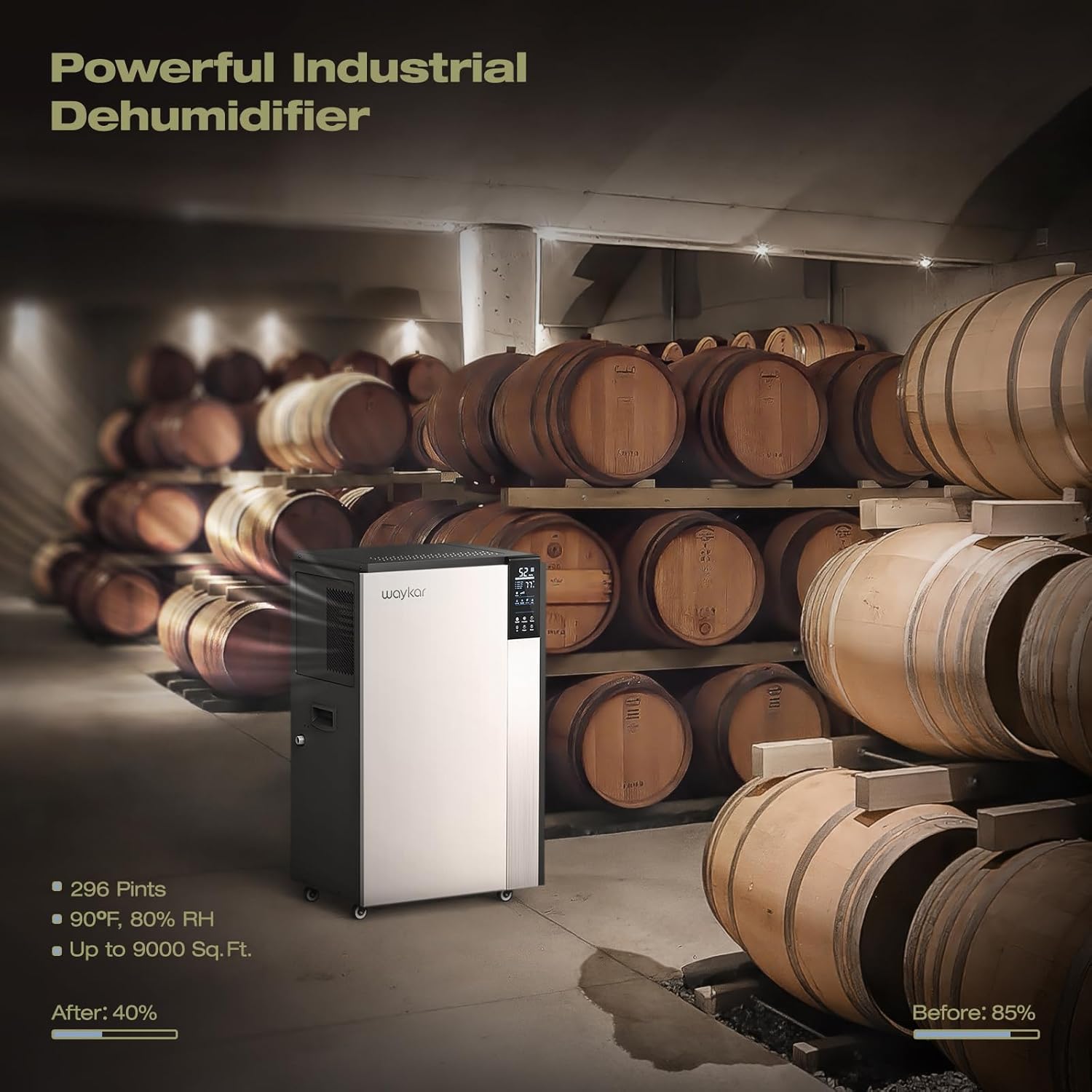

This commercial-grade dehumidifier is designed for large spaces up to 9,000 square feet, effectively removing up to 296 pints (37 gallons) of moisture per day. It is suitable for basements, industrial or commercial spaces, garages, cellars, workshops, libraries, laboratories, and flood restoration.

Nga Korero Haumaru Nui

Hei whakaiti i te tupono o te ahi, te wiri hiko, te whara ranei, me whai tonu i enei tikanga tiaki:

• Panuihia nga tohutohu katoa i mua i te whakamahi i te taputapu.
• Me whakarite kia rite te toha hiko ki te tapanga whakatauranga o te wae.
• Kaua e whakahaeretia te whakamahana ma te taura pakaru, te mono ranei.
• Wewetehia te waeine i mua i te horoi, te mahi ranei.
• Kaua e araia nga urunga hau, nga putanga ranei.
• Keep the unit on a level surface to prevent water leakage.
• Ko tenei taputapu ehara i te mea mo te whakamahi ma te hunga (tae atu ki nga tamariki) he iti te kaha o te tinana, te tairongo, te hinengaro, te kore wheako me te mohiotanga, mena ka tukuna atu ki a raatau te tirotiro, te tohutohu ranei mo te whakamahi i te taputapu e te tangata whai mana mo to raatau haumaru.

Ka mutu te huaview

Nga Waehanga me nga waahanga

The Waykar 296 Pints Commercial Dehumidifier features a robust design with intelligent controls for efficient moisture removal.

Figure 1: Intelligent Touch Control Panel
Displays humidity, temperature, and allows setting adjustments.

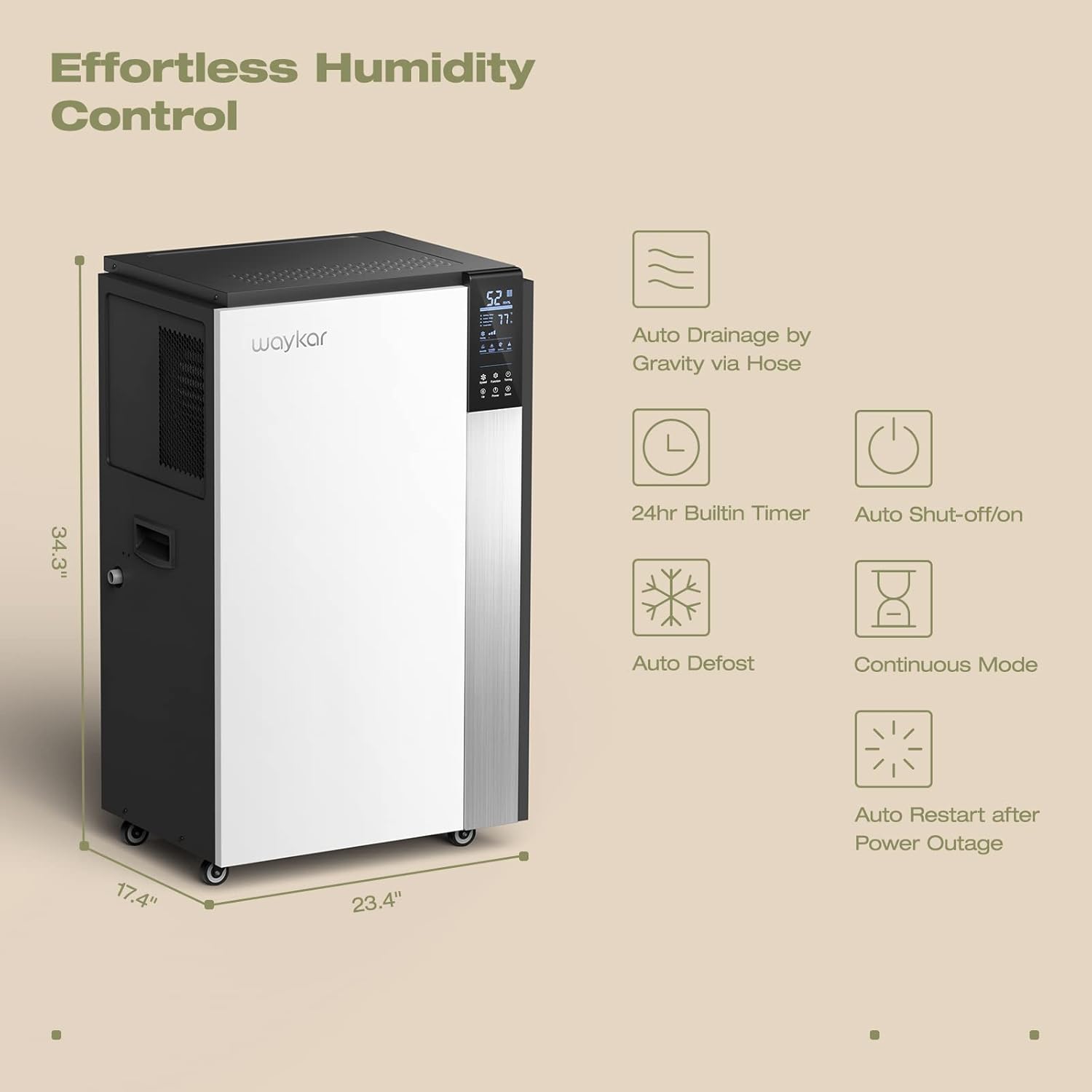

Figure 2: Dehumidifier Dimensions and Key Features
Illustrates the unit's dimensions (34.3" H x 23.4" W x 17.4" D) and highlights features like auto drainage, 24hr timer, auto shut-off/on, auto defrost, continuous mode, and auto restart after power outage.

Figure 3: Continuous Drainage Setup and Detachable Filter
Shows the connection for the continuous drain hose and the location of the washable air filter.

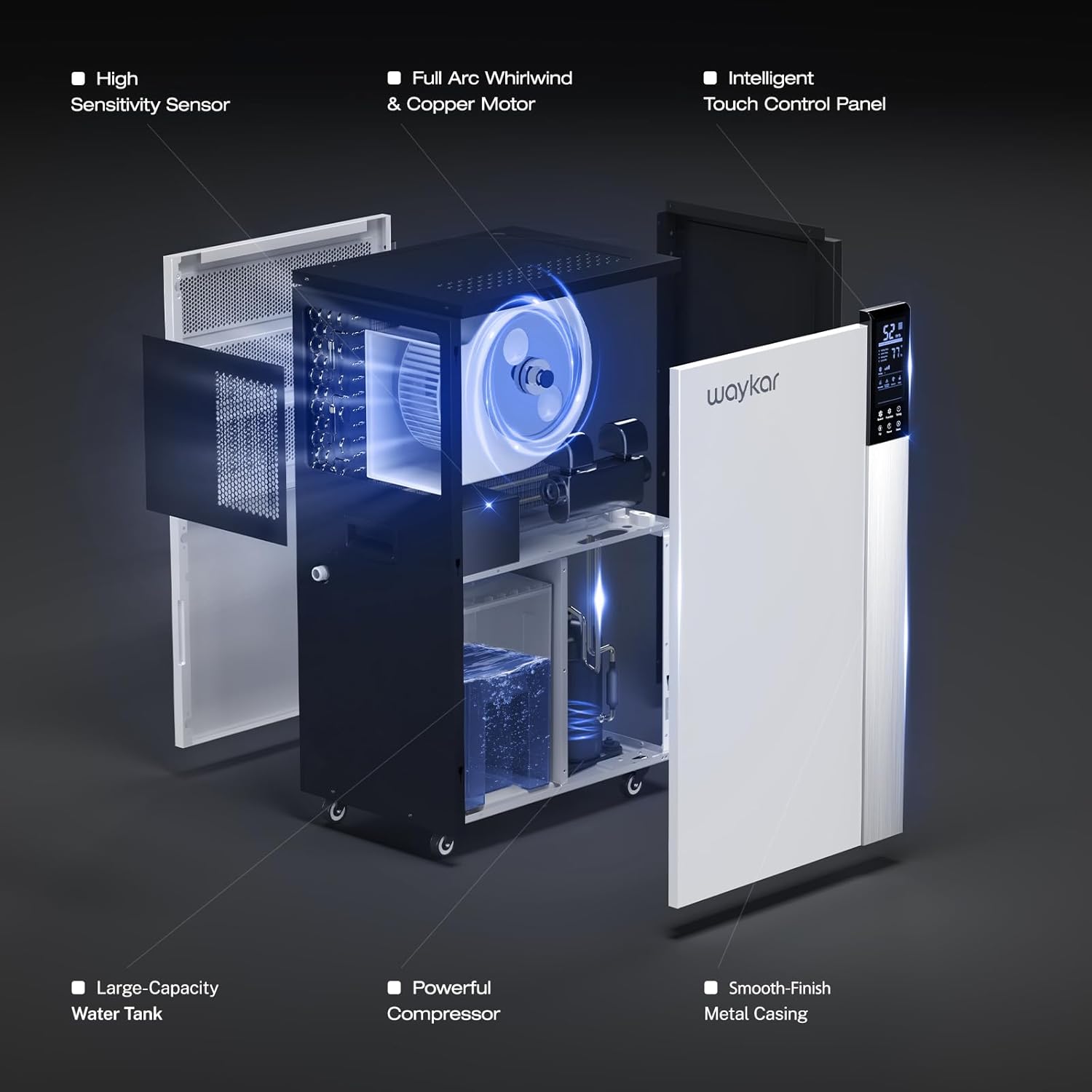

Figure 4: Internal Structure and Components
He pahū view showing the high sensitivity sensor, full arc whirlwind & copper motor, intelligent touch control panel, large-capacity water tank, powerful compressor, and smooth-finish metal casing.

Tohutohu Tatūnga

1. Wewete ana: Tangohia marietia te whakamaroke haumākū i roto i tōna takai. Tirohia mēnā he kino kei te tukuna.
2. Turanga: Position the dehumidifier on a level, stable surface in the desired area. Ensure there is at least 8 inches (20 cm) of space around the unit for proper airflow. The unit is equipped with four universal wheels and two ergonomically placed handles for easy movement.
3. Te Tūnga Tūmatanui: I muri i te kawe, tukua te waeine kia tū tika mō te 24 hāora pea i mua i te mono. Mā tēnei ka tau te hauhautanga.
4. Hononga Hiko: Monohia te taura hiko ki tētahi putanga hiko whenua me te voltage tikatage (refer to the rating label).
5. Tatūnga Whakawai:
   • Continuous Drainage (Recommended): For continuous operation without manual emptying, connect the included 40-inch (100 cm) drain hose to the drainage port on the unit. Ensure the hose is sloped downwards to allow gravity drainage to a suitable floor drain or container.
   • Water Bucket (Internal): If continuous drainage is not used, the unit will collect water in its internal bucket. The unit will automatically shut off when the bucket is full.

Nga Tohutohu Whakahaere

Nga Mahi Paewhiri Mana

The intelligent touch control panel allows for easy operation and monitoring.

• Pātene Hiko: Pēhia ki te whakakā i te waeine ki te ON, ki te OFF ranei.
• Humidity Setting (Up/Down Buttons): Adjust the desired humidity level between 10% and 90% Relative Humidity (RH). The unit will automatically operate to maintain this level.
• Pātene Tere Kiri: Tīpakohia i waenga i te tere tere me te iti.
• Pātene Matawā: Set a 24-hour timer for automatic ON/OFF operation.
• Whakaatu: Shows current room humidity, set humidity, and operating temperature.

Aratau Mahi

• Mana Haumākū Aunoa: Set your desired humidity level. The dehumidifier will sense the room's humidity and automatically turn on or off to maintain the pre-set level.
• Aratau Tonu: For maximum dehumidification, select continuous mode. The unit will run continuously regardless of the humidity level. This mode is typically used with continuous drainage.
• Whakahau Aunoa: The unit features an automatic defrost function that activates when frost builds up on the evaporator coils, ensuring efficient operation in low-temperature environments.
• Tīmata Aunoa: Ina he mana outage, ka timata ano te waeine me nga tautuhinga o mua ina whakahokia te hiko.

Te tiaki

Ko te tiaki i nga wa katoa ka tino pai te mahi me te whakaroa i te roanga o to whakamaarama.

1. Te horoi i te tātari rangi:
   • The unit has a "Clean Reminder" feature for the filter.
   • Whakawetohia ka wetewetehia te whakamahana.
   • Remove the detachable air filter (refer to Figure 3 for location).
   • Wash the filter with warm, soapy water. Rinse thoroughly and allow it to air dry completely before reinstalling.
   • Horoia te tātari ia rua wiki neke atu ranei i runga i te whakamahinga me te kounga o te hau.
2. Te horoi i te Waehe o waho:
   • Horoia te waho ki te ngohengohe, damp kakahu. Kaua e whakamahi i nga matū kino me nga horoi horoi.
3. Tirotiro Pūnaha Waikeri:
   • Periodically check the drain hose for kinks, blockages, or algae growth if using continuous drainage.
   • If using the internal water bucket, empty and clean it regularly to prevent mold and mildew growth.
4. Rokiroki:
   • Mena ka roa te wā e rongoa ai te taputapu, me whakarite kia ma, kia maroke hoki.
   • Drain any remaining water from the internal bucket and hose.
   • Store the unit upright in a cool, dry place. The back housing can be opened to store the drain hose and other accessories inside.

Tohatoha Raparongoā

I mua i te whakapā atu ki te tautoko a nga kaihoko, tirohia nga take me nga otinga e whai ake nei:

Whakatakotoranga

Pūtāhui me te Tautoko Kiritaki

Waykar stands behind its products with comprehensive warranty and support services:

• Taurangi Moni Whakahoki: 30-Days Money Back if you are not satisfied with the product.
• Pūtāhui: 1-year warranty, with an option for a 2nd-year warranty extension.
• Tautoko Hangarau: Lifetime expert technical support is available.
• Whakapā: For any questions or issues, please contact Waykar customer support. They aim to reply within 12 hours to assist with problem resolution.
