LogiLink UA0363 USB-C to 3.5mm Audio Adapter with Equalizer User Manual

1. Kupu Whakataki

The LogiLink UA0363 is a USB-C to 3.5mm audio adapter designed to provide audio output for smartphones, tablets, and laptops that lack a dedicated 3.5mm audio jack. This adapter integrates a high-quality Digital-to-Analog Converter (DAC) and a hardware equalizer to deliver enhanced audio performance. It supports standard 3.5mm headphones and headsets with microphone functionality.

2. Nga Hua o te Hua

• Supports most mobile phones and laptops with a USB-C interface.
• Integrated 3-level hardware equalizer (EQ), selectable via a control button.
• Tautoko hopuoro whakauru.
• LED display for sampling rate and EQ modes.
• Supports most 3.5mm 3-pin headphones with 16-600 ohms impedance.
• Puorooro Amplifier: Maxim MAX97220AA.
• DAC: BES Technik BES3100.
• Tautoko sampling frequencies of 44, 48, and 96 kHz with 24-bit resolution.
• USB powered, no external power supply required.
• Compliant with USB 2.0 specifications.
• Signal-to-Noise Ratio (SNR): Approximately 100 dB (A).

3. Tatūnga

1. Connect the LogiLink UA0363 adapter to the USB-C port of your smartphone, tablet, or laptop. Ensure it is fully inserted.
2. Plug your 3.5mm headphones or headset into the 3.5mm jack on the adapter.
3. The device is plug-and-play and should be recognized automatically by most operating systems.

Image: The LogiLink UA0363 adapter connected to a smartphone, ready for headphone use.

4. Nga Tohutohu Whakahaere

4.1 Whakahoki Ororongo Taketake

Once connected, audio from your device will be routed through the UA0363 adapter to your headphones. Use your connected device's volume controls to adjust the audio output level.

4.2 Equalizer (EQ) Function

The adapter features a built-in 3-level hardware equalizer. To cycle through the available EQ modes, press the control button located on the adapter. An LED display on the adapter indicates the currently active EQ mode and the sampreiti ling.

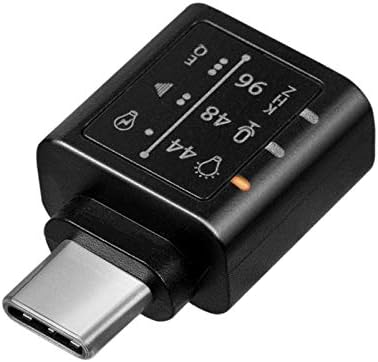

Whakaahua: Taipitopito view of the adapter's indicators for sampling frequency and equalizer settings.

4.3 Mahi Hopuoro

If your connected headphones or headset include a microphone, its functionality will be supported through the UA0363 adapter. Ensure your device's audio input settings are configured to use the USB audio device's microphone.

5. Tiaki

• Keep the adapter clean and dry. Use a soft, dry cloth for cleaning.
• A ape i te tuku i te urutau ki te tino mahana, te makuku, te ra tika ranei.
• Do not attempt to disassemble or modify the adapter, as this will void the warranty.
• Rokirokihia te urutau ki tētahi wāhi haumaru ina kore e whakamahia hei ārai i ngā kino ā-tinana.

6. Te Raru

6.1 Kaore he Putanga oro

• Ensure the UA0363 adapter is fully and securely inserted into your device's USB-C port.
• Verify that your headphones are fully plugged into the adapter's 3.5mm jack.
• Check your device's audio output settings to confirm that the USB audio device is selected as the primary output.
• Test the adapter with a different pair of headphones or another compatible USB-C device to isolate the issue.
• Kia tino mōhio kei te whakaitihia te oro o tō pūrere hono, kei te iti rawa rānei te oro.

6.2 Poor Audio Quality or Distortion

• Me whakarite te puna oro (hei tauira, waiata file, streaming service) is of high quality.
• Try cycling through the different EQ settings on the adapter to see if a different profile improves the sound.
• Check for any loose connections between the adapter, device, and headphones.
• Avoid using the adapter near sources of strong electromagnetic interference.

6.3 Kaore i te Mahi te hopuoro

• Confirm that your headphones or headset are equipped with a working microphone.
• Check your device's audio input settings to ensure the USB audio device's microphone is selected as the input source.
• Ensure the microphone on your headset is not muted.

7. Whakatakotoranga

8. Pūtāhui me te Tautoko

For warranty information, technical support, and further assistance, please refer to the official LogiLink website or contact your authorized retailer. Keep your purchase receipt for warranty claims.
