Alpicool T60-LG Portable Car Fridge Freezer User Manual

1. Kupu Whakataki

Thank you for choosing the Alpicool T60-LG Dual Temperature Control Portable Car Fridge Freezer. This versatile appliance is designed to keep your food and beverages fresh and cold, or even frozen, during your travels, camping trips, or any outdoor adventure. Its robust design and dual-zone functionality make it an ideal companion for trucks, RVs, boats, and general travel. Please read this manual thoroughly before operation to ensure safe and efficient use.

Figure 1: Alpicool T60-LG Portable Car Fridge Freezer.

2. Nga waahanga matua

• Mokowā Rokiroki: Exterior Size 28.5"x14.2"x21.6", 63 Quart (60 Liter) capacity, fits approximately 75 x 12oz cans of Cola.
• Mana Pamahana Rua: Features a detachable sensor divider to switch between a single temperature zone or two independent temperature zones within one unit.
• Whakatio me te kore tio: Powered by an LG compressor, capable of cooling down to -4°F (-20°C), offering powerful chilling performance. Temperatures can be adjusted for a fridge zone and a freezer zone simultaneously.
• Parenga Pūhiko motokā: Equipped with a temperature memory function and 3 different levels (Low, Med, High) for battery protection to prevent vehicle battery drain.
• Hoahoa Watea: Includes foldable handles and wheels for easy portability, a built-in LED light for interior visibility, and an internal basket for organized storage.

Whakaatu 2: Neke Atuview of Alpicool T60-LG key features including storage, dual temperature control, LG compressor, battery protection, anti-shaking design, mute low noise operation, built-in LED light, and wide temperature range.

3. Tatūnga

3.1 Te Wetewete me te Tirotiro

Carefully remove the fridge freezer from its packaging. Inspect the unit for any signs of damage during transit. Retain the packaging for future storage or transport.

3.2 Whakanoho

Place the unit on a stable, level surface. Ensure adequate ventilation around the compressor area. The vibration-resistant design allows for safe operation even when driving on rough roads.

3.3 Hononga Hiko

The Alpicool T60-LG can be powered by:

• 12V/24V DC: Use the provided DC power cord to connect to your vehicle's cigarette lighter socket or a compatible DC power source.
• 110-240V AC: Use the provided AC adapter to connect to a standard household power outlet.

3.4 Te Whakamatao Tuatahi

Before loading items, it is recommended to plug in the unit and allow it to cool down to your desired temperature for at least 30 minutes. This ensures optimal performance.

Whakaahua 3: Roto view of the Alpicool T60-LG, showing the dual compartments and removable baskets.

4. Nga Tohutohu Whakahaere

4.1 Paewhiri Mana

The unit features a digital control panel for electronic temperature control. Use the buttons to adjust settings, switch between modes, and monitor the internal temperature.

Figure 4: Close-up of the LCD control panel and examples of multi-application use for the Alpicool T60-LG.

4.2 Te Whakarereketanga o te Pawera

The temperature control range is -4°F to 68°F (-20°C to +10°C). For dual-zone operation, the detachable sensor divider allows for different temperatures in each compartment. Remove the divider to operate as a single-zone unit.

4.3 Aratau Mahi

The unit offers ECO and HH (High) modes. ECO mode prioritizes energy efficiency, while HH mode provides faster cooling performance.

4.4 Battery Protection System

Ko te 3-stage car battery protection system prevents your vehicle's battery from running down. Select Low, Med, or High protection level based on your battery type and usage scenario.

4.5 Mana Taupānga Pukoro

The Alpicool T60-LG can be controlled via a mobile application on your smartphone. This app allows you to monitor the temperature, change settings, and adjust battery protection levels remotely, which is particularly useful when the unit is in the back of an RV or vehicle.

Whakaahua 5: Examples of typical usage scenarios for the Alpicool T60-LG, including vehicle, camping, boat, and sport activities.

5. Tiaki

5.1 Te horoi

Regularly clean the interior and exterior of the fridge freezer with a damp kakahu me te hopi horoi ngawari. Kaua e whakamahi i ngā kaihoroi whakakoi, i ngā matū kino rānei. Kia tino momotu te waeine i te mono i mua i te horoinga.

5.2 Whakakore hukapapa

If ice builds up inside, unplug the unit and allow the ice to melt naturally. Use the integrated drain plug to remove excess water. Do not use sharp objects to remove ice.

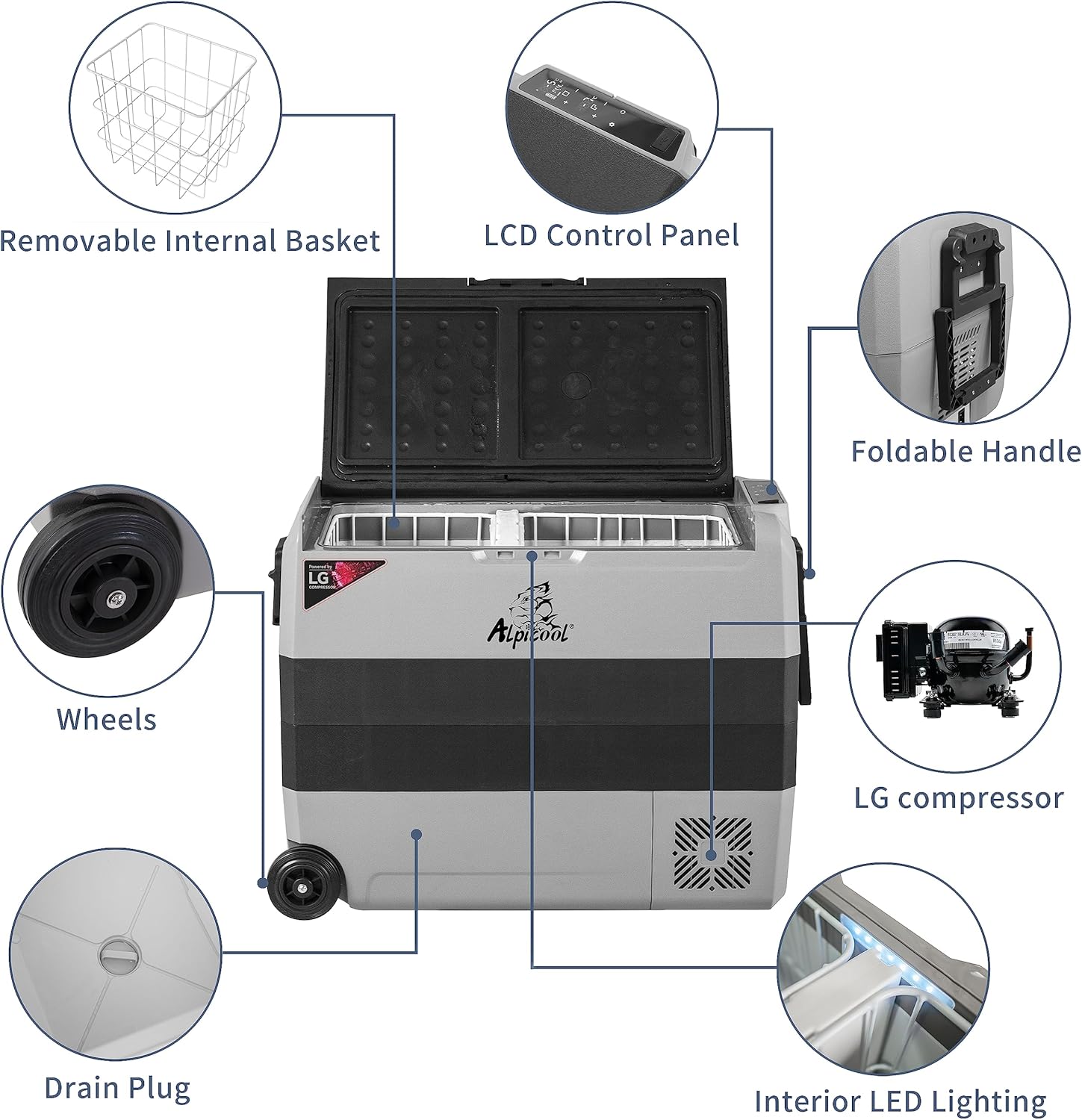

Figure 6: Diagram illustrating key components of the Alpicool T60-LG, including the drain plug, wheels, foldable handle, LCD control panel, LG compressor, removable internal basket, and interior LED lighting.

5.3 Rokiroki

Ki te kore e whakamahia mo te wa roa, me whakarite kia ma, kia maroke te waahanga. Whakaorangia ki te waahi hauhautanga, maroke me te taupoki ka tuwhera paku ki te aukati i te kakara me te tipu o te maaka.

6. Te Raru

If you encounter issues with your Alpicool T60-LG, please consider the following common solutions:

• Karekau te waeine i te hiko: Check power connections (DC or AC) and ensure the power source is active. Verify the battery protection setting is not too high for your current battery voltage.
• He iti rawa te whakamatao: Ensure the lid is properly sealed. Check for obstructions around the ventilation grilles. Verify the temperature setting is appropriate for desired cooling.
• Haruru rereke: Some operational noise from the compressor is normal. Ensure the unit is on a stable surface and not vibrating against other objects.

Mo nga take e mau tonu ana, tirohia te waahanga tautoko.

7. Whakatakotoranga

8. Pūtāhui

For detailed warranty information, please refer to the warranty card included with your product or contact Alpicool customer service directly. Warranty terms and conditions may vary.
