CAC JF015 RE0F11A JF015E JF011E Pukapuka Tohutohu mō te Tinana Takirere kua Whakahoutia mō te CVT

1. Kupu Whakataki

This manual provides essential information for the installation, operation, and maintenance of the CAC JF015 RE0F11A JF015E JF011E Refurbished CVT Valve Body. This component is crucial for the proper functioning of your vehicle's continuously variable transmission (CVT).

1.1 Hua Neke atuview

The valve body is a critical hydraulic control unit within an automatic transmission. It directs transmission fluid to various components, enabling gear changes and smooth operation. This product is a refurbished unit, meeting original equipment specifications for performance and reliability.

1.2 Hototahi

This valve body is compatible with various vehicle models equipped with JF015, RE0F11A, JF015E, JF011E, and JF010E CVT transmissions. Please verify your vehicle's specific transmission code before installation.

• Chevrolet Spark (2013-2015)
• Nissan Note (2013-2015)
• Nissan Sentra (2015)
• Nissan Tiida (2011-2015)
• Nissan Versa (2012-2015)
• Nissan Versa Note (2014-2015)
• Suzuki Swift (2012-2015)

Important: Always confirm compatibility by checking your vehicle's VIN, year, make, and model with a qualified technician or the manufacturer before purchase and installation.

2. Nga korero haumaru

Installation of transmission components requires specialized knowledge and tools. Improper installation can lead to serious vehicle damage or personal injury.

• Always wear appropriate personal protective equipment, including eye protection, during installation.
• Ensure the vehicle is securely supported on a lift or jack stands.
• Disconnect the vehicle's battery before beginning any work.
• Allow the transmission fluid to cool before draining to prevent burns.
• Dispose of old transmission fluid and parts according to local regulations.
• If you are not confident in your ability to perform the installation, seek assistance from a certified automotive technician.

3. Ihirangi mokete

I te whakatuwheratanga o te kete, tirohia koa kei te noho nga waahanga katoa me te kore e pakaru.

• 1 x CAC JF015 RE0F11A JF015E JF011E Refurbished CVT Valve Body

Figure 3.1: The refurbished CVT valve body as received in its protective packaging.

4. Tāutanga

Installation of a CVT valve body is a complex procedure that typically requires specialized tools and expertise. It is highly recommended that this procedure be performed by a certified automotive technician.

4.1 Nga Tirohanga i mua i te whakaurunga

• Verify the part number on the new valve body matches the original part.
• Inspect the new valve body for any signs of shipping damage.
• Ensure all necessary gaskets, seals, and bolts are available (these may need to be purchased separately).

4.2 General Installation Steps (Consult Service Manual for Specifics)

1. Hikihia te waka me te whakau kia haumaru.
2. Horoia te wai tuku.
3. Tangohia te ipu hinu me te tātari o te tuku.
4. Carefully disconnect electrical connectors and mounting bolts from the old valve body.
5. Tangohia te tinana o te takirere tawhito.
6. Clean the transmission case mating surface thoroughly.
7. Install the new valve body, ensuring all electrical connections are secure and bolts are torqued to manufacturer specifications.
8. Tāutahia he tātari tuku me te gasket hou, kātahi ka tāpirihia anō te ipu hinu.
9. Whakakīia anō te pūkaha whakawhiti ki te momo tika me te nui o te wai CVT.
10. Perform necessary diagnostic procedures (e.g., CVT fluid level check, transmission adaptation reset) as per vehicle manufacturer guidelines.

For detailed, vehicle-specific installation instructions, it is strongly recommended to consult your vehicle's official service manual or search for related installation videos from reputable sources online.

4.3 Ngā Tirohanga Hua

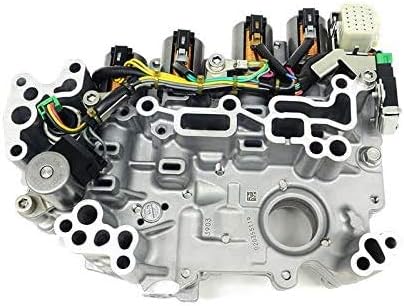

Whakaahua 4.1: Runga view of the valve body, showing solenoids and electrical connections.

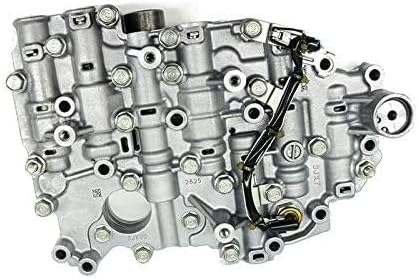

Whakaahua 4.2: Raro view of the valve body, illustrating hydraulic channels and mounting points.

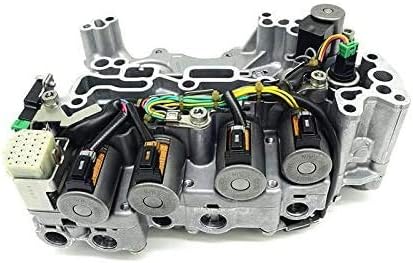

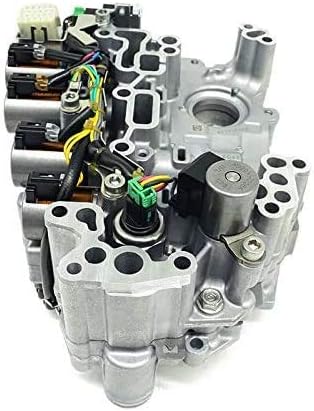

Figure 4.3: Angled perspective of the valve body, highlighting its complex structure.

4.4 Ngā Ataata Tāutanga

5. Mahi

The valve body is an internal component of the Continuously Variable Transmission (CVT) and operates automatically. Its primary function is to regulate hydraulic pressure and direct transmission fluid to control the movement of the variator pulleys, thereby changing the gear ratio. Once correctly installed, the valve body works in conjunction with the Transmission Control Module (TCM) to ensure smooth and efficient power delivery.

Proper operation relies on a correctly installed unit, adequate and clean CVT fluid, and a functional TCM. No direct user interaction with the valve body is required during vehicle operation.

6. Tiaki

The valve body itself does not require routine maintenance. Its longevity and proper function are directly tied to the overall health and maintenance of the transmission system.

• CVT Fluid: Regularly check and maintain the correct level and quality of CVT fluid as specified by your vehicle manufacturer. Use only approved CVT fluid.
• Nga Huringa Wai: Adhere to your vehicle manufacturer's recommended CVT fluid change intervals. Contaminated or degraded fluid can severely impact valve body performance and transmission life.
• Tirotiro Ngaio: Have your transmission inspected by a qualified technician at recommended service intervals.

7. Te Raru

If you experience transmission issues after installing this valve body, consider the following common areas. Professional diagnosis is always recommended.

• Te Whakaurunga Hē: Double-check that the valve body is the correct part number for your specific vehicle's transmission. Even slight variations can cause significant problems.
• Tāutanga hē: Ensure all electrical connectors are fully seated and secured, and all bolts are torqued to specification. Leaks or loose connections can cause operational failures.
• Low or Incorrect Fluid: Verify the CVT fluid level is correct and that the proper type of fluid was used. Low fluid or incorrect fluid can lead to erratic shifting or no engagement.
• Transmission Control Module (TCM) Issues: After valve body replacement, the TCM may require reprogramming or adaptation reset. Consult a professional for this procedure.
• Other Transmission Components: A new valve body may expose issues with other worn transmission components that were previously masked. A comprehensive diagnostic scan by a technician can identify these.

Do not attempt to repair the valve body yourself. Contact a qualified automotive professional for diagnosis and repair.

8. Whakatakotoranga

9. Pūtāhui me te Tautoko

Specific warranty information for this refurbished product may vary. Please refer to the seller's terms and conditions at the time of purchase for details regarding warranty coverage and return policies.

For technical support, fitment verification, or any questions regarding the product, please contact the seller directly. When contacting support, be prepared to provide your vehicle's VIN, year, make, and model, along with the product's ASIN (B08HCFSH3W) or purchase details.
