1. Kupu Whakataki
This manual provides essential information for the safe and efficient use of your Hisense HI620D10X semi-integrated dishwasher. Please read these instructions carefully before installation, operation, and maintenance. Keep this manual for future reference.
Nga korero haumaru
- Me whakarite kia noho tika te horoi rihi i mua i te whakamahi.
- Kaua e tukua nga tamariki ki te whakahaere, ki te takaro ranei ki te horoi rihi.
- Whakamahia anake nga horoi horoi me nga awhina horoi i hangaia mo nga horoi rihi aunoa.
- Kaua e whakatuwheratia te kuaha i te wa e mahi ana, ina koa i te waa horoi wera.
- In case of malfunction, disconnect the appliance from the power supply before attempting any repairs. Contact qualified service personnel.
2. Hua Neke Atuview
The Hisense HI620D10X is a semi-integrated dishwasher designed for efficient cleaning of up to 14 place settings. It features a durable stainless steel interior and advanced functions like TotalDry for automatic door opening and AquaStop for enhanced safety against water leaks.
Nga waahanga matua
- Type of Construction: Semi-integrated
- Raukaha: 14 tautuhinga waahi
- Pūnaha whakamaroke: TotalDry (Automatic door opening for improved drying)
- Āhuahira Haumaru: AquaStop (Anti-overflow safety)
- Rauemi o roto: Kowiri tira
- Momo Mana: Paewhiri mana o mua
Whakaahua 2.1: Mua view of the Hisense HI620D10X semi-integrated dishwasher with key dimensions (Width: 598mm, Height: 815mm, Depth: 570mm).
Whakaahua 2.2: Roto view of the dishwasher showing the upper and lower racks, and cutlery basket.
3. Tatūnga me te Tāuta
The Hisense HI620D10X is designed for semi-integrated installation, meaning it will be partially concealed by a custom cabinet panel. Proper installation is crucial for optimal performance and safety.
Nga Ahua me te Whakanoho
- Whānui: 59.8 cm
- Teitei: 81.5 cm
- Hōhonu: 57 cm
- Ensure adequate space for water inlet and outlet hoses, and electrical connections.
- The appliance should be installed on a stable, level surface.
Whakaahua 3.1: Example of the Hisense HI620D10X dishwasher integrated into a kitchen environment.
Electrical and Water Connections
All electrical and plumbing connections must be performed by a qualified technician in accordance with local regulations. The dishwasher operates on 230 Volts.
4. Nga Tohutohu Whakahaere
Familiarize yourself with the control panel and available wash programs to achieve optimal cleaning results.
Paewhiri Mana

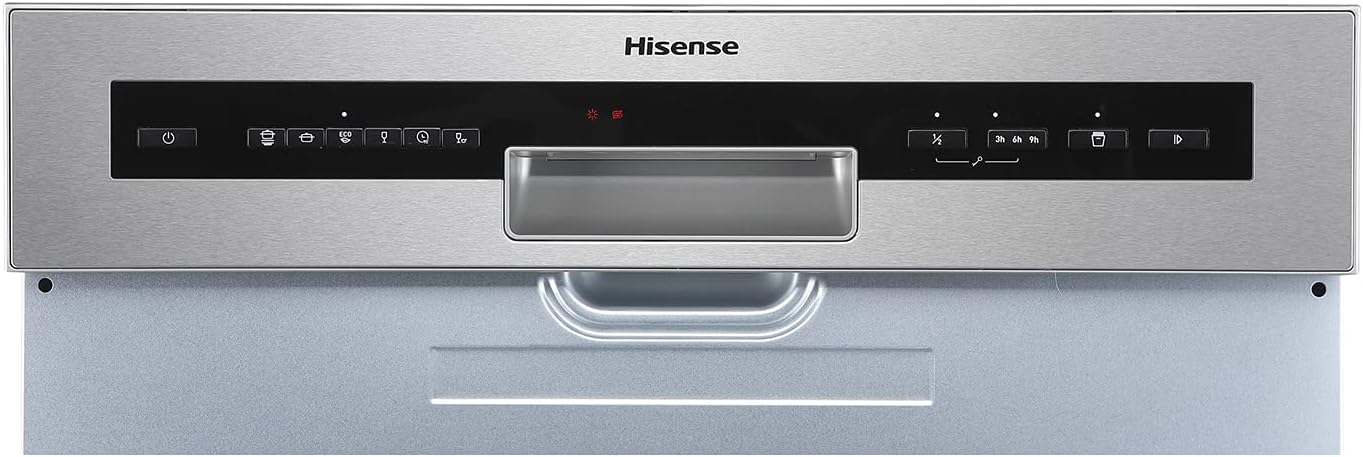

Figure 4.1: Frontal control panel with program selection and function buttons.
Te Uta i te Riu Riu
Proper loading ensures effective cleaning and drying. The dishwasher can accommodate up to 14 place settings.
Figure 4.2: Illustration of how 14 place settings can be arranged within the dishwasher racks.
Horoi Papatono
The Hisense HI620D10X offers various wash programs to suit different needs:
- 90min Program: For moderately soiled dishes requiring a quicker wash.
- Economy Program: He kaupapa kaha me te pai o te wai mo nga rihi poke noa.
- Glass/Delicate Program: Gentle wash for fragile items like glasses.
- Quick Program: For lightly soiled dishes that need to be cleaned rapidly.
Figure 4.3: Dishes undergoing a quick wash cycle, demonstrating efficiency for lightly soiled items.
Nga Mahi Motuhake
- TotalDry (Auto Dry): The dishwasher door automatically opens slightly at the end of the cycle to release steam and improve drying results.
Figure 4.4: Illustration of the Auto Dry feature, where the door opens for enhanced drying.
- Whakaroa i te tiimata: Allows you to set a delayed start time for the wash cycle (e.g., 2h, 4h, 9h).
Figure 4.5: Graphic representation of the Delay Start function, allowing users to schedule wash cycles.
- Uta-Hawhe: For washing smaller loads, saving water and energy.
- Te whakamaroke ano: Provides additional drying time for better results on difficult-to-dry items.
5. Tiaki me te Tiaki
Ko te tiaki i nga wa katoa ka mau te roa me te mahi tino pai o to horoi rihi.
Te horoi i nga whiriwhiringa
The filter system should be checked and cleaned regularly to prevent blockages and ensure efficient washing. Refer to the detailed instructions in the full manual for filter removal and cleaning.
Te horoi i nga Puka Rehu
Periodically check the spray arm nozzles for any blockages caused by food particles. Clean them using a thin brush or toothpick if necessary.
Horoi o waho me roto
Mukua te waho ki te panuiamp cloth. For the interior, a dishwasher cleaner can be used periodically to remove grease and limescale buildup.
6. Te Raru
I mua i te whakapā atu ki te ratonga, review nga take noa e whai ake nei me o raatau otinga ka taea.
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Kaore nga rihi e ma | Improper loading, clogged spray arms, insufficient detergent, incorrect salt/rinse aid dosage. | Reload dishes correctly, clean spray arms, use appropriate detergent, adjust salt and rinse aid settings according to water hardness. |
| Kaore te wai e whakaheke | Ko te tātari kua purua, te ngongo ngongo kupenga, te papu wai aukati. | Clean the filter system, check and straighten the drain hose, clear any blockages in the drain pump area. |
| Kaore e timata te horoi rihi | Kaore te kuaha e kati tika, te take tuku hiko, karekau te kaupapa i tohua. | Ensure the door is fully latched, check power connection and circuit breaker, select a wash program and press start. |
| Haruru nui | Nga rīhi e ngunguru ana, he mea ke i roto i te papu, he hē te whakaurunga. | Rearrange dishes, check for foreign objects, ensure dishwasher is level and securely installed. |
7. Whakatakotoranga
Detailed technical specifications for the Hisense HI620D10X dishwasher.
| Āhuahira | Whakatakotoranga |
|---|---|
| Waitohu | Hisense |
| Ingoa Tauira | HI620D10X |
| Momo Tāutanga | Semi-integrated |
| Te kaha | 14 Tautuhinga Wahi |
| Ahu (W x H x D) | 59.8 cm x 81.5 cm x 57 cm |
| Rauemi | Kowiri tira |
| Tae | Konumohe |
| Taumata Haruru | 46 Decibels |
| Voltage | 230 Volts |
| Nga waahanga motuhake | TotalDry (Auto Door Opening), AquaStop, Delay Start, Half-Load, Extra Drying |
| Horoi Papatono | 90min, Economy, Glass/Delicate, Quick |
| Taumaha | 34 Kirokaramu |
8. Pūtāhui me te Tautoko
Nga korero Whakaputanga
The Hisense HI620D10X dishwasher comes with a 2-tau pūtāhui from the date of purchase. This warranty covers manufacturing defects and faulty materials under normal domestic use. Please retain your proof of purchase for warranty claims.
Tautoko Kiritaki
For technical assistance, spare parts, or warranty service, please contact Hisense customer support. Refer to the official Hisense webte paetukutuku, to tuhinga hoko ranei mo nga korero whakapiri tino hou.
