1. Nga korero haumaru
WHAKATŪPATO: This product may have sharp edges. Wear gloves when handling. Risk of electrical shock. This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. Refer all servicing to qualified service personnel.
TUpato: Te mate o te ahi. Me toro atu ki tetahi tohunga hiko ki te whakarite tika i te kaikawe ara iahiko.
Minimum Starting Temperature: -4°F (-20°C).
Image: Detailed product information and safety warnings, including electrical safety and minimum operating temperature.
2. Hua Neke Atuview
The Commercial Electric 5 and 6-inch Integrated LED Downlight is designed to upgrade existing recessed can lights. It features energy-efficient LED technology and a color temperature (CCT) selection switch.
Āhuatanga matua:
- Tirohanga: 700 rama.
- Hototahi: Fits most 5 and 6-inch recessed housings.
- Te Tohu Paemahana Tae: Adjustable from Warm White (2700K) to Daylight (5000K), including Soft White (3000K), Neutral White (3500K), and Bright White (4000K).
- Pūngao Pūngao: Uses 9-Watts, equivalent to a 65-Watt incandescent bulb.
- Te roanga: Rated for 50,000 hours (approximately 34 years).
- Ka taea te atarua: Compatible with most dimmer switches.
- Mauroa: Shatter resistant and rated for wet locations.
- Tiwhikete: UL classified, Energy Star certified, 90 CRI.
- Tāutatanga ngawari: Includes a medium (E26) socket base adapter.
Image: Four individual Commercial Electric 5/6 inch integrated LED recessed trim downlights, showing their design.
Image: Product packaging for a 4-pack of Commercial Electric 5 & 6 inch LED Color Changing Recessed Trim, highlighting key features.
3. Tatūnga me te Tāuta
Before beginning installation, ensure power to the fixture is turned off at the circuit breaker.
Hipanga Tāuta:
- Screw Socket Adapter: Screw the provided socket adapter into the existing recessed housing.
- Connect to LED Trim: Connect the socket adapter to the LED trim.
- Whakatikatika i te Pāmahana Tae (CCT): Before securing, adjust the color temperature using the integrated switch located on the back of the downlight. Select your preferred CCT from 2700K (Warm White) to 5000K (Daylight).
- Secure LED Trim: Gently push and secure the LED trim inside the recessed housing until it is flush with the ceiling.
Image: Installation diagram illustrating the three steps: 1) Screw Socket Adapter into Housing and Connect to LED Trim, 2) Adjust Color of Light Using the Integrated Switch, 3) Secure LED Trim inside Housing. The CCT switch options are visible: Warm White (2700K), Soft White (3000K), Neutral White (3500K), Bright White (4000K), Daylight (5000K).
4. Nga Tohutohu Whakahaere
Te Tohu Paemahana Tae:
The downlight features an integrated switch on the back that allows you to select your desired color temperature. This switch must be set i mua final installation. The available settings are:
- Ma whakamahana (2700K)
- Ma ngawari (3000K)
- Ma Kupapa (3500K)
- Ma kanapa (4000K)
- Awatea (5000K)
Once installed, the color temperature cannot be changed without removing the fixture.
Taumahinga Ngahuru:
These LED downlights are dimmable and compatible with most standard dimmer switches. Ensure your dimmer switch is compatible with LED lighting for optimal performance.
5. Tiaki
The Commercial Electric LED downlights are designed for long-term, maintenance-free operation.
- Te horoi: To clean the fixture, ensure power is off. Wipe the surface with a soft, damp kakahu. Kaua e whakamahi i nga kai horoi me nga whakarewa.
- Kore Whakakapi Purama: He pūrama LED kua whakauruhia ēnei; kāore he pūrama hei whakakapi.
6. Te Raru
If you experience issues with your LED downlight, refer to the following common solutions:
- Kare te rama e ka ana:
- Tirohia mēnā kei te huri te pana hiko.
- Manatokohia karekau te wehenga ara iahiko i taka.
- Ensure the socket adapter is securely screwed in and connected to the LED trim.
- He korikori marama, he atarua ranei:
- Confirm that your dimmer switch is compatible with LED lighting.
- Me whakarite kia mau nga hononga katoa.
- Te pāmahana tae hē:
- The CCT switch must be set before installation. If the color is not as desired, the fixture must be carefully removed to adjust the switch on the back.
Mena kei te haere tonu nga raru, whakapā atu ki te tautoko a te kaihoko.
7. Whakatakotoranga
| Āhuahira | Whakatakotoranga |
|---|---|
| Waitohu | Electric Electric |
| Tau tauira | 682131525289 |
| Putanga Maama | 700 Lumens |
| Wattage | 9 Watts |
| Te kaha | 77.78 Lumens mo ia Watt |
| Taupū Whakaatu Tae (CRI) | 90 |
| Color Temperature (CCT) Options | 2700K (Warm White), 3000K (Soft White), 3500K (Neutral White), 4000K (Bright White), 5000K (Daylight) |
| Te ora | 50,000 haora |
| Voltage | 120 Volts |
| Putunga Pupura | E26 (adapter included) |
| Rauemi | Aluminum, Plastic Shade |
| Momo Tāuta | Maunga Āpiti, Kua Huna |
| Nga waahanga motuhake | Color Changing, Dimmable, Shatter Resistant |
| Taumata Atete Wai | Water Resistant (Rated for wet locations) |
| Hunga Hua | 17"L x 13"W x 8"H (Packaging dimensions, individual unit dimensions not specified) |
| Taumaha Tūemi | 7.98 Pauna (mō te mōkihi 8) |

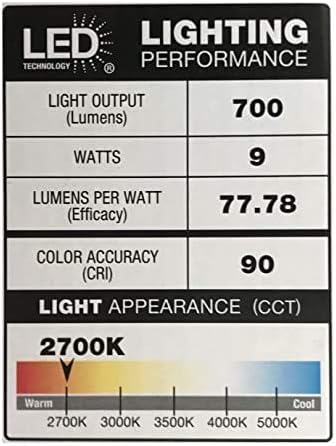

Image: LED Lighting Performance label detailing specifications such as 700 lumens light output, 9 watts, 77.78 lumens per watt efficacy, 90 CRI, and a CCT range from 2700K to 5000K.
8. Pūtāhui me te Tautoko
Pūtāhui:
Ka tae mai tenei hua me te 5-tau pūtāhui. Tena koa pupurihia to tohu mo te hoko mo nga kereme whakamana.
Tautoko Kiritaki:
For assistance or further inquiries, please contact Commercial Electric customer service:
- Waea: 1-877-527-0313
- UPC: 682131525289
You can also scan the ME App for more product information.
