JENSEN J1CA9 9-inch Touchscreen Car Stereo Receiver Instruction Manual

1. Hua Neke Atuview

The JENSEN J1CA9 is a single DIN digital multimedia receiver featuring an extra-large 9-inch LCD high-resolution adjustable touchscreen display. It offers seamless integration with Apple CarPlay and Android Auto, providing a smart and safe way to use your smartphone's features while driving. Key functionalities include Bluetooth hands-free calling and music streaming, backup camera input, and USB playback with fast charging capabilities.

Image: JENSEN J1CA9 9-inch Touchscreen Car Stereo Receiver. This image displays the main unit with its large 9-inch screen.

2. Nga waahanga matua

• 9-inch Touch Screen LCD (1024 x 600): High-resolution, responsive, and adjustable display.
• Apple CarPlay: Smarter, safer in-vehicle interface for iPhone, with Siri voice control for navigation, calls, texts, and music.
• Android Aunoa: Designed for safety, minimizing distractions with intuitive voice-controlled interface for navigation and media.
• Nihokikorangi-i roto: Hands-free calling with phonebook support and music streaming.
• Tāuru Kāmera Tārua: RCA input for compatible backup cameras (BUCAM100J recommended, sold separately).
• Whakauru USB: Mua 2.1 Amp and Rear 1.5 Amp for fast charging and playback.
• Whakaritenga Ororongo: 3 Ngā takirua o te 4V RCA preamp outputs (Front/Rear/Subwoofer), 8 EQ presets (Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft), and Time Alignment capabilities.
• Putanga Hiko: 240 Watts (60 W x 4) MOSFET.

Whakaahua: Ka mutuview of JENSEN J1CA9 features including 240 Watts power, 9-inch touchscreen, USB, Rear Camera Input, 4 Volt Preamp Outputs, and no CD/DVD player.

3. Tatūnga me te Tāuta

3.1 Tāutanga Tinana

The J1CA9 is designed for single DIN installation. Ensure your vehicle's dash opening is compatible. The adjustable touchscreen allows for flexible positioning to optimize viewte whakauru me te uru.

Whakaahua: Rear view of the JENSEN J1CA9 showing connections for CarPlay & Android Auto Input, Power Harness, Radio Antenna, Input/Output Harness, and External Microphone.

3.2 Te Whakatikatika Mata

The 9-inch screen offers multiple adjustment options to suit your vehicle's dashboard and your viewing preference:

• Ka taea te huri i te koki o te mata mai i tetahi taha ki tetahi taha.
• Ka taea te whakarerekē i te teitei o te mata ki raro tae atu ki te 1.5 inihi.
• Screen depth can be adjusted from 0 to 0.5 to 1 inch forward.
• Screen tilts forward and back.

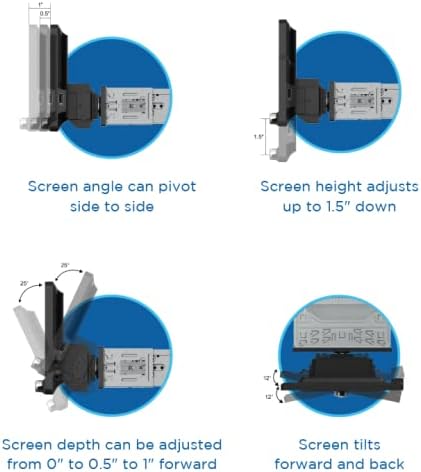

Image: Diagrams illustrating the various screen adjustment options for the JENSEN J1CA9, including pivot, height, depth, and tilt.

3.3 Hononga Pikitia

Connect your power harness, radio antenna, and any input/output harnesses as per your vehicle's wiring diagram. An external microphone is included for optimal hands-free calling.

Image: Close-up of a USB port located on the side of the JENSEN J1CA9 screen, labeled 'USB'.

4. Nga Tohutohu Whakahaere

4.1 Apple CarPlay me te Android Auto

Connect your iPhone or Android smartphone via USB to activate Apple CarPlay or Android Auto. The system will mirror your phone's compatible apps onto the 9-inch display, allowing for safe and intuitive control of navigation, music, messaging, and calls.

Image: Graphic indicating 'Certified' status and 'Works with Apple CarPlay' and 'androidauto' logos, emphasizing official compatibility.

Image: The JENSEN J1CA9 display showing a split screen with Apple CarPlay navigation on one side and music playback on the other.

4.2 Hononga Nihokikorangi

Pair your Bluetooth-enabled device with the J1CA9 for hands-free calling and wireless audio streaming. Access your phonebook and manage calls directly from the touchscreen or via voice commands.

4.3 USB Playback and Charging

Utilize the front (2.1 Amp) and rear (1.5 Amp) USB inputs for playing media files from USB drives or for fast charging your compatible devices.

4.4 Tautuhinga Ororongo

Adjust your audio experience using the built-in 8-band graphic equalizer with various presets. The Time Alignment feature allows you to digitally delay audio from specific speakers to ensure sound reaches your ears simultaneously, optimizing the soundstage.

5. Tiaki

To ensure optimal performance and longevity of your JENSEN J1CA9, follow these maintenance guidelines:

• Whakapai Mata: Whakamahia he kakahu ngohengohe, kore karekau hei muru ata i te mata pa. Mo nga kohukohu pakeke, paku dampen te kakahu ki te wai, ki te horoi mata-haumaru ranei. A ape i nga matū kino, i nga taonga abrasive ranei.
• Whakahōu Pūmanawa: Tirohia te Jensenmobile.com i ia wa webpaetukutuku mō ngā whakahōunga pūmanawa e wātea ana hei whakarite kei tō pūrere ngā āhuatanga hou me ngā whakatikatika pepeke.
• Taki Hononga: Ensure all cables (power, USB, camera, etc.) are securely connected to prevent intermittent issues.
• Mana Pawera: Avoid exposing the unit to extreme temperatures for extended periods, as this can affect performance and lifespan.

6. Te Raru

If you encounter issues with your JENSEN J1CA9, refer to the following common troubleshooting steps:

• Kore Mana: Check the vehicle's fuse box and ensure the power harness is correctly connected. Verify the vehicle's ignition is on.
• Kore Oro: Check speaker connections, volume levels, and mute settings. Ensure the correct audio source is selected. If using Apple CarPlay/Android Auto, verify phone volume and app settings.
• Nga Take Takirua Nihokikorangi: Ensure Bluetooth is enabled on both the J1CA9 and your smartphone. Delete previous pairings on both devices and attempt to re-pair.
• Kāore a Apple CarPlay/Android Auto e whakarewa ana: Ensure your phone is connected via a quality USB cable. Check your phone's settings for CarPlay/Android Auto permissions. Restart both the stereo and your phone.
• Kore Whakautu Mata Pa: Perform a soft reset of the unit (refer to the full user manual for specific instructions). Ensure the screen is clean and free of debris.

For more detailed troubleshooting or persistent issues, please contact Jensen customer support or visit Jensenmobile.com.

7. Whakatakotoranga

8. Pūtāhui me te Tautoko

The JENSEN J1CA9 comes with a 3-tau pūtāhui when you register your product on Jensenmobile.com. A 2-year standard warranty applies if not registered. For technical support, product registration, or warranty claims, please visit the official Jensen webpaetukutuku, whakapā atu ranei ki ta raatau ratonga kaihoko.
