1. Kupu Whakataki
The Blaupunkt BP 4.0 FHD Dash Cam is a compact and robust in-car video recorder designed to capture your journeys in Full HD. Featuring a 140-degree wide-angle lens, an integrated microphone, and an interior camera, it provides comprehensive coverage for your vehicle. This manual provides essential information for the proper installation, operation, and maintenance of your device.
2. Ihirangi mokete
Tena koa tirohia nga ihirangi o te kete kia mohio kei te noho katoa nga taonga:
- Blaupunkt BP 4.0 FHD Dash Cam (Video Recorder)
- Interior Lens
- Mount (Suction Cup Type)
- Taura Hiko (Tauira Motuka)
- Pukapuka Kaiwhakamahi
Image 2.1: Contents of the Blaupunkt BP 4.0 FHD Dash Cam package.
Image 2.2: The retail packaging for the Blaupunkt BP 4.0 FHD Dash Cam.
3. Hua Neke Atuview
The BP 4.0 FHD Dash Cam features a main unit with a 2-inch display and a separate interior camera. It is designed for easy installation and discreet operation within your vehicle.

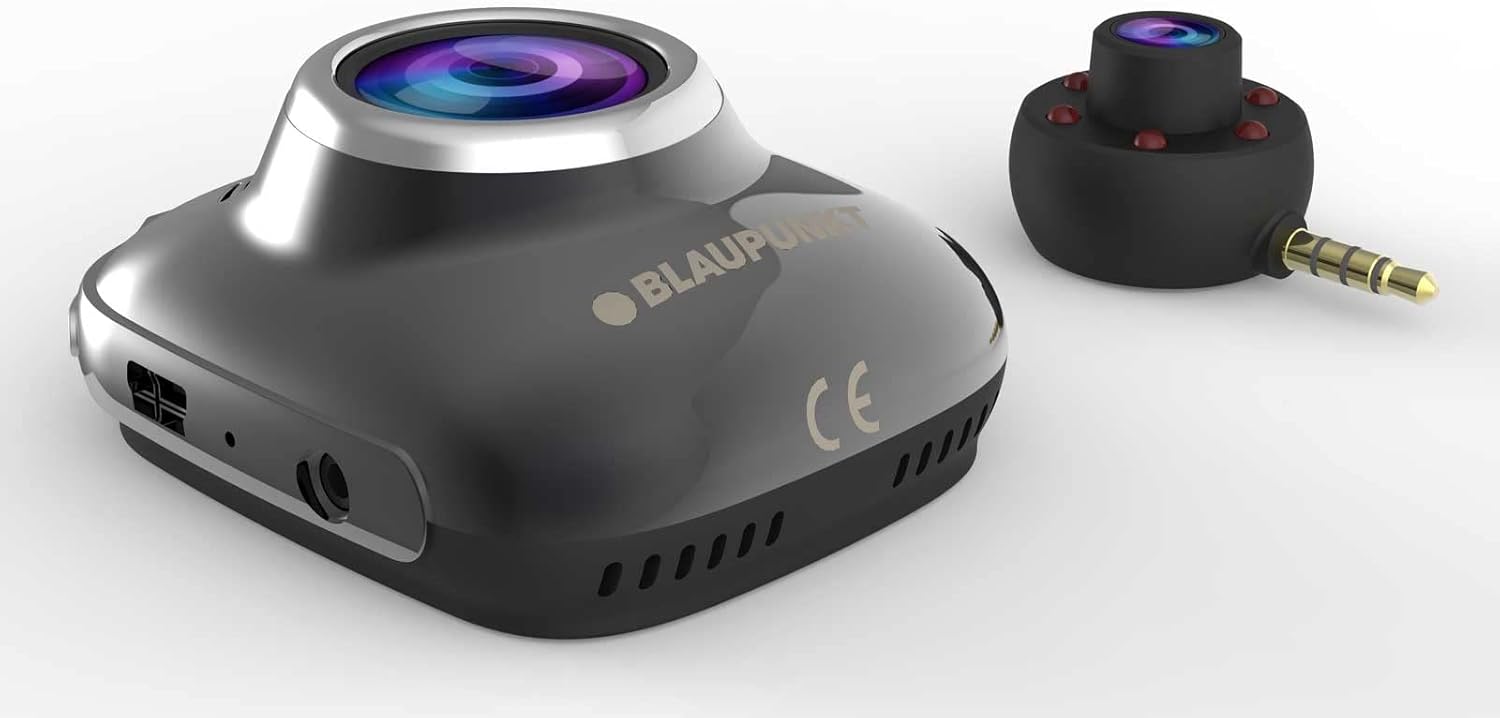

Image 3.1: Main unit and interior camera of the Blaupunkt BP 4.0 FHD Dash Cam.
Āhuatanga matua:
- Mata Matarua: Records both front and interior views i te wa kotahi.
- Koki-Whanui View: Te āpure whakapae 140-tohu o view mō te kapinga whānui o te rori.
- Pukuoro Whakauru: Captures in-cabin audio.
- Whakaaturanga 2-inihi: Mō te ora view, purei hoki, me te whakatere tahua.
- G-Sensor: Ka raka aunoa i te ataata files upon impact.
- Roopu Hopu: Continuously records, overwriting the oldest files ka ki tonu te kaari mahara.
- Hoahoa Roa: Constructed with zinc alloy for robustness.
Image 3.2: Dimensions of the Blaupunkt BP 4.0 FHD Dash Cam.
4. Tāutanga
Whāia ēnei mahi hei tāuta tika i tō kāmera papaaho:
- Whakapaia te Tauwāhi Whakapuru: Kōwhiria he wāhi i runga i tō matapihi tuatahi kāore e ārai i a koe view of the road. Clean the area thoroughly to ensure good adhesion for the suction cup mount.
- Whakapirihia te Maunga: Secure the suction cup mount to the chosen spot on the windshield. Ensure it is firmly attached.
- Tāutahia te Kāmera Papaaho: Slide the main dash cam unit onto the mount until it clicks into place. Adjust the angle of the camera to ensure the front lens captures the road ahead clearly.
- Kōkuhu Kāri MicroSD: Insert a high-speed MicroSD card (not included) into the designated slot on the dash cam. Ensure it is inserted correctly until it locks.
- Connect Interior Camera: Plug the interior camera's 3.5mm jack into the auxiliary port on the main dash cam unit. Position the interior camera to capture the vehicle's cabin as desired.
- Hono Hono: Plug the car charger cable into the dash cam's power input port and then into your vehicle's 12V power outlet (cigarette lighter socket). Route the cable neatly along the windshield and dashboard to avoid interference with driving.
- Hiko me te Whakamatau: Start your vehicle. The dash cam should power on automatically and begin recording. Check the display to confirm both front and interior camera views are visible and recording correctly.
5. Mahi Taketake
Understanding the basic functions of your dash cam will ensure optimal performance.
Hiko Whakaka/Weto:
- Aunoa: The dash cam will automatically power on and begin recording when your vehicle's ignition is turned on (and power is supplied to the 12V outlet).
- Pukapuka: Press and hold the power button (usually marked with a power symbol) to manually turn the device on or off.
Huringa Tuhipoka:
- Roopu Hopu: The camera records video in continuous loops (e.g., 1, 3, or 5-minute segments). When the memory card is full, the oldest unlocked files kua tuhirua aunoatia.
- G-Sensor (Rekoata ohorere): In the event of a sudden impact or collision, the built-in G-Sensor will detect the event and automatically lock the current video file, e ārai ana i tōna tuhiruatia e te tuhi porowhita.
Tahua Whakaterenga:
Use the buttons located around the 2-inch display to navigate through the menu options. Common settings include video resolution, loop recording duration, G-Sensor sensitivity, date/time stamp, and format MicroSD card.
6. Tiaki
Regular maintenance ensures the longevity and optimal performance of your dash cam.
- Cleaning Lenses and Screen: Use a soft, lint-free cloth to gently wipe the camera lenses and the display screen. Avoid abrasive materials or chemical cleaners that could scratch or damage the surfaces.
- Whakahaere Kaari MicroSD: Periodically format your MicroSD card (at least once a month) to prevent data corruption and ensure smooth recording. Back up any important video files i mua i te whakahōputu.
- Mana Pawera: Avoid exposing the dash cam to extreme temperatures for extended periods. If your car is parked in direct sunlight on a hot day, consider removing the dash cam to prevent overheating.
- Whakahōu Firmware: Tirohia te paetukutuku mana o Blaupunkt website for any available firmware updates. Keeping your dash cam's firmware up-to-date can improve performance and add new features.
7. Te Raru
If you encounter issues with your Blaupunkt BP 4.0 FHD Dash Cam, refer to the following common problems and solutions:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Karekau te kamera i te hiko. | Kāore he pūtake hiko; he taura hapa; he pākahiko mate. | Check car charger connection and vehicle's 12V outlet. Try a different power source or cable. Ensure the internal battery is charged. |
| Ka mutu te tuhi, ka whakatio ranei. | Slow MicroSD card; full MicroSD card; card error. | Use a high-speed (Class 10 or U1/U3) MicroSD card. Format the MicroSD card. Replace the MicroSD card if errors persist. |
| Poor video quality (especially at night). | Dirty lens; low light conditions; windshield glare. | Clean the camera lenses and windshield. Ensure no obstructions. Adjust exposure settings if available. Note that night vision performance can be limited. |
| Interior camera not working. | Loose connection; faulty interior camera. | Ensure the interior camera is securely plugged into the main unit's auxiliary port. If the issue persists, contact support. |
| Kare e aro mai nga paatene. | Device frozen; software glitch. | Perform a soft reset by pressing the reset button (if available) or by holding the power button for 10-15 seconds. |
8. Whakatakotoranga
Detailed technical specifications for the Blaupunkt BP 4.0 FHD Dash Cam:
- Waitohu: BLAUPUNKT
- Ingoa Tauira: BP 4.0 FHD
- Tauira Tūemi: BP 4.0 FHD
- Tae: Zinc Alloy / Black
- Rahi Mata: 2 inihi
- Marae o View: 140 Waeine
- Whakatau Whakatika Ataata: 1080p, 720p
- Hangarau Hononga: Tautoko
- Momo Whakapuru: Maunga Hara Suction
- Ngā Pūrere Hototahi: Waka, Taraka
- Nga Waahanga Kei roto: Cable, Video Recorder, User Manual, Interior Lens, Mount
- Kaihanga: BLAUPUNKT
- Te Rā Tuatahi Kei te wātea i runga i te Amazon.com.be: Pipiri 6, 2022
- Wāhanga Wāhanga Wātea: Ko nga korero kaore i te waatea
- Whakahōunga Pūmanawa Kua Whakamanahia Tae noa ki: Ko nga korero kaore i te waatea
9. Pūtāhui me te Tautoko
For warranty information and customer support, please refer to the warranty card included in your product package or visit the official Blaupunkt webpae. Ka rereke pea nga tikanga me nga tikanga whakamana mo ia rohe me te kaihokohoko.
