Twotrees TS3-10W Laser Engraving and Cutting Machine User Manual

1. Kupu Whakataki

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Twotrees TS3-10W Laser Engraving and Cutting Machine. Please read this manual thoroughly before operating the device to ensure proper usage and to prevent damage or injury.

The Twotrees TS3-10W is a versatile 10W laser machine designed for engraving and cutting various materials, featuring compressed laser technology, multiple offline control modes, and an integrated design for ease of use.

2. Nga Tohutohu Haumaru

WHAKATŪPATO: Laser radiation can cause eye damage and skin burns. Always follow safety precautions.

• Parenga kanohi: Although the machine features an integrated protective cover, always exercise caution. Avoid direct exposure to the laser beam.
• Whakahau: Ensure adequate ventilation during operation. The machine includes an internal circulation purification system and external exhaust options to manage smoke and fumes.
• Rauemi Hototahi: Ko ngā rauemi whakairo, tapahi rānei e tika ana mō te tukatuka taiaho anake. Āta karohia ngā rauemi whakaata nui, mura, paitini rānei.
• Tirohanga: Kaua rawa e waiho te miihini kia kore e tiakina i te wa e mahi ana.
• Kati ohorere: Familiarize yourself with the location of the emergency stop button.
• Nga tamariki me nga kararehe: Tiakina nga tamariki me nga kararehe mai i te miihini i te wa e mahi ana.

3. Hua Neke Atuview

The Twotrees TS3-10W is a compact and powerful laser engraving and cutting machine. Its integrated design means it's ready to use out of the box, eliminating complex assembly. The machine features a retro-colored body with seamless splicing and a mellow arc design.

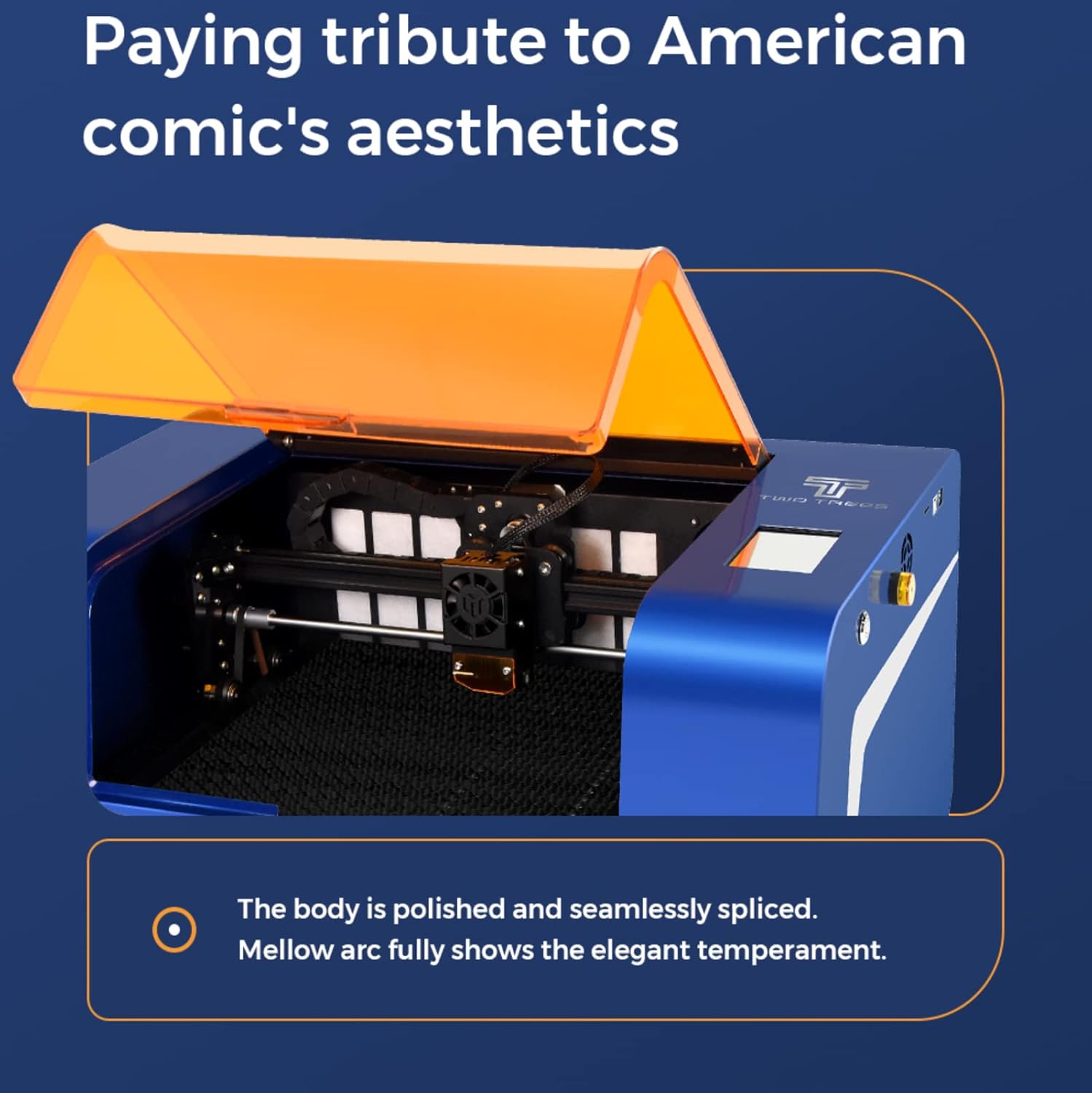

Whakaahua 3.1: Twotrees TS3-10W Laser Engraving Machine with its orange protective cover open, revealing the internal laser module and work area.

3.1 Nga waahanga matua

• Hoahoa Whakauru: No assembly required; ready to use directly from the box.
• 10W Laser Module: Utilizes LD+FAC+C compressed laser technology for precise and powerful engraving and cutting. Capable of cutting 8mm plywood in a single pass.
• Uhi Tiaki: Integrated orange protective cover eliminates the need for external goggles during operation.
• Dual Exhaust Modes:
  • Internal circulation purification system with a filter to effectively remove harmful particles.
  • External exhaust pipe connection for direct smoke and dust evacuation.
• Multiple Offline Control Modes:
  • Screen Engraving (TF card insertion).
  • WIFI Engraving (wireless transmission from computer or mobile phone).
  • APP Engraving (dedicated mobile application for drawing, transferring, and engraving).
• Rotary Module Support: Optional rotary module for engraving curved surfaces.

Whakaahua 3.2: The Twotrees TS3-10W machine with its protective orange cover closed, indicating readiness for operation without external goggles.

Whakaahua 3.3: He taipitopito view of the laser module and the work surface, highlighting the precision of the laser beam.

Whakaahua 3.4: An illustration demonstrating the advanced LD+FAC+C compressed laser technology used in the TS3-10W, which enhances cutting and engraving capabilities.

4. Tatūnga

4.1 Te Wetewete

1. Kia ata tangohia te miihini me nga taputapu katoa mai i te kete.
2. Inspect the machine for any signs of damage during transit. Contact customer support immediately if any damage is found.
3. Puritia te kete mo te rokiroki a muri ake nei, hei kawe ranei.

4.2 Te Whakanoho Tuatahi

Place the machine on a stable, level, and non-flammable surface. Ensure there is sufficient space around the machine for ventilation and operation.

4.3 Hononga Hiko

1. Connect the power adapter to the machine's power input port.
2. Monohia te urutau hiko ki tetahi putanga hiko tika.
3. The machine is designed for immediate use upon unboxing, requiring no complex assembly.

4.4 Pūmanawa me te Hononga

The TS3-10W supports multiple control methods:

• GRBL Control: For advanced users, the machine is compatible with GRBL control software. Refer to the manufacturer's website for recommended software and drivers.
• Hononga WIFI: Connect the machine to your local Wi-Fi network for wireless control from a computer or mobile device. Follow the on-screen instructions on the machine's display or refer to the dedicated app for setup.
• APP pūkoro: Download the official Twotrees mobile application from your device's app store. The app allows for design, transfer, and engraving directly from your smartphone.
• TF Card (Screen Engraving): Insert a TF card containing your design files into the designated slot on the machine for direct engraving without external connection.

5. Nga Tohutohu Whakahaere

5.1 Whakaritenga Rawa

• Place the material to be engraved or cut securely on the work platform.
• Ensure the material is flat and properly aligned.
• For cutting, the machine's cellular platform provides deeper penetration.

5.2 Focusing the Laser (if applicable)

The TS3-10W typically features a fixed-focus laser or an auto-focus mechanism. If manual focusing is required, follow the specific instructions provided on the machine's display or in the app.

5.3 Starting an Engraving/Cutting Job

1. Tīpako Aratau: Choose your preferred operating mode (TF card, WIFI, or APP).
2. Hoahoa Uta: Utaina to hoahoa file through the chosen method.
3. Whakaritea Tawhā: Set the laser power, speed, and number of passes according to the material and desired effect. Refer to material test guides for optimal settings.
4. Preview (mēnā kei te wātea): Whakamahia te muaview function to ensure the design is positioned correctly on the material.
5. Tīmata Mahi: Close the protective cover and initiate the engraving/cutting process.
6. Aroturuki: Te aroturuki i te mīhini i te wā e mahi ana.

Whakaahua 5.1: Visual comparison demonstrating the faster engraving speed and efficient cutting penetration of the TS3-10W compared to other machines.

5.4 Exhaust System Operation

The TS3-10W offers two exhaust options:

• Internal Purification: The built-in filter system automatically purifies smoke and particles. Ensure the filter is clean for optimal performance.
• Putanga Hau o Waho: For heavy smoke or specific materials, connect an exhaust hose to the designated port on the machine and direct it outside through a window or ventilation system.

Whakaahua 5.2: Nga momo examples of intricate designs engraved and cut on different materials, showcasing the machine's versatility.

6. Tiaki

Regular maintenance ensures the longevity and optimal performance of your laser machine. Always disconnect power before performing any maintenance.

6.1 Cleaning the Laser Lens

• Periodically inspect the laser lens for dust or debris.
• Gently clean the lens using a lint-free cloth and specialized lens cleaning solution or isopropyl alcohol. Avoid abrasive materials.

6.2 Whakapai Whanui

• Wipe down the machine's exterior with a soft, damp kakahu.
• Clean the work platform and remove any accumulated debris or residue from engraved/cut materials.
• Ensure the linear rails and moving parts are free from dust and obstructions.

6.3 Internal Purification Filter

• The internal circulation purification system contains a filter that needs periodic cleaning or replacement.
• Refer to the manufacturer's guidelines for accessing and maintaining this filter.

7. Te Raru

8. Whakatakotoranga

9. Pūtāhui me te Tautoko

Information regarding product warranty and customer support was not provided in the available data. For warranty details, technical assistance, or to purchase replacement parts, please refer to the official Twotrees webpae, whakapā atu ranei ki to kaihoko.

Always ensure you have your product model number (TS3-10W) and purchase date available when contacting support.
