ZdalaMit L5B83H Voice Replacement Remote Instruction Manual

Kupu Whakataki

This manual provides essential instructions for the ZdalaMit L5B83H voice replacement remote control. Please read this guide carefully to ensure proper setup and operation of your new remote with compatible Amazon Fire TV devices.

Hototahi

The ZdalaMit L5B83H remote is designed to be compatible with the following Amazon Fire TV devices:

• Fire TV Stick Lite
• Fire TV Stick (2nd Generation)
• Rakau pouaka whakaata ahi 4K
• Fire TV Cube (1st Generation, 2nd Generation)

Tuhipoka: Ko tēnei mana mamao kaore compatible with Amazon Fire TV (1st and 2nd Generation), Amazon Fire TV Smart TV, or Fire TV Stick (1st Generation).

Tatūnga me te Takirua

Follow these steps to pair your ZdalaMit L5B83H remote with your Amazon Fire TV device:

1. Prepare your Fire Stick: Disconnect your Fire Stick from your TV and remove its power source. After a few minutes, plug the Fire Stick back into your TV and reconnect its power.
2. Tīmatahia te Takirua: Patohia me te pupuri i te Kainga button on the new remote for 10 to 30 seconds. Release the button when the LED light on the remote begins to flash rapidly.
3. Takirua Aunoa: Wait approximately 60 seconds. The remote will enter pairing mode (indicated by the LED flash) and should automatically pair with your device.

If the LED light turns off and the remote does not successfully pair, remove and reinsert the batteries from the remote, then repeat the pairing procedure starting from step 1.

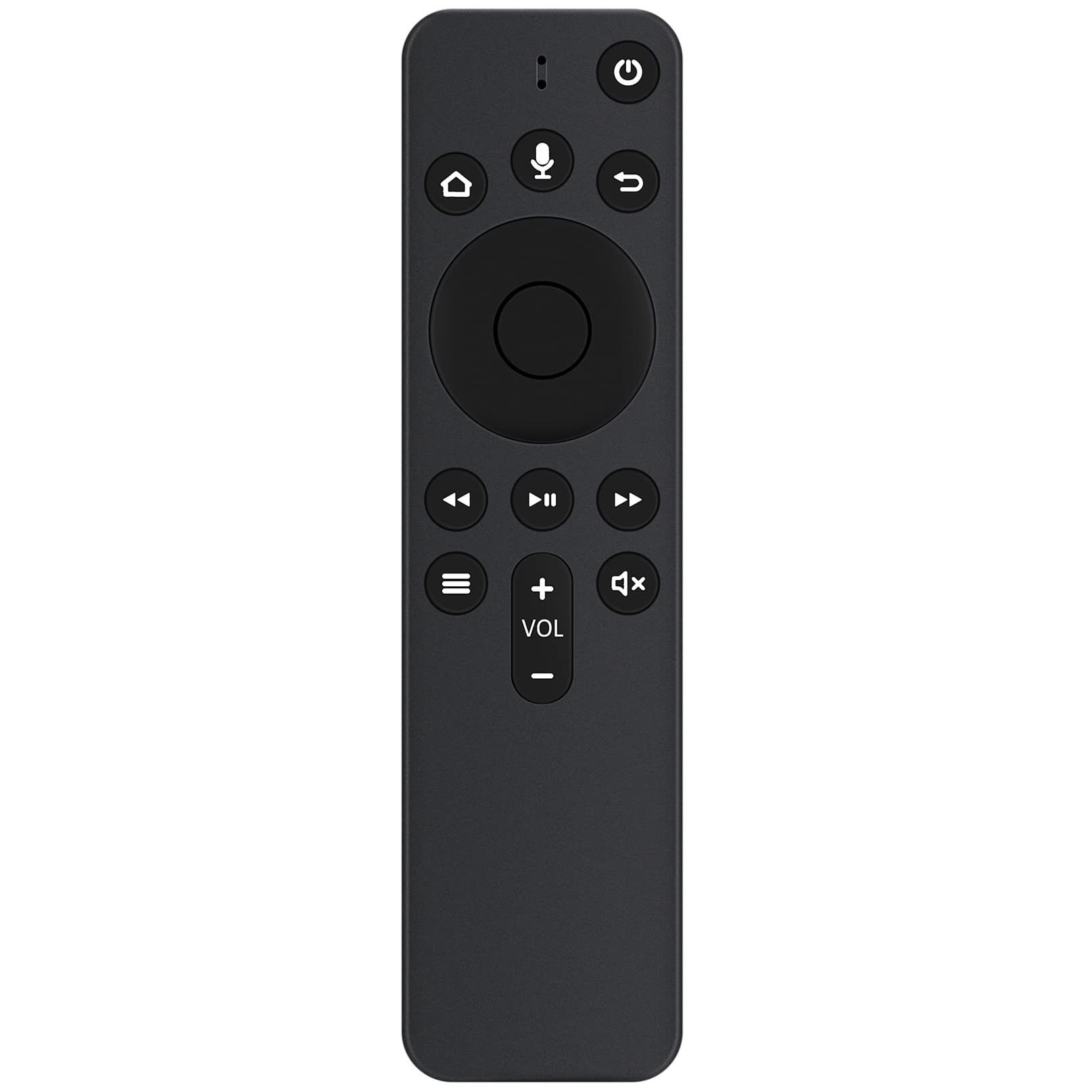

Whakaahua: Mua view of the ZdalaMit L5B83H voice replacement remote. This image displays the layout of the buttons, including the power, home, back, and voice control buttons, as well as the directional pad and media playback controls.

Nga Tohutohu Whakahaere

Once paired, the remote functions similarly to your original Amazon Fire TV remote. Key functions include:

• Whakaterenga: Use the circular directional pad to move through menus and select items.
• Mana Reo: Patohia me te pupuri i te Reo button (microphone icon) to activate voice commands for searching content, launching apps, and more.
• Kāinga: Pehia te Kainga button (house icon) to return to the main Fire TV interface.
• Hoki: Whakamahia te Whakamuri button (curved arrow) to go back to the previous screen.
• Tahua: Ko te Tahua button (three horizontal lines) provides additional options within applications.
• Mana Rōrahi: Whakamahia te RŌHI + / - buttons to adjust the volume of your TV or sound system.
• Wahangu: Pehia te Wahangu button (speaker with 'x' icon) to silence the audio.
• Purei Huringa Pāpāho: Control playback with the Purei/Tatari, Tere Whakamua, a Whakahoki pātene.

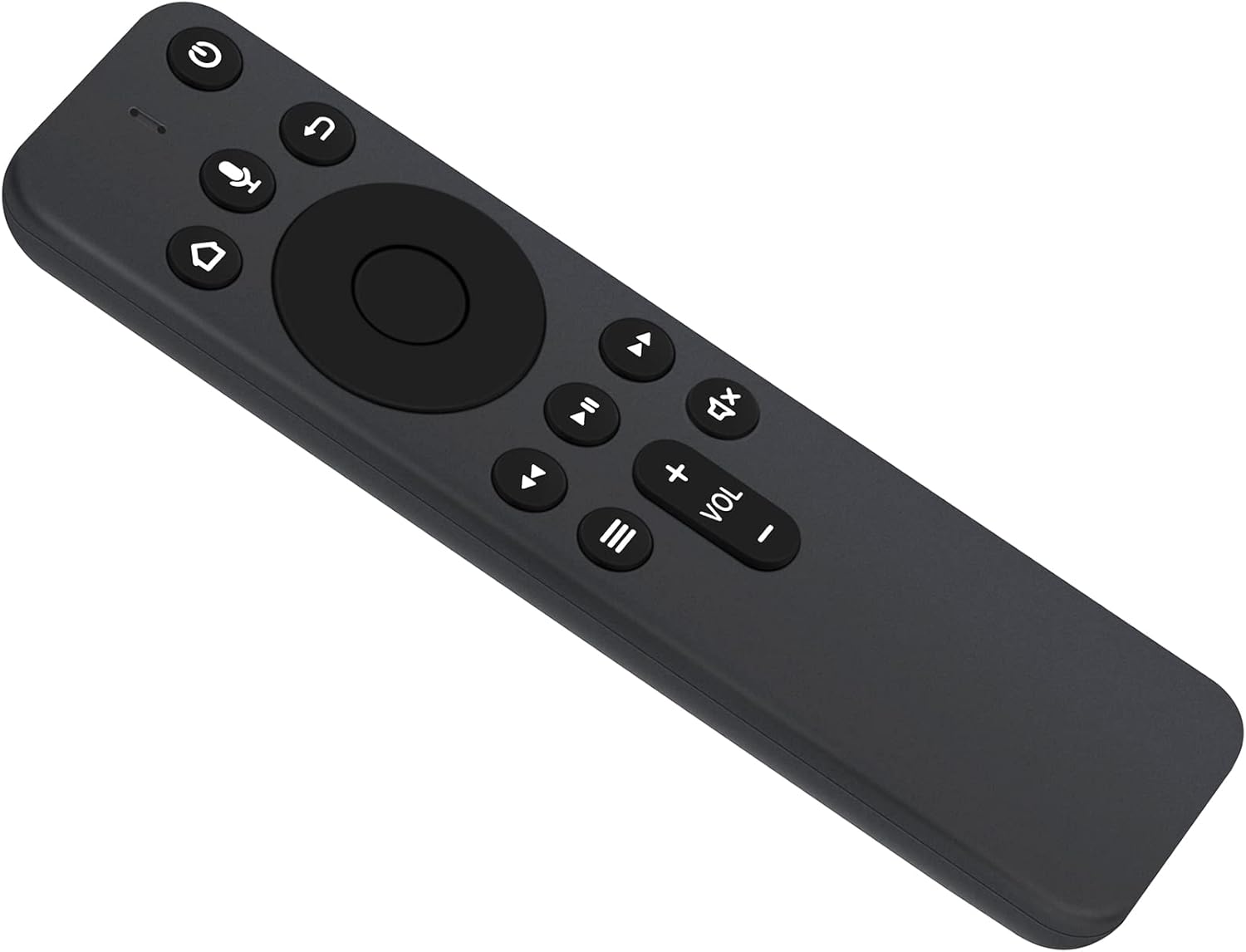

Whakaahua: Koki view of the ZdalaMit L5B83H remote. This perspective highlights the remote's shape and the tactile feel of its buttons.

Whakauru Putaono me te Whakahaere

The ZdalaMit L5B83H remote requires two (2) AAA alkaline batteries for operation. Batteries are not included with the remote.

Tāuta Pūhiko:

1. Kimihia te uhi o te wahanga pākahiko kei muri o te mamao.
2. Slide the cover down or press the latch to open it.
3. Whakauruhia kia rua ngā pākahiko AAA kawakore, me te whakarite kia ōrite ngā pito pai (+) me te pito kino (-) ki ngā hoahoa o roto i te wāhanga.
4. Whakakapia te uhi o te wahanga pākahiko kia pao pai ki te waahi.

Tiaki Pūhiko:

• Replace batteries when the remote's performance degrades or the LED indicator for pairing no longer functions as expected.
• Kaua e hanumi nga pākahiko tawhito me nga pākahiko hou, nga momo pākahiko rereke ranei.
• Tango pākahiko ki te kore e whakamahia te mamao mo te wa roa kia kore ai e pakaru.

Raparongoā

If you experience issues with your ZdalaMit L5B83H remote, try the following troubleshooting steps:

• Mamao Kaore i te Whakautu: Ensure batteries are correctly installed and have sufficient charge. Replace batteries if necessary.
• Nga take takirua: If the remote fails to pair after following the initial setup steps, remove the batteries from the remote, wait a few seconds, reinsert them, and then repeat the pairing process from step 1 in the "Setup and Pairing" section.
• pokanoa: Ensure there are no obstructions between the remote and your Fire TV device. Other electronic devices might cause interference; try moving them further away.
• Fire TV Device Restart: Sometimes, restarting your Fire TV device can resolve connectivity issues. Unplug the power adapter from your Fire TV device for a few seconds, then plug it back in.

Whakatakotoranga

Ihirangi mokete

Kei roto i te mōkihi:

• 1 x ZdalaMit L5B83H Voice Replacement Remote Control

Tuhipoka: Kaore nga pākahiko i whakauruhia, me hoko motuhake.

Tautoko

If you have any questions or require further assistance with your ZdalaMit L5B83H remote, please contact the manufacturer or your retailer for support.
