Kupu Whakataki
Thank you for choosing the Baseus Hub USB-C 12in1 Metal Gleam Series. This versatile docking station expands the connectivity of your USB-C enabled device, providing a wide range of ports for various peripherals and functions. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

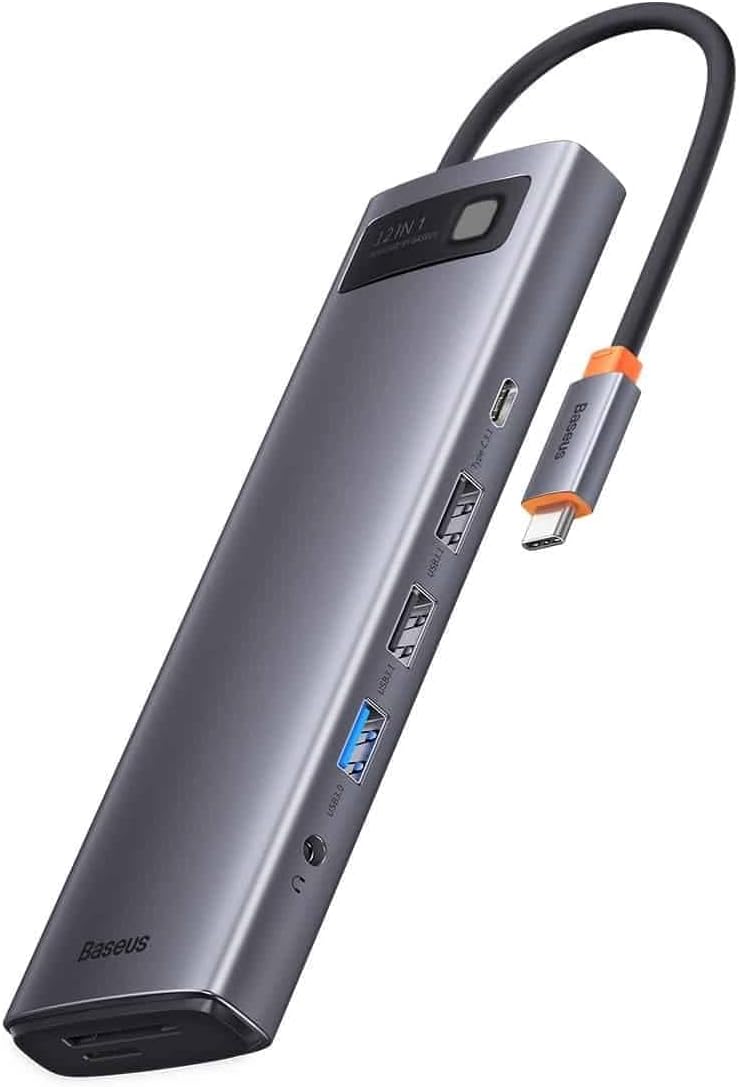

Image: The Baseus Hub USB-C 12in1 Metal Gleam Series, showcasintōna hoahoa huatau me ōna tauranga maha.
Ka mutu te huaview
The Baseus 12in1 Hub is designed to streamline your workspace by offering extensive connectivity options through a single USB-C port. It features a durable metal gleam finish and compact design.
Āhuatanga matua:
- Multiple USB ports (USB 3.0, USB 2.0, USB Type-C) for data transfer and peripheral connection.
- HDMI output for high-definition video display.
- Ethernet port for stable wired network connection.
- SD and Micro SD card readers for memory expansion.
- Audio jack for headphones or speakers.
- Power Delivery (PD) port for charging your host device.
Whakaahua: Taha view of the Baseus Hub, illustrating the arrangement of its various ports.
Tohutohu Tatūnga
- Connect the Hub to your Device: Plug the integrated USB-C cable of the Baseus Hub into the USB-C port of your laptop, tablet, or smartphone. Ensure the connection is secure.
- Hononga Hiko (Kōwhiringa engari e taunakitia ana): If your host device requires charging or if you are connecting power-intensive peripherals, connect a USB-C power adapter (not included) to the Power Delivery (PD) port on the hub. This will charge your host device and provide stable power to connected accessories.
- Tūhono Pikitia:
- Pūrere USB: Connect USB flash drives, external hard drives, keyboards, mice, or other USB peripherals to the available USB 3.0 or USB 2.0 ports.
- Whakaatu: Honoa he taura HDMI mai i te tauranga HDMI o te pokapū ki tō mata, ki tō pouaka whakaata rānei hei putanga ataata.
- Whatunga: Honoa he taura Ethernet ki te tauranga RJ45 hei hononga ipurangi waea.
- Kaari Pumahara: Insert SD or Micro SD cards into the respective slots.
- Ororongo: Monohia ō paneoro, ō kaikorero rānei ki te hononga oro 3.5mm.
- Tāuta Atekōkiri: The Baseus Hub is typically plug-and-play and does not require additional drivers for most operating systems. If prompted, follow on-screen instructions for any necessary driver installations.

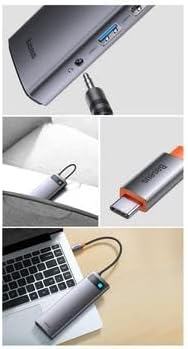

Image: The Baseus Hub connected to a laptop, demonstrating a typical setup.
Nga Tohutohu Whakahaere
Whakamahi Tauranga USB:
Connect your USB devices to the available USB 3.0 (blue interior) or USB 2.0 ports. USB 3.0 ports offer higher data transfer speeds (up to 5Gbps) and are backward compatible with USB 2.0 devices. USB 2.0 ports are suitable for keyboards, mice, and other standard peripherals.
Huaputa Ataata HDMI:
The HDMI port supports video output to an external display. Connect an HDMI cable from the hub to your monitor or TV. Your operating system should automatically detect the external display. You can configure display settings (mirror, extend, primary display) through your device's display settings.
Hononga Itarangi:
For a stable and fast internet connection, plug an Ethernet cable into the RJ45 port on the hub. Your device will typically recognize the wired connection automatically. Check your network settings if a connection is not established.
Kaipānui Kāri SD/Micro SD:
Insert your SD or Micro SD card into the corresponding slot. The card will appear as a removable drive on your computer, allowing you to access and transfer files. Do not force cards into the slots; ensure correct orientation.
Putanga Ororongo:
Connect your 3.5mm headphones or speakers to the audio jack. Your device's audio output should automatically switch to the connected device. You may need to select the hub as the audio output device in your system's sound settings.
Tukunga Hiko USB-C (PD):
The USB-C PD port allows you to charge your host device (laptop, tablet) while using the hub. Connect your original USB-C power adapter to this port. The hub will pass through power to your device and power its own functions and connected peripherals.
Te tiaki
- Te horoi: Use a soft, dry cloth to clean the surface of the hub. Avoid using liquid cleaners, aerosols, or harsh chemicals, as they may damage the finish or internal components.
- Rokiroki: Ki te kore e whakamahia, rongoatia te pūhiko ki te wāhi hauhautanga, maroke, kia matara atu i te rā tika me te pāmahana tino kino.
- Te whakahaere: Avoid dropping the hub or subjecting it to strong impacts. Do not bend or twist the integrated USB-C cable excessively.
- Whakahau: Ensure the hub has adequate ventilation during operation to prevent overheating. Do not cover it with cloths or place it in enclosed spaces.
Raparongoā
- No display output via HDMI:
- Ensure the HDMI cable is securely connected to both the hub and the display. Check your device's display settings to confirm the external monitor is detected and configured correctly. Try a different HDMI cable or monitor if possible.
- USB devices are not recognized:
- Ensure the hub is securely connected to your host device. Try connecting the USB device to a different port on the hub. If using a high-power USB device (e.g., external hard drive), ensure the hub is connected to a power source via its PD port. Restart your host device.
- Nga tere whakawhiti raraunga puhoi:
- Ensure you are using a USB 3.0 port for USB 3.0 devices. Some older USB-C ports on host devices may not support full USB 3.0 speeds. Ensure no other high-bandwidth operations are running simultaneously.
- Hub or connected devices are overheating:
- Disconnect all devices and the power source. Allow the hub to cool down. Ensure proper ventilation around the hub. If the issue persists, reduce the number of connected power-intensive devices.
- Karekau he hononga ipurangi ma te Ethernet:
- Verify the Ethernet cable is properly connected to both the hub and your router/modem. Check your device's network settings to ensure the wired connection is enabled and configured correctly. Try a different Ethernet cable.
Whakatakotoranga
| Waitohu | Baseus |
| Tau tauira | WKWG020213 |
| Tauranga USB katoa | 12 (momo rerekē) |
| Atanga Pūmārō | HDMI, USB, USB 3.0, USB Type C, Ethernet, SD/Micro SD, Audio Jack |
| Pūrere Hototahi | USB-C enabled laptops, tablets, smartphones, USB drives, monitors, etc. |
| Rere Whakawhiti Raraunga | Up to 48 Gigabits per second (aggregate) |
Nga korero Whakaputanga
Baseus products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the official Baseus webpaetukutuku, whakapā atu rānei ki tō kaihokohoko ā-rohe.
Tautoko
If you encounter any issues or have questions regarding your Baseus Hub USB-C 12in1 Metal Gleam Series, please refer to the troubleshooting section of this manual. For further assistance, you can:
- Tirohia te Baseus mana webpae mo nga FAQ me nga rauemi tautoko.
- Contact Baseus customer service through their official channels.
- Reach out to the retailer from whom you purchased the product.
