1. Kupu Whakataki
This manual provides essential instructions for the SOLTECH CCTV Remote Control, model RCWN00001B (also identified as EP10-001090A). This remote is specifically designed for use with various Samsung Wisenet Security & Surveillance Camera Systems, including DVRs and NVRs. Please read this manual thoroughly to ensure proper use and functionality of your remote control.
2. Hua Neke Atuview
The SOLTECH CCTV Remote Control is a dedicated device for managing your Samsung Wisenet security system. It replicates the functionality of the original remote control included with Wisenet All-In-One systems, providing convenient access to your DVR or NVR functions.
Whakaahua 2.1: Mua view of the SOLTECH CCTV Remote Control (Model RCWN00001B / EP10-001090A).

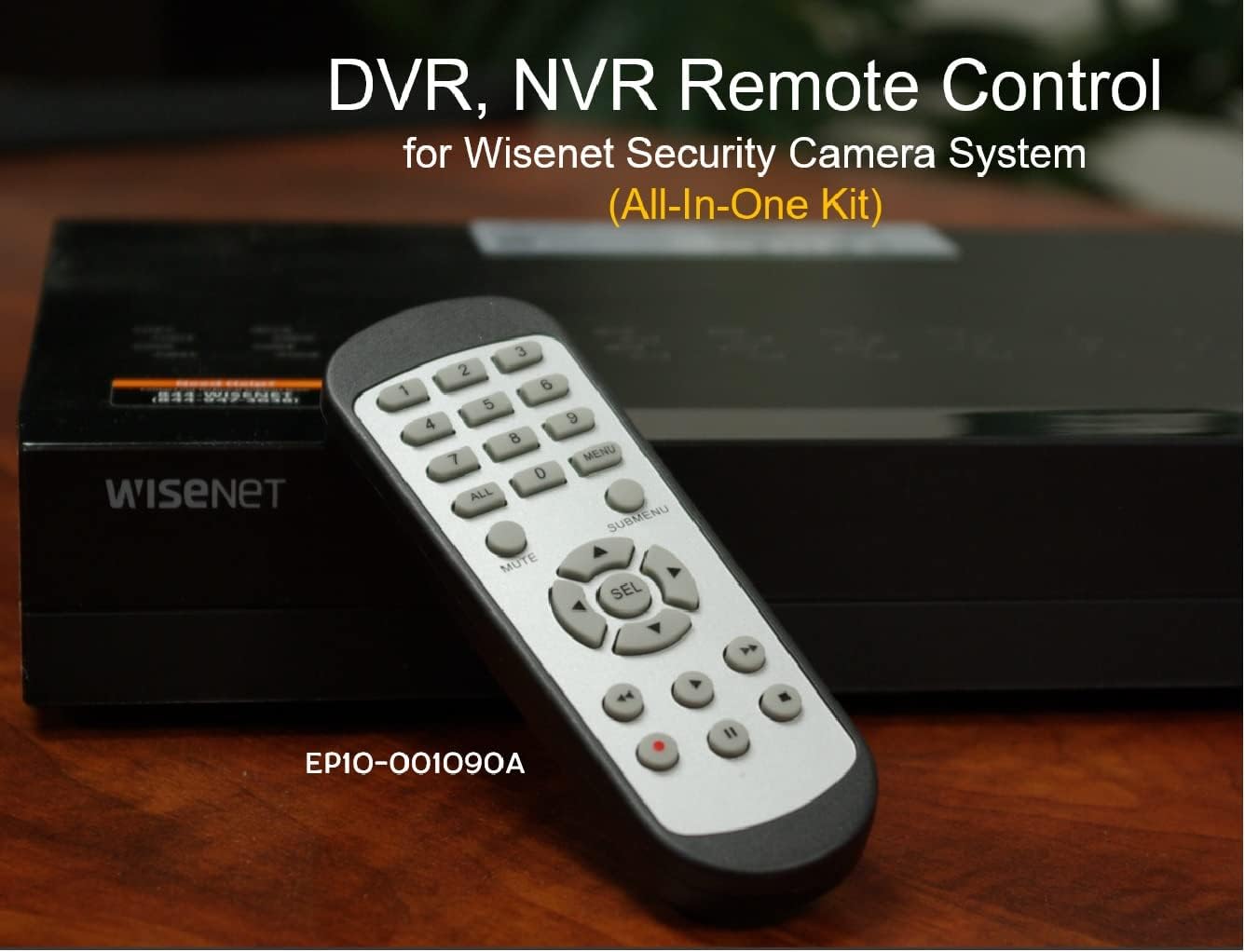

Image 2.2: The remote control positioned on a Wisenet Digital Video Recorder (DVR).
3. Tatūnga
This remote control requires two AAA batteries for operation. Batteries are not included with the product and must be purchased separately.
3.1 Tāuta Pūhiko
- Rapua te wahanga pākahiko kei muri o te mana mamao.
- Slide the battery compartment cover downwards and lift it off.
- Whakauruhia nga pākahiko AAA e rua, kia tika te polarity (+ me te -) kua tohua ki roto i te waahanga.
- Whakakapihia te uhi o te wahanga pākahiko ma te whakaneke atu ki tona waahi kia paoho pai.
Whakaahua 3.1: Whakamuri view o te mana mamao me te wāhanga pākahiko e tuwhera ana, e whakaatu ana i te wāhi hei whakauru i ngā pākahiko AAA.
3.2 Hononga Tuatahi
The SOLTECH CCTV Remote Control is pre-configured for Samsung Wisenet All-In-One System DVRs and NVRs. No additional setup, programming, or pairing is required. Once batteries are installed, the remote is ready for immediate use with compatible systems.

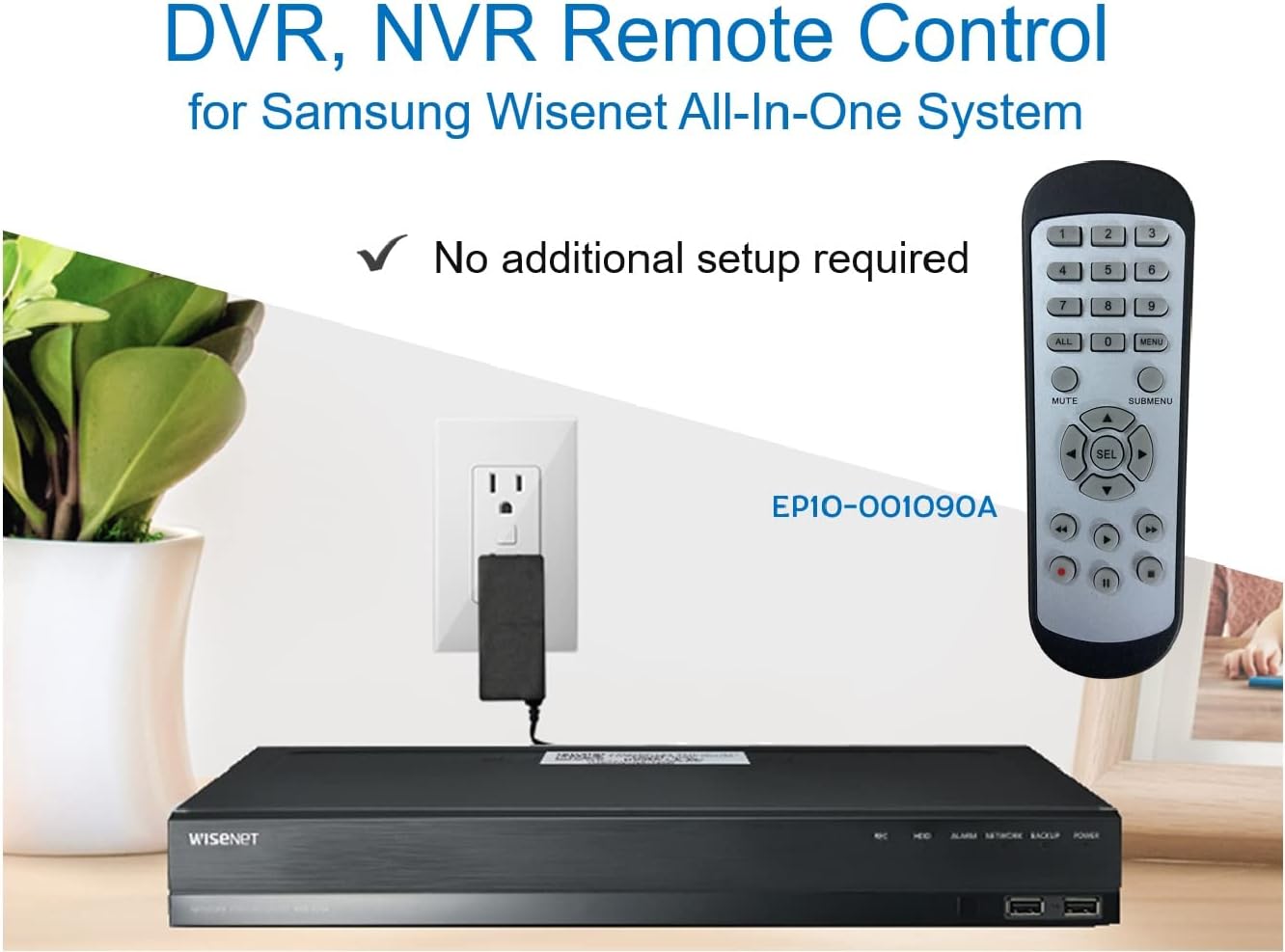

Image 3.2: The remote control shown alongside a Wisenet DVR, illustrating the 'no additional setup required' feature.
4. Nga Tohutohu Whakahaere
Point the remote control directly at your Samsung Wisenet DVR or NVR. Press the desired buttons to navigate menus, control playback, switch camera views, and access other functions of your security system. The button layout is standard for Wisenet systems, allowing for intuitive operation.
- Patene Tau (0-9): Used for direct camera selection or data entry.
- Directional Pad (Up, Down, Left, Right, SEL): Mo te whakaterenga tahua me te kowhiringa.
- NGARU: Wahangu ana te putanga ororongo.
- SUBMENU: Accesses sub-menus within the system interface.
- Ngā Mana Purei Anō (Purei, Whakamutu, Kati, Whakamua Tere, Whakamuri): Manages recorded footage purei hoki.
- REC (Record): Initiates manual recording.
5. Hototahi
This remote control is compatible with various Samsung Wisenet All-In-One System Series. It is designed to function as a direct replacement for the original remote controls supplied with these systems.
5.1 Compatible System Series
The remote control is compatible with, but not limited to, the following Samsung Wisenet All-In-One System Series:
- SDH-E95127
- SDH-B94047
- SDH-C94087
- SDH-B73043
- SDH-C85080
- SDH-SF440
- SDH-B74043
- SDH-B74083
- SDH-B74041
- SDH-B74081
- SDH-C85100
- SDR-C85300
- SNK-B73047
- SDH-B74086
- SDH-C73043
- SDR-C73303
- SDH-C74043DF
- SDR-C74303N1T
- SDR-B74301
Image 5.1: The remote control displayed alongside a partial list of compatible Samsung Wisenet All-In-One System Series.
Image 5.2: An illustration showing the remote control's compatibility with a range of Samsung Wisenet security camera systems.
6. Tiaki
6.1 Whakakapinga Pūhiko
When the remote control's performance diminishes or it stops responding, replace the AAA batteries. Always replace both batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries.
6.2 Te horoi
Hei horoi i te mana mamao, whakamahia he kakahu ngohengohe, maroke. Mō te paru uaua, whakamahia he kakahu pakupaku.ampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the remote's surface or internal components.
6.3 Rokiroki
Rokirokihia te mana mamao ki te wāhi hauhautanga, maroke, kia matara atu i te rā tika me te pāmahana tino kino. Mēnā kāore e whakamahia te mana mamao mō te wā roa, he mea tika kia tangohia ngā pākahiko hei ārai i te turuturu.
7. Te Raru
If you experience issues with your SOLTECH CCTV Remote Control, refer to the following common troubleshooting steps:
- Mamao Kaore i te Whakautu:
- Tirohia mehemea kua tika te whakaurunga o nga pākahiko me te polarity tika.
- Whakakapihia nga pākahiko ki nga pākahiko AAA hou.
- Ensure there is a clear line of sight between the remote control and the infrared receiver on your Wisenet DVR/NVR. Obstructions can block the signal.
- Verify that the remote control is pointed directly at the Wisenet system.
- Taumahinga Mokowhiti:
- He tohu tēnei i te iti o te mana o te pākahiko. Whakakapia ngā pākahiko.
- Kia tino mohio kei kore he pūtake mārama kaha (pēnei i te rā tika, i ngā rama kanapa rānei) e whakararuraru i te tohu infrared.
- Remote Does Not Control My System:
- Confirm that your security system is a Samsung Wisenet All-In-One System and is listed as compatible in Section 5.1. This remote is specifically designed for these systems and may not work with other brands or models.
- As this remote requires no additional setup, if it is not working with a confirmed compatible system after battery replacement, contact customer support.
8. Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Tau tauira | RCWN00001B (EP10-001090A) |
| Hunga Hua | 5 x 1.75 x 0.75 inihi |
| Taumaha Tūemi | 1.76 hekere |
| Nga Pikohiko e hiahiatia ana | 2 pākahiko AAA (kaore i whakauruhia) |
| Kaihanga | SOLTECH |
| Tae | Kerei |
| Tau Max o nga Pūrere Tautoko | 1 (Wisenet DVR/NVR) |
| Pūrere Hototahi | Samsung Wisenet Security Camera Systems (DVR/NVR) |
Image 8.1: The remote control with its physical dimensions (length, width, thickness) indicated.
9. Pūtāhui me te Tautoko
For information regarding product warranty, please refer to the documentation provided with your purchase or contact the seller directly. The seller for this product is SOLTECH America.
For further assistance or technical support, please reach out to the manufacturer or seller through their official contact channels.
