Pukapuka Kaiwhakamahi mō te eSkde 52cc Penihana me te Tapahi Paraihe

Kupu Whakataki

Thank you for choosing the eSkde 52cc Petrol Strimmer and Brush Cutter. This powerful 2-in-1 garden tool is designed for efficient trimming of grass and cutting through dense brush. To ensure safe and optimal performance, please read this manual thoroughly before assembly, operation, or maintenance. Keep this manual for future reference.

Nga korero haumaru

Your safety is paramount. Always adhere to the following safety guidelines:

• Always wear appropriate protective clothing, including eye protection, hearing protection, sturdy footwear, and gloves, when using this product.
• Be aware of potential flying debris and keep bystanders, children, and pets at a safe distance (at least 15 meters/50 feet) from the operating area.
• Always use the double shoulder harness for stability, control, and to minimize strain on the operator.
• Ensure the work area is clear of obstacles, rocks, and other objects that could be thrown by the cutting attachment.
• Never operate the strimmer/brush cutter when fatigued, under the influence of alcohol, drugs, or medication.
• Handle fuel with extreme care. Mix and refuel in a well-ventilated area, away from open flames or sparks. Do not smoke while handling fuel.
• Before performing any maintenance, cleaning, or when transporting the unit, always switch off the engine and ensure all moving parts have stopped.

Nga Waeine Neke Atuview

Familiarize yourself with the main components of your eSkde Petrol Strimmer and Brush Cutter.

Whakaahua 1: All components of the eSkde 52cc Petrol Strimmer and Brush Cutter, including the engine unit, shaft, bull horn handles, brush cutter blade, nylon strimmer head, fuel mixing bottle, tools, and double shoulder harness.

Whakaahua 2: The double shoulder harness, designed for comfortable weight distribution and reduced operator fatigue during extended use.

Whakaahua 3: The hardened metal brush cutter blade, ideal for tackling thick brush, brambles, and dense weeds.

Whakaahua 4: The nylon strimmer head, used for precise trimming of grass and edging lawns.

Tatūnga me te Runanga

The eSkde strimmer requires some assembly before first use. Follow these steps carefully:

1. Wewetehia ka Tirotiro: Carefully remove all components from the packaging. Check for any damage or missing parts. Refer to Figure 1 for a complete overview.
2. Assemble the Shaft: Connect the two sections of the shaft if they are separate. Ensure they click securely into place.
3. Āpiti Kakau: Secure the bull horn handles to the main shaft using the provided clamps me nga tutaki. Whakaritehia to raatau waahi mo te mahi pai.
4. Mount Engine Unit: Attach the engine unit to the upper part of the shaft, ensuring all connections are firm.
5. Tāutahia te Kaitiaki: Secure the safety guard over the cutting head area. This guard is crucial for protecting the operator from debris.
6. Choose Cutting Attachment:
   • For Nylon Strimmer Head: Attach the nylon head (Figure 4) to the gearbox spindle. Ensure it is tightened securely.
   • For Brush Cutter Blade: Attach the metal blade (Figure 3) to the gearbox spindle. Use the provided washers and nut, ensuring the blade is oriented correctly and tightened firmly. Always use the appropriate blade guard when using the metal blade.
7. Attach Harness: Connect the double shoulder harness (Figure 2) to the designated attachment point on the shaft. Adjust the harness straps to ensure the unit is balanced and comfortable when worn, allowing for easy control.

Whakaahua 5: The fully assembled eSkde strimmer, ready for use with either the nylon head or brush cutter blade.

Whakaahua 6: Taipitopito view of the engine unit connected to the shaft, showing the control handles and throttle trigger.

Fueling and Starting

This strimmer uses a 2-stroke petrol engine. Proper fuel mixture is critical for engine longevity.

Whakaranu wahie:

Mix unleaded petrol with high-quality 2-stroke engine oil at a ratio of 25:1 (Petrol:Oil). Use the provided mixing bottle for accurate measurement. Shake the mixture thoroughly before pouring into the fuel tank.

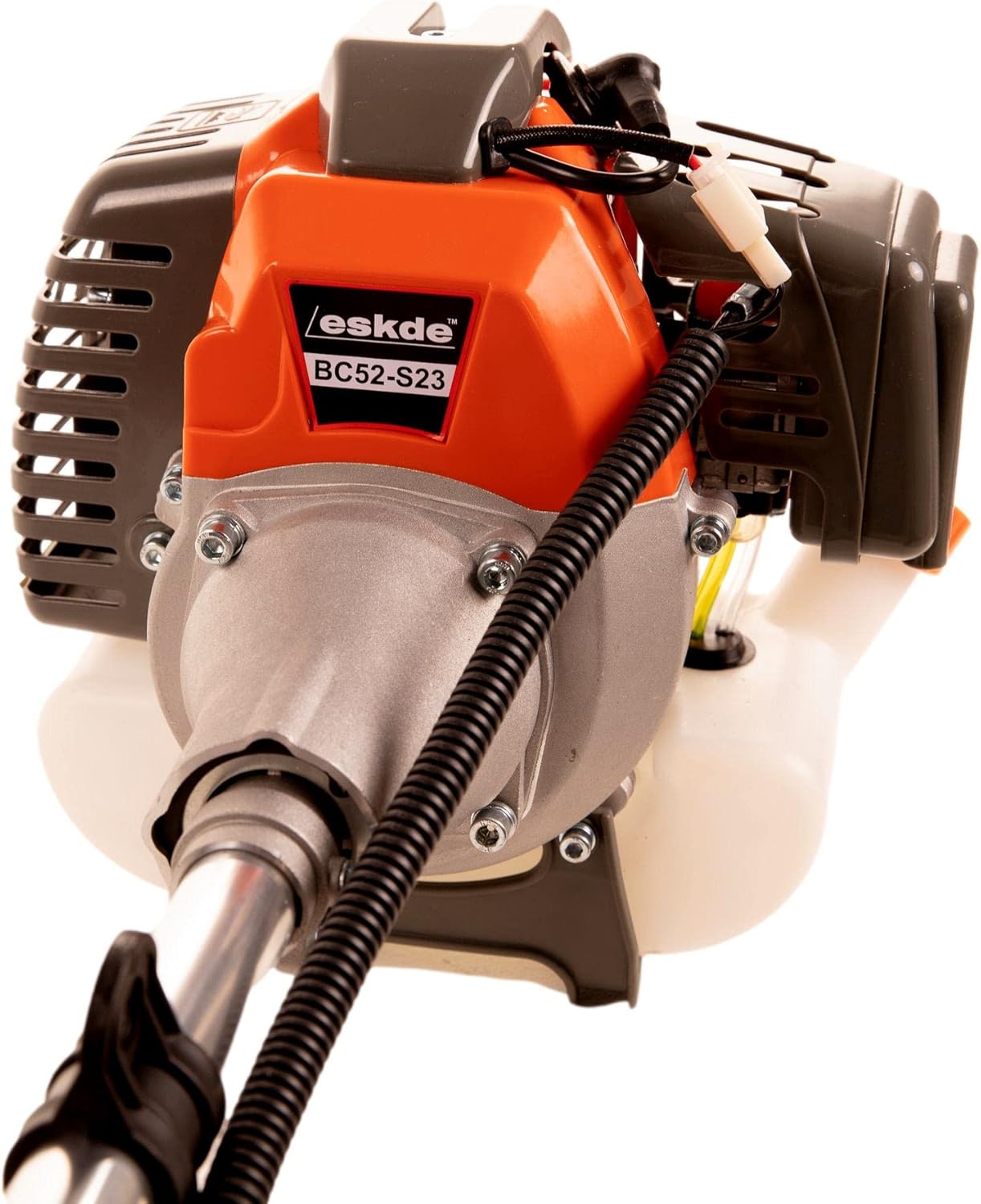

Whakaahua 7: The engine unit, showing the fuel tank and recoil pull start mechanism. Note the "eSkde BC52-S23" model designation on the engine casing.

Huarahi Tīmata:

1. Fill the fuel tank with the correct petrol/oil mixture (Figure 7). Securely close the fuel cap.
2. Whakanohia te waahanga ki runga i te papa papatahi, papa hoki.
3. Set the choke lever to the "CLOSED" (start) position.
4. Pēhia te pūmua paninga kia maha ngā wā kia kitea rā anō te wahie i te rārangi whakahoki mārama.
5. Pull the starter cord firmly and smoothly until the engine fires (usually 1-3 pulls). Do not pull the cord to its full extension.
6. Once the engine fires, immediately move the choke lever to the "OPEN" (run) position.
7. Toia ano te taura whakaoho kia timata ra ano te miihini ka rere pai.
8. Tukua te miihini kia whakamahana mō te 30-60 hēkona i mua i te pēhi i te tere katoa.

Nga Tohutohu Whakahaere

Me mau i nga wa katoa he taputapu haumaru tika i te wa e mahi ana.

Using the Nylon Strimmer Head:

• Ideal for trimming grass, edging lawns, and light vegetation.
• Hold the strimmer with both hands, using the bull horn handles for control.
• Maintain a steady throttle. Move the cutting head in a sweeping motion, parallel to the ground.
• To advance the nylon line, tap the strimmer head gently on the ground while the engine is running at full throttle.

Using the Brush Cutter Blade:

• Suitable for cutting thick weeds, brambles, and small woody growth.
• Ensure the metal blade (Figure 3) is securely attached and the correct blade guard is in place.
• Approach the material to be cut slowly and deliberately. Avoid striking hard objects.
• Use a controlled, sweeping motion. Be aware of kickback, especially when cutting thicker material.

Whakaahua 8: The eSkde strimmer equipped with the brush cutter blade, ready for heavy-duty clearing tasks.

Whakamutua te Miihini:

Release the throttle trigger and allow the engine to idle down. Press the engine stop switch to turn off the engine. Wait for all moving parts to come to a complete stop before setting the unit down.

Te tiaki

Regular maintenance ensures the longevity and safe operation of your strimmer.

• Te horoi: After each use, clean the exterior of the unit, especially the cutting head and engine cooling fins, to prevent debris buildup. Use a damp cloth; avoid using high-pressure water.
• Tātari hau: Check and clean the air filter regularly (every 5-10 hours of operation, or more frequently in dusty conditions). A dirty air filter can reduce engine performance.
• Puru korakora: Inspect the spark plug periodically. Clean or replace if it is fouled or worn. Refer to the engine specifications for the correct spark plug type and gap.
• Tapahi Āpitihanga:
  • Nylon Head: Replace the nylon line when it becomes too short. Ensure the correct diameter line is used.
  • Brush Cutter Blade: Inspect the blade for sharpness and damage. Sharpen or replace as needed. A dull or damaged blade can cause excessive vibration and reduce cutting efficiency.
• Pūnaha hinu: For long-term storage (over 30 days), drain the fuel tank and run the engine until it stops to clear the carburetor of fuel. This prevents fuel degradation and gumming.
• Whakahinuhinu: Consult the manual for specific lubrication points, typically the gearbox at the cutting head.

Raparongoā

Ko tenei waahanga e aro ana ki nga take noa ka pa ki a koe.

If problems persist after attempting these solutions, please contact eSkde customer support or a qualified service technician.

Whakatakotoranga

Pūtāhui me te Tautoko

eSkde products are manufactured to high standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official eSkde webpae.

If you encounter any issues or require technical assistance, please contact eSkde customer support. When contacting support, please have your model number (BC52-S23) and purchase details ready.
