1. Kupu Whakataki
This manual provides essential instructions for the safe and effective use of your FLYLINKTECH 4000A Portable Car Battery Jump Starter. Please read this manual thoroughly before operation and retain it for future reference. This device is designed to jump-start vehicles with dead or low-voltage batteries and can also function as a portable power bank and LED flashlight.
2. He aha kei roto i te Pouaka
Manatokona kei reira nga mea katoa i te whakatuwheratanga o te kete:
- FLYLINKTECH CF900 Jump Starter Unit
- Tauira Pepeke Maamaa
- USB-C Uira Whakatau
- Portable EVA Carrying Case
- Pukapuka Kaiwhakamahi (tenei tuhinga)
Image: Contents of the FLYLINKTECH CF900 package. This includes the jump starter unit, smart jumper cables, a USB-C charging cable, a portable EVA carrying case, and the user manual.
3. Nga Hua o te Hua
- High-Power Jump Starter: Delivers 4000A peak current, suitable for vehicles with up to 9.0L gas or 8.0L diesel engines. Capable of up to 30 jump starts on a single charge.
- Versatile Power Bank: Features an 18,000mAh battery capacity and dual USB ports, including Quick Charge 3.0, for charging various electronic devices. Maintains charge for up to 24 months when not in use.
- Multi-functional LED Flashlight: Equipped with a bright 600-lumen LED light offering standard, SOS, and strobe modes for emergencies. Provides up to 48 hours of continuous illumination.
- Ngā Āhuatanga Haumaru Whakarei ake: Integrated smart protection system provides 10 layers of safety, including reverse polarity, over-current, and over-voltage protection. Ensures safe operation in extreme temperatures (-4°F to 140°F) and prevents sparks or incorrect connections.
- Hoahoa Maama me te Kawe: Compact and lightweight (820g) with a rugged ABS exterior for protection against impacts and scratches.
Whakaahua: Taipitopito view of the FLYLINKTECH CF900 jump starter, highlighting the LED display, power button, LED flashlight, USB output ports (USB1 5V/2.4A, USB2 Quick Charge 3.0), jump start socket, and 5V/2A USB-C input port.
4. Tatūnga me te Whakatau
Before first use, fully charge the jump starter. It is recommended to recharge the unit every 3-6 months to maintain optimal battery health.
- Locate the USB-C input port on the jump starter.
- Connect the provided USB-C charging cable to the jump starter's input port.
- Connect the other end of the USB-C cable to a 5V/2A USB wall adapter (not included) or a compatible USB charging port.
- Ka whakaatuhia te ahunga whakamua o te utunga e te mata LCD. Utuhia kia tae rā anō ki te tohu 100% e te mata.
Image: The FLYLINKTECH jump starter functioning as a portable power bank, charging a smartphone and a tablet via its USB output ports. The image highlights the 18000mAh capacity and Quick Charge 3.0 feature.
5. Nga Tohutohu Whakahaere
5.1. Peke Timata i te Waka
Ensure the jump starter is at least 50% charged before attempting to jump start a vehicle.
- Honoa ngā Taura Peke Atamai: Insert the blue plug of the smart jumper cables completely into the jump start socket on the jump starter unit. Ensure a secure connection. The indicator light on the smart clamp will flash green and red.
- Hono atu ki te Pūhiko Waka: Whakapirihia te cl wheroamp ki te tauranga pai (+) o te pākahiko motuka me te cl pangoamp ki te tauranga kino (-).
- Tirohia te rama tohu:
- Kākāriki mārō: Connection is correct and safe. Proceed to start the vehicle.
- Whero Mārō me te Pī: Kua kitea te whakahurihanga o te polarity. Momotuhia te honongaamps and re-attach correctly.
- Kakariki kanapa: Pūhiko voltage is too low. Press the "BOOST" button on the smart clamp for 3 seconds until the light turns solid green. Start the vehicle within 30 seconds.
- No Light/No Beep: Check connections or if the car battery is severely damaged.
- Tīmata Waka: Once the indicator light is solid green, start your vehicle's engine.
- Tango Clamps: As soon as the engine starts, remove the smart jumper cables from the car battery terminals first, then disconnect the blue plug from the jump starter unit.
Image: Easy operation guide for jump starting a car. Step 1: Insert the jump clamp into the booster. Step 2: Connect the clamps to the car battery. Step 3: Start your car. Step 4: Remove the clamps.

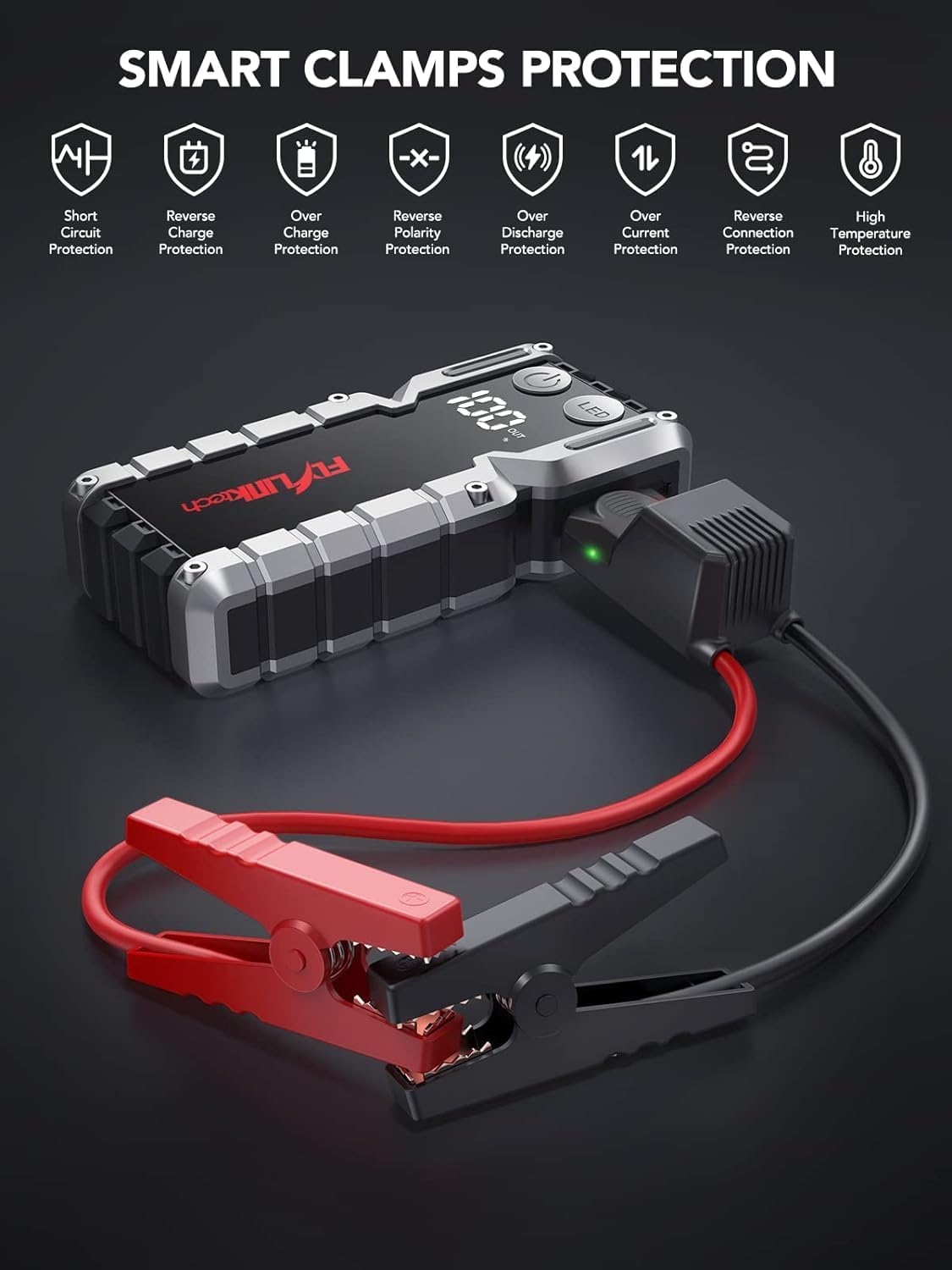

Image: Smart Clamps Protection. Icons represent various safety features including short circuit protection, reverse charge protection, over charge protection, reverse polarity protection, over discharge protection, over current protection, and high temperature protection.
5.2. Te Whakamahi hei Pēke Hiko
The jump starter can charge various USB-powered devices.
- Connect your device's USB charging cable to one of the USB output ports (USB1 or USB2 QC3.0) on the jump starter.
- Ka tīmata aunoa te peke tīmata ki te utu i tō pūrere.
- Ka whakaatuhia e te mata LCD te ōrau pākahiko e toe anatage o te pekepeke.
5.3. Te whakamahi i te rama rama arahina
The built-in LED flashlight has three modes: standard, SOS, and strobe.
- Press and hold the "LED" button for 3 seconds to turn on the standard flashlight mode.
- Press the "LED" button again to cycle through the modes: Standard > SOS > Strobe.
- Press and hold the "LED" button for 3 seconds to turn off the flashlight.
Image: The built-in LED flashlight of the FLYLINKTECH jump starter, demonstrating its three modes: standard flashlight, SOS signal, and strobe light.
6. Tiaki
- Store the jump starter in its portable EVA carrying case when not in use to protect it from dust and damage.
- Recharge the unit every 3-6 months, even if not used, to maintain battery health and extend its lifespan.
- Horoia te waho ki te kakahu ngohengohe, maroke. Kaua e whakamahi i nga matū kino, i nga horoi horoi ranei.
- Keep the jump starter away from direct sunlight, heat sources, and moisture.
- Do not disassemble the unit. Servicing should only be performed by qualified personnel.
7. Te Raru
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Kāore te peke tīmata e tahuri. | Kua pau katoa te pākahiko. | Charge the jump starter fully using the provided USB-C cable. |
| Vehicle does not start after connecting. | hē clamp hononga (polarity whakamuri). Jump starter battery too low. Vehicle battery severely damaged. Cl atamaiamp indicator not solid green. | Me whakarite clamps are connected correctly (red to +, black to -). Whakaorangia te kaitao peke. Whakawhitiwhiti kōrero ki tētahi mīhini ngaio. Follow indicator light instructions in Section 5.1. If flashing green, use BOOST function. |
| Cl atamaiamp indicator is solid red and beeping. | Hononga polarity whakamuri. | Momotu tonu te honongaamps and re-attach correctly (red to +, black to -). |
| Flashlight does not work. | He iti rawa te pākahiko. LED button not pressed correctly. | Utuhia te kaikawe peke. Press and hold the "LED" button for 3 seconds to activate. |
| Kāore ngā taputapu e utu ana mā ngā tauranga USB. | Jump starter battery too low. He take hononga taura. | Utuhia te kaikawe peke. Ensure USB cables are securely connected to both the jump starter and the device. Try a different cable. |
8. Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Tauira | CF900 |
| Pūhiko Raukaha | 18000 mAh (66.6Wh) |
| Pūkenga o nāianei | 4000A |
| Peke Haamata Huaputa | 12V |
| USB1 Putanga | 5V/2.4A |
| USB2 Output (QC3.0) | 5V/2.4A, 9V/2A, 12V/1.5A |
| Momo-C Whakauru | 5V/2A |
| Te Waahi Mahi | -20°C ki te 60°C (-4°F ki te 140°F) |
| Hunga Hua | 19 cm x 9 cm x 4 cm (tata) |
| Taumaha Tūemi | 820 g |
| Hototahi Miihini | Up to 9.0L Gas or 8.0L Diesel |
9. Pūtāhui me te Tautoko
FLYLINKTECH provides the following support for this product:
- Pūtāhui Koreutu 3-Tau: Ka hipoki i nga hapa o te hangahanga me nga mahi kino i raro i te whakamahinga noa.
- Tautoko Hangarau Ora: Āwhina mō te whakamahinga o te hua, te rapurongoā, me ngā pātai whānui.
- 7/24 Ratonga Kiritaki: Available around the clock for any questions or concerns.
For support, please refer to the contact information provided in your product packaging or visit the official Flylinktech webpae.
