ACEMIC G6 Wireless Microphone System Instruction Manual

1. Hua Neke Atuview

The ACEMIC G6 Wireless Microphone Audio Transmitter and Receiver System is designed to convert any dynamic microphone into a wireless setup, offering high-quality audio transmission with minimal latency. Its compact and lightweight design ensures portability and ease of use.

• High Quality Sound Transmission: Utilizes a 2.4GHz wireless frequency band for high signal stability, low interference, and less than 5ms audio delay. Features 24-bit Audio Resolution with a Sampling Frequency of 48KHz.
• Designed for Dynamic Microphones: Works seamlessly with dynamic microphones, audio mixers, and PA systems. (Note: Not compatible with condenser microphones.)
• Mute Function and 6-Channel Support: A short press of the power button toggles mute on/off. Supports up to 6 channels, allowing 2-3 sets of G6 XLR mic adapters to operate simultaneously without interference.
• 1-Key Operation: Plug and play design with automatic connection after power on.
• Wā Whakamahi Roa: Built-in large capacity battery provides up to 6 hours of continuous use after 3-4 hours of charging.
• Awhe Whakawhiti Roa: Offers a transmission range of up to 100ft in open spaces.

Figure 1: ACEMIC G6 Wireless XLR Transmitter and Receiver

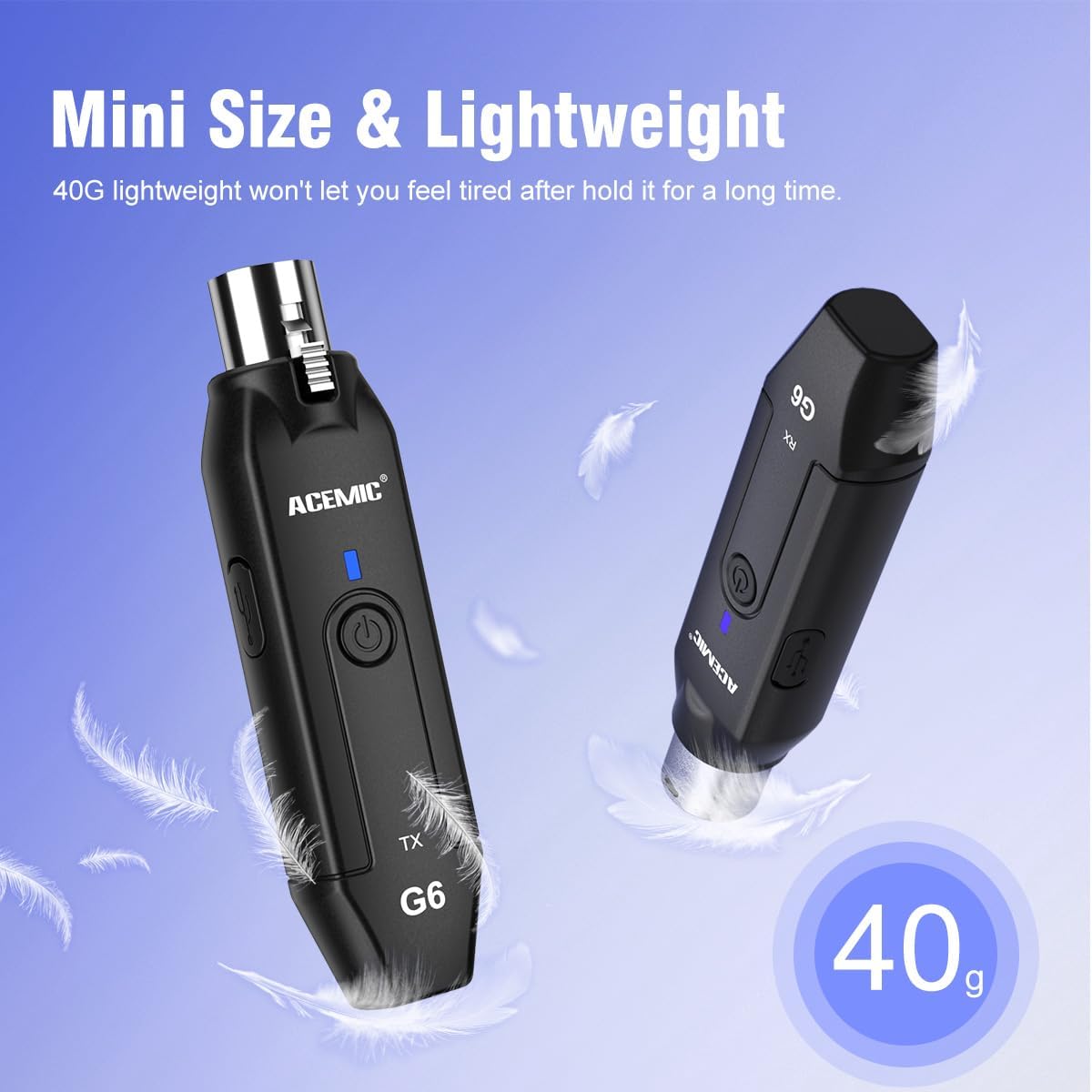

Figure 2: Mini Size & Lightweight Design (40g)

2. Ihirangi mokete

Me whakarite kei roto katoa nga taonga kei roto i te kete:

• 1x Kaituku
• Kaihoko 1x
• 1x Uera Whakatau
• 1x Manual Kaiwhakamahi

3. Aratohu Tatūnga

3.1 Te Whakataki i te Pūrere

Before first use, fully charge both the transmitter and receiver. A full charge typically takes 3-4 hours and provides up to 6 hours of continuous operation.

Figure 3: Charging the ACEMIC G6 (Red light indicates charging, Blue light indicates full charge)

3.2 Power On and Automatic Connection

The G6 system features a simple 1-key operation for power and connection:

1. Long press the power button on both the transmitter (TX) and receiver (RX) to turn them on.
2. The units will automatically connect to each other. The blue indicator light will turn solid when connected.

Figure 4: One-Key Pairing Process

3.3 Connecting to Your Audio Equipment

Once powered on and connected, plug the transmitter and receiver into your desired audio equipment:

• Monohia te Kaituku (TX) directly into your dynamic microphone's XLR output.
• Monohia te Kaiwhiwhi (RX) into the XLR input of your audio mixer, PA system, or other compatible audio device.

Figure 5: Making your dynamic microphone wireless

For a visual guide on setup and operation, please refer to the official operation video:

4. Nga Tohutohu Whakahaere

4.1 Mahi Wahangu

While the device is powered on and connected, a short press of the power button on the transmitter will mute the microphone. Another short press will unmute it. The blue indicator light will blink when muted.

4.2 Using Multiple Sets Simultaneously

The ACEMIC G6 system supports up to 6 channels, allowing 2-3 sets to operate in the same location without interference. For optimal performance when using multiple sets, ensure sufficient distance between the transmitters to avoid signal conflicts.

Figure 6: Supporting 2-3 sets in the same place simultaneously

For detailed instructions on using multiple G6 sets, please refer to the operation guide video provided in the Setup section.

5. Tiaki

• Kia maroke te taputapu me te makuku.
• Horoia te mata ki te kakahu ngohengohe, maroke. Kaua e whakamahi i nga matū kino, i nga mea awhiowhio ranei.
• A ape i te tuku i te taputapu ki nga wera nui (wera, makariri ranei).
• Whakaorangia ki te waahi makariri, maroke ki te kore e whakamahia mo te wa roa.

6. Te Raru

6.1 Kāore he Oro, he Ororongo Wā-poto rānei

• Taki Hiko: Ensure both transmitter and receiver are fully charged and powered on (solid blue light).
• Taki Hononga: Verify that the transmitter is securely plugged into the dynamic microphone and the receiver into the audio input of your mixer/PA system.
• Tauhoatia ano nga Pūrere: If the blue lights are blinking or not solid, long press the power button on both units simultaneously until they flash quickly, then release. They should automatically re-pair.
• pokanoa: The 2.4GHz frequency band can be susceptible to interference from Wi-Fi routers, Bluetooth devices, and other 2.4GHz wireless equipment. Try to operate the G6 system away from such sources.
• Awhe: Ensure you are within the 100ft transmission range and there are no major obstructions (e.g., thick walls) between the transmitter and receiver.
• Momo hopuoro: Confirm you are using a dynamic microphone. This system is not compatible with condenser microphones.

6.2 Feedback or Unwanted Noise

• Whiwhi Taumata: Adjust the gain levels on your mixer or PA system. Too much gain can cause feedback.
• Whakatakotoranga hopuoro: Ensure the microphone is not too close to speakers or monitors.
• pokanoa: As mentioned above, other wireless devices can cause noise. Try changing the operating environment or moving away from potential interference sources.

7. Whakatakotoranga

8. Pūtāhui me te Tautoko

ACEMIC products are designed for reliability and performance. For warranty information, technical support, or service inquiries, please refer to the contact details provided on the product packaging or visit the official ACEMIC webpae. Tena koa pupurihia to tohu mo te hoko mo nga kereme whakamana.
