Pukapuka Kaiwhakamahi mō te Teihana Hiko Kawe Segway Lumina 500

1. Kupu Whakataki

The Segway Lumina 500 Portable Power Station is a versatile and reliable power solution designed for various applications, from outdoor adventures to emergency backup. Featuring a robust LiFePO4 battery, it provides stable and efficient power for your electronic devices and small appliances. This manual provides essential information for safe and effective use of your Lumina 500.

Āhuatanga matua:

• 512Wh capacity with 600W continuous AC output (1200W peak).
• Durable LiFePO4 battery with 3000+ lifecycles for long-lasting performance.
• Multiple charging options: wall, solar, and car.
• 9 output ports, including dual 100W USB-C PD ports.
• Advanced Battery Management System (BMS) for enhanced safety.
• Lightweight and portable design (15.9 lbs).

2. He aha kei roto i te Pouaka

Tena koa tirohia nga ihirangi o to kete kia mohio kei te noho katoa nga taonga:

• Segway Lumina 500 Portable Power Station (LM-500) x 1
• Taura Whakatau AC x 1
• Taura Utu Waka x 1
• Pukapuka Kaiwhakamahi x 1
• Warranty Policy x 1

3. Tatūnga

Before first use, ensure your Lumina 500 is fully charged. Place the unit on a stable, flat surface in a well-ventilated area, away from direct sunlight or heat sources.

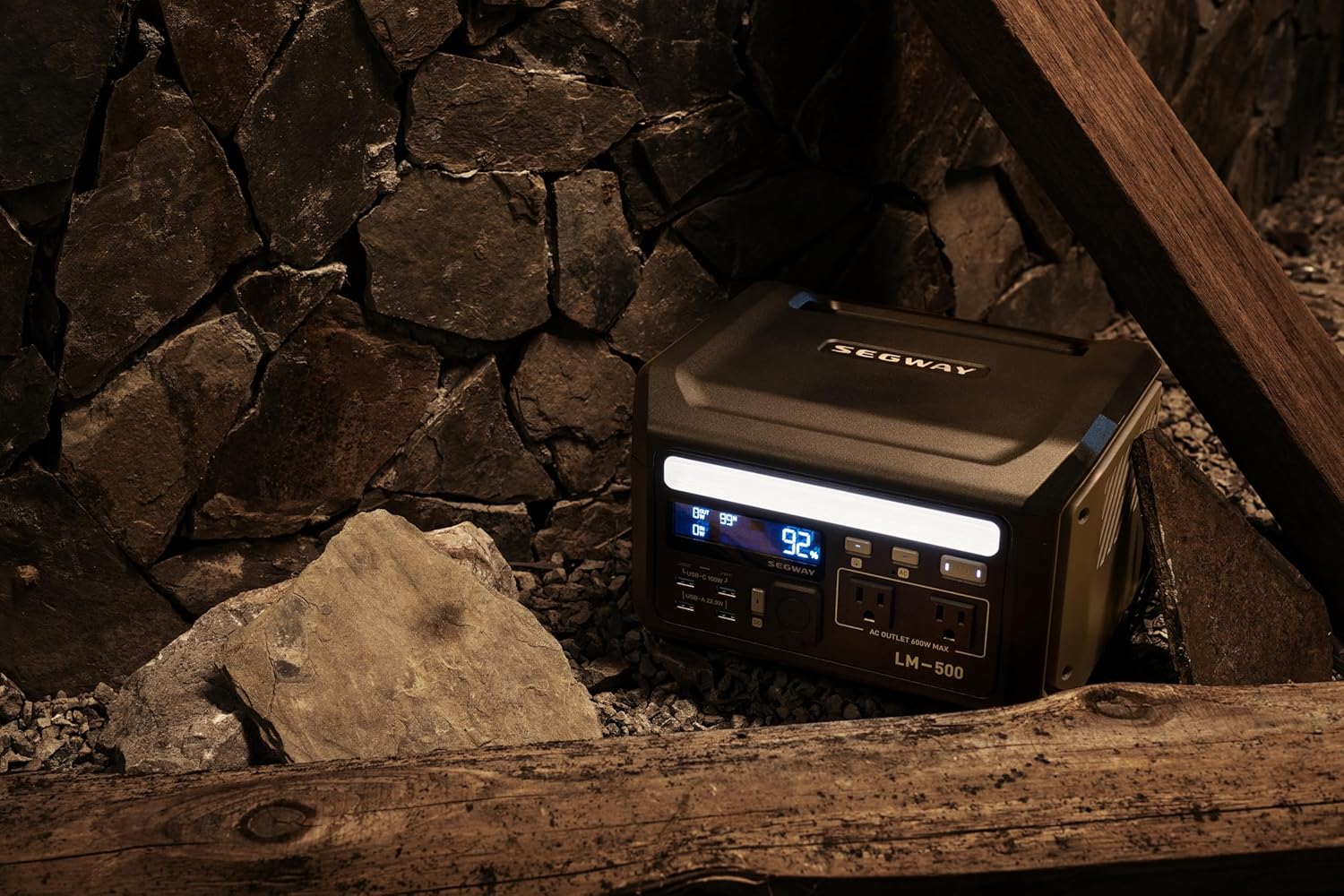

Whakaahua 3.1: Mua view of the Segway Lumina 500, highlighting the display and various output ports.

4. Nga Tohutohu Whakahaere

To power on the unit, press and hold the main power button until the display illuminates. The LCD display will show the current battery level, input/output wattage, me te whakatau tata mō te wā whakahaere e toe ana.

To activate AC output, press the 'AC OUT' button. To activate DC output, press the 'DC OUT' button. Ensure the output is enabled before connecting devices.

When not in use, press and hold the main power button to turn off the unit to conserve battery life.

5. Charging the Lumina 500

The Lumina 500 offers flexible charging options to suit your needs:

5.1. Wall Charging

Connect the provided AC charging cable to the AC Fastcharge input port on the back of the unit and plug it into a standard wall outlet. The unit can fully recharge in approximately 1.2 hours.

Figure 5.1: Charging the Lumina 500 using the included AC wall charger.

5.2. Te Whakataunga Ra

Connect compatible solar panels (sold separately) to the Solar/Car Input port. The unit can be recharged in approximately 3 hours with optimal sunlight conditions.

Figure 5.2: The Lumina 500 connected to a solar panel for eco-friendly charging.

5.3. Te Whakataki Motuka

Use the provided car charging cable to connect the unit to your vehicle's 12V car outlet. A full charge takes approximately 5 hours.

Figure 5.3: Conveniently charge your Lumina 500 using your car's power outlet.

6. Ngā Tauranga Putanga

The Lumina 500 is equipped with 9 versatile output ports to power a wide range of devices:

• Putanga AC: 2 x 120V AC outlets (600W continuous, 1200W peak) for standard household appliances.
• Tauranga USB-C: 2 x 100W USB-C PD ports for fast charging laptops, tablets, and smartphones.
• Tauranga USB-A: 4 x USB-A 18W ports for charging various USB-powered devices.
• Putanga Waka: 1 x 12V car outlet for automotive accessories.

7. Durability and Safety

The Segway Lumina 500 is built with durability and safety in mind:

• Pūhiko LiFePO4: Features a long-lasting Lithium Iron Phosphate (LFP) battery with over 3000 lifecycles, providing approximately 10 years of use.
• Advanced BMS: An intelligent Battery Management System (BMS) ensures safe operation by protecting against over-charging, over-current, over-discharge, over-voltage, short circuits, and temperature fluctuations.
• UL 2743 Kua Tiwhikete: Meets rigorous safety standards for portable power packs.
• Extreme Climate Operation: Designed to operate reliably in various environmental conditions.

Figure 7.1: The durable LiFePO4 battery cells inside the Lumina 500.

Figure 7.2: The Lumina 500 is built to perform even in extreme temperatures.

8. Tiaki

To ensure the longevity and optimal performance of your Segway Lumina 500, follow these maintenance guidelines:

• Whakaorangia te waeine ki te waahi makariri, maroke atu i te ra tika me te wera nui.
• Recharge the unit at least once every 3-6 months if not in regular use to maintain battery health.
• Horoia te taha o waho ki te kakahu ngohengohe, maroke. Kaua e whakamahi i ngā mea horoi whakakoi, kaua hoki e rumakina te waeine ki te wai.
• Puritia nga tuwhera hau ki te puehu me te otaota kia kore ai e wera rawa.

9. Te Raru

If you encounter issues with your Lumina 500, refer to the following common troubleshooting steps:

• Waehe Kaore i te Whakaka: Me whakarite kua utaina te pākahiko. Ki te kore, hono atu ki te puna hiko.
• Karekau he Putanga mai i nga Tauranga: Check if the AC/DC output buttons are enabled. Ensure the connected device is within the power station's wattage rohe.
• Kua Whakahohehia te Parenga Taumaha: If the overload protector light is on, disconnect some devices to reduce the load. Turn the unit off and on again to reset.
• Whakaoho Puturi: Verify that the charging cable is securely connected. For solar charging, ensure panels are in direct sunlight and free of obstructions.

If problems persist, please contact Segway customer support for assistance.

10. Whakatakotoranga

11. Pūtāhui me te Tautoko

The Segway Lumina 500 Portable Power Station comes with a 5 tau te whakamana a te kaiwhakanao. For any warranty claims, technical support, or product inquiries, please refer to the contact information provided in your Warranty Policy document or visit the official Segway webpae.

Tena koa pupurihia to tohu mo te hoko mo te whakamana whakamana.
