Powerhorse High-Wheeled Walk-Behind String Trimmer

1. Kupu Whakataki

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Powerhorse High-Wheeled Walk-Behind String Trimmer. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

Figure 1: Powerhorse High-Wheeled Walk-Behind String Trimmer. This image shows the complete assembly of the string trimmer, highlighting its high wheels, engine, and cutting head with orange trimmer lines.

2. Nga Korero Haumaru Nui

Me whai i nga wa katoa i nga tikanga tiaki haumaru hei whakaiti i te tupono o te ahi, te ru hiko, me te whara whaiaro. Puritia tenei pukapuka hei tohutoro a meake nei.

• Pānuihia te pukapuka: Kia mohio ki nga tohutohu me nga whakatupato katoa i mua i te mahi.
• Taputapu Tiaki Whaiaro (PPE): Always wear eye protection, hearing protection, long pants, and sturdy footwear.
• Haumaru wahie: Handle gasoline with extreme care. Store fuel in an approved container in a well-ventilated area away from ignition sources. Never refuel a hot engine.
• Ūkui Wāhanga Mahi: Ensure the area is clear of debris, rocks, and other objects that could be thrown by the trimmer line. Keep bystanders, children, and pets at a safe distance.
• Engine Heat: The engine and muffler become very hot during operation and can cause burns. Allow the engine to cool before touching or performing maintenance.
• Tirotiro i mua i te whakamahi: Check the fuel line for tears or damage before each use, as noted in customer feedback. Ensure all fasteners are tight and guards are in place.
• Mahi Tika: Operate the trimmer only in well-ventilated areas. Do not operate in wet conditions.

3. Nga waahanga hua me nga waahanga

The Powerhorse High-Wheeled Walk-Behind String Trimmer is designed for efficient clearing of weeds, grass, and brush.

Āhuatanga matua:

• Dependable Powerhorse 173cc vertical gas engine with recoil start delivers 3000 max. RPM.
• Offset head design delivers a 22-inch wide cutting swath.
• Rear wheels offer easy maneuverability and walk-behind control.
• Lightweight design is easy to operate, reducing fatigue.

Wae Matua:

• Mihini: 173cc 4-cycle gas engine.
• Upoko tapahi: Equipped with a 22-inch cutting swath for efficient clearing.
• High Wheels: Large rear wheels for improved maneuverability over rough terrain.
• Pae kakau: Hoahoa ergonomic mō te whakahaere whakamarie.

Figure 2: Powerful Performance. This image illustrates the trimmer in action, highlighting its 173cc 4-cycle gas engine and 3,000 max. RPM capability, with a user operating it in tall grass.

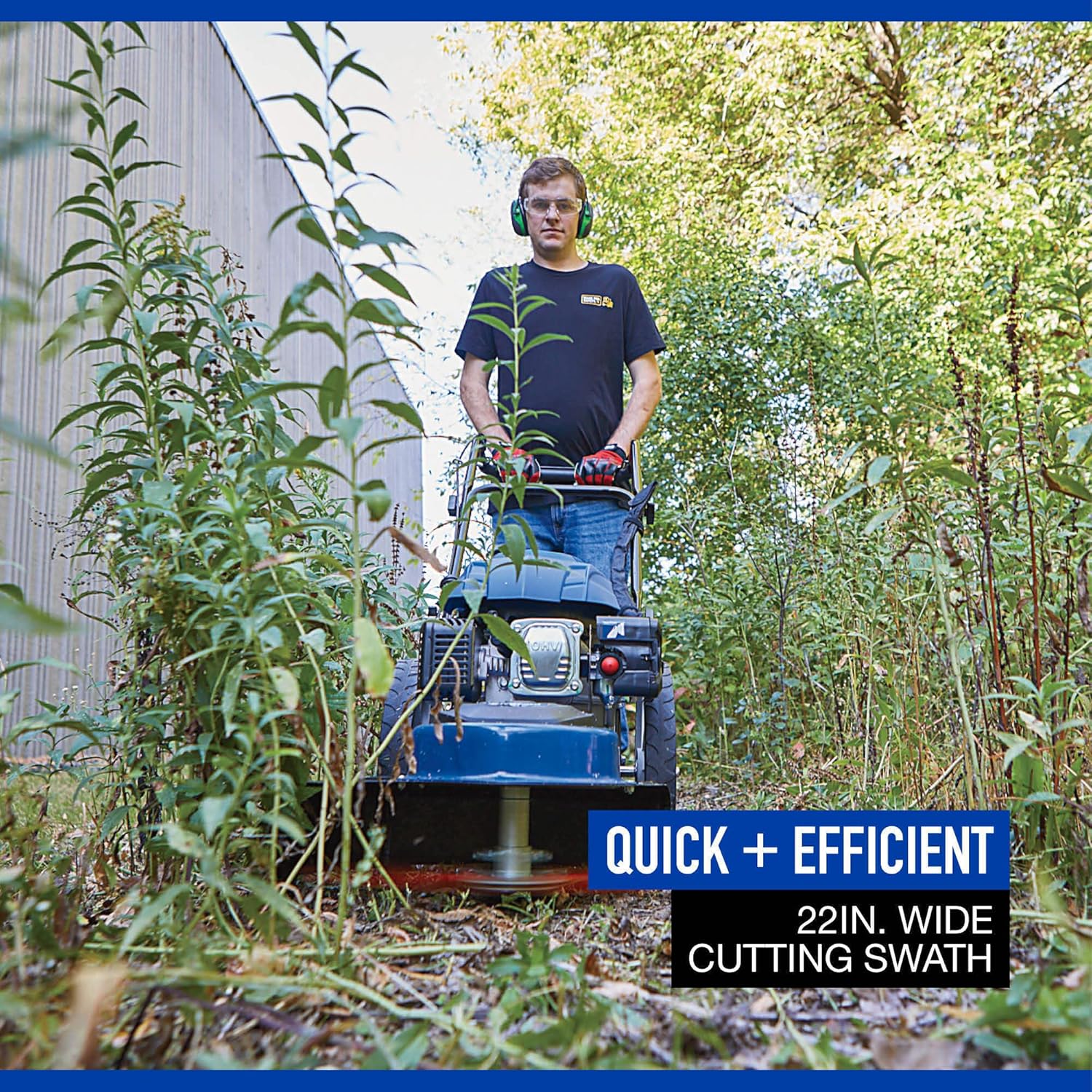

Figure 3: Quick and Efficient Cutting. This image shows the trimmer's 22-inch wide cutting swath, demonstrating its ability to clear large areas quickly.

Figure 4: Effortless Walk-Behind Design. This image focuses on the 14-inch rear tires, emphasizing the trimmer's smooth rolling and easy maneuverability.

Figure 5: Lightweight Construction. This image shows the trimmer being operated from the side, illustrating its lightweight design that makes it easy to operate and maneuver, reducing user fatigue.

4. Tatūnga me te Runanga

Your Powerhorse String Trimmer requires some assembly and preparation before first use.

4.1 Unpacking and Initial Inspection:

• Kia ata tangohia nga waahanga katoa mai i te kete.
• Tirohia mēnā he kino kei te tukuna. Mēnā he kino, whakapā atu ki te ratonga kiritaki tonu.
• Verify all parts are present according to the packing list. The unit typically includes a 16.9-oz. bottle of oil, spark plug wrench, oil funnel, and a 10-pack of trimmer lines.

Figure 6: Fully Equipped. This image displays the trimmer along with its included accessories: a bottle of oil, a spark plug wrench, an oil funnel, and a pack of trimmer lines.

Figure 7: Included Accessories. A closer view of the 16.9 fl. oz. (500 ml) bottle of Powerhorse Premium 4-Cycle Small Engine Lubricant, a spark plug wrench, an oil funnel, and a bundle of orange trimmer lines.

4.2 Handlebar Assembly:

Attach the handlebar to the main unit using the provided hardware. Ensure all bolts are securely tightened.

4.3 Adding Engine Oil:

• Whakanohoia te kuti ki runga i te mata taumata.
• Tangohia te potae whakakii hinu.
• Using the provided funnel, slowly add the recommended 4-cycle engine oil (e.g., 10W-40) up to the "FULL" mark on the dipstick. Do not overfill.
• Whakakapihia te potae whakakii hinu kia mau.

4.4 Adding Fuel:

• Me whakarite kia pai te miihini.
• Use fresh, clean unleaded gasoline with an octane rating of 87 or higher.
• Ata tango i te potae wahie.
• Fill the fuel tank, leaving a small space for expansion. Do not overfill.
• Whakahokia te taupoki wahie kia mau. Horoia tonutia te wahie i maringi.
• Hiranga: Before filling the gas tank, inspect the fuel line from the gas tank to the engine for any tears or damage. Replace if necessary.

5. Mahi

5.1 Tīmatahia te Mihini:

1. Ensure the trimmer is on a level surface and the area is clear.
2. Tautuhia te whakawhiti miihini ki te waahi "ON".
3. Move the choke lever to the "CHOKE" position (for cold starts).
4. Pull the recoil starter handle firmly and smoothly until the engine starts. You may need to pull several times.
5. Kia timata te miihini, whakanekehia te riu whakakowaowao ki te turanga "RUN".
6. Allow the engine to warm up for a few moments before beginning operation.

5.2 Operating the Trimmer:

• Push the trimmer forward slowly, allowing the trimmer line to cut through vegetation.
• Maintain a steady pace. Do not force the trimmer through dense growth.
• Use a sweeping motion for best results.
• Be aware of the 22-inch cutting swath and plan your passes accordingly.

5.3 Te Whakamutu i te Mīhini:

• Tukuna te mana whakahaere.
• Move the engine switch to the "OFF" position.
• Allow the engine to cool before storage or maintenance.

6. Tiaki

Ko te tiaki i nga wa katoa ka tino pai te mahi me te whakaroa i te ora o to kuti.

6.1 I muri i ia Whakamahinga:

• Clean the exterior of the trimmer with a damp cloth. Remove any grass clippings or debris from the cutting head and engine cooling fins.
• Check the trimmer line for wear and replace if necessary.

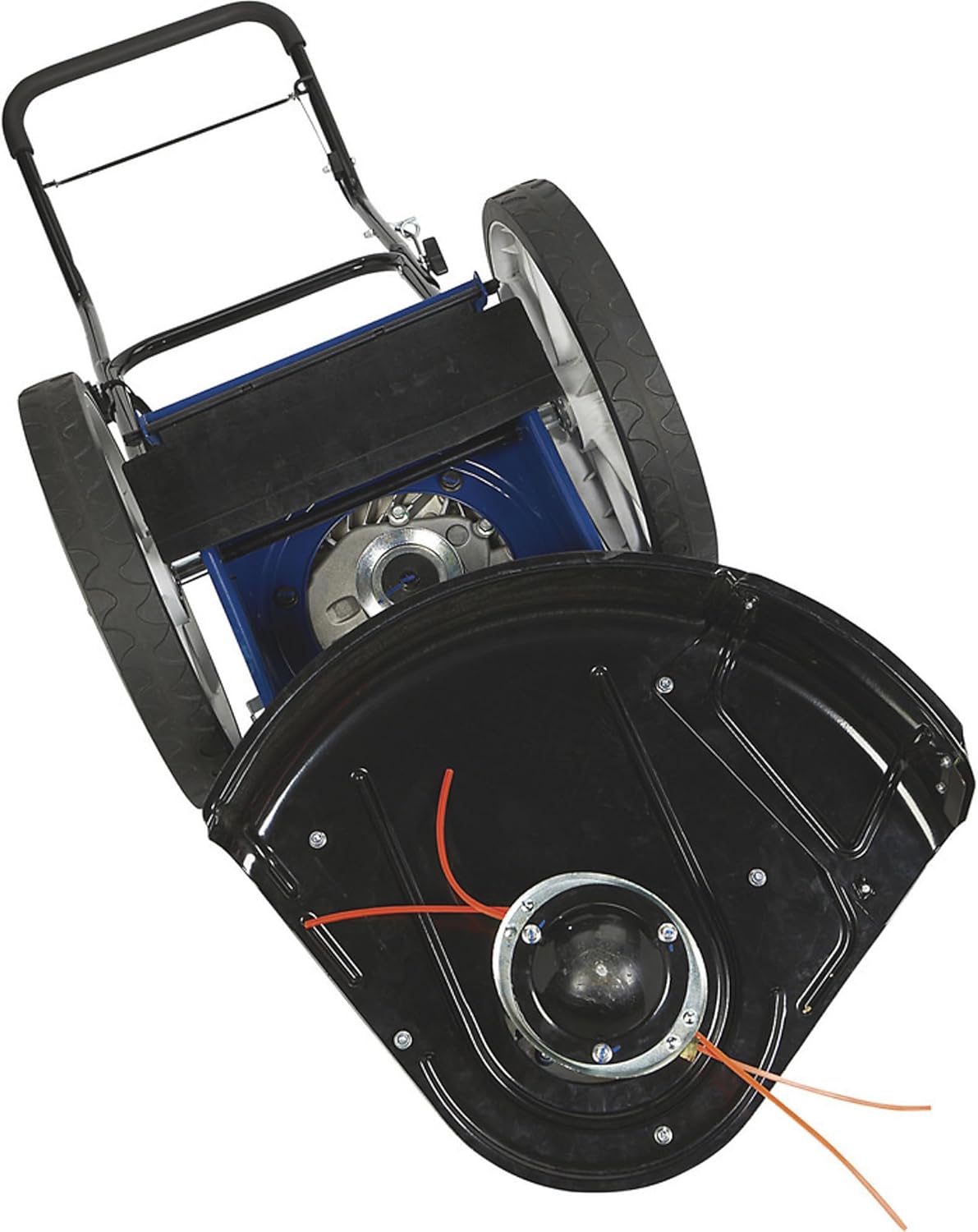

Figure 8: Trimmer Cutting Head. This image provides an underside view of the trimmer's cutting head, showing the trimmer lines and the protective guard, useful for maintenance and line replacement.

6.2 Engine Maintenance:

• Huri hinu: Whakakapia te hinu miihini i muri i ngā haora tuatahi e 5 o te whakamahinga, kātahi ka whakawhiti i ia haora e 25, i ia tau rānei, ko tēhea te mea e mua.
• Puru korakora: Inspect and clean the spark plug annually or every 50 hours. Replace if electrodes are worn or fouled.
• Tātari hau: Horoia te tātari hau i ia wā, inā koa i ngā wā e puehu ana. Whakakapia mēnā kua pakaru.

6.3 Rokiroki:

• For long-term storage, drain the fuel tank or add a fuel stabilizer.
• Horoia rawatia te kuti.
• Rokiroki i roto i te waahi ma, maroke, whai hau pai, kei tawhiti atu i te ra me te wera nui.

7. Te Raru

Tirohia tenei waahanga mo nga take noa me o raatau otinga ka taea.

8. Whakatakotoranga Hangarau

9. Pūtāhui me te Tautoko Kiritaki

Powerhorse products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your product or visit the official Powerhorse webpae.

For technical assistance, parts, or service, please contact Powerhorse customer support. Contact information can typically be found on the product packaging or the manufacturer's webpae.

Tuhipoka: This item is subject to hazardous materials regulation for transportation and may have specific return policies. Please consult your retailer for details.
