WELLFOR ROSA 24" x 30" Bathroom Medicine Cabinet Instruction Manual

Kupu Whakataki

Thank you for choosing the WELLFOR ROSA 24" x 30" Bathroom Medicine Cabinet. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new medicine cabinet. Please read all instructions carefully before beginning installation.

Image: The WELLFOR ROSA 24" x 30" Bathroom Medicine Cabinet, closed, showcasing tona hoahoa kiko.

Nga waahanga hua

• Anodized Chrome Aluminum Frame: Crafted from premium anodized chrome aluminum, offering superior rust resistance and long-term durability.
• Blum Soft-Close Hinges: Equipped with premium Blum hinges for a smooth, quiet closing experience, enhancing longevity.
• 180° Reversible Door Installation: Allows for left or right opening to suit your bathroom layout.
• Whata Karaihe Whakariterite: Includes 3 ultra-clear 8mm thick adjustable glass shelves, supporting up to 35 lbs total.
• toru-View Glass Mirrors: Provides a panoramic view mo te whakapaipai matawhānui.
• Surface or Recessed Mount: Supports both installation types, with a surface mount kit included.

Whakaahua: Roto view of the WELLFOR medicine cabinet, highlighting the adjustable glass shelves and Blum soft-close hinges.

Tatūnga me te Tāuta

This medicine cabinet can be installed using either a surface mount or a recessed mount method. A surface mount kit is included. Please ensure you have the necessary tools and assistance for installation.

Dimensions and Rough-in Sizes

The cabinet measures W 24" × D 4.81" × H 30". For recessed mounting, the recommended rough-in size is W 23.5" × D 3.75" × H 29.5".

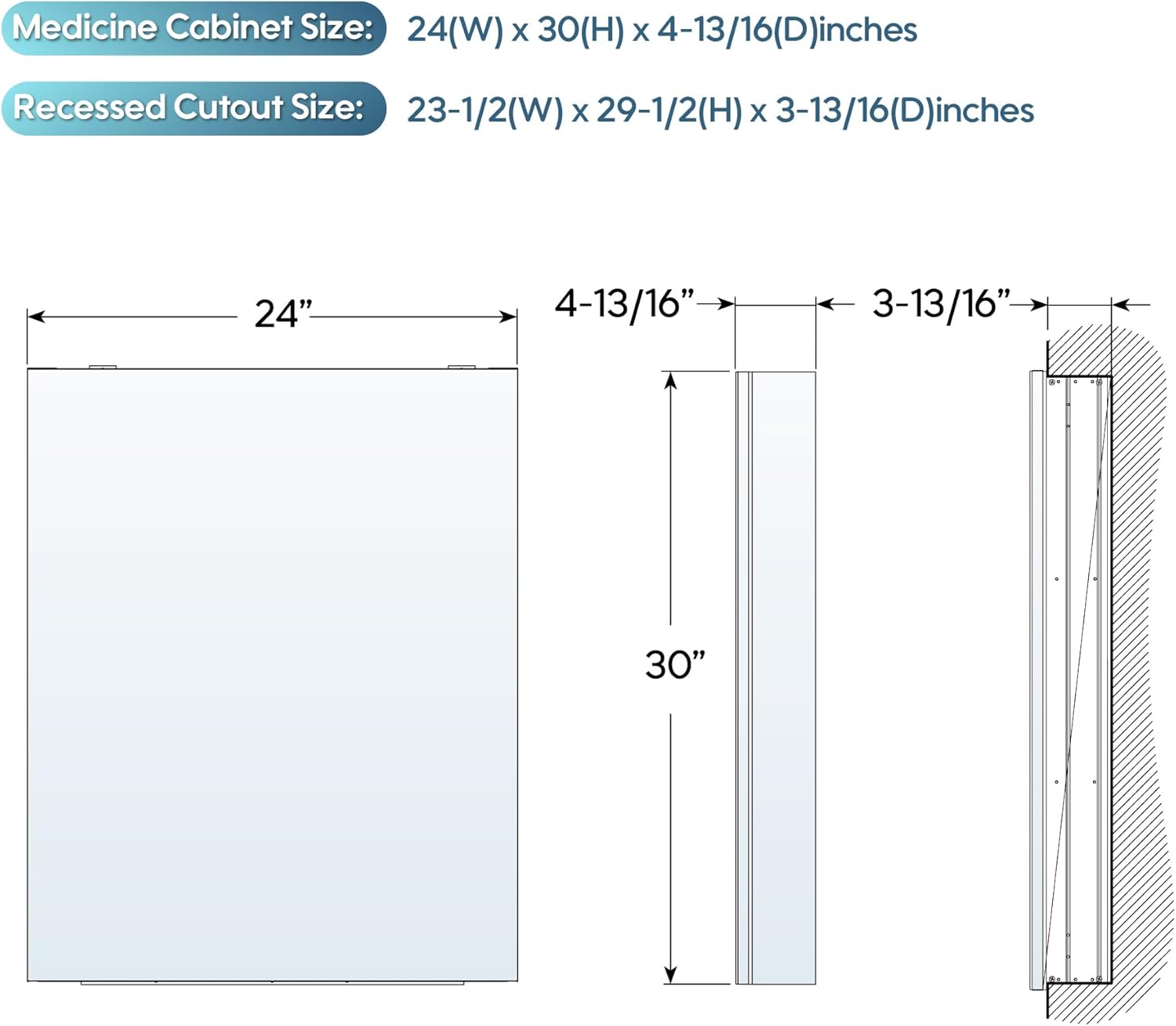

Image: Detailed diagram illustrating the external dimensions of the medicine cabinet and the required recessed cutout size for installation.

Nga Hipanga Whakamutungaview

1. Whakapaia te Taiepa: For recessed mounting, ensure the wall opening matches the specified rough-in dimensions. For surface mounting, identify the desired location and mark mounting points.
2. Tāuta Taiapa Whakapuru: Secure the bottom mounting bracket to the wall using appropriate fasteners. Ensure it is level and securely attached.
3. Whakatūhia te Rūnanga Kāwanatanga: Carefully place the medicine cabinet onto the bottom bracket. Ensure it is centered and level.
4. Secure Top Brackets: Install the top mounting brackets, securing the cabinet firmly to the wall.
5. Attach Side Panels (Surface Mount): If surface mounting, peel off the adhesive backing and attach the mirrored side panels to the cabinet.
6. Tango Kiriata Tiaki: Carefully peel off any protective film from the mirror surfaces.
7. Tāutahia ngā Whata Whakaritea: Insert the shelf brackets into the desired holes inside the cabinet and place the glass shelves on top.

Aratohu Ataata Tāuta

Nga Tohutohu Whakahaere

Reversible Door Functionality

The WELLFOR ROSA medicine cabinet features a 180° reversible door. This allows you to install the door to open from either the left or the right side, providing flexibility to match your bathroom layout and personal preference. This decision should be made during the initial installation process.

Image: Illustration demonstrating the reversible door design, allowing the cabinet to open from either the left or right side.

Adjusting Glass Shelves

The cabinet includes three 8mm ultra-clear adjustable glass shelves. To adjust the shelf height:

1. Carefully remove any items from the shelf you wish to adjust.
2. Lift the glass shelf slightly and remove the shelf brackets from their current positions.
3. Reinsert the shelf brackets into the desired holes at the new height. Ensure all four brackets are securely in place and level.
4. Gently place the glass shelf back onto the brackets.

Image: Visual representation of the three layers of adjustable glass shelves, highlighting their flexibility for customized storage.

Te tiaki

Cleaning the Cabinet and Mirrors

To maintain the pristine appearance of your WELLFOR medicine cabinet, regularly clean the mirrored surfaces and aluminum frame. Use a soft, lint-free cloth with a mild glass cleaner or a damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish or mirror coating.

Image: Detail of the removable side mirrored panels, emphasizing the ease of cleaning and maintenance.

Rust and Moisture Resistance

The anodized chrome aluminum frame provides excellent resistance to rust and moisture, making it ideal for bathroom environments. Ensure proper ventilation in your bathroom to further minimize moisture buildup.

Image: Graphic highlighting the heavy-duty aluminum frame's moisture and rust-resistant qualities for long-lasting use.

Raparongoā

Ko te nuinga o nga take ka taea te whakatau ma te reviewing the installation steps or adjusting the components. If you encounter any problems not covered here, please contact WELLFOR customer support for assistance.

• Door not closing smoothly: Check the Blum soft-close hinges for any obstructions or misalignment. Adjust the hinges as needed according to the hinge manufacturer's instructions.
• Cabinet appears uneven: Verify that the mounting brackets are level and securely fastened to the wall. Adjust as necessary.
• Shelves are wobbly: Ensure the shelf brackets are fully inserted into the support holes and that the glass shelves are seated correctly.

Whakatakotoranga

Image: A table detailing cabinet dimensions for both surface mount and recessed rough-in sizes across different models.

Tautoko Kiritaki

For any questions, concerns, or assistance with your WELLFOR medicine cabinet, please contact our customer support team. We offer 24/7 support to ensure your satisfaction.

If your cabinet arrives damaged, please contact us immediately for a replacement.

Tirohia te Toa WELLFOR i runga i a Amazon mo etahi atu hua me nga korero.
