1. Kupu Whakataki
This manual provides instructions for the BTF-LIGHTING FCOB IP66 COB LED Strip WS2814 IC RGBW 4000K 16.4FT. This flexible, high-density LED strip features addressable WS2814 ICs, offering vibrant RGB colors and natural white light at 4000K. Its IP66 waterproof rating makes it suitable for various indoor applications, including damp environments. A compatible controller (sold separately) is required for operation.
2. Nga Hua o te Hua
- Addressable WS2814 IC: Built-in WS2814 ICs (14 ICs/meter), with each IC controlling 56 LEDs. This allows for advanced lighting effects such as chasing, fading, and gradient transitions for both RGB and the dedicated natural white light.
- FCOB Technology: Utilizes Flip Chip on Board (FCOB) technology for uniform, dot-free illumination and a wide 180-degree beam angle, providing smooth and consistent light output.
- RGBW Color Spectrum: Offers a full range of RGB colors plus a dedicated 4000K natural white light, enhancing color richness and versatility.
- IP66 Whakatauranga parewai: Designed with heat-shrink tubing, providing resistance against dust and light water splashes, making it suitable for damp indoor areas like bathrooms or kitchens.
- Hewari me te tapahi: The LED strip is highly flexible for easy installation around corners and curves. It can be cut at designated marks every 2.8 inches (71mm) to fit specific project lengths.
- High Density: Features 784 LEDs per meter, ensuring bright and continuous light.
- DC24V Operation: Requires a DC24V power supply for optimal performance.
- 10mm Width: Compact design for discreet installation.
Image: Comparison showing the uniform light of FCOB WS2814 IC compared to the visible dots of SMD WS2814 IC.
Image: Diagram highlighting the benefits of the upgraded WS2814 IC RGBW COB LED Strip, including better heat dissipation, reduced power consumption, and smooth continuous light without dark spots.
Image: Visual comparison demonstrating the wider 180-degree beam angle of BTF-LIGHTING FCOB LED strips versus the narrower 120-degree beam angle of standard SMD LED strips, showing more uniform light distribution.
3. Ihirangi mokete
Kei roto i te kete nga mea e whai ake nei:
- 1x FCOB IP66 COB LED Strip (16.4FT / 5 meters)
- 1x 3PIN Male Connector
- 3x Fixed Clips
- 2x Wire to Strip Connectors
Kia mōhio: Kāore i te whakaurua he pūtake hiko me tētahi pūmana hototahi, ā, me hoko motuhake.
4. Tatūnga & Tāuta
4.1 Power Supply and Controller Requirements
This LED strip operates on DC24V. A compatible DC24V power supply and an addressable LED controller (e.g., WS2814 compatible) are required for functionality. Ensure the power supply capacity matches the total power consumption of your LED strip length.
4.2 Cutting and Connecting the LED Strip
The LED strip can be cut at designated cut marks, which are located every 2.8 inches (71mm). Use sharp scissors to ensure a clean cut. After cutting, use the provided wire-to-strip connectors or solder connections to re-establish electrical contact. If the cut ends are exposed to damp environments, they must be properly sealed to maintain the IP66 waterproof rating.

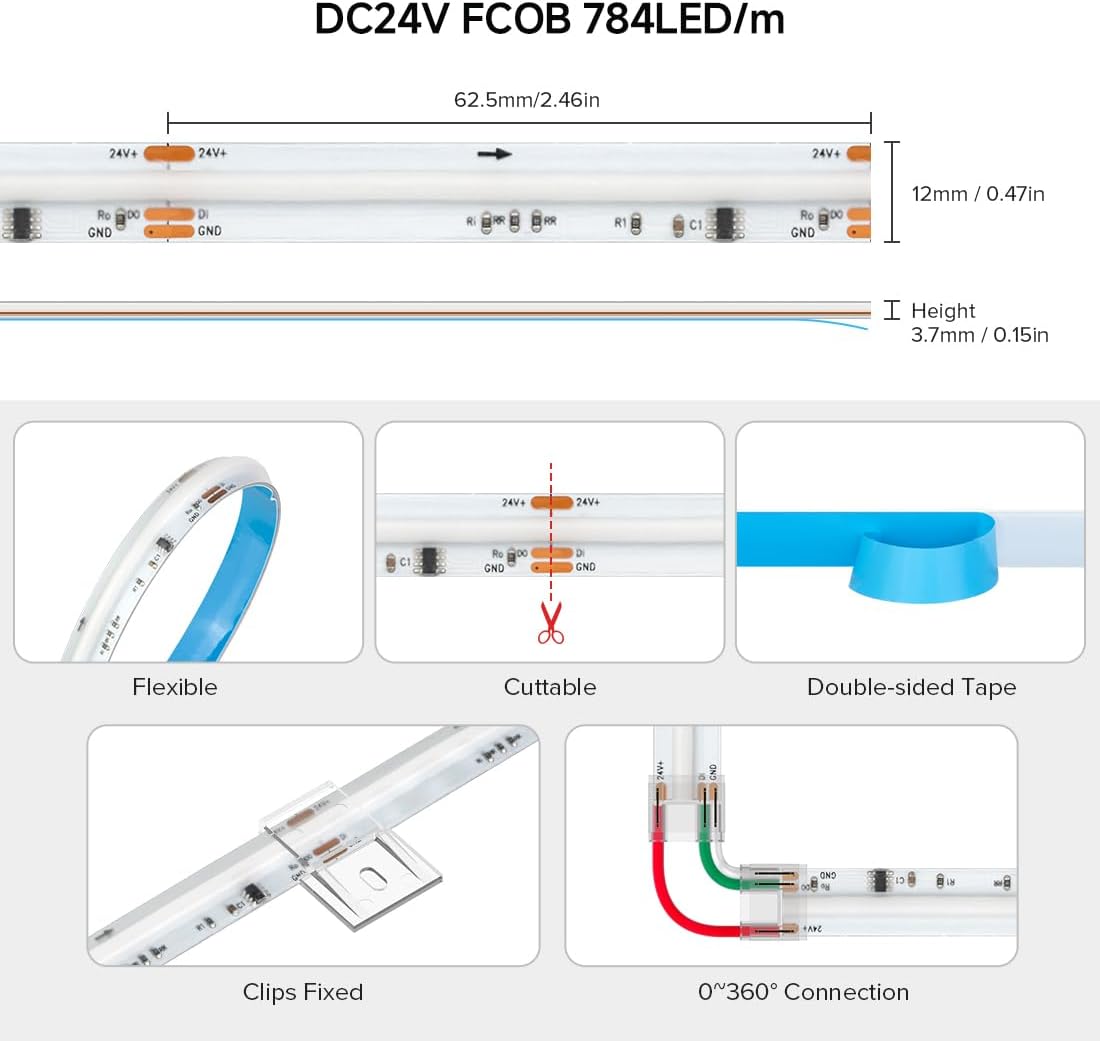

Image: Visual guide illustrating the LED strip's flexibility, designated cut points, application of double-sided tape, use of fixed clips, and connection methods.
4.3 Te Whakamau i te Rīpene LED
The LED strip features double-sided adhesive tape on its back for easy mounting on clean, dry surfaces. For additional security, especially on uneven surfaces or for long-term installations, use the included fixed clips. Ensure the surface is free of dust and grease before applying the adhesive.
Image: Hands demonstrating the application of the double-sided tape on the LED strip for mounting.
4.4 Wiring Diagram (Example)
Connect the LED strip to a compatible controller and a DC24V power supply. The WS2814 IC requires a data signal (DI) and ground (GND) connection from the controller, in addition to the 24V power. Follow the specific wiring instructions provided with your chosen controller.
Whakaahua: Example parallel connection diagram showing how to connect multiple FCOB WS2814 RGBW IC LED strips to an SP530E WiFi Alexa Bluetooth Controller, signal ampwhakakoi, me te tuku hiko.
Image: Diagram illustrating how voltage depends on the LED strip length and the need for power injection for longer runs to prevent voltage maturuturu.
5. Nga Tohutohu Whakahaere
The BTF-LIGHTING FCOB LED Strip requires a compatible addressable LED controller (sold separately) to function. Once connected to a power supply and controller, you can manage the lighting effects through the controller's interface or associated application.
5.1 Nga Mahi Taketake
- Mana Tae: Adjust the RGB colors to create millions of hues. The dedicated 4000K natural white light can also be controlled independently or mixed with RGB.
- Painga Hihiko: Utilize the addressable WS2814 ICs to create various dynamic lighting effects such as color chasing, fading, gradient transitions, and more.
- Te auri: The strip is dimmable from 0% to 100% brightness via the controller.
- Paemahana Tae: Access different white light temperatures including 3000K Warm White, 4000K Natural White, and 6000K Cool White, depending on controller capabilities.
Video: Demonstrates the FCOB WS2814 IC RGBW LED Strip's capabilities, including RGB chasing effects and various pure white light color temperatures (3000K Warm White, 4000K Natural White, 6000K Cool White), as well as individual color lights like Red, Green, Blue, Yellow, Pink, and Cyan. It also shows dimming functionality and highlights the bendable, cuttable, and adhesive features.
Whakaahua: Examples of the LED strip installed in various room settings, showcasing its dimmable RGBW lighting effects and ability to create different ambiances.
Image: A kitchen scene illustrating the LED strip's dimming capabilities, showing light levels from 20% to 100% brightness.
Image: A collage of various application scenes, including living rooms, bedrooms, kitchens, and commercial spaces, demonstrating the versatility of the LED strip.
6. Tiaki
- Te horoi: Gently wipe the LED strip with a soft, dry cloth to remove dust. Avoid using harsh chemicals or abrasive materials.
- Hononga: Tirohia ngā hononga katoa i ia wā, i ia wā, kia mōhio ai kei te mau tonu, ā, kāore he waikura.
- Parewai: If the strip has been cut, ensure all exposed ends are properly sealed with appropriate waterproof sealant to maintain the IP66 rating, especially if used in damp taiao.
- Rokiroki: If storing the LED strip, keep it in a cool, dry place away from direct sunlight and extreme temperatures.
7. Te Raru
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Kāore te rīpene LED e mura. | No power, incorrect wiring, faulty power supply/controller. |
|
| Kāore i te tika, kāore rānei i te ōrite ngā tae. | Incorrect controller settings (e.g., color order), data line interference. |
|
| Sections of the strip are dim or not working. | Voltage drop, damaged section, poor connection. |
|
| Karekau te kaiwhakahaere e whakautu. | Controller not powered, out of range, software issue. |
|
8. Whakatakotoranga
| Āhuahira | Taipitopito |
|---|---|
| Tau tauira | FCOB-24V-784L-W-IP66-SPI |
| Momo LED | FCOB WS2814 IC RGBW LED |
| Momo IC | WS2814 (14 ICs/meter, 1 IC controls 56 LEDs) |
| Tae | RGB + Natural White (4000K) |
| Te roa | 16.4 Puawai (5 mita) |
| Ngā LED mō ia Mita | 784 rama/m |
| Voltage | DC24V |
| Whānui | 10mm |
| Cut Interval | 2.8 inihi (71mm) |
| Whakatauranga parewai | IP66 (Heat-shrink tubing) |
| Koki Kurupae | 180 nga nekehanga |
| Te Ora Toharite | 65,000 haora |
| Rauemi | Kirihou |
| Mahinga o roto/waho | Indoor (suitable for damp taiao) |

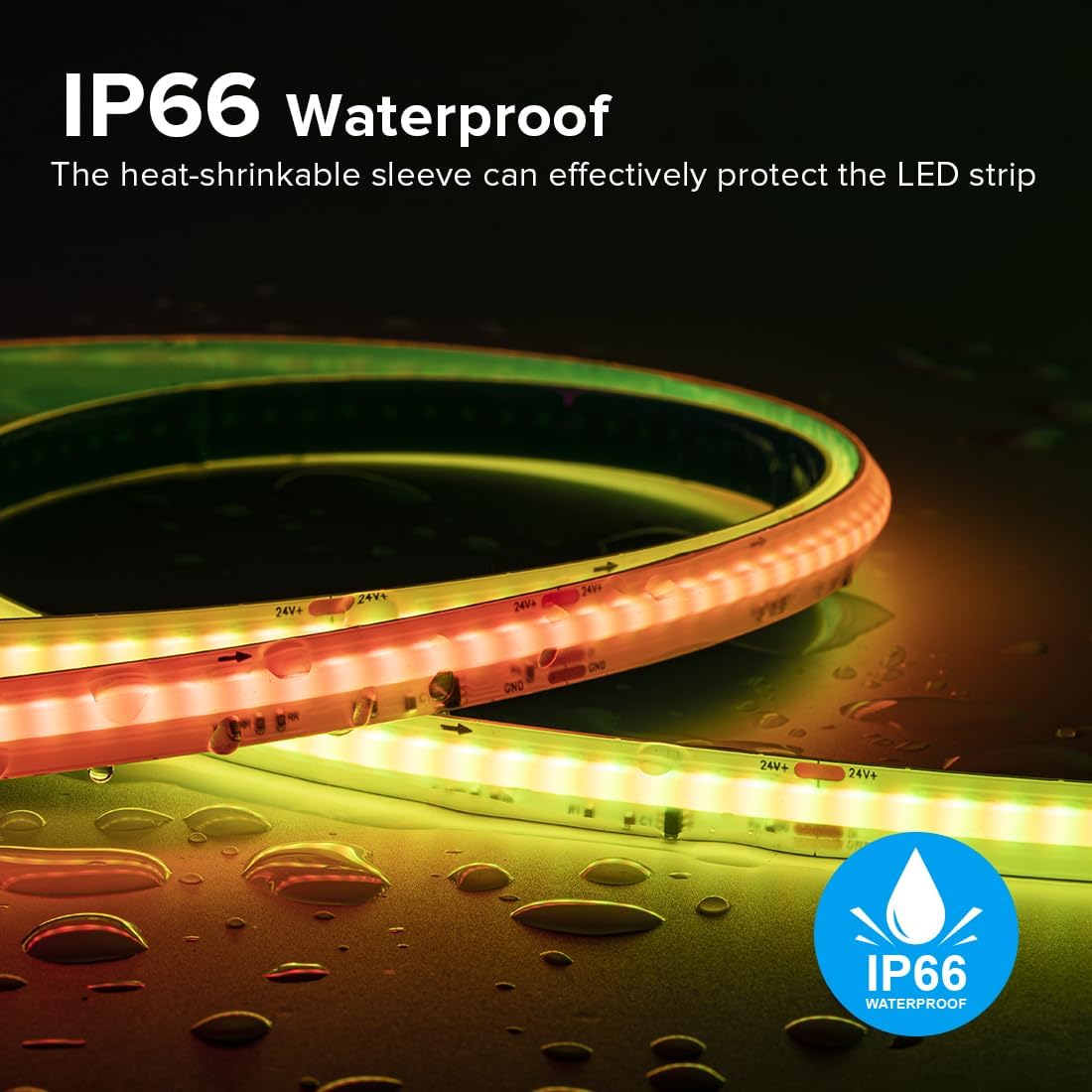

Whakaahua: Kati-ake view of the IP66 waterproof LED strip, showing its heat-shrinkable sleeve protection against water splashes.
Image: Visual comparison highlighting the difference between an IP30 non-waterproof LED strip and an IP66 waterproof LED strip with a PC heat-shrinkable sleeve.
9. Raihana me te Tautoko
For warranty information and technical support, please refer to the official BTF-LIGHTING webpae, whakapā atu ranei ki to kaihoko. Puritia to riirii hoko mo etahi kereme whakamana.
Manufacturer: SHENZHEN BTF-LIGHTINGTECHNOLOGY CO.,LTD
