1. Kupu Whakataki
The NANLITE FC-120C is a compact and versatile full-color RGBW LED spotlight designed for various lighting applications. It offers high light output, accurate color rendition, and multiple control options, making it suitable for both beginners and advanced users. This manual provides essential information for the safe and effective use of your FC-120C spotlight.
Image 1.1: The NANLITE FC-120C Full-Color RGBW LED Spotlight.
2. Nga korero haumaru
Please read and understand all safety instructions before using the NANLITE FC-120C spotlight. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Kaua e tukuna te taputapu ki te wai, ki te makuku nui ranei.
- Kaua e wetewetehia, kaua hoki e whakarerekētia te taputapu. Me mahi anake ngā mahi whakatikatika e ngā kaimahi ratonga whai mana.
- Whakaritehia te voltage tutuki ana i ngā whakaritenga a te pūrere.
- Kia matara atu te taputapu mai i nga rawa muramura.
- Kaua e araia nga kohao hau kia kore e wera rawa.
- Avoid direct eye exposure to the light source, as it can cause eye damage.
- Always use the provided or approved accessories.
3. Ihirangi mokete
Manatokohia kei roto i tō kete ngā taonga katoa kua whakarārangihia i raro nei. Mena kei te ngaro, kei te pakaru rānei ētahi taonga, whakapā atu ki tō kaihokohoko.
- NANLITE FC-120C Full-Color RGBW LED Spotlight
- Pouaka AC
- Whakaata Paerewa
- Bowens Maunga Whāurutau
- Hard-foam Carrying Case
Image 3.1: The FC-120C spotlight and its accessories neatly organized within the hard-foam carrying case.
4. Tatūnga
4.1 Assembling the Spotlight
- Whakapiki: Attach the FC-120C to a light stand using its integrated receiver. Secure it by tightening the locking knob.
- Reflector/Modifier Attachment: Align the standard reflector or any Bowens mount compatible modifier with the Bowens mount on the front of the FC-120C. Rotate clockwise until it clicks into place. To remove, press the release button and rotate counter-clockwise.

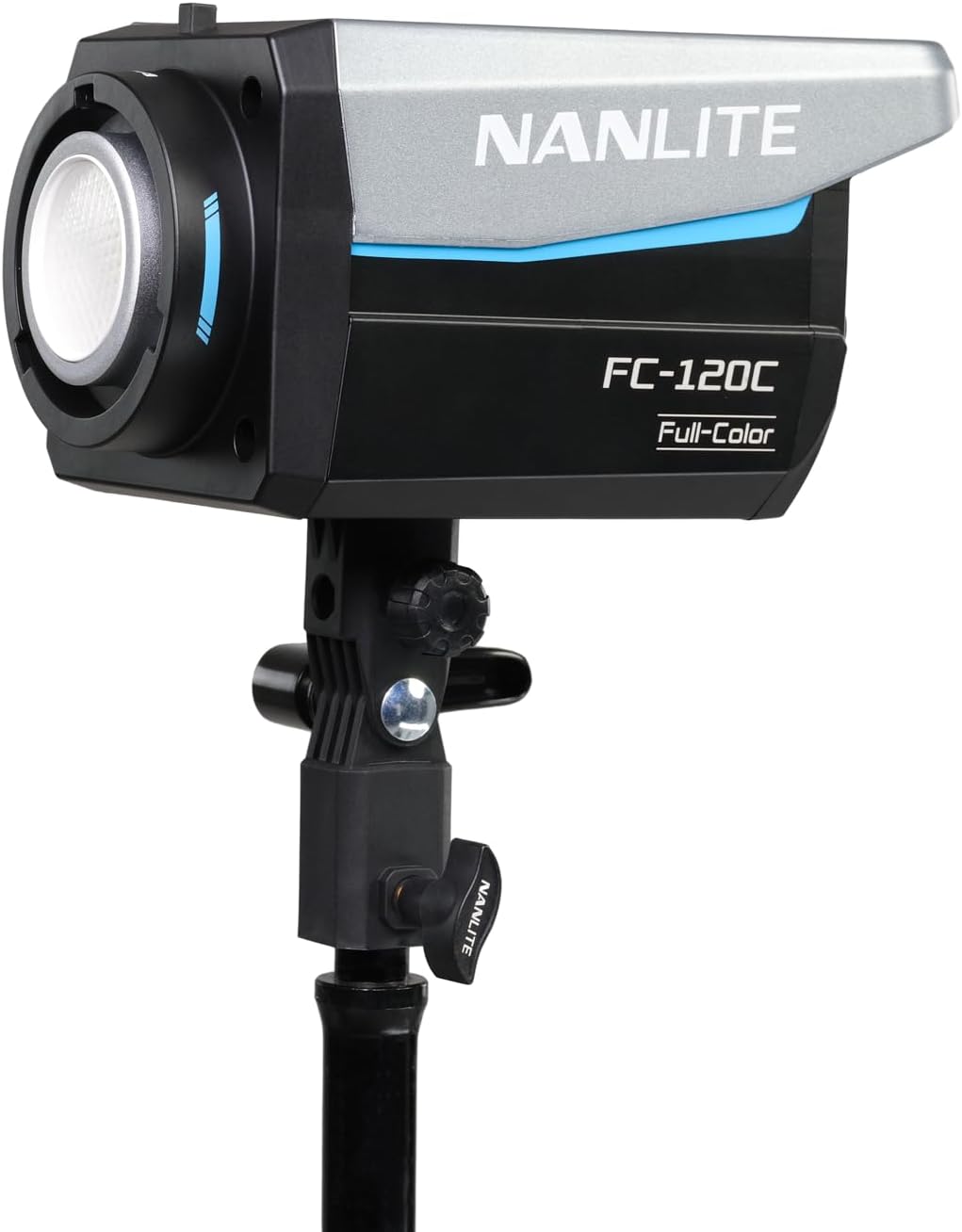

Image 4.1: The FC-120C spotlight assembled with its standard reflector and mounted on a light stand, ready for use.
4.2 Whakakaha i te Pūrere
The FC-120C offers multiple power options:
- Mana AC: Connect the included AC power adapter to the DC 24V input port on the FC-120C, then plug the adapter into a suitable power outlet.
- V-Mount Battery (Sold Separately): A V-Mount handgrip (sold separately) allows the FC-120C to be powered by V-Mount batteries for portable operation.
- USB-C Power Bank: The USB-C port supports Power Delivery (PD 3.0 and 2.0) for powering the unit with compatible USB-C power banks or chargers.

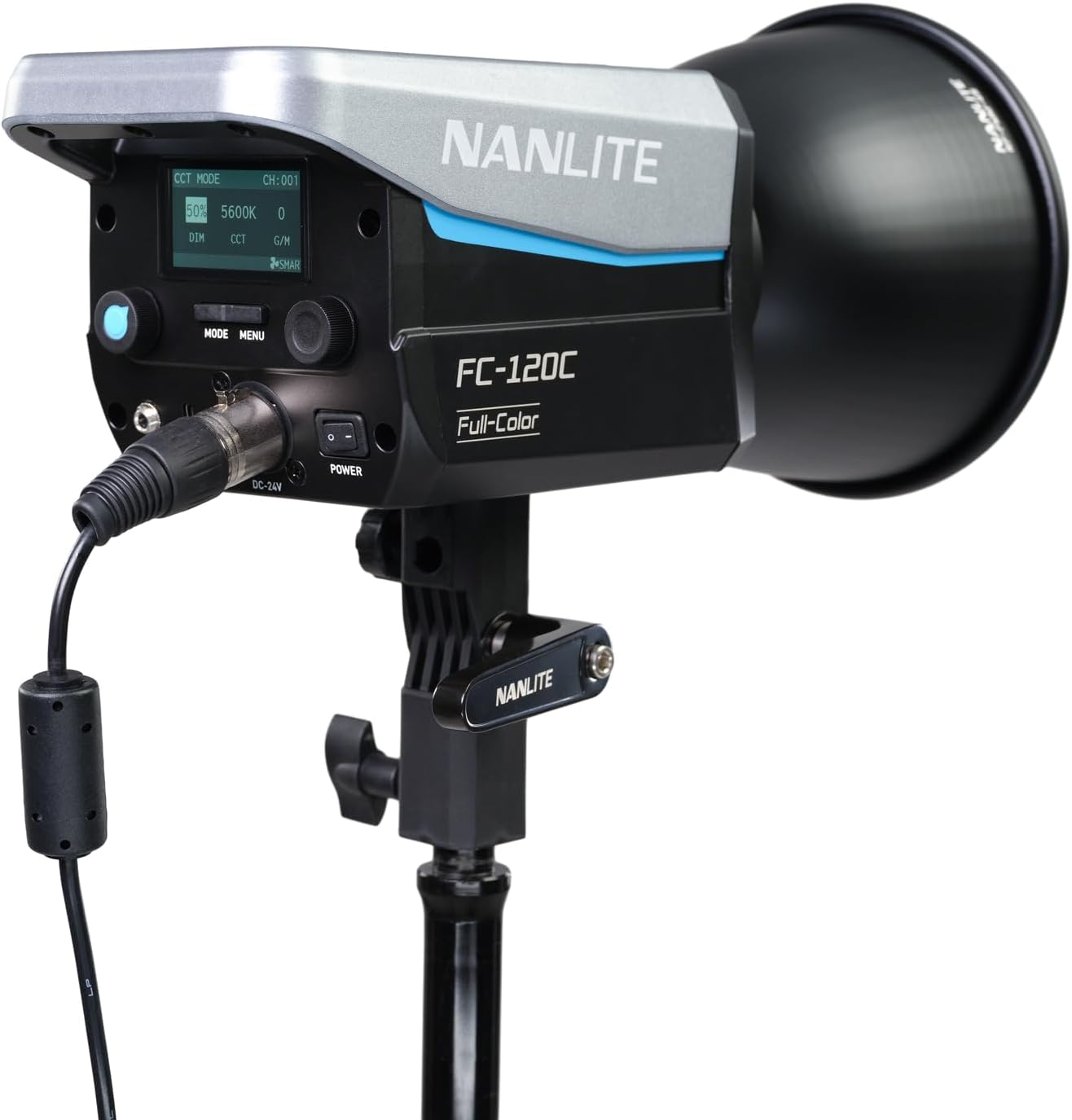

Image 4.2: The FC-120C spotlight with the AC power adapter connected to the DC 24V input, showing the power connection point and the control panel.
5. Nga Tohutohu Whakahaere
5.1 Mana Whakahaere
The FC-120C features an intuitive control panel with a display screen and various buttons/knobs for direct adjustments.
- Pātene Hiko: Pēhia me te pupuri hei whakakā, whakaweto rānei i te kōwae.
- Patene Aratau: Cycles through different operating modes (CCT, HSI, GEL, Effect).
- Patene Tahua: Ka uru atu ki ngā tautuhinga pūnaha me ngā kōwhiringa matatau.
- Dimming Knob: Adjusts brightness intensity.
- CCT/Hue Knob: Adjusts Color Correlated Temperature (CCT) in CCT mode or Hue in HSI mode.
- G/M/Saturation Knob: Adjusts Green/Magenta shift in CCT mode or Saturation in HSI mode.
5.2 Aratau Mana
- Aratau CCT: Allows adjustment of color temperature from 2700K to 7500K and Green/Magenta shift.
- Aratau HSI: Provides full control over Hue, Saturation, and Intensity for a wide range of colors.
- Aratau GEL: Simulates various color gels.
- Aratau Pānga: Offers pre-programmed special effects like lightning, paparazzi, TV, etc.
5.3 Remote Control Options
The FC-120C can be controlled remotely using several methods:
- Bluetooth (NANLINK App): Download the free NANLINK app on your smartphone or tablet to control the light wirelessly via Bluetooth.
- 2.4G Remote: The NANLINK WS-RC-C2 Remote (sold separately) can be used for 2.4G wireless control.
- DMX/RDM: For advanced control in professional setups, the FC-120C supports DMX/RDM protocols. Connect a DMX controller via the DMX input/output ports.
6. Tiaki
Proper maintenance ensures the longevity and optimal performance of your FC-120C spotlight.
- Te horoi: Whakamahia he kakahu ngohengohe, maroke hei horoi i te taha o waho o te rama. Kaua e whakamahi i ngā matū kaha, i ngā rauemi whakakoi rānei.
- Tiaki Mata: Gently clean the LED lens with a microfiber cloth designed for optics.
- Rokiroki: When not in use, store the FC-120C in its hard-foam case in a cool, dry place, away from direct sunlight and extreme temperatures.
- Whakahau: Me whakarite kia ma te puehu me te paru ngā pūaha hauhautanga hei ārai i te wera nui.
7. Te Raru
If you encounter issues with your FC-120C, refer to the table below for common problems and solutions.
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Kare te rama e ka ana | No power supply; Loose connection; Faulty power adapter | Check power cable and adapter connection; Ensure power outlet is functional; Try a different power source if available. |
| Ka whiti marama | Unstable power supply; Interference; Incorrect settings | Ensure stable power; Check for nearby electronic interference; Reset settings to default. |
| Ko te mana mamao kaore e mahi | Bluetooth/2.4G not paired; Out of range; Battery low (for 2.4G remote) | Ensure proper pairing; Move closer to the light; Replace remote battery; Check app permissions. |
| Whakatupato werawera | Blocked ventilation; High ambient temperature | Ensure ventilation openings are clear; Operate in a well-ventilated area; Reduce output if necessary. |
8. Whakatakotoranga
Key technical specifications for the NANLITE FC-120C Full-Color RGBW LED Spotlight:
| Āhuahira | Taipitopito |
|---|---|
| Tau tauira | FC-120C |
| Momo Maama | Full-Color RGBW LED Spotlight |
| Output (1M 5600K) | 12850 lux, 1193 fc (with reflector) |
| Awhe CCT | 2700K-7500K |
| Tika Tae | SSI 82 (3200K) / 70 (5600K), TCI 96, TLCI 94 |
| Kōwhiringa Mana | Onboard, Bluetooth (NANLINK App), 2.4G, DMX/RDM |
| Whakaeke | Maunga Bowens |
| Whakauru Mana | AC Adapter, V-Mount Battery (optional), USB-C PD 3.0/2.0 |
| Taumaha Tūemi | 6.6 pauna (tata ki te 3 kg) |
| Hunga Hua | 16.54 x 12.99 x 7.48 inihi (tata ki te 42 x 33 x 19 cm) |
9. Pūtāhui me te Tautoko
The NANLITE FC-120C is covered by a 2-tau pūtāhui. This warranty can be extended to 3 tau with online registration. For warranty claims, technical support, or service inquiries, please contact NANLITE customer support or visit their official website. Ensure you have your purchase receipt and product serial number available.
For further assistance, please refer to the official NANLITE website or contact their responsive support team in the USA.
