FOMITO Godox iA32 iFlash Camera Flash User Manual

1. Kupu Whakataki

Thank you for choosing the FOMITO Godox iA32 iFlash Camera Flash. This compact and versatile flash unit is designed to provide enhanced lighting for your photography, offering both automatic and manual control options. Please read this manual thoroughly before use to ensure proper operation and to maximize the performance of your flash.

2. Nga korero haumaru

• Do not disassemble or modify the flash unit. Repairs should only be performed by authorized service personnel.
• Kia maroke te waeine. Kaua e hapai ma nga ringaringa makuku, kaua e ruku ki te wai.
• Āta karohia te whiti tika o te rama uira ki ngā kanohi, inā koa i te tawhiti tata, nā te mea ka raru pea te tirohanga.
• Kaua e taea e nga tamariki.
• Whakamahia ngā pākahiko AA kua tohua anake. Kaua e whakaranua ngā pākahiko tawhito me ngā pākahiko hou, ngā momo pākahiko rerekē rānei.
• Tangohia ngā pākahiko mēnā kāore e whakamahia te rama mō te wā roa.
• Operate the flash within the specified temperature range to prevent damage.

3. Ihirangi mokete

Manatokona kei roto katoa nga taonga ki to kete:

• 1 x Godox iA32 Mini Flash Body
• 1 x Puke kawe

Image: The Godox iA32 Mini Flash unit shown alongside its included carrying bag.

4. Hua Neke Atuview

The Godox iA32 is designed for portability and ease of use, featuring a slim profile me ngā mana whakahaere māmā.

Āhuatanga matua:

• Hoahoa Angiangi me te Kawe: Ultra-slim, flat design for easy transport and attachment to cameras.
• Flexible Angle Adjustments: Flash head tilts from -7° to 90° for versatile lighting, including bounce flash.
• Auto & Manual Modes: Offers both automatic power adjustment and full manual control with 8 power levels.
• Mahi-Tikiake: Up to 490 full-power flashes and a fast 2.5-second recycling time (with AA batteries).
• Optical S1/S2 Modes: Supports multi-light setups for creative lighting configurations.
• Easy-to-Use LCD Panel: Clear display for quick adjustments to settings.
• Single Contact Hot Shoe: Simple and reliable connection, compatible with most camera models.

Image: The Godox iA32 flash unit shown mounted on a camera, highlighting its compact size and design. Another flash unit is visible next to the camera.

5. Tatūnga

5.1 Tāuta Pūhiko

1. Whakatuwheratia te taupoki o te wāhanga pākahiko i te taha o te waeine rama.
2. Insert two AA batteries (sold separately) according to the polarity indicators (+/-) inside the compartment.
3. Katia kia mau te uhi o te wahanga pākahiko.

Image: Hands holding a camera and the Godox iA32 flash unit, demonstrating its compact size and how it might be handled before mounting.

Whakaahua: He taipitopito view of the Godox iA32's single-contact hot shoe, along with a diagram illustrating compatibility with various camera hot shoe types (S, C, N, F, L, O).

5.2 Te Whakamau i te Uira ki te Kāmera

1. Me mohio kua weto to kamera.
2. Slide the flash unit's hot shoe into your camera's hot shoe mount until it clicks into place.
3. Tighten the locking ring (if present) on the flash unit to secure it to the camera.
4. Turn on your camera, then turn on the flash unit.

6. Nga Tohutohu Whakahaere

6.1 Hiko / Whakaweto

Pēhia, ka pupuri i te pātene mana hei whakakā, hei whakaweto rānei i te pūrere rama.

6.2 Mode Selection (Auto/Manual)

The iA32 offers two primary operating modes:

• Aratau Auto: The flash automatically adjusts its power output based on your camera's ISO and aperture settings. The recommended shooting distance will be displayed on the LCD panel.
• Aratau ā-ringa: Provides full control over flash power. You can adjust the output across 8 power levels, from 1/128 to full power (1/1), in 1/3-step increments.

Use the "MOD" button to switch between Auto and Manual modes. Use the '+' and '-' buttons to adjust settings within each mode.

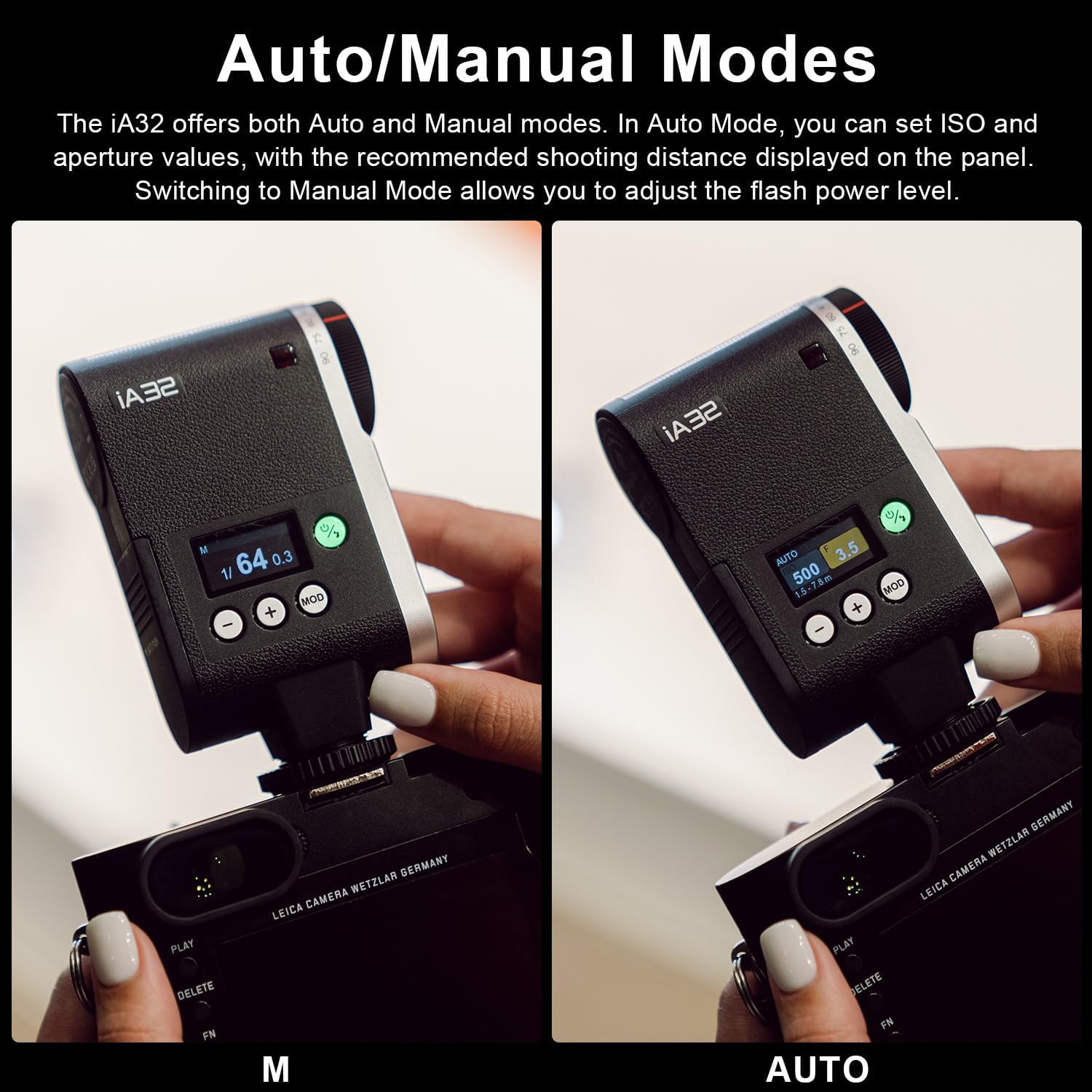

Image: The LCD panel of the Godox iA32 flash, illustrating the display in both Manual (M) mode with power level setting and Auto mode with recommended shooting distance.

6.3 Flash Head Angle Adjustment

The flash head can be tilted from -7° to 90° using the side dial. This allows for direct flash or bounce flash techniques, where the light is directed off a ceiling or wall for softer illumination.

Image: A sequence of images demonstrating how to adjust the tilt angle of the Godox iA32 flash head using the side dial, showing various positions from -7° to 90°.

6.4 Optical S1/S2 Modes

These modes enable the iA32 to function as an optical slave unit, triggered by another flash:

• Aratau S1: The iA32 fires simultaneously with the main flash. This mode is suitable for manual flash units.
• Aratau S2: The iA32 ignores the pre-flash from a TTL-compatible main flash and fires on the second flash pulse. This allows it to be used with cameras that employ a pre-flash for exposure metering.

Refer to the LCD panel and mode button to select S1 or S2 mode when setting up multi-light configurations.

7. Tiaki

• Te horoi: Whakamahia he kakahu ngohengohe, maroke hei horoi i te waahanga uira. Mo te paru maro, he paku damp Ka taea te whakamahi i te kakahu, ka whai i te kakahu maroke. Kaua e whakamahi i nga whakarewa, i nga horoi horoi ranei.
• Rokiroki: Store the flash in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods.
• Tiaki Pūhiko: Replace batteries when the low battery indicator appears. Dispose of used batteries responsibly.

8. Te Raru

9. Whakatakotoranga

10. Pūtāhui me te Tautoko

This product is covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or contact FOMITO customer support. For technical assistance or service inquiries, please visit the official FOMITO webpaetukutuku, whakapā atu ranei ki ta raatau tari ratonga kaihoko.

Kaihanga: GODOX

Waitohu: FOMITO

Te Ra Tuatahi Wātea: Hanuere 20, 2025
