1. Kupu Whakataki
Ngā mihi nui ki a koe mō te whiriwhiri i te Jonsbo ZB-120W PC Case Fan. Kua hangaia tēnei pā hei whakarato i te whakamatao whai hua mō tō pūnaha rorohiko, me te tuku hoki i ngā pānga rama ARGB ka taea te whakarite mā roto i tōna hoahoa whakaata mutunga kore ahurei. Kei roto i tēnei pukapuka ngā tohutohu taipitopito mō te tāutanga, te whakahaere, te tiaki, me te rapurongoā hei whakarite i te mahi tino pai me te roa o te oranga o tō hua.

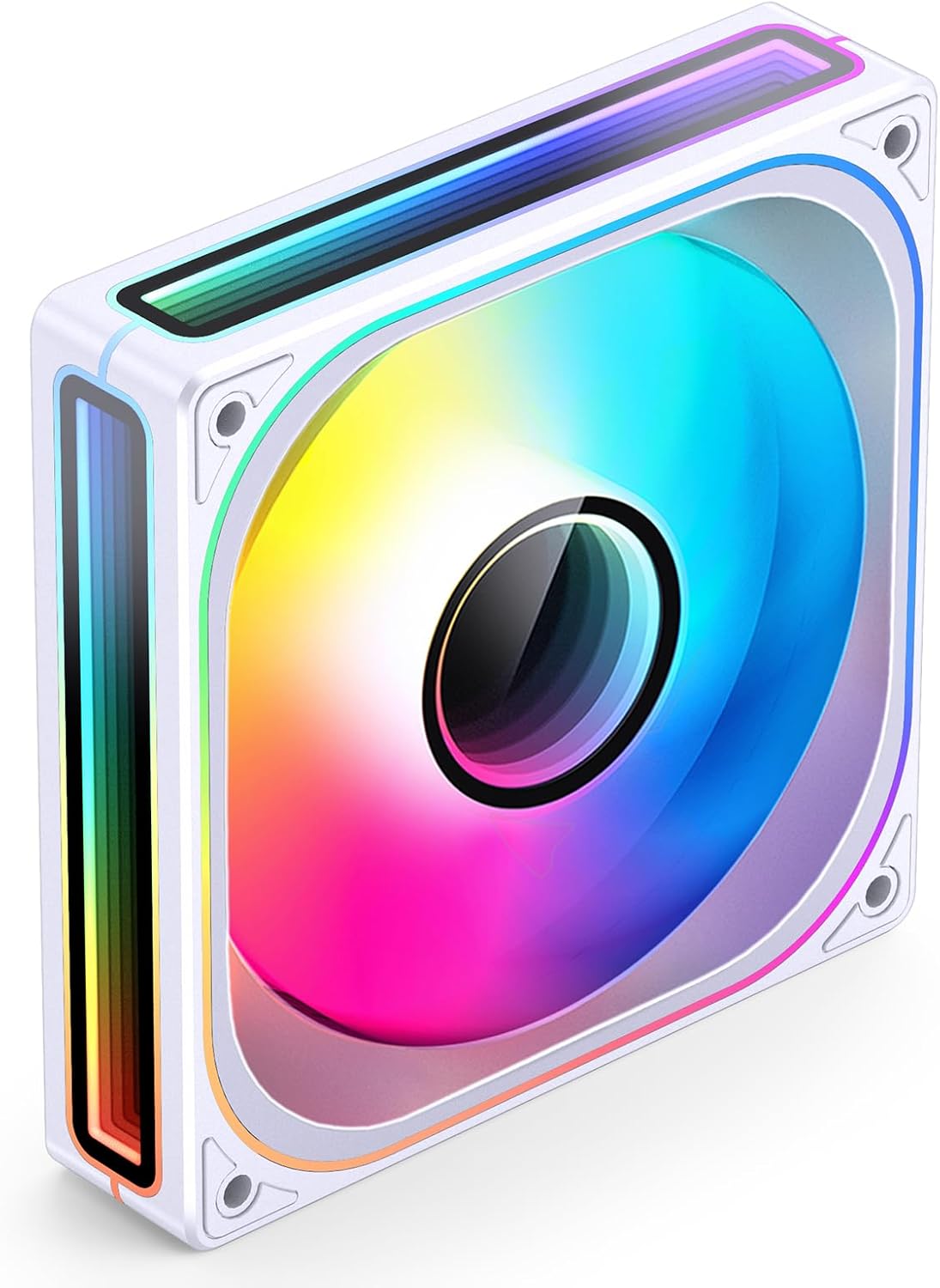

Whakaahua 1.1: Te Pā Pūkoro Jonsbo ZB-120W, e whakaatuhia anaasinōna rama ARGB kanapa me te pānga whakaata mutunga kore.
2. Nga korero haumaru
- Momotuhia te hiko mai i to rorohiko i mua i te whakauru, te whakahaere ranei i nga waahanga o roto.
- Puritia te anga o te pā hau kia kore ai e pakaru ngā mata, ngā waea rānei.
- Me whakarite kia tika te tūnga whenua hei ārai i te kino o te tukunga hiko pateko (ESD) ki ngā wāhanga.
- Kaua e ngana ki te whakarerekē i te pā hau, i ōna taura rānei. Mā ngā whakarerekētanga kāore i whakamanahia ka whakakorea pea te pūtāhui, ā, ka tūpono pea he mōrearea ki te haumaru.
- Puritia te pā hau kia matara atu i ngā wai me te makuku nui.
3. Ihirangi mokete
Manatokona kei roto katoa nga mea kei roto i te kete:
- Pā Pūhiko Jonsbo ZB-120W (1 waeine)
- Ngā tīwiri whakamau (4 ngā waeine)
- Pukapuka Kaiwhakamahi (tenei tuhinga)
4. Tāutanga
4.1 Te Whakamaunga ā-Tino
- Tāutuhia te wāhi whakairi e hiahiatia ana i roto i te pouaka o tō rorohiko (hei tauira, mua, runga, muri, raro).
- Whakanohoia te hau pā ki te wāhi i whiriwhiria, me te whakarite kia tika te ahunga o te rere o te hau mō tō tautuhinga whakamatao (ko te tikanga ka puta mai i mua/raro, ko te putanga mai i muri/runga).
- Whakaritea ngā kōhao tīwiri o te pā hau ki ngā kōhao e rite ana i runga i te pouaka o tō rorohiko, i te whakamahana rānei.
- Whakamaua te hau mā te whakamahi i ngā tīwiri whakapiri kua whakaratohia. Kaua e whakakī rawa.
Whakaahua 4.1: ExampHe maha ngā pā hau Jonsbo ZB kua tāutahia ki roto i tētahi pouaka rorohiko.
4.2 Hononga Hiko
Kei te pā hau Jonsbo ZB-120W he hoahoa taura whakauru mō te waea māmā ake, e hono ana ki tō papahoahoa mā te raina kotahi mō te mana hiko me te mana ARGB.
Whakaahua 4.2: Mā te hoahoa taura kua whakauruhia ka māmā ake te hononga ki te papahoahoa.
- Kimihia te pane pā PWM 4-pin i runga i tō papahoahoa. Mā tēnei pane ka whakahaere te tere o te pā.
- Honoa te hononga PWM 4-pine o te pā ki te pane pā 4-pine o te papahoahoa.
- Kimihia te pane 3-pine 5V ARGB (e tapaina ana ko 'ADD_HEADER', 'JRAINBOW', 'VDG', '5V-D-G' rānei) i runga i tō papahoahoa. Kaua e hono atu ki tētahi pane RGB 12V, nā te mea ka kino ngā rama LED.
- Honoa te hononga ARGB 3-pine o te pā ki te pane ARGB 5V 3-pine o te papahoahoa. Kei te pā anō hoki ngā hononga ARGB tāne me te wahine mō te hono i ngā taputapu ARGB maha.
- Me whakarite kia mau nga hononga katoa.
Whakaahua 4.3: He tirohanga tata o ngā hononga PWM 4-pine me ngā hononga ARGB 3-pine kua whakauruhia o te pā.
5. Mahi
5.1 Mana Tere o te Pā (PWM)
Ka whakamahia e te pā hau Jonsbo ZB-120W te hangarau Pulse Width Modulation (PWM), e āhei ai tō papahoahoa ki te whakahaere i te tere o te pā hau i runga i te pāmahana o te pūnaha. Mā tēnei ka pai te mahi whakamatao me te whakaiti i ngā taumata haruru ina kore e hiahiatia te tere katoa.
- Whakauru atu ki ngā tautuhinga BIOS/UEFI o tō papahoahoa, whakamahia rānei ngā pūmanawa motuhake mō te papahoahoa (hei tauira, ASUS AI Suite, Gigabyte SIV, MSI Dragon Center) hei whirihora i ngā kōpiko pā.
- Whakatikatikahia te tere o te pā haufile hei whakataurite i te mahi whakamatao me ngā taumata oro e ai ki ō hiahia.
5.2 ARGB Mana Rama
Ka taea te tukutahi me te whakahaere i te rama RGB Addressable (ARGB) o te pā mā te pūmanawa papahoahoa hototahi. Mā tēnei ka taea te whakarite i te whānuitanga o ngā pānga rama, tae atu ki te āhua ahurei o te whakaata mutunga kore.
Whakaahua 5.1: Te pānga whakaata mutunga kore i runga i te pā hau Jonsbo ZB-120W.
- Tāutahia te pūmanawa whakahaere ARGB i whakaratohia e te kaihanga o tō papahoahoa (hei tauira, ASUS Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion, ASRock Polychrome Sync).
- Kia tino kitea e te pūmanawa ngā pūrere ARGB kua honoa.
- Whakamahia te pūmanawa hei tīpako i ngā momo rama, ngā tae me ngā pānga e hiahiatia ana.
Whakaahua 5.2: Ka tautoko te pā hau Jonsbo ZB-120W i ngā pūmanawa tukutahitanga papahoahoa ARGB.
Ataata 5.1: He mutuview o ngā pā o te raupapa Jonsbo ZA/ZB, e whakaatu ana i ō rātou pānga rama ARGB me te hoahoa.
6. Tiaki
Mā te tiaki auau ka āwhina i te mahi tino pai, ā, ka roa ake te ora o tō pā hau.
- Te horoi: Horoia te puehu o ngā mata o te pā hau me te anga i ia wā, mā te whakamahi i te hau kōpeke, i tētahi kakahu ngohengohe, maroke rānei. Me whakarite kia whakawetohia te hiko o te rorohiko, ā, kia momotu hoki i te hiko i mua i te horoinga.
- Tirotiro: Tirohia ngā taura mēnā he tohu o te pakaru, te pakaru rānei. Kia mau tonu ngā hononga katoa.
7. Te Raru
Mena ka pāngia koe e ngā raruraru me tō pā hau Jonsbo ZB-120W, tirohia ngā raruraru me ngā otinga e whai ake nei:
| Raruraru | Take pea | Rongoā |
|---|---|---|
| Karekau te paahi e huri | Hononga PWM koretake, hē rānei; kāore i te rawaka te mana. | Me whakarite kia mau te hononga PWM 4-pin ki te papahoahoa. Tirohia ngā tautuhinga BIOS/UEFI mō te mana whakahaere o te pā. |
| Kāore e mahi ana te rama ARGB, kāore rānei i te tika ngā tae | He koretake, he hē rānei te hononga ARGB; he kore hototahi te pane ARGB (12V kaua ki te 5V); he raruraru pūmanawa. | Me whakarite kia mau te hononga ARGB 3-pin ki te pane ARGB 5V. Me whakarite kia tāutahia, kia whakahoutia hoki te pūmanawa ARGB o te papahoahoa. Tīmata anō i te pūnaha. |
| Haruru nui | Pupū puehu; e mahi ana te pā hau i te RPM teitei; he koretake te whakamau. | Horoia ngā mata o te pā. Whakatikatikahia ngā pihi tere o te pā i roto i te BIOS/UEFI, i te pūmanawa rānei. Me whakarite kia tika te whakau o ngā tīwiri whakairi. |
8. Whakatakotoranga
Ngā taipitopito hangarau mō te Jonsbo ZB-120W PC Case Fan:
| Āhuahira | Whakatakotoranga |
|---|---|
| Waitohu | Jonsbo |
| Tauira | ZB-120W |
| Momo Hono Hiko | PWM 4-Pin (Pā), 3-Pin 5V ARGB (Rama) |
| Voltage | DC 12 Volts (Pā), 5 Volts (LED) |
| Wattage | 1 Waata |
| Tikanga whakamatao | Air Force |
| Pūrere Hototahi | Rorohiko Papamahi |
| Rauemi | Kirihou |
| Tere Hurihuri Morahi | 2400 RPM |
| Ahu | 7.01 x 5.75 x 1.26 inihi (Pake) |
| Taumaha Tūemi | 7 hekere |
Whakaahua 8.1: Ngā whakatakotoranga mahi mō ngā pā hau Jonsbo ZB, tae atu ki te haruru, te tere hurihuri, me te rere o te hau.
9. Pūtāhui me te Tautoko
He mea hanga ngā hua Jonsbo ki ngā paerewa kounga teitei. Mō ngā mōhiohio pūtāhui, tautoko hangarau, pātai ratonga rānei, whakapā atu ki tō kaihokohoko, toro atu rānei ki te paetukutuku mana o Jonsbo. webpae. Tena koa pupurihia to tohu mo te hoko mo nga kereme whakamana.
Jonsbo Mana Webpae: www.jonsbo.com
