Radiomaster XR3 Nano Multi-Frequency ExpressLRS Receiver User Manual

1. Kupu Whakataki

The Radiomaster XR3 Nano Multi-Frequency ExpressLRS Receiver is a compact and versatile receiver designed for remote control applications, offering robust signal stability and extended range. It supports both 2.4GHz and Sub-G 900MHz frequency bands, making it suitable for various setups. This manual provides essential information for the proper installation, operation, and maintenance of your XR3 receiver.

Image 1.1: Radiomaster XR3 Nano Multi-Frequency ExpressLRS Receiver with connected dual-band antennas.

2. Nga korero haumaru

Please refer to this instruction manual before use. Improper handling or installation may lead to equipment damage or personal injury. Ensure all connections are correct and secure before powering on the device. This product is recommended for users aged 18 years and up.

3. Nga ahuatanga

• Kanorau Antenna: Utilizes two antennas for improved signal stability and extended range, featuring a Skyworks RFX2401C for enhanced receiver performance and telemetry.
• Tautoko Maha-Auautanga: Operates on both 2.4GHz and Sub-G 900MHz bands.
• MCU Mahi-Teitei: Equipped with an ESP32C3 microcontroller.
• Advanced Transceiver: Features a Semtech LR1121 transceiver.
• Hononga Tāpiri: Includes an additional UART port and secondary port for advanced functionality.
• Easy Soldering: Designed with castled pads for convenient soldering.
• Integrated WiFi: Built-in WiFi for effortless configuration and firmware updates via an intuitive WebUI.
• Hoahoa Kiato: Ultra-compact dimensions (22mm x 15mm x 4mm) and lightweight (1.3g without antennas).

Whakaahua 3.1: Ka mutuview of the XR3 receiver highlighting its multi-frequency, antenna diversity, LR1121, and ExpressLRS features.

4. Ihirangi mokete

Manatokona kei roto katoa nga mea kei roto i to kete:

• 1 * XR3 Nano Maha-Waea Antenna Kanorau ExpressLRS Kaiwhiwhi
• 2 * T Antenna (Either 2.4GHz, 900Mhz, or Dual-band, depending on selected package)
• 1 * Waea CRSF
• 3 * Heat-Hongoi Tube
• 1 * Kaari a-ringa

5. Tatūnga

5.1 Hononga Tinana

Connect the XR3 receiver to your flight controller or other compatible device using the provided CRSF wire. Ensure correct polarity and pin assignments for 5V, TX (Transmit), and RX (Receive).

• 5V: Power input (DC 4.5-8.4V)
• TX: Telemetry data output from receiver
• RX: Control data input to receiver

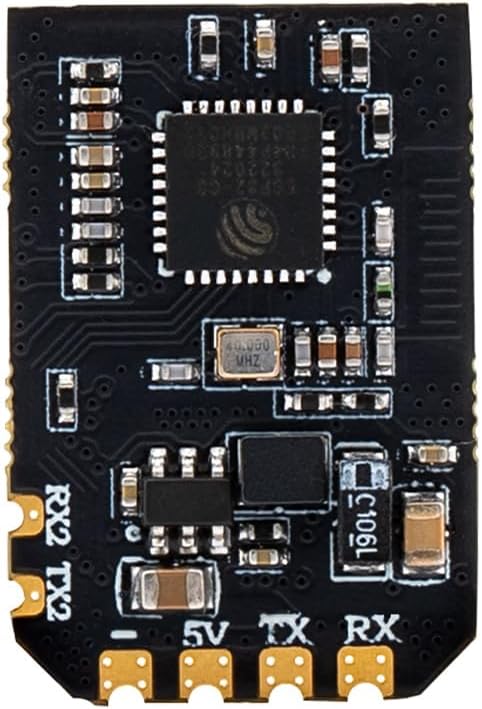

Atahanga 5.1: Whakatata view of the XR3 receiver board, indicating the 5V, TX, and RX pads for connection.

5.2 Tāuta Antenna

Carefully connect the two T-antennas to the IPEX-1 connectors on the receiver board. Ensure they are securely attached. Position the antennas to maximize signal reception, typically at a 90-degree angle to each other for optimal diversity.

5.3 Binding (Pairing)

The XR3 receiver uses the ExpressLRS protocol for binding. Follow these general steps:

1. Power on your receiver three times, cycling power quickly. The LED on the receiver should flash rapidly, indicating it is in bind mode.
2. On your ExpressLRS compatible transmitter, initiate the binding process. Refer to your transmitter's manual for specific instructions.
3. Kia herea, ka tahuri pūmau te rama LED i runga i te kaiwhiwhi, hei tohu kua angitu te hononga.

Alternatively, the XR3 features a bind button. Press and hold the bind button while powering on the receiver to enter bind mode. The receiver also supports binding via WiFi.

Whakaahua 5.2: Runga-raro view of the XR3 receiver board, showing the location of the bind button.

5.4 Whakahoutanga Firmware

The XR3 receiver supports firmware updates via its built-in WiFi. Connect to the receiver's WiFi network using a PC or mobile device and access the WebUI to manage settings and update firmware. Ensure you are using the correct firmware target: "RadioMaster XR3 2.4/900 Diversity RX".

6. Mahi

6.1 Kōwhiringa Auautanga

The XR3 receiver is capable of operating on either 2.4GHz or Sub-G 900MHz frequencies. The type of antenna included with your package determines the primary operating frequency. If you have a dual-band antenna, the receiver can switch between 2.4GHz and 900MHz without requiring an antenna change. Ensure your transmitter is configured to match the receiver's operating frequency.

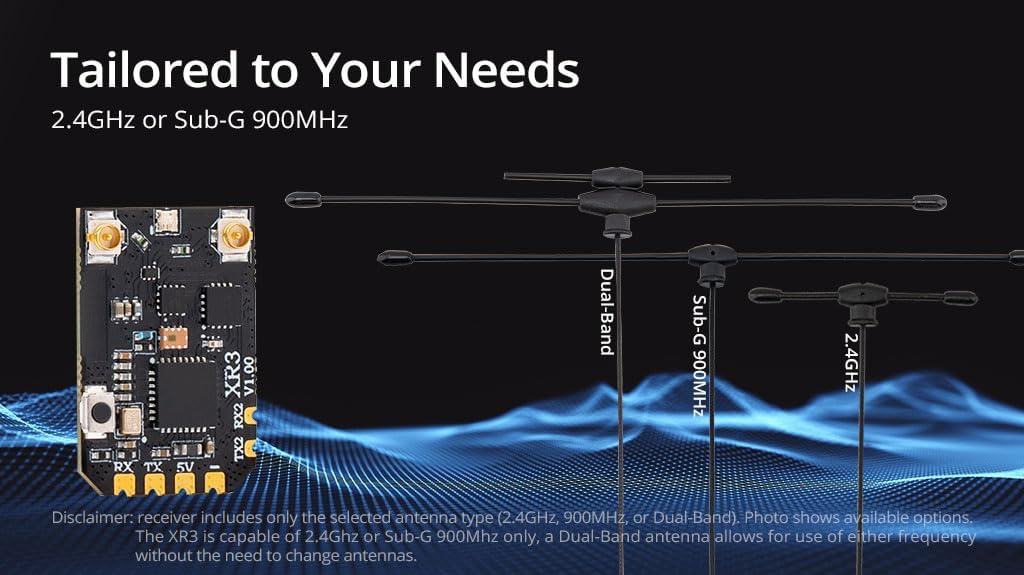

Image 6.1: The XR3 receiver supports various antenna types for 2.4GHz, Sub-G 900MHz, or Dual-Band operation.

6.2 ExpressLRS Functionality

Once bound, the XR3 receiver will communicate with your ExpressLRS transmitter, providing control and telemetry data. The antenna diversity feature automatically selects the best signal from the two antennas, enhancing link quality and range, especially in challenging RF environments. The telemetry power output is 100mW.

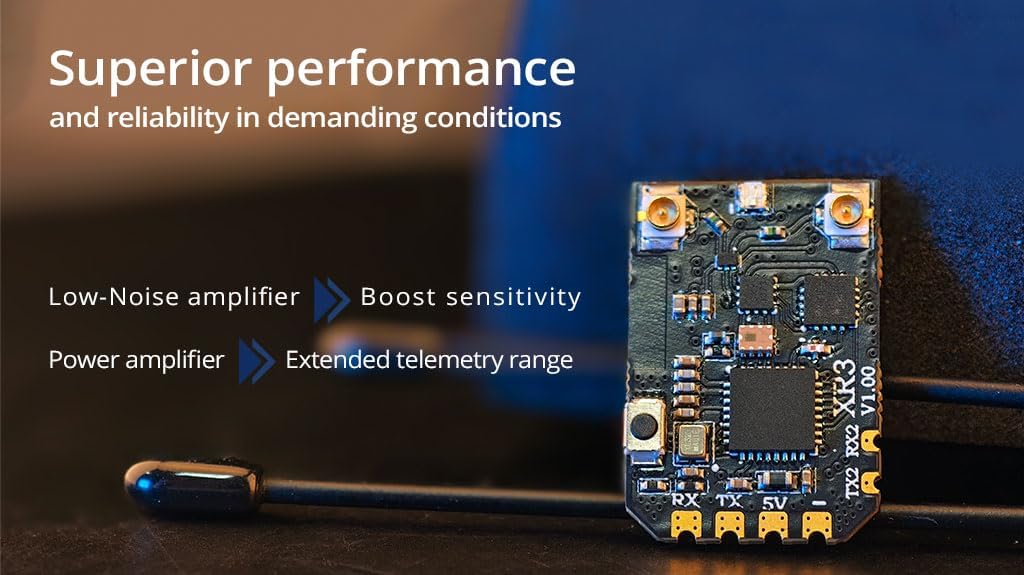

Image 6.2: The XR3 receiver incorporates a Low-Noise amplifier to boost sensitivity and a Power amplifier for extended telemetry range.

7. Tiaki

The XR3 receiver is designed for durability, but proper care can extend its lifespan:

• Kia ma te kaiwhiwhi, kia kore he puehu, he paru, he makuku rānei.
• A ape i te tuku i te kaikawe ki te wera nui, ki te ra tika ranei mo te wa roa.
• Ensure antenna connections are secure but do not overtighten.
• Regularly check for any visible damage to the board or antennas.

8. Te Raru

If you encounter issues with your XR3 receiver, consider the following:

• No Bind: Ensure the receiver is in bind mode (rapidly flashing LED) and your transmitter is attempting to bind on the correct ExpressLRS firmware version and frequency. Check power connections.
• Poor Signal/Range: Verify antenna connections and positioning. Ensure no obstructions are blocking the signal path. Check for local RF interference. Confirm the correct frequency band (2.4GHz or 900MHz) is selected on both receiver and transmitter.
• No Telemetry: Check the TX/RX wiring between the receiver and flight controller. Ensure CRSF protocol is correctly configured in your flight controller and transmitter.
• Receiver Not Powering On: Tirohia te hiko tuku voltage (DC 4.5-8.4V) and polarity. Inspect for any short circuits or damaged components.

9. Whakatakotoranga

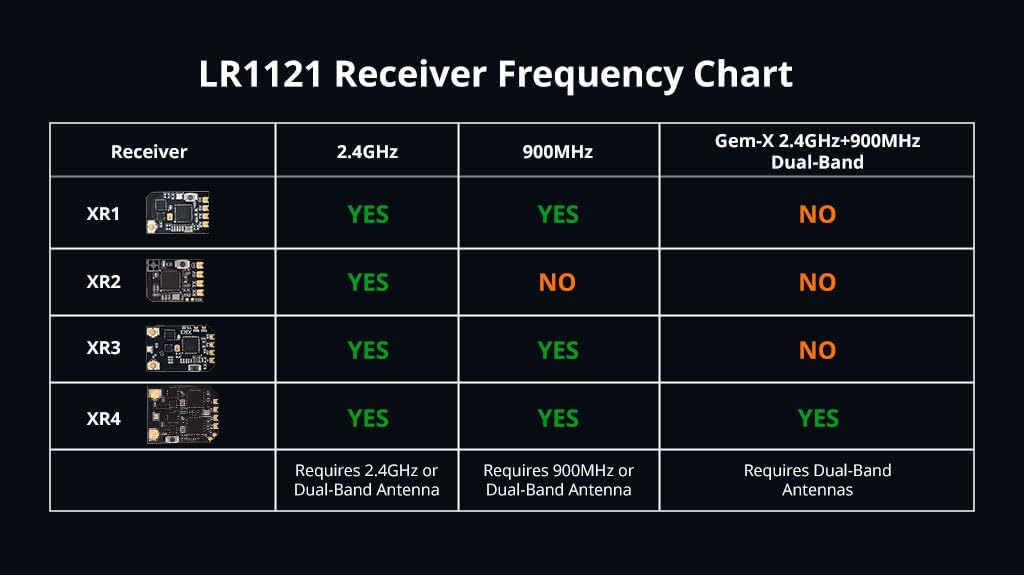

Image 9.1: LR1121 Receiver Frequency Chart, showing compatibility across different XR models.

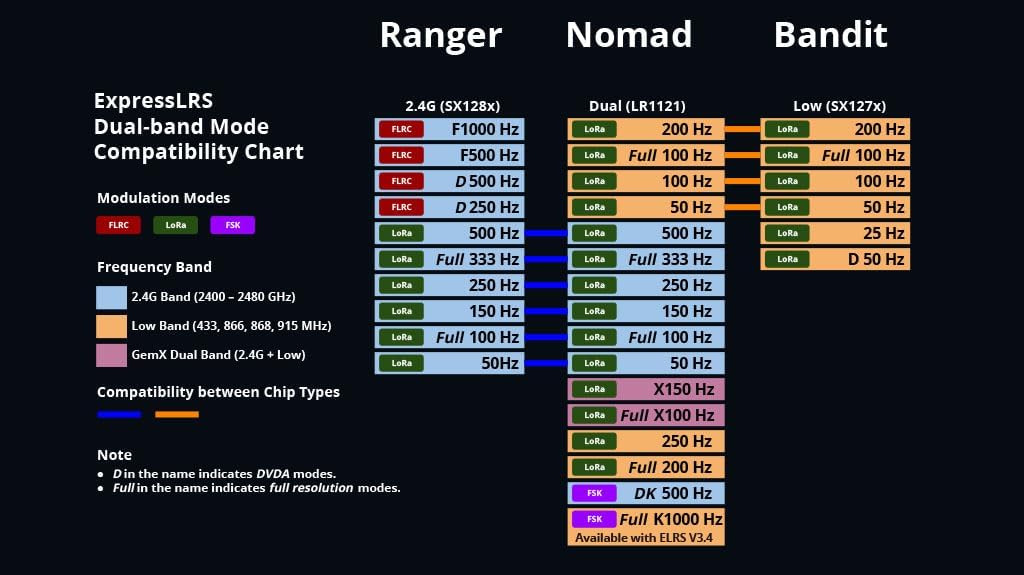

Image 9.2: ExpressLRS Dual-band Mode Compatibility Chart, detailing modulation modes and frequency bands for various modules.

10. Pūtāhui me te Tautoko

Mō ngā mōhiohio pūtāhui me te tautoko hangarau, tirohia te Radiomaster mana webpaetukutuku, whakapā atu rānei ki tō kaihokohoko whai mana. Puritia tō taunakitanga hoko mō ngā kereme pūtāhui katoa.
