iLive Cinema Pop-up Movie Kit Instruction Manual

Kupu Whakataki

The iLive Cinema Pop-up Movie Kit is a comprehensive portable entertainment solution designed to transform any space into a personal cinema. This kit includes a 720p projector, a 120-inch ultra-bright projector screen, an adjustable tripod, and a powerful Bluetooth 5.0 speaker system. Enjoy crisp images and rich audio for both indoor and outdoor movie nights.

He aha kei roto

• 720p Kaupapa
• 120-inch Anti-Wrinkle Polyester Projector Screen (16:9 aspect ratio, 1.3 gain)
• Professional-Grade Tripod with integrated bubble level (360-degree pan, ±180-degree tilt, 41.73-inch max height, 4 kg capacity)
• Bluetooth 5.0 Speaker System (dual 4-inch full-range speakers, 16W peak output, LED light effects, rechargeable battery)
• Mana Mamao
• Waea Hiko
• Tauera HDMI
• 3.5mm Waea Ororongo
• Tauira USB
• Te Kawe i te Keehi

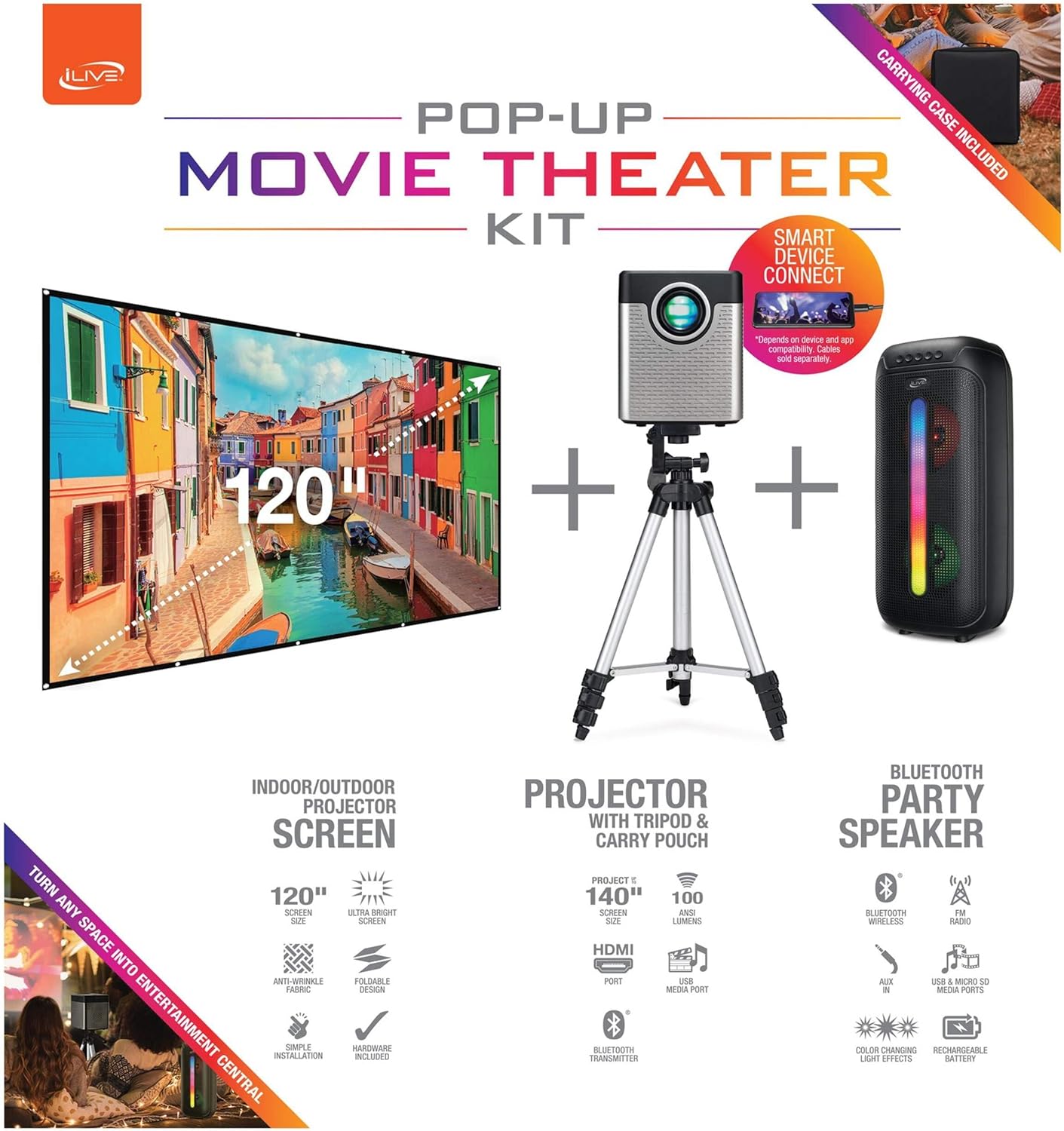

Figure 1: Diagram of the iLive Cinema Pop-up Movie Kit components.

Figure 2: The complete kit packed in its carrying case.

Tatūnga

1. Wewete Waenga: Carefully remove all items from the carrying case.
2. Huihui te Tūru Matua: Extend the legs of the tripod and secure them. Adjust the height to your desired viewing level. The integrated bubble level assists in ensuring a stable and level base.
3. Whakamau Pūwhakaata: Securely attach the projector to the tripod mount. Ensure it is stable and facing the desired projection area.
4. Set Up Screen: Unfold the 120-inch anti-wrinkle screen. If using the tripod, attach the screen to the tripod frame using the provided fasteners. Ensure the screen is taut and wrinkle-free for optimal viewing. For alternative mounting, use the grommets along the screen's edges with appropriate wall hooks (not included).
5. Position Speaker: Place the Bluetooth speaker in a location that provides optimal sound distribution for your viewrohe.
6. Hono Hono: Connect the power cable to the projector and a suitable power outlet.
7. Tūhono Pūrere (Kōwhiringa): Connect your media source (e.g., laptop, gaming console, Blu-ray player) to the projector using an HDMI or USB cable. For external audio, use the 3.5mm audio input or connect wirelessly via Bluetooth to the speaker.

Figure 3: Projector mounted on the tripod.

Whakaahua 4: Example outdoor setup with the projector and screen.

Nga Tohutohu Whakahaere

Mahinga Kaupapa

• Hiko Whakaka/Weto: Pēhia te pātene mana i runga i te pūwhakaata, i te mana mamao rānei hei whakakā, hei whakaweto rānei i te waeine.
• Pūtake Tāuru: Use the remote control to select the desired input source (HDMI, USB, etc.).
• Whakatikatika Arotahi: Whakatikatikahia te mowhiti arotahi i runga i te karu o te pūwhakaata kia mārama ra ano te ahua.
• Te Whakatikatika Kohatu: If the projected image appears trapezoidal, use the keystone correction feature (manual or automatic, if available) to adjust the image to a rectangular shape. The projector supports vertical keystone correction.
• Ahuatanga ōwehenga: Select between 16:9 and 4:3 aspect ratios based on your content and preference.
• Tawhiti Matapae: The projector has a flexible projection range of 2.6 to 12.5 feet. Adjust the distance to achieve the desired screen size.

Mahinga Kaikorero Nihokikorangi

• Hiko Whakaka/Weto: Press and hold the power button on the speaker to turn it on or off.
• Tauira Nihokikorangi: Whakahohehia te Nihokikorangi i runga i to taputapu (hei tauira, waea atamai, papa). Rapua the iLive speaker in the list of available devices and pair.
• Mana Rōrahi: Whakaritehia te rōrahi ma te whakamahi i nga mana whakahaere i runga i te kaikorero, i to taputapu hono ranei.
• Pānga Maama LED: The speaker features LED light effects. Refer to the speaker's specific controls for adjusting or disabling these effects.
• Tirotiro Ahokore Tika (TWS): If you have two iLive Bluetooth speakers, you can pair them together for a True Wireless Stereo experience. Follow the instructions provided with the speaker for TWS pairing.

Figure 5: iLive Bluetooth 5.0 Speaker.

Te tiaki

• Arotahi Kaupapa: Use a soft, lint-free cloth to gently clean the projector lens. Avoid abrasive materials or harsh chemicals.
• Projector Vents: Ensure the projector's ventilation openings are clear of dust and debris to prevent overheating.
• Whakapai Mata: The anti-wrinkle polyester screen can be gently wiped with a damp cloth if necessary. Allow it to air dry completely before folding or storing.
• Tiaki Kaikōrero: Keep the speaker dry and clean. Avoid exposing it to extreme temperatures or direct sunlight.
• Rokiroki: When not in use, store all components in the provided carrying case in a cool, dry place to protect them from dust and damage.

Raparongoā

• Kore he Atahanga i te Mata:
  • Me whakarite kei te whakakā te pūwhakaata, ā, kua tangohia te taupoki arotahi.
  • Manatokohia kua tohua te puna whakauru tika i runga i te kaupapa.
  • Tirohia mēnā kei te haumaru ngā hononga taura katoa (HDMI, USB).
• Atahanga Pouriuri:
  • Whakaritea te mowhiti arotahi ki runga i te arotahi kaupapa.
  • Ensure the projection distance is within the recommended range (2.6-12.5 ft).
• Distorted Image (Trapezoidal):
  • Use the keystone correction feature to adjust the image geometry.
  • Ensure the projector is placed on a level surface or the tripod is properly adjusted.
• Karekau he oro mai i te Kaikorero:
  • Me whakarite kua whakahikohia te kaikorero me te utu.
  • Verify Bluetooth pairing or 3.5mm audio cable connection.
  • Check volume levels on both the speaker and the connected device.
• Nga Take Takirua Nihokikorangi:
  • Me whakarite kei te aratau takirua te kaikōrero.
  • Whakatata atu te kaioro ki to taputapu.
  • Disconnect and re-pair the device.

Whakatakotoranga

Ataata Hua Whaimana

Karekau he ataata a nga kaihoko mana e waatea ana mo tenei hua i tenei wa.

Pūtāhui me te Tautoko

For warranty information or technical support, please contact iLive customer service at 1-888-999-4215. Please have your model number (THE2024BDL) and proof of purchase ready when contacting support.
