WORKPRO Mini Pliers Wrench (Model W031503)

1. Kupu Whakataki

The WORKPRO Mini Pliers Wrench, Model W031503, is a compact and versatile hand tool designed for precision tasks and use in tight spaces. Its unique design combines the functionality of pliers and a wrench, offering efficient operation without damaging workpieces.

Āhuatanga matua:

Rahi Kiato: At just 4 inches, it delivers powerful gripping performance in a compact design, ideal for precision tasks and confined areas.
Parallel Smooth Jaws: Designed to apply even pressure across flat surfaces, preventing rounding or scratching of delicate components and finished fittings.
Fast Adjustment: Features a quick adjustment mechanism for easy size changes, serving as a versatile alternative to multiple wrenches.
High-Toughness Alloy Steel: Constructed from heat-treated alloy steel for enhanced durability, corrosion resistance, and an anti-rust coating.
Mahi-maha: Suitable for everyday carry (EDC), bike maintenance, small plumbing tasks, electronics work, and general home repairs.

WORKPRO Mini Pliers Wrench, 4-inch, Silver — Figure 1: The WORKPRO Mini Pliers Wrench (Model W031503).

This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your WORKPRO Mini Pliers Wrench.

2. Nga korero haumaru

Always observe basic safety precautions when using any hand tool to reduce the risk of injury. Read and understand all instructions before operation.

Aratohu Haumaru Whanui:

Mau Karu Tiaki: Me mau tonu ngā mōhiti haumaru kua whakaaetia e te ANSI, ngā mōhiti haumaru rānei me ngā parepare taha.
Tirotiro Utauta i mua i te Whakamahi: Check for any damage, wear, or loose parts. Do not use a damaged tool.
Whakamahia te taputapu tika: Select the appropriate size and type of tool for the task.
Puritia kia ma te waahi mahi: Ensure your workspace is well-lit and free from clutter.
Kia mau te pupuri haumaru: Always hold the tool firmly to prevent slipping.
A ape i te tino whakakiki: Do not apply excessive force that could damage the workpiece or the tool.
Rokiroki Haumaru: Keep tools out of reach of children and in a dry, secure location.

3. Nga Taonga

The WORKPRO Mini Pliers Wrench consists of the following primary components:

Kauae Whakarara: Smooth, flat gripping surfaces designed to prevent damage to fasteners.
Patene Whakatikatika: A blue button located on the side for quick and easy jaw width adjustment.
Kakau: Ergonomically designed for comfortable grip and leverage.
Ratchet Mechanism: Allows for continuous tightening or loosening without repositioning the tool.
Puka Lanyard: Located at the end of the handle for attaching a lanyard or keychain for easy access and storage.

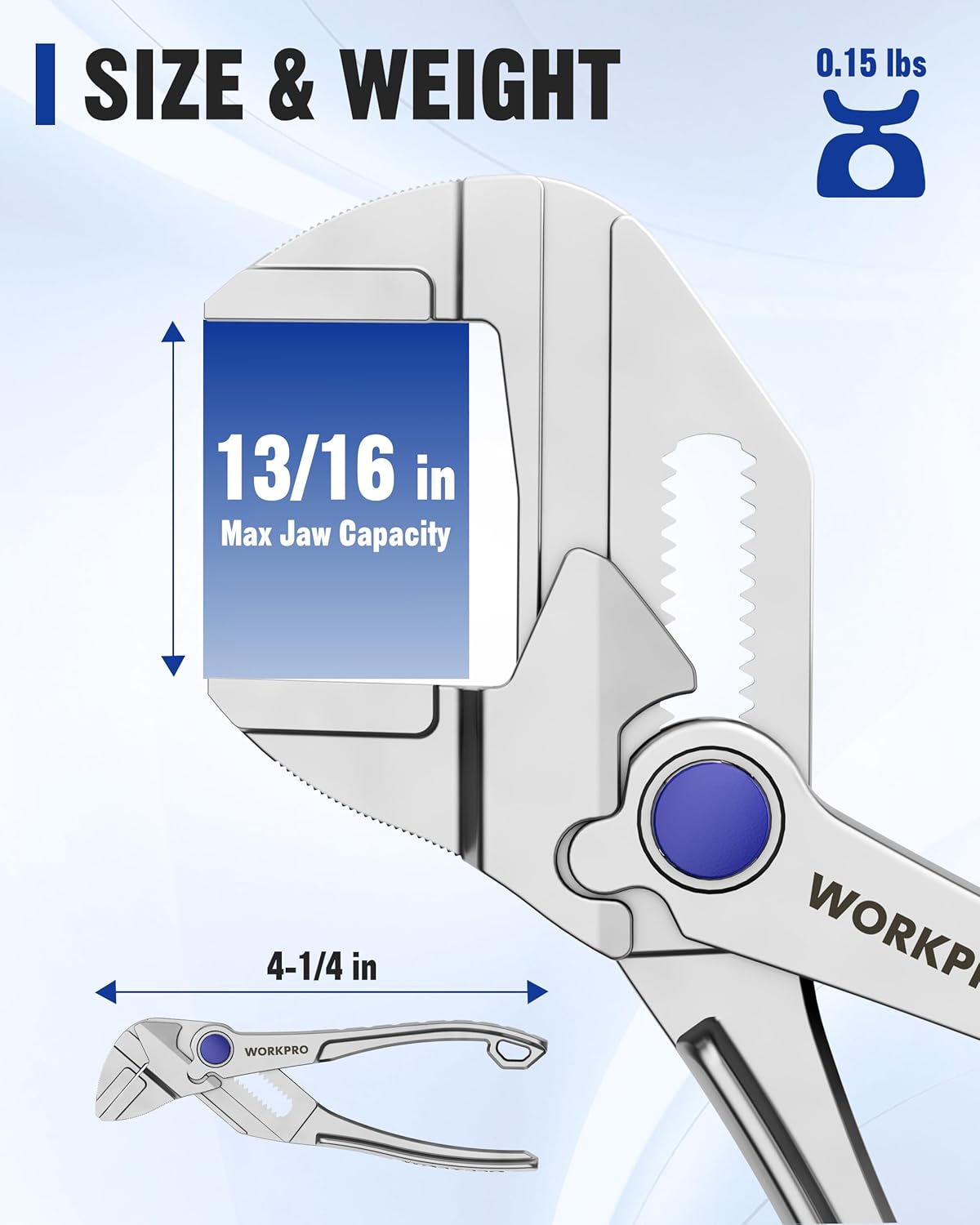

Diagram showing the size and maximum jaw capacity of the WORKPRO Mini Pliers Wrench — Figure 2: Size and maximum jaw capacity (13/16 inch) of the pliers wrench.

4. Tatūnga me te Whakatikatika

The WORKPRO Mini Pliers Wrench features a quick adjustment system for efficient operation.

Adjusting Jaw Width:

Pēhia te Pātene: Locate the blue adjustment button on the side of the pliers wrench. Press and hold this button.
Slide the Jaw: While holding the button, slide the movable jaw to the desired opening width. The tool offers 14 distinct adjustment positions.
Release the Button: Release the button to lock the jaw in place. Ensure the jaw is securely locked before applying force.

Three images demonstrating the push, move, and release steps for quick adjustment of the pliers wrench — Figure 3: Quick adjustment steps: Push, Move, Release.

5. Nga Tohutohu Whakahaere

The WORKPRO Mini Pliers Wrench is designed for gripping, holding, pressing, and bending applications, particularly where surface protection is critical.

Using the Pliers Wrench:

Select Jaw Opening: Adjust the jaw width to fit the workpiece snugly, as described in Section 4.
Whakatakotoria ngā Kauae: Place the parallel smooth jaws around the fastener or workpiece. Ensure full contact with the flat surfaces to maximize grip and prevent damage.
Hoatu Pēhanga: Squeeze the handles firmly to engage the ratchet mechanism. The parallel jaws will maintain even pressure.
Tighten or Loosen: Use the ratchet action to continuously tighten or loosen the fastener without needing to remove and reposition the tool.

Close-up of the pliers wrench gripping a nut, illustrating the parallel smooth jaws and no surface damage — Figure 4: Parallel smooth jaws ensure no surface damage.

Illustration of the ratchet action of the pliers wrench, showing continuous tightening in one motion — Figure 5: Ratchet action allows continuous tightening without repositioning.

Nga tono:

This tool is particularly effective for:

Working on chrome-plated or delicate fittings without marring.
Accessing fasteners in confined or hard-to-reach areas.
Automotive maintenance, plumbing, and bicycle repairs.
General assembly and disassembly tasks requiring precise grip.

A hand using the mini pliers wrench in a tight, hard-to-reach engine compartment — Figure 6: Ideal for tight, hard-to-reach areas.

Collage showing the pliers wrench used for automotive, bicycle, and plumbing applications — Figure 7: Multiple applications for the WORKPRO Mini Pliers Wrench.

6. Tiaki

Proper maintenance ensures the longevity and optimal performance of your WORKPRO Mini Pliers Wrench.

Te horoi me te rokiroki:

Horoi i muri i te whakamahi: Wipe the pliers wrench clean with a dry cloth after each use to remove dirt, grease, and moisture.
Whakahinuhinu: Periodically apply a light coat of machine oil to the pivot points and adjustment mechanism to ensure smooth operation and prevent corrosion.
Anti-Rust Coating: The tool features an anti-rust coating, but regular cleaning and lubrication will further protect it from environmental elements.
Rokiroki: Store the tool in a dry environment, away from excessive humidity or corrosive substances.

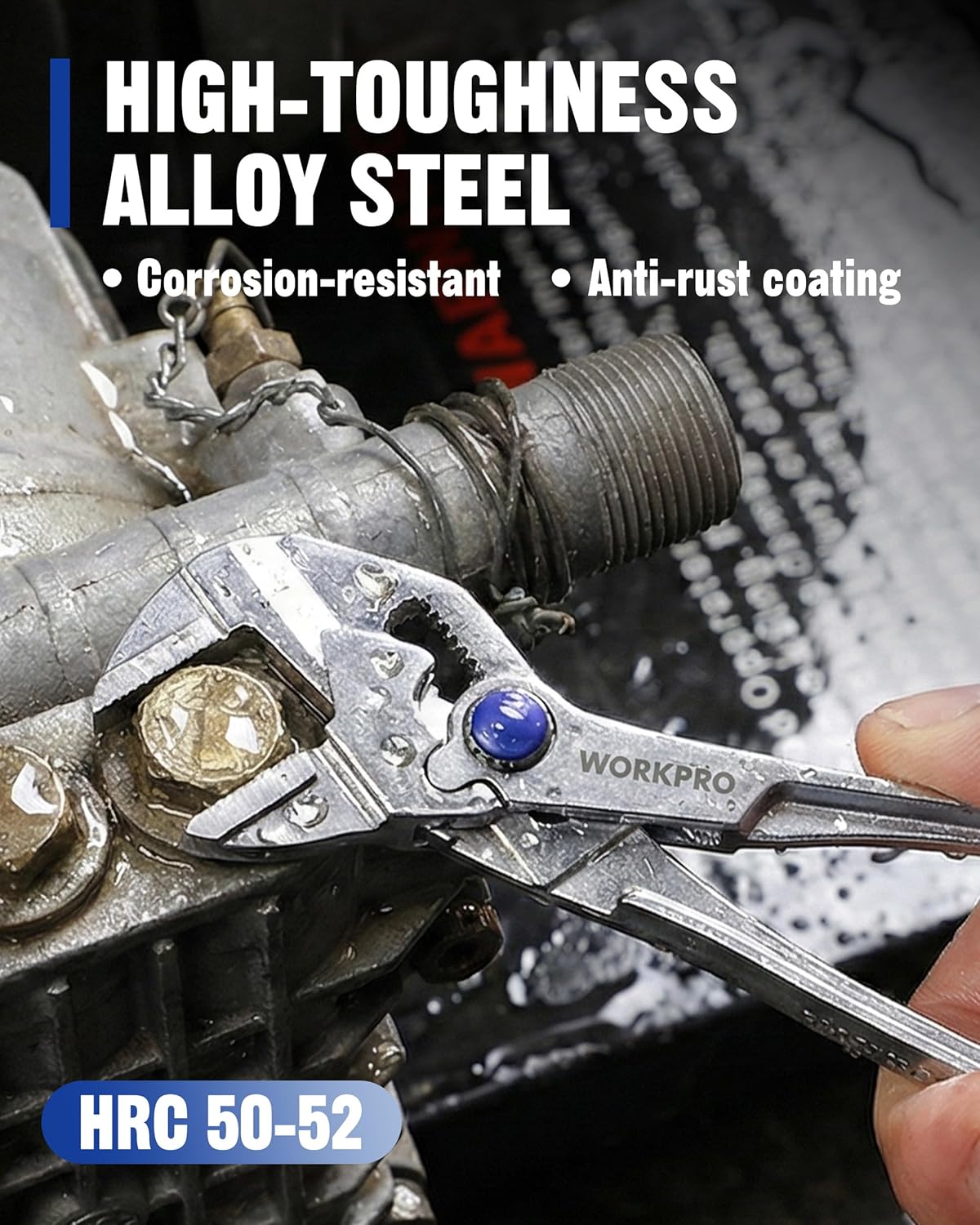

Close-up of the pliers wrench in use, highlighting its high-toughness alloy steel construction and anti-rust coating — Figure 8: High-toughness alloy steel with anti-rust coating for durability.

Two images showing the mini pliers wrench being stored on a pegboard and carried in a pocket, demonstrating its easy storage — Figure 9: The compact design allows for easy storage and everyday carry.

7. Te Raru

If you encounter issues with your WORKPRO Mini Pliers Wrench, refer to the following common problems and solutions:

Raruraru	Take pea	Rongoā
Jaws are stiff or difficult to adjust.	Lack of lubrication, dirt accumulation.	Clean the adjustment mechanism and pivot points. Apply a light machine oil.
Tool slips on workpiece.	Incorrect jaw adjustment, excessive force, worn jaws.	Ensure jaws are adjusted snugly to the workpiece. Apply firm, even pressure. If jaws are worn, consider replacement.
Rust or corrosion appears.	Te whakakitenga ki te makuku, ki nga taiao pirau ranei.	Clean immediately and apply anti-rust oil. Store in a dry place.

8. Whakatakotoranga

Āhuahira	Taipitopito
Tau tauira	W031503
Taumaha Tūemi	2.47 hekere
Hunga Hua	4.21 x 2 x 0.63 inihi
Tae	kirikiri
Rauemi	Korotahi Steel
Puna Mana	ā-ringa
Te Rahi Paanui	1
Rauemi Kakau	Korotahi Steel
Whakamahinga	kopikopiko
Nga Waahanga kei roto	Kuu kumine

9. Nga Korero Whakaputanga

WORKPRO tools are manufactured to high-quality standards and are warranted against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official WORKPRO webpae.

Puritia to riirii hoko hei tohu mo te hoko mo nga kereme whakamana.

10. Tautoko Kiritaki

For further assistance, technical support, or to inquire about replacement parts, please contact WORKPRO customer service:

Webpae: Visit the WORKPRO Store on Amazon
Kaihanga: HANGZHOU GREATSTAR INDUSTRIAL CO.,LTD

Please have your product model number (W031503) and purchase information ready when contacting support.
