1. Kupu Whakataki
The ATTACK SHARK G800 is a versatile wireless RGB gaming headset designed for an immersive audio experience across multiple platforms. It features tri-mode connectivity (2.4Ghz wireless, Bluetooth, and wired), 7.1 virtual surround sound, 50mm drivers, and a detachable AI noise-canceling microphone. This manual provides instructions for setup, operation, and maintenance to ensure optimal performance.
Image: The G800 headset in use, highlighting its RGB lighting and comfortable fit.
2. He aha kei roto i te Pouaka
- ATTACK SHARK G800 Wireless RGB Gaming Headset
- Detachable AI Noise-Canceling Microphone
- 2.4Ghz Wireless USB-A + Type-C Dual-Head Receiver
- USB-A ki USB-C Utaura Whakatau
- Taura Ororongo USB-C ki USB-C
- Pukapuka Kaiwhakamahi (tenei tuhinga)
3. Hua Neke AtuviewNgā Mana Whakahaere me ngā Tauranga
Familiarize yourself with the various controls and ports on your G800 headset for seamless operation.

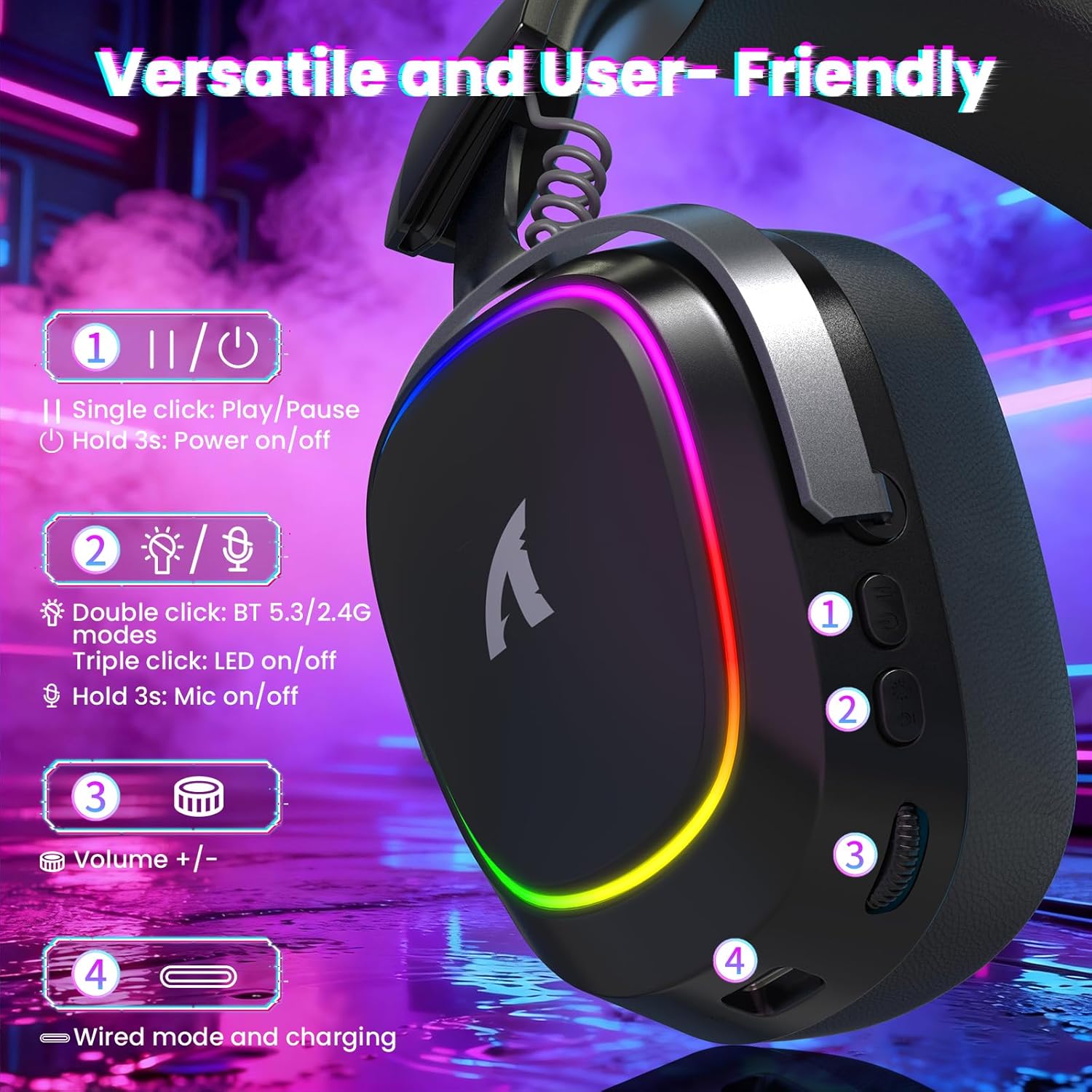

Whakaahua: Taipitopito view of the headset's left earcup with numbered controls and their functions.
- Play/Pause & Power Button: Single click for play/pause. Hold for 3 seconds to power on/off.
- Mode Switch & LED/Mic Control: Double click to switch between Bluetooth (BT 5.3) and 2.4Ghz wireless modes. Triple click to toggle RGB LED on/off. Hold for 3 seconds to toggle microphone on/off.
- Wīra Rōrahi: Rotate to adjust audio volume up or down.
- Wired Mode & Charging Port: USB-C port for wired connection and charging.
- Hiko Miihini: Port for connecting the detachable microphone.
4. Tatūnga me te Hononga
The G800 headset offers three connection methods: 2.4Ghz wireless, Bluetooth, and wired.

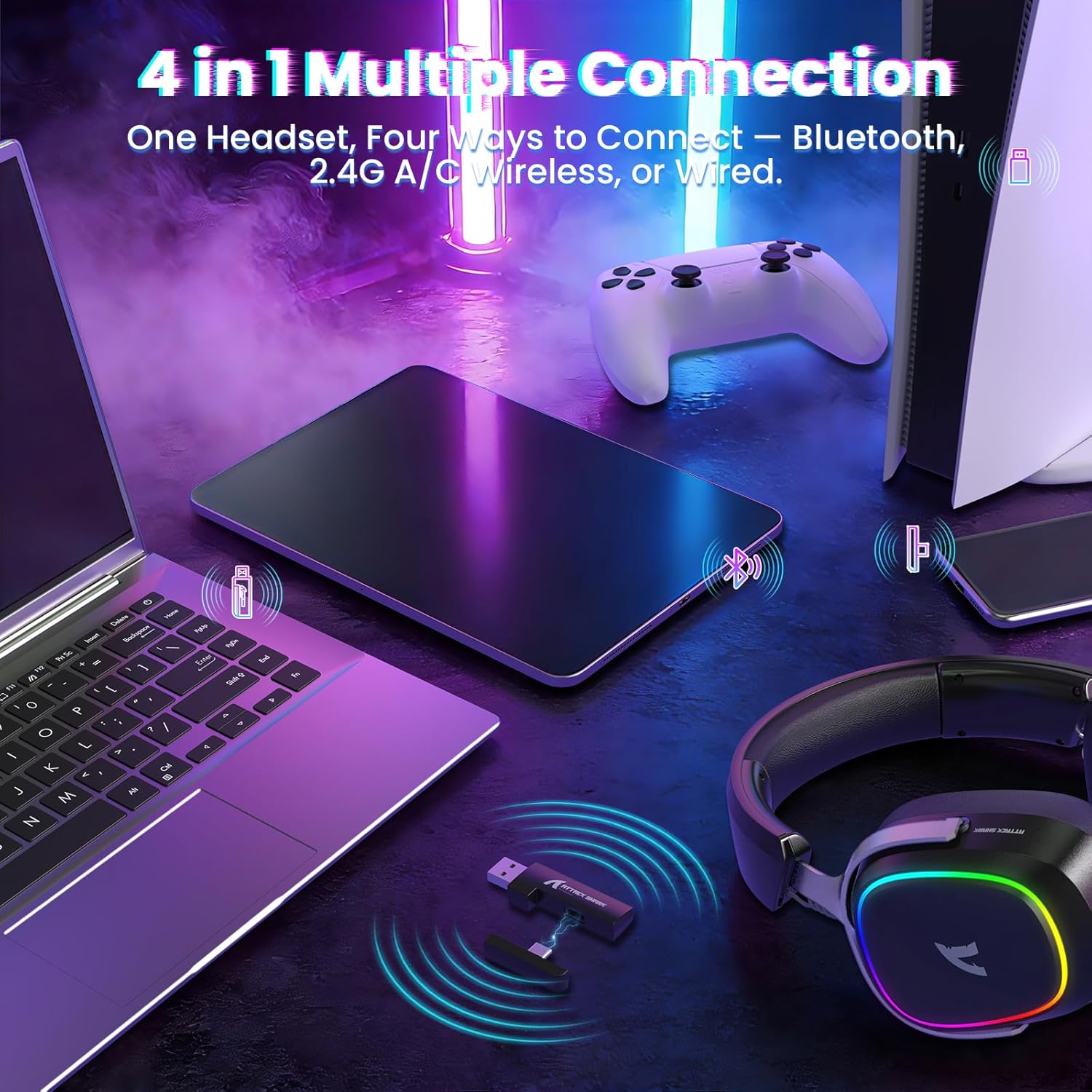

Image: The headset demonstrating its multi-platform connectivity options.
4.1. Hononga Ahokore 2.4Ghz
- Insert the 2.4Ghz USB-A or Type-C dual-head receiver into an available USB port on your PC, laptop, or PS5.
- Power on the G800 headset by holding the Power Button (1) for 3 seconds.
- Double click the Mode Switch (2) until the headset indicates 2.4Ghz mode (usually via an LED indicator or voice prompt).
- The headset should automatically connect to the receiver. If not, ensure the receiver is properly inserted and the headset is in 2.4Ghz mode.
4.2. Hononga Nihokikorangi
- Power on the G800 headset by holding the Power Button (1) for 3 seconds.
- Double click the Mode Switch (2) until the headset indicates Bluetooth mode (usually via an LED indicator or voice prompt). The headset will enter pairing mode.
- On your device (e.g., mobile phone, tablet, PC), go to Bluetooth settings and search for available devices.
- Select "ATTACK SHARK G800" from the list to pair.
4.3. Hononga Waea
- Connect one end of the USB-C audio cable to the Wired Mode & Charging Port (4) on the headset.
- Connect the other end of the USB-C audio cable to your device's compatible port.
- Ka huri aunoa te pane whakarongo ki te aratau waea.
4.4. Te Whakataki i te Paneoro
The G800 headset is equipped with a 1000mAh battery for extended use.
Image: Visual representation of the headset's 1000mAh battery capacity.
- Connect the USB-A to USB-C charging cable to the Wired Mode & Charging Port (4) on the headset and to a USB power source (e.g., computer USB port, wall adapter).
- Ka whakaatuhia te tūnga utu e te tohu LED i runga i te pane whakarongo.
- The headset includes charging over-voltage protection for safety.
- An auto-shutdown function activates after 5 minutes of inactivity to conserve power.
5. Nga Tohutohu Whakahaere
5.1. Wheako Ororongo
The G800 features 50mm large-aperture biological diaphragm drivers and virtual 7.1 surround sound for an immersive audio experience.
Image: The 50mm audio drivers, responsible for high-fidelity sound.
Image: Demonstrating the 7.1 surround sound capability for precise audio positioning.
5.2. Whakamahinga Waorooro
The detachable 360° AI Noise-Canceling Microphone ensures clear voice communication by filtering out background noise.
- Insert the detachable microphone into the dedicated microphone jack on the headset.
- Hold the Mode Switch (2) for 3 seconds to toggle the microphone on or off.
5.3. Mana Rarama RGB
The headset features customizable RGB lighting.
- Triple click the Mode Switch (2) to toggle the RGB LED lighting on or off.
5.4. Whakaritenga Pūmanawa
Enhance your audio experience with the dedicated driver software.
Image: The software interface for customizing audio settings.
- Download the official ATTACK SHARK G800 driver software from the manufacturer's webpae.
- The software allows you to create custom EQ sound profiles and fine-tune 7.1 surround sound settings to match your preferences and game types.
6. Tiaki
Proper maintenance ensures the longevity and performance of your G800 headset.
- Te horoi: Use a soft, dry cloth to clean the headset. Avoid liquid cleaners or abrasive materials.
- Rokiroki: Whakaorangia te pane ki te waahi makariri, maroke atu i te ra tika me te wera nui.
- Pataritaringa: The ear cushions are replaceable. Refer to the manufacturer's website for replacement parts and instructions.
Image: Components of the headset, including replaceable ear cushions.
7. Te Raru
- Kore Oro:
- Tirohia te taumata oro i runga i te pane whakarongo me tō pūrere hono.
- Ensure the correct audio output device is selected in your device's sound settings.
- Verify the headset is properly connected (2.4Ghz receiver, Bluetooth paired, or wired cable).
- Tīmata anō i te pane whakarongo me tō pūrere.
- Kaore i te Mahi:
- Me whakarite kia mau te hopuoro ki te pane.
- Check if the microphone is muted (hold Mode Switch (2) for 3 seconds to toggle).
- Manatokohia kua tīpakohia te pūrere tāuru hopuoro tika i roto i ngā tautuhinga oro o tō pūrere.
- Whakamātauria te hopuoro i runga i tētahi atu taputapu mēnā ka taea.
- Nga Take Hononga:
- For 2.4Ghz, ensure the receiver is fully inserted and the headset is in 2.4Ghz mode.
- For Bluetooth, ensure the headset is in pairing mode and within range of your device. Try unpairing and re-pairing.
- For wired, ensure the cable is securely connected to both the headset and your device.
- Avoid sources of interference (e.g., other wireless devices, microwaves).
- Raiti RGB Kare e Mahi:
- Triple click the Mode Switch (2) to toggle the RGB LED on/off.
- Me whakarite kei te rawaka te kaha pākahiko o te pane whakarongo.
8. Whakatakotoranga
| Āhuahira | Whakatakotoranga |
|---|---|
| Ingoa Tauira | G800 |
| Hangarau Hononga | Wired, Bluetooth (BT 5.3), 2.4Ghz Wireless |
| Momo Atekōkiri Ororongo | Atekōkiri Hihiko (50mm) |
| Te Oro Karapoti | Virtual 7.1 Spatial Audio |
| hopuoro | Detachable 360° AI Noise-Canceling |
| Wireless Latency (2.4Ghz) | 20ms (Lightseed Wireless Technology) |
| Wireless Range (2.4Ghz) | Tae atu ki te 10m / 32.8ft |
| Awhe Nihokikorangi | Tae atu ki te 30m / 98.4ft |
| Pūhiko Raukaha | 1000mAh |
| Te Whakanoho Taringa | Ki runga Taringa |
| Rauemi | Aluminum Alloy, Protein Leather, Memory Foam |
| Taumaha | 1.1 pauna (hua) |
| Pūrere Hototahi | PC, Laptops, PS5, Mobile Devices |
9. Nga korero haumaru
- Kaua e whakarongo roa ki ngā oro teitei hei ārai i te kino o te whakarongo.
- Kaua e whakaatuhia te pane whakarongo ki ngā pāmahana tino kino, ki te haumākū, ki ngā wai rānei.
- Kaua e taea e nga tamariki.
- Kaua e ngana ki te wetewete, ki te whakarereke ranei i te pane. Ma tenei ka whakakore i te whakamana.
- Whakakorehia te hua kia rite ki nga ture o te rohe.
10. Ataata Hua Whaimana
Ataata: He whakaaturanga ataata hua whai manacasing the ATTACK SHARK G800 Wireless Tri Mode RGB Gaming Headset's features and design. This video is provided by the seller, UrWorthLtd US.
11. Pūtāhui me te Tautoko
For warranty information, technical support, or customer service, please refer to the documentation included with your purchase or visit the official ATTACK SHARK webpae. Puritia to tohu hoko mo nga kereme whakamana.
