Ka mutu te huaview
The hansgrohe Xarita Lite S mirror is a round bathroom mirror featuring integrated LED lighting and an infrared (IR) sensor for control. It is designed to provide even illumination and includes comfort functions such as dimmable light, a mirror heater to prevent fogging, and a memory function to recall previous settings. The mirror also incorporates an automatic shut-off feature for energy efficiency.

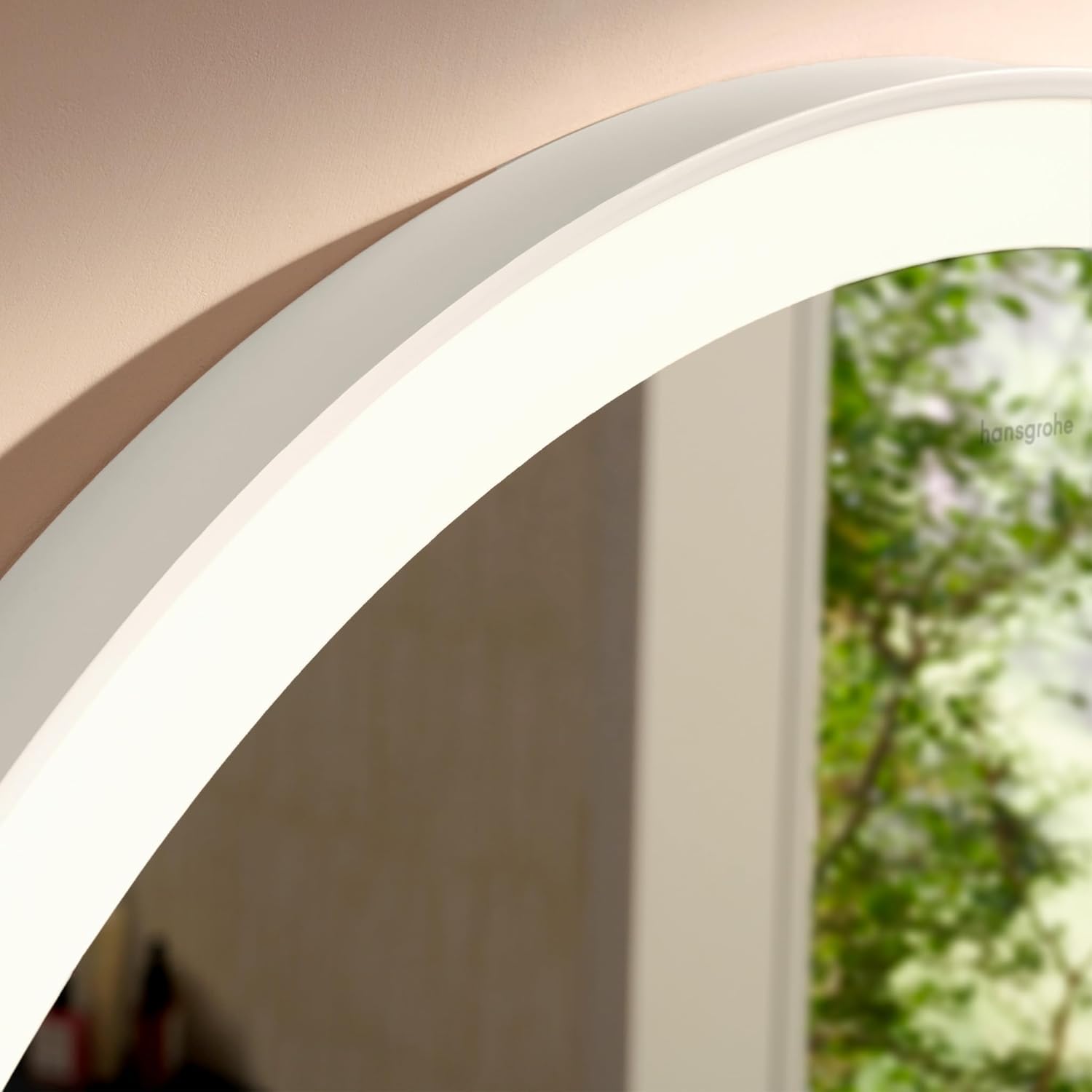

Image: The hansgrohe Xarita Lite S mirror in use, demonstrating its integrated LED lighting and clear reflection.
Tāuta me te Tatūnga
Installation of the hansgrohe Xarita Lite S mirror requires electrical connection. For safety and proper functionality, hansgrohe recommends that installation and electrical connection be performed by a qualified specialist or installer with appropriate qualifications.
Mounting hardware and assembly instructions are included with the mirror. Please refer to the detailed assembly instructions provided in the packaging for specific steps and safety guidelines.
Ahu
Image: Technical drawing illustrating the dimensions of the round mirror, including its 700mm diameter and mounting specifications.
- Diane: 700 mm
- Hōhonu: 33 mm
- Mounting Bracket Spacing: 300 mm (center-to-center)
- Distance from top edge to mounting points: 230 mm
Nga Waahanga kei roto
- Mirror unit
- Maunga taputapu
- Nga tohutohu hui
- LED bulb (integrated)
Mahi
Light Control (IR Sensor)
The mirror's LED lighting is controlled via a contactless infrared (IR) sensor. To activate or deactivate the light, simply wave your hand in front of the sensor located on the mirror frame.
- Whakaritenga Tirohanga: The light brightness is continuously adjustable (dimming function). To dim, hold your hand in front of the IR sensor until the desired brightness is achieved.
- Tae Maama: The LED light provides a neutral white color (4,000 K), optimized for accurate color reproduction.
Whakawera whakaata
The integrated mirror heater prevents the glass surface from fogging up, ensuring a clear view even in humid bathroom conditions. The heater activates automatically with the light or can be controlled independently depending on the specific model configuration (refer to full assembly instructions).
Mahi Mahara
The mirror is equipped with a memory function that saves the last used brightness setting. When the mirror is turned on again, it will recall this setting.
Whakaweto Aunoa
For energy saving and convenience, the mirror's lighting automatically turns off after 8 hours of continuous operation if not manually switched off. This feature helps prevent unnecessary power consumption.
Tiaki me te Tiaki
Te horoi
To clean the mirror surface and frame, use a soft, damp cloth and a mild, non-abrasive cleaning agent. Avoid using harsh chemicals, abrasive pads, or solvents, as these can damage the mirror's finish or electronic components. Ensure no liquid enters the electrical components.
Whakakapinga LED
The integrated LED components are designed for a long lifespan. In the event of an LED malfunction, the LEDs are replaceable. This procedure should be carried out by a qualified technician to ensure safety and proper function.
Raparongoā
If you experience issues with your hansgrohe Xarita Lite S mirror, please consult the following common solutions:
- Kare te rama e ka ana:
- Check the main power supply to the mirror.
- Ensure the IR sensor is not obstructed and your hand movement is clear.
- If recently installed, verify electrical connections were made correctly by a professional.
- Kare te rama e muramura:
- Ensure you are holding your hand steadily in front of the IR sensor for continuous adjustment.
- Mirror fogging:
- Verify the mirror heater function is active (often linked to the light being on).
- Allow a few minutes for the heater to warm up and clear the fog.
- Memory function not working:
- Ensure the mirror is powered consistently. Power interruptions may reset the memory.
If these steps do not resolve the issue, please contact hansgrohe customer support or a qualified electrician.
Whakatakotoranga Hangarau
| Āhuahira | Whakatakotoranga |
|---|---|
| Tauira | Xarita Lite S |
| Tau Hua | 54966700 |
| Hanga | Porowhita |
| Ahu (Diamita x Hohonu) | 700 mm x 33 mm |
| Taumaha Tūemi | 5.82 Kirokaramu |
| Rauemi Tāpare | Konumohe |
| Momo Whakaoti | Painted (Matte White) |
| Momo Whakaeke | Maunga Taiepa |
| Momo Rama | Direct LED light |
| Te Maamaa Tae Maama | 4,000 K (Kūpapa Mā) |
| Nga waahanga motuhake | Lighted, Touch Sensor (IR), Dimmable, Mirror Heater, Memory Function, Automatic Shut-off |
| Whakatauranga IP | IP44 (Riwhi-awhi) |
| Huihuinga e hiahiatia ana | No (Professional installation recommended for electrical connection) |
| Nga Pikohiko e hiahiatia ana | Kao |
Pūtāhui me te Tautoko
The hansgrohe Xarita Lite S mirror comes with a 5-year warranty, providing comprehensive security against manufacturing defects. This warranty underscores the product's quality and durability.
For technical assistance, warranty claims, or further information, please contact hansgrohe customer support through their official website or the contact details provided in your product documentation. Always provide your model number (54966700) when seeking support.
For sustainable use, hansgrohe ensures that components, including LEDs, are replaceable if necessary, extending the product's lifespan.
